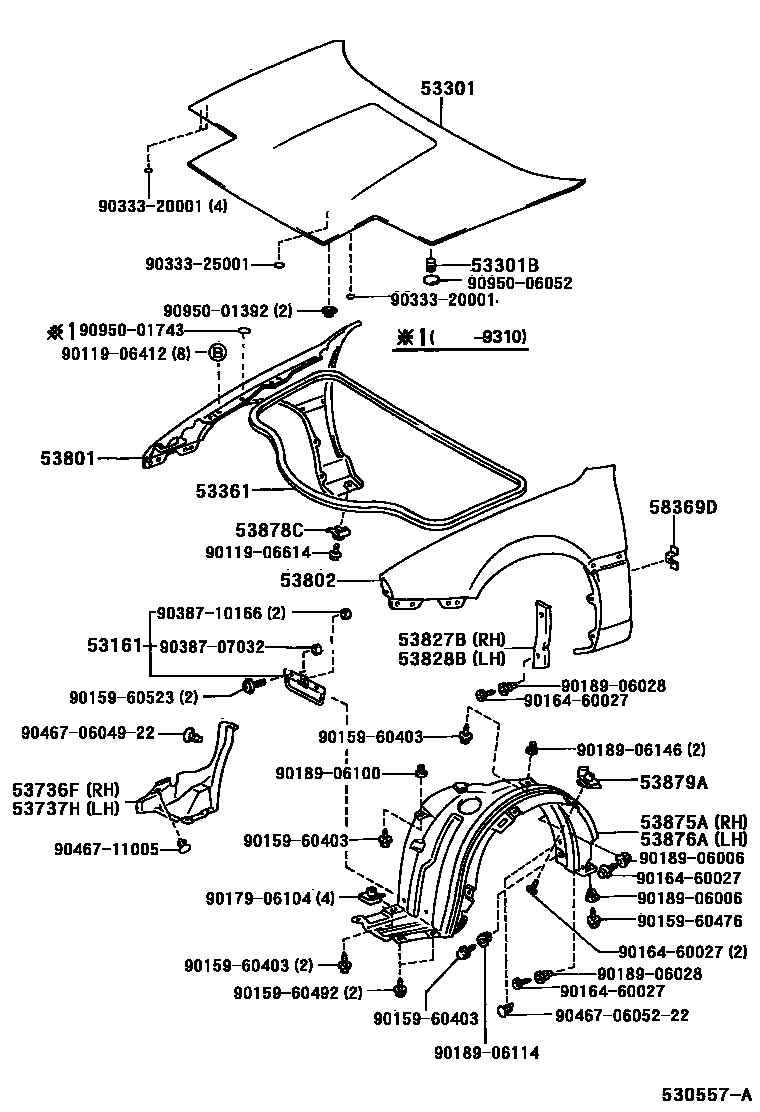

HOOD & FRONT FENDER
53161DEFLECTOR, FRONT BUMPER STONE
53301HOOD SUB-ASSY
53301BCUSHION, HOOD BUMPER
53361WEATHERSTRIP, HOOD
53736FSEAL, FRONT FENDER APRON, RH
53737HSEAL, FRONT FENDER APRON, LH
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53827BPROTECTOR, FRONT FENDER SIDE PANEL
53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH
53875ALINER, FRONT FENDER, RH
53876ALINER, FRONT FENDER, LH
53878CSPACER, FRONT FENDER
53879ARETAINER, FRONT FENDER LINER
58369DBRACKET, FUEL TUBE, NO.3
9011906412
main90119-06412
9011906614
main90119-06614
9015960403
main90159-60403
9015960476
main90159-60476
9015960492
main90159-60492
9015960523
main90159-60523
9016460027
main90164-60027
9017906104
main90179-06104
9018906006
main90189-06006
9018906028
main90189-06028
9018906100
main90189-06100
9018906114
main90189-06114
9018906146
main90189-06146
9033320001
main90333-20001
9033325001
main90333-25001
9038707032
main90387-07032
9038710166
main90387-10166
904670604922
main90467-0604922
904670605222
main90467-0605222
9046711005
main90467-11005
9095001392
main90950-01392
9095001743
main90950-01743
9095006052
main90950-06052
38 parts on this diagram · 1 diagram in section
