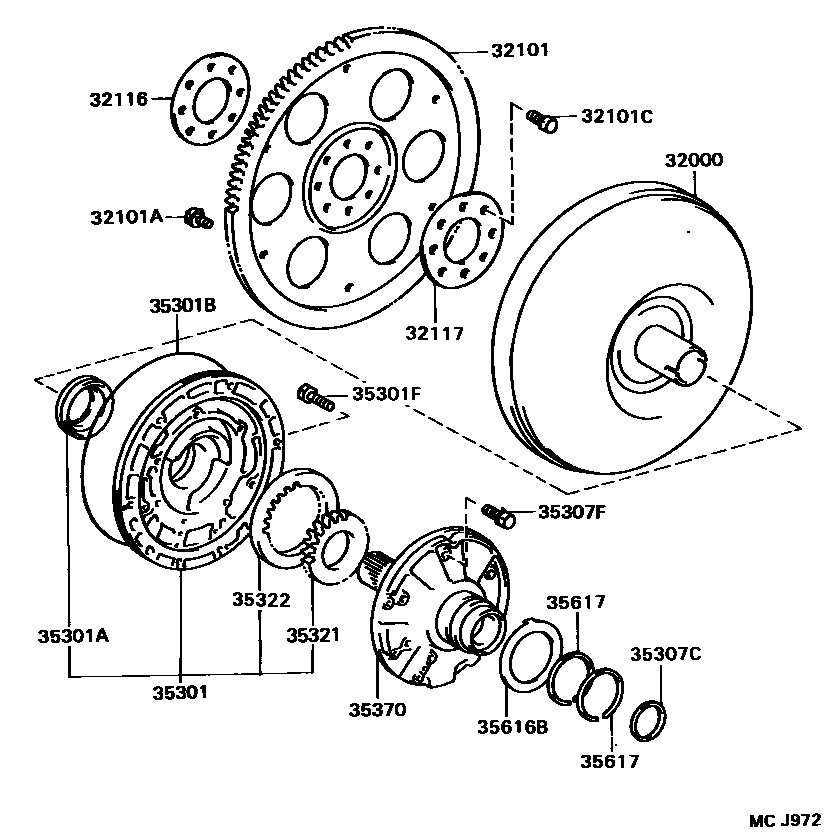

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

32000CONVERTER ASSY, TORQUE

main32000-20210iSW20..4FC198912-199112

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-20081iSW20..4FC198912-199112

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iSW20..4FC198912-199112

*8-1.25PX12-8.4,OLIVE GREEN

main90119-08498×5iSW20..4FC198912-199112

*8-1.25PX12-8,BLACK

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-12184×8iSW20..4FC198912-199112

sub90105-12384

32116SPACER, DRIVE PLATE, FRONT

main32116-20050iSW20..4FC198912-199112

32117SPACER, DRIVE PLATE, REAR

main32117-20060iSW20..4FC198912-199112

35301BODY SUB-ASSY, FRONT OIL PUMP

main35035-12010iSW20..4FC198912-199112

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38020iSW20..4FC198912-199112

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99024iSW20..4FC198912-199112

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08198×6iSW20..4FC198912-199112

*8-1.25PX28-28

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-32020iSW20..4FC198912-199112

T=0.8

main35789-32030iSW20..4FC198912-199112

T=1.4

35307FBOLT (FOR STATOR SHAFT)

main90119-06180×11iSW20..4FC198912-199112

35321GEAR, FRONT OIL PUMP DRIVE

main35321-12020iSW20..4FC198912-199112

T=10.690-10.699

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-35010iSW20..4FC198912-199112

T=10.690-10.740

sub35322-12030

35370SHAFT ASSY, STATOR

main35370-12040iSW20..4FC199009-199112

main35370-32022iSW20..4FC198912-199009

sub35370-20H00

sub35370-32H01

35616BWASHER, CLUTCH DRUM THRUST (FOR STATOR SHAFT)

main35616-32010iSW20..4FC198912-199112

35617RING, CLUTCH DRUM OIL SEAL

main35617-32011×2iSW20..4FC198912-199112

17 parts on this diagram · 1 diagram in section
