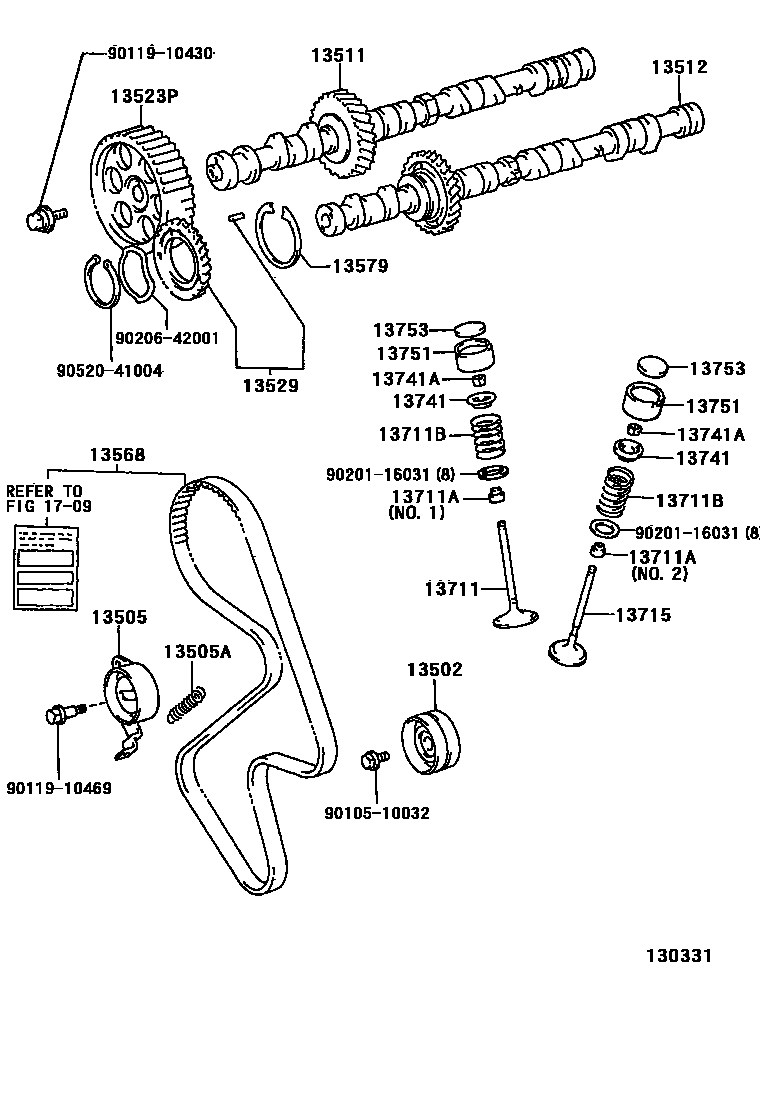

CAMSHAFT & VALVE
13502IDLER SUB-ASSY, TIMING BELT, NO.2
KOYO
NSK
13505IDLER SUB-ASSY, TIMING BELT, NO.1
13511CAMSHAFT
13529GEAR, CAMSHAFT SUB
13568BELT, TIMING
sub13568-74012
sub13568-79025
sub13568-79095
sub13568-79305
sub13568-79315
sub13568-79045
13579WASHER, CAMSHAFT TIMING GEAR BOLT
13711VALVE, INTAKE
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
NO.1
NO.2
NO.1
NO.2
13711BSPRING, COMPRESSION(FOR INNER)
INTAKE SIDE
13715VALVE, EXHAUST
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
13753SHIM, VALVE ADJUSTING
T=2.50
T=2.55
T=3.25
T=3.30
T=2.50
T=2.55
T=2.60
T=2.65
T=2.70
T=2.75
T=2.80
T=2.85
T=2.90
T=2.95
T=3.00
T=3.05
T=3.10
T=3.15
T=3.20
T=3.25
T=3.30
T=2.50
T=2.55
T=2.60
T=2.65
T=2.70
T=2.75
T=2.80
T=2.85
T=2.90
T=2.95
T=3.00
T=3.05
T=3.10
T=3.15
T=3.20
T=3.25
T=3.30
T=3.35
T=3.39
1709
9010510032
main90105-10032
9011910430
main90119-10430
9011910469
main90119-10469
9020116031
main90201-16031
9020642001
main90206-42001
9052041004
main90520-41004
24 parts on this diagram · 3 diagrams in section
