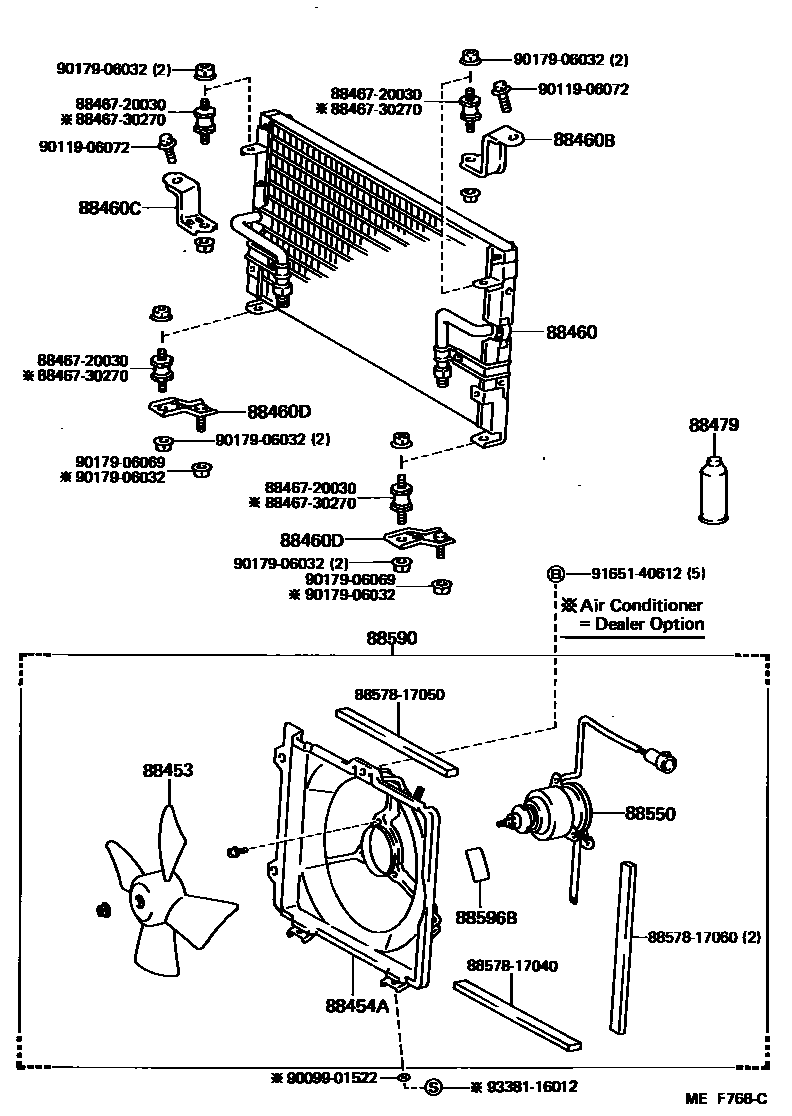

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1

88453FAN, COOLING (FOR CONDENSER)

main16361-16020iAW11..LHD..GEN198803-198912

88454ASHROUD, FAN

main88590-17030iAW11..GEN198411-198608

main88590-17090iAW11..ARL,GEN198608-198803

88460CONDENSER ASSY, COOLER

main88460-17020iAW11..GEN198411-198608

main88460-17040iAW11..LHD..GEN198803-198912

88460BBRACKET, COOLER CONDENSER, NO.1

main88688-17020iAW11..GEN198411-198608

main88688-17190iAW11..ARL,GEN198608-198803

88460CBRACKET, COOLER CONDENSER, NO.2

main88688-17010iAW11..GEN198411-198608

main88688-17180iAW11..ARL,GEN198608-198803

88460DBRACKET, COOLER CONDENSER, NO.3

main88688-17030iAW11..GEN198411-198608

main88688-17200iAW11..LHD..GEN198803-198912

RH

main88688-17210iAW11..LHD..GEN198803-198912

LH

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02001×3iAW11..ARL,GEN198411-198803

400G

sub90986-02005

main90986-02002×3iAW11..RHD..GEN198811-198910

300G

main90986-02004×3iAW11..RHD..GEN198910-198912

250G,250G

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main16363-16010iAW11..ARL,GEN198411-198803

88590BLOWER ASSY, W/SHROUD

main88590-17010iAW11..GEN198411-198608

main88590-17070iAW11..ARL,GEN198608-198803

88596BPLATE, CAUTION, NO.1

main88596-14010iAW11..GEN198411-198608

8846720030CUSHION, COOLER CONDENSER, NO.1

main88467-20030

8846730270CUSHION, COOLER CONDENSER, NO.1

main88467-30270

8857817040PAKING, COOLER AIR DUCT

main88578-17040

8857817050PAKING, COOLER AIR DUCT

main88578-17050

8857817060PAKING, COOLER AIR DUCT

main88578-17060

9009901522

main90099-01522

9011906072

main90119-06072

9017906032

main90179-06032

9017906069

main90179-06069

9165140612

main91651-40612

9338116012

main93381-16012

21 parts on this diagram · 5 diagrams in section
