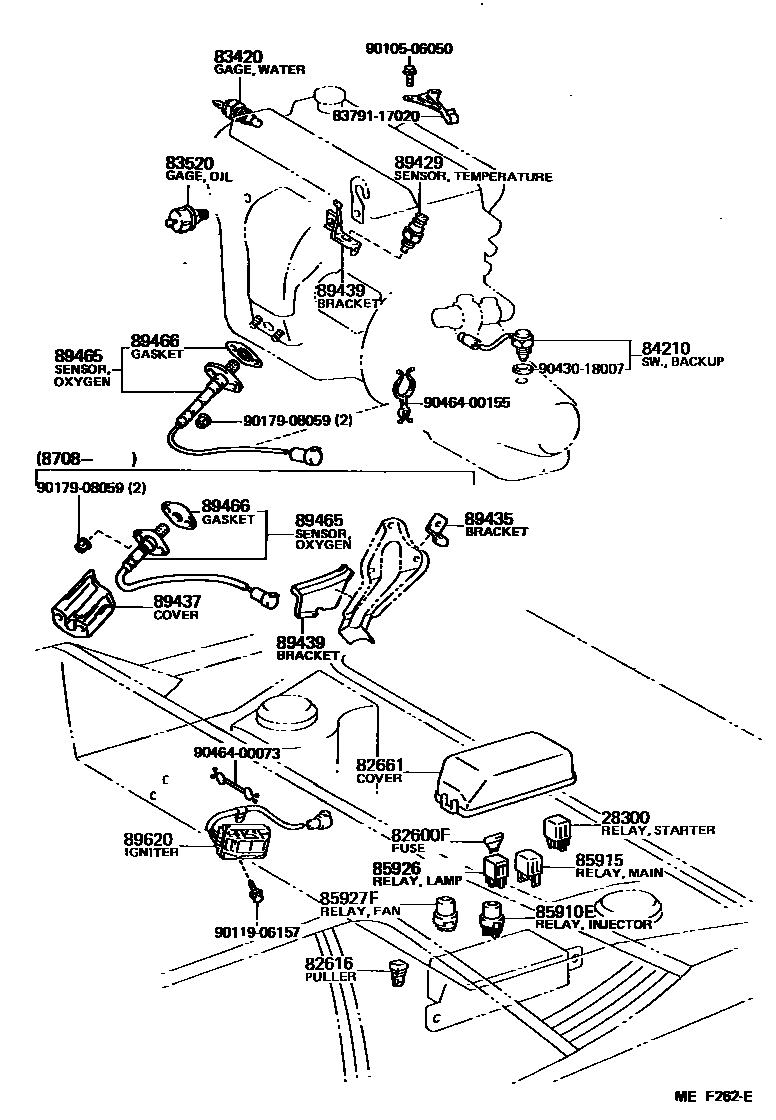

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1

28300RELAY ASSY, STARTER

main28300-24031i4AG#..AW11198411-198912

sub28300-16010

82600FFUSE, FUSE BLOCK

main90982-07011iAW11198803-198912

30A,GREEN

main90982-07011iAW11198411-198803

30A,GREEN,30A

main90982-09001iAW11198411-198803

5A,5A

main90982-09001iAW11198803-198912

5A

main90982-09002iAW11..LHD..EUR198803-198912

10A

main90982-09002iAW11198411-198803

10A,10A

main90982-09003iAW11..RHD;AW11..LHD..GEN198803-198912

15A

main90982-09003iAW11198411-198803

15A,15A

main90982-09004iAW11198803-198912

20A,YELLOW

main90982-09004iAW11198411-198803

20A,YELLOW,20A

main90982-09005iAW11..RHD;AW11..LHD..GEN198803-198912

7.5A

main90982-09005iAW11198411-198803

7.5A,7.5A

82616PULLER, FUSE

main82616-12010iAW11198411-198912

82661COVER, RELAY BLOCK, NO.1

main82661-17010iAW11..RHD198411-198608

main82661-17011iAW11..RHD198608-198912

main82661-17020iAW11..LHD198411-198608

main82661-17021iAW11..LHD..EUG;AW11..LHD..GEN198608-198912

main82661-17031iAW11..FRG198608-198912

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20020iAW11198411-198803

main83420-20020iAW11198803-198912

DENSO

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-14022iAW11198411-198705

sub83520-14023

main83520-14023iAW11198705-198912

sub83520-35030

84210SWITCH ASSY, BACK-UP LAMP

main84210-60021iAW11198411-198912

85910ERELAY, INJECTOR

main90987-02004iAW11198411-198803

85915RELAY, MAIN

main90987-04002iAW11198411-198912

85926RELAY, HEADLAMP DIMMER

main85926-30020iAW11..RHD..EUG198411-198912

85927RELAY, COOLING FAN

main85925-17010iAW11198612-198912

main90987-04002iAW11198411-198612

85927FRELAY, COOLING FAN, NO.7

main90987-03001iAW11198411-198912

89429SENSOR, OIL TEMPERATURE

main89429-17010iAW11198411-198608

sub89429-17011

main89429-17011iAW11198608-198912

89435BRACKET, CONNECTOR COVER

main89435-17010iAW11..FRG;AW11..ARL198708-198912

89437COVER, SENSOR

main89437-17010iAW11..FRG;AW11..ARL198708-198912

89439BRACKET, SENSOR

main89439-17011iAW11198411-198803

TEMPERATURE

main89439-17011iAW11198803-198912

main89439-17020iAW11..FRG;AW11..ARL198803-198912

main89439-17020iAW11..FRG;AW11..ARL198708-198803

OXYGEN

89465SENSOR, OXYGEN

main89465-19135iAW11..FRG198511-198708

sub89465-19136

main89465-19205iAW11..FRG;AW11..ARL198708-198906

sub89465-19206

main89465-19206iAW11..FRG;AW11..ARL198906-198912

89466GASKET, OXYGEN SENSOR

main89466-20020iAW11..FRG;AW11..ARL198810-198912

main89466-30010iAW11..FRG;AW11..ARL198511-198810

sub89466-20020

89620IGNITER ASSY

main89620-17020iAW11..FRG;AW11..ARL198511-198912

IC=DENSO

main89620-17030iAW11..FRG;AW11..ARL198511-198912

IC=TOSHIBA

main89620-32030iAW11..LHD..EUG;AW11..LHD..GEN;AW11..RHD..(EUR,GEN)198411-198912

sub89620-30210

8379117020

main83791-17020

9010506050

main90105-06050

9011906157

main90119-06157

9017908059

main90179-08059

9043018007

main90430-18007

9046400073

main90464-00073

9046400155

main90464-00155

26 parts on this diagram · 4 diagrams in section
