EPC Data

ARMREST & VISOR

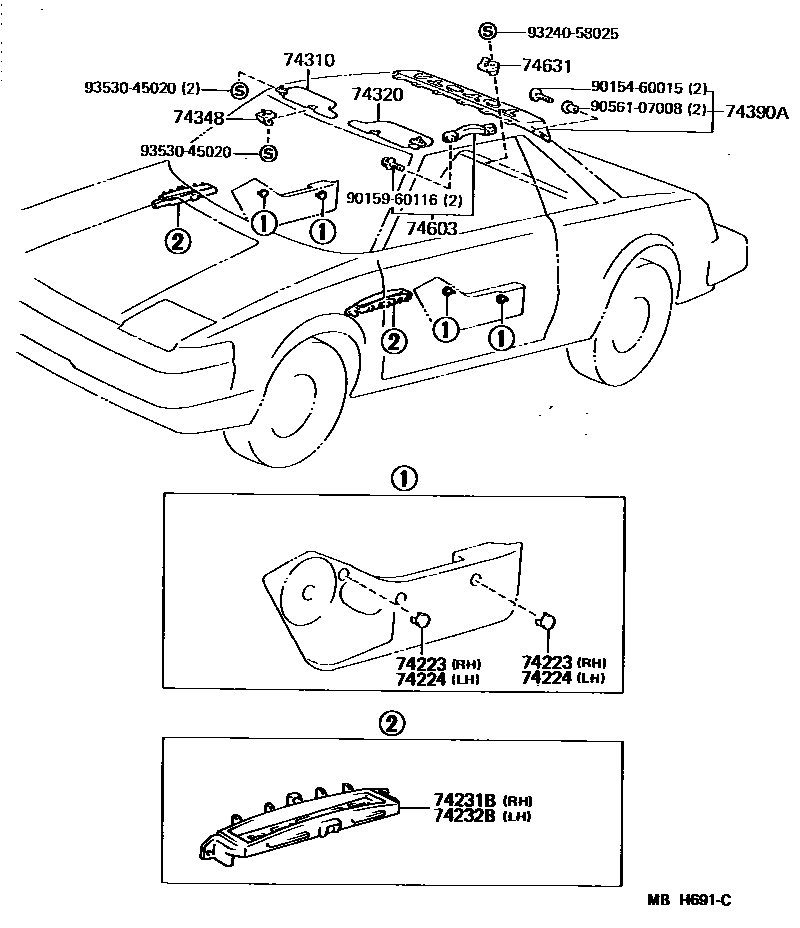

Parts diagram
74223CAP, DOOR ARMREST, RH
main74617-17010-01i198411-198608
BLACK,BLACK,TRIM2#
74224CAP, DOOR ARMREST, LH
main74617-17010-01i198411-198608
BLACK,BLACK,TRIM2#
74231BPANEL, DOOR ARMREST BASE, RH
main74231-17010-01i198411-198608
BLACK,BLACK,TRIM2#
main74231-17030-01i198608-198803
W/*PW,BLACK,BLACK,TRIM2#
sub74231-17031
main74231-17030-04i198608-198803
W/*PW,BLUE,DARK BLUE,TRIM8#
sub74231-17031
main74231-17030-05i198608-198803
W/*PW,BEIGE,DARK BEIGE,TRIM4#
sub74231-17031
main74231-17031-04i198808-198912
DARK BLUE,TRIM8#
sub74231-17031
main74231-17050-01i198608-198803
W/*PW,BLACK,BLACK,TRIM2#
sub74231-17051
main74231-17050-04i198608-198803
W/*PW,BLUE,DARK BLUE,TRIM8#
sub74231-17051
main74231-17050-05i198608-198803
W/*PW,BEIGE,DARK BEIGE,TRIM4#
sub74231-17051
main74231-17051-04i198808-198912
DARK BLUE,TRIM8#
sub74231-17051
main74231-17051-11i198808-198912
BLACK,TRIM2#
sub74231-17051
74232BPANEL, DOOR ARMREST BASE, LH
main74232-17010-01i198411-198608
BLACK,BLACK,TRIM2#
main74232-17020-01i198411-198608
BLACK,BLACK,TRIM2#
main74232-17030-01i198608-198803
W/*PW,BLACK,BLACK,TRIM2#
sub74232-17031
main74232-17030-04i198608-198803
W/*PW,BLUE,DARK BLUE,TRIM8#
sub74232-17031
main74232-17030-05i198608-198803
W/*PW,BEIGE,DARK BEIGE,TRIM4#
sub74232-17031
main74232-17031-01i198803-198808
BLACK,TRIM2#
sub74232-17031
main74232-17031-04i198803-198912
DARK BLUE,TRIM8#
sub74232-17031
main74232-17031-05i198803-198808
DARK BEIGE,TRIM4#
sub74232-17031
main74232-17031-11i198808-198912
BLACK,TRIM2#
sub74232-17031
main74232-17040-01i198608-198803
W/*PW,BLACK,BLACK,TRIM2#
sub74232-17041
main74232-17040-04i198608-198803
W/*PW,BLUE,DARK BLUE,TRIM8#
sub74232-17041
main74232-17040-05i198608-198803
W/*PW,BEIGE,DARK BEIGE,TRIM4#
sub74232-17041
main74232-17041-04i198808-198912
DARK BLUE,TRIM8#
sub74232-17041
main74232-17041-11i198808-198912
BLACK,TRIM2#
sub74232-17041
74310VISOR ASSY, RH
main74310-17030-03i198411-198508
LIGHT GRAY,LIGHT GRAY,TRIM2#
main74310-17031-03i198508-198608
LIGHT GRAY,LIGHT GRAY,TRIM2#
main74310-17050-03i198411-198508
LIGHT GRAY,LIGHT GRAY,TRIM2#
main74310-17051-03i198508-198608
LIGHT GRAY,LIGHT GRAY,TRIM2#
main74310-17060-03i198411-198508
W/REMOVABLE ROOF,LIGHT GRAY,LIGHT GRAY,TRIM2#
main74310-17061-03i198508-198608
W/REMOVABLE ROOF,LIGHT GRAY,LIGHT GRAY,TRIM2#
main74310-17090-01i198608-198802
BLACK,BLACK,TRIM2#
sub74310-17091
main74310-17090-04i198608-198802
BLUE,DARK BLUE,TRIM8#
sub74310-17091
main74310-17090-05i198803-198808
DARK BEIGE,TRIM4#
sub74310-17091
main74310-17090-05i198608-198802
BEIGE,DARK BEIGE,TRIM4#
sub74310-17091
main74310-17091-01i198802-198803
BLACK,BLACK,TRIM2#
main74310-17091-01i198803-198912
BLACK,TRIM2#
main74310-17091-04i198803-198912
DARK BLUE,TRIM8#
main74310-17091-04i198802-198803
BLUE,DARK BLUE,TRIM8#
main74310-17091-05i198802-198803
BEIGE,DARK BEIGE,TRIM4#
main74310-17100-01i198608-198802
BLACK,BLACK,TRIM2#
sub74310-17101
main74310-17100-04i198608-198802
BLUE,DARK BLUE,TRIM8#
sub74310-17101
main74310-17100-05i198803-198808
DARK BEIGE,TRIM4#
sub74310-17101
main74310-17100-05i198608-198802
BEIGE,DARK BEIGE,TRIM4#
sub74310-17101
main74310-17101-01i198802-198803
BLACK,BLACK,TRIM2#
main74310-17101-01i198803-198912
BLACK,TRIM2#
main74310-17101-04i198803-198912
DARK BLUE,TRIM8#
main74310-17101-04i198802-198803
BLUE,DARK BLUE,TRIM8#
main74310-17101-05i198802-198803
BEIGE,DARK BEIGE,TRIM4#
main74310-17110-01i198608-198802
W/REMOVABLE ROOF,BLACK,BLACK,TRIM2#
sub74310-17111
main74310-17110-04i198608-198802
W/REMOVABLE ROOF,BLUE,DARK BLUE,TRIM8#
sub74310-17111
main74310-17110-05i198803-198808
W(REMOVABLE ROOF),DARK BEIGE,TRIM4#
sub74310-17111
main74310-17110-05i198608-198802
W/REMOVABLE ROOF,BEIGE,DARK BEIGE,TRIM4#
sub74310-17111
main74310-17111-01i198803-198912
W(REMOVABLE ROOF),BLACK,TRIM2#
main74310-17111-01i198802-198803
W/REMOVABLE ROOF,BLACK,BLACK,TRIM2#
main74310-17111-04i198802-198803
W/REMOVABLE ROOF,BLUE,DARK BLUE,TRIM8#
main74310-17111-04i198803-198912
W(REMOVABLE ROOF),DARK BLUE,TRIM8#
main74310-17111-05i198802-198803
W/REMOVABLE ROOF,BEIGE,DARK BEIGE,TRIM4#
main74310-17130-01i198608-198802
BLACK,BLACK,TRIM2#
sub74310-17131
main74310-17130-04i198608-198802
BLUE,DARK BLUE,TRIM8#
sub74310-17131
main74310-17130-05i198608-198802
BEIGE,DARK BEIGE,TRIM4#
sub74310-17131
main74310-17130-05i198803-198808
DARK BEIGE,TRIM4#
sub74310-17131
main74310-17131-01i198803-198912
BLACK,TRIM2#
main74310-17131-01i198802-198803
BLACK,BLACK,TRIM2#
main74310-17131-04i198803-198912
DARK BLUE,TRIM8#
main74310-17131-04i198802-198803
BLUE,DARK BLUE,TRIM8#
main74310-17131-05i198802-198803
BEIGE,DARK BEIGE,TRIM4#
main74310-17140-01i198708-198802
BLACK,BLACK,TRIM2#
sub74310-17141
main74310-17140-04i198708-198802
BLUE,DARK BLUE,TRIM8#
sub74310-17141
main74310-17141-01i198803-198912
BLACK,TRIM2#
main74310-17141-01i198802-198803
BLACK,BLACK,TRIM2#
main74310-17141-04i198802-198803
BLUE,DARK BLUE,TRIM8#
main74310-17141-04i198803-198912
DARK BLUE,TRIM8#
main74310-17150i198803-198808
sub74310-17151
main74310-17150-01i198708-198802
W/REMOVABLE ROOF,BLACK,BLACK,TRIM2#
sub74310-17151
main74310-17150-04i198708-198802
W/REMOVABLE ROOF BLUE,DARK BLUE,TRIM8#
sub74310-17151
main74310-17151-01i198802-198803
W/REMOVABLE ROOF,BLACK,BLACK,TRIM2#
main74310-17151-01i198803-198912
W(REMOVABLE ROOF),BLACK,TRIM2#
main74310-17151-04i198802-198803
W/REMOVABLE ROOF BLUE,DARK BLUE,TRIM8#
main74310-17151-04i198803-198912
W(REMOVABLE ROOF),DARK BLUE,TRIM8#
74320VISOR ASSY, LH
main74320-17050-03i198411-198508
LIGHT GRAY,LIGHT GRAY,TRIM2#
main74320-17051-03i198508-198608
LIGHT GRAY,LIGHT GRAY,TRIM2#
main74320-17060-03i198411-198508
LIGHT GRAY,LIGHT GRAY,TRIM2#
main74320-17061-03i198508-198608
LIGHT GRAY,LIGHT GRAY,TRIM2#
main74320-17080-03i198411-198508
W/REMOVABLE ROOF,LIGHT GRAY,LIGHT GRAY,TRIM2#
main74320-17081-03i198508-198608
W/REMOVABLE ROOF,LIGHT GRAY,LIGHT GRAY,TRIM2#
main74320-17130-01i198608-198802
BLACK,BLACK,TRIM2#
sub74320-17131
main74320-17130-04i198608-198802
BLUE,DARK BLUE,TRIM8#
sub74320-17131
main74320-17130-05i198608-198802
BEIGE,DARK BEIGE,TRIM4#
sub74320-17131
main74320-17130-05i198803-198808
DARK BEIGE,TRIM4#
sub74320-17131
main74320-17131-01i198802-198803
BLACK,BLACK,TRIM2#
main74320-17131-01i198803-198912
BLACK,TRIM2#
main74320-17131-04i198803-198912
DARK BLUE,TRIM8#
main74320-17131-04i198802-198803
BLUE,DARK BLUE,TRIM8#
main74320-17131-05i198802-198803
BEIGE,DARK BEIGE,TRIM4#
main74320-17140-01i198608-198802
W/REMOVABLE ROOF,BLACK,BLACK,TRIM2#
sub74320-17141
main74320-17140-04i198608-198802
W/REMOVABLE ROOF,BLUE,DARK BLUE,TRIM8#
sub74320-17141
main74320-17140-05i198803-198808
W(REMOVABLE ROOF),DARK BEIGE,TRIM4#
sub74320-17141
main74320-17140-05i198608-198802
W/REMOVABLE ROOF,BEIGE,DARK BEIGE,TRIM4#
sub74320-17141
main74320-17141-01i198802-198803
W/REMOVABLE ROOF,BLACK,BLACK,TRIM2#
main74320-17141-01i198803-198912
W(REMOVABLE ROOF),BLACK,TRIM2#
main74320-17141-04i198802-198803
W/REMOVABLE ROOF,BLUE,DARK BLUE,TRIM8#
main74320-17141-04i198803-198912
W(REMOVABLE ROOF),DARK BLUE,TRIM8#
main74320-17141-05i198802-198803
W/REMOVABLE ROOF,BEIGE,DARK BEIGE,TRIM4#
main74320-17150-01i198608-198802
BLACK,BLACK,TRIM2#
sub74320-17151
main74320-17150-04i198608-198802
BLUE,DARK BLUE,TRIM8#
sub74320-17151
main74320-17150-05i198608-198802
BEIGE,DARK BEIGE,TRIM4#
sub74320-17151
main74320-17150-05i198803-198808
DARK BEIGE,TRIM4#
sub74320-17151
main74320-17151-01i198803-198912
BLACK,TRIM2#
main74320-17151-01i198802-198803
BLACK,BLACK,TRIM2#
main74320-17151-04i198802-198803
BLUE,DARK BLUE,TRIM8#
main74320-17151-04i198803-198912
DARK BLUE,TRIM8#
main74320-17151-05i198802-198803
BEIGE,DARK BEIGE,TRIM4#
main74320-17160-01i198608-198802
BLACK,BLACK,TRIM2#
sub74320-17161
main74320-17160-04i198608-198802
BLUE,DARK BLUE,TRIM8#
sub74320-17161
main74320-17160-05i198608-198802
BEIGE,DARK BEIGE,TRIM4#
sub74320-17161
main74320-17160-05i198803-198808
DARK BEIGE,TRIM4#
sub74320-17161
main74320-17161-01i198802-198803
BLACK,BLACK,TRIM2#
main74320-17161-01i198803-198912
BLACK,TRIM2#
main74320-17161-04i198802-198803
BLUE,DARK BLUE,TRIM8#
main74320-17161-04i198803-198912
DARK BLUE,TRIM8#
main74320-17161-05i198802-198803
BEIGE,DARK BEIGE,TRIM4#
main74320-17180-01i198708-198802
BLACK,BLACK,TRIM2#
sub74320-17181
main74320-17180-04i198708-198802
BLUE,DARK BLUE,TRIM8#
sub74320-17181
main74320-17181-01i198802-198803
BLACK,BLACK,TRIM2#
main74320-17181-01i198803-198912
BLACK,TRIM2#
main74320-17181-04i198802-198803
BLUE,DARK BLUE,TRIM8#
main74320-17181-04i198803-198912
DARK BLUE,TRIM8#
74348HOLDER, VISOR
main74348-17010-01i198803-198808
BLACK,TRIM2#
sub74348-12020
main74348-17010-01i198608-198803
BLACK,BLACK,TRIM2#
sub74348-12020
main74348-17010-04i198803-198912
DARK BLUE,TRIM8#
sub74348-12020
main74348-17010-04i198608-198803
BLUE,DARK BLUE,TRIM8#
sub74348-12020
main74348-17010-05i198608-198803
BEIGE,DARK BEIGE,TRIM4#
sub74348-12020
main74348-17010-05i198803-198808
DARK BEIGE,TRIM4#
sub74348-12020
main74348-17010-11i198808-198912
BLACK,TRIM2#
sub74348-12020
main74348-32010-03i198411-198608
LIGHT GRAY,LIGHT GRAY,TRIM2#
sub74348-17010
sub74348-12020
sub74348-32010
74390AVISOR ASSY, REAR, OUTER
main74390-19035i198411-198912
74603GRIP SUB-ASSY, ASSIST, FRONT
main74610-14030-01i198411-198803
BLACK,BLACK,TRIM2#
sub74610-14030
sub74610-12050
main74610-14030-01i198803-198808
BLACK,TRIM2#
sub74610-14030
sub74610-12050
main74610-14030-10i198803-198808
DARK BEIGE,TRIM4#
sub74610-14030
sub74610-12050
main74610-14030-21i198808-198912
BLACK,TRIM2#
sub74610-14030
sub74610-12050
main74610-14030-34i198608-198803
BLUE,DARK BLUE,TRIM8#
sub74610-14030
sub74610-12050
main74610-14030-34i198803-198912
DARK BLUE,TRIM8#
sub74610-14030
sub74610-12050
main74610-14030-45i198608-198803
BEIGE,DARK BEIGE,TRIM4#
sub74610-14030
sub74610-12050
main74610-17010-01i198803-198808
BLACK,TRIM2#
main74610-17010-01i198608-198803
BLACK,BLACK,TRIM2#
main74610-17010-04i198608-198803
BLUE,DARK BLUE,TRIM8#
main74610-17010-04i198803-198912
DARK BLUE,TRIM8#
main74610-17010-05i198608-198803
BEIGE,DARK BEIGE,TRIM4#
main74610-17010-05i198803-198808
DARK BEIGE,TRIM4#
main74610-17010-11i198808-198912
BLACK,TRIM2#
74631HOOK, COAT, A
main74631-17010-01i198803-198808
BLACK,TRIM2#
sub74631-17010
main74631-17010-01i198411-198803
BLACK,BLACK,TRIM2#
sub74631-17010
main74631-17010-04i198608-198803
BLUE,DARK BLUE,TRIM8#
sub74631-17010
main74631-17010-04i198803-198912
DARK BLUE,TRIM8#
sub74631-17010
main74631-17010-05i198803-198808
DARK BEIGE,TRIM4#
sub74631-17010
main74631-17010-05i198608-198803
BEIGE,DARK BEIGE,TRIM4#
sub74631-17010
main74631-17010-11i198808-198912
BLACK,TRIM2#
sub74631-17010
9015460015
main90154-60015
9015960116
main90159-60116
9056107008
main90561-07008
9324058025
main93240-58025
9353045020
main93530-45020

15 parts on this diagram · 2 diagrams in section

ARMREST & VISOR — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
