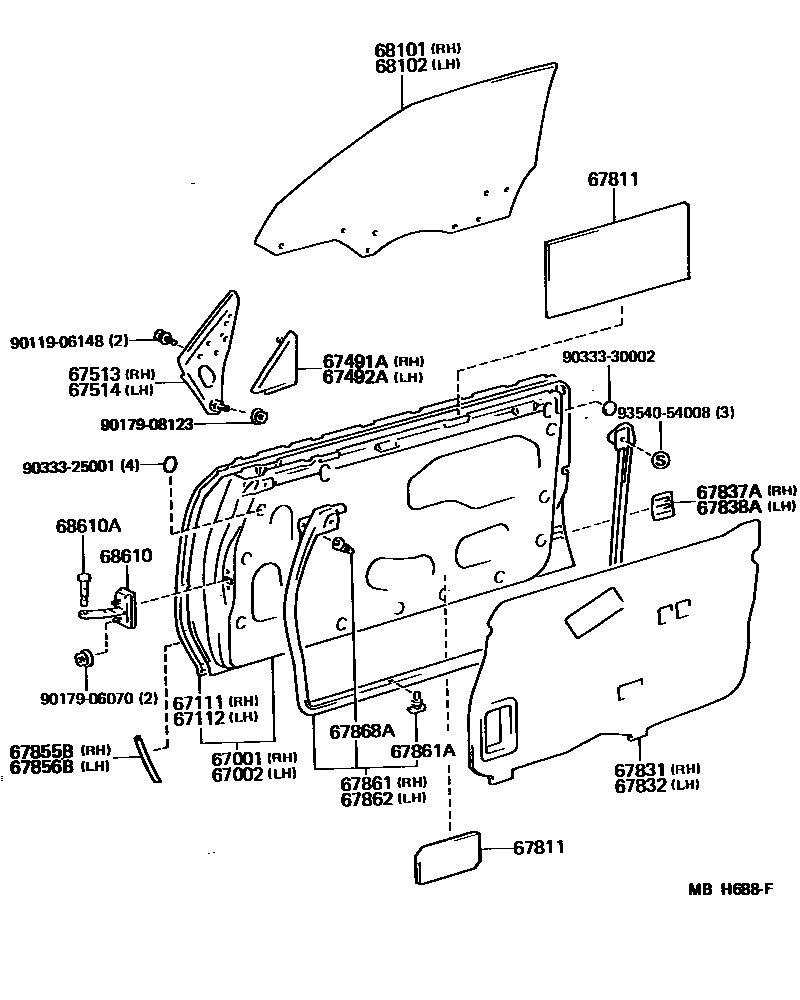

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-17010iAW11..GEN198411-198608

main67001-17020iAW11..ARL198708-198912

main67001-17040iAW11..EUR,GEN198411-198912

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-17010iAW11..GEN198411-198608

main67002-17020iAW11..ARL198708-198808

sub67002-17021

main67002-17021iAW11..ARL198808-198912

main67002-17040iAW11..EUR,GEN198411-198912

67111PANEL, FRONT DOOR, OUTER RH

main67111-17010iAW11..GEN198411-198501

sub67111-17020

main67111-17020iAW11..EUG198411-198912

67112PANEL, FRONT DOOR, OUTER LH

main67112-17010iAW11..GEN198411-198501

sub67112-17020

main67112-17020iAW11..EUG198411-198912

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-17010iAW11198411-198912

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-17010iAW11198411-198912

67513BRACKET, FRONT DOOR MIRROR, RH

main67513-17010iAW11198411-198912

67514BRACKET, FRONT DOOR MIRROR, LH

main67514-17010iAW11198411-198912

67811PAD, FRONT DOOR SILENCER

main67811-17010iAW11..ARL198411-198912

200 X 110

main67812-12010iAW11198411-198803

350X200

main67812-12010iAW11..EUR,GEN198803-198912

350 X 200

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-17010iAW11..EUR,GEN198411-198912

main67831-17030iAW11..ARL198708-198912

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-17010iAW11..EUR,GEN198411-198912

main67832-17030iAW11..ARL198708-198912

67837ASEAL, FRONT DOOR VENT, RH

main67837-17010iAW11..ARL198708-198912

67838ASEAL, FRONT DOOR VENT, LH

main67838-17010iAW11..ARL198708-198912

67855BPROTECTOR, FRONT DOOR PANEL, RH

main67855-16010iAW11..EUR198803-198912

67856BPROTECTOR, FRONT DOOR PANEL, LH

main67856-16010iAW11..EUR198803-198912

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-17010iAW11198411-198912

67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)

main67868-30040iAW11198411-198803

main67868-30040iAW11198803-198912

LH

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-17010iAW11198411-198912

67868ACLIP, DOOR GLASS WEATHERSTRIP(FOR FRONT DOOR)

main67869-30020iAW11198411-198912

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-17010iAW11198411-198803

*TT,T=5.0,*TT,T=5.0

main68111-17010iAW11198803-198912

*TT,T=5.0

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-17010iAW11198803-198912

*TT,T=5.0

main68112-17010iAW11198411-198803

*TT,T=5.0,*TT,T=5.0

68610CHECK ASSY, FRONT DOOR

main68610-24010iAW11198411-198912

68610APIN(FOR FRONT DOOR CHECK)

main68617-30010iAW11198411-198507

sub68617-90K00

main68617-90K00iAW11198507-198912

9011906148

main90119-06148

9017906070

main90179-06070

9017908123

main90179-08123

9033325001

main90333-25001

9033330002

main90333-30002

9354054008

main93540-54008

29 parts on this diagram · 3 diagrams in section
