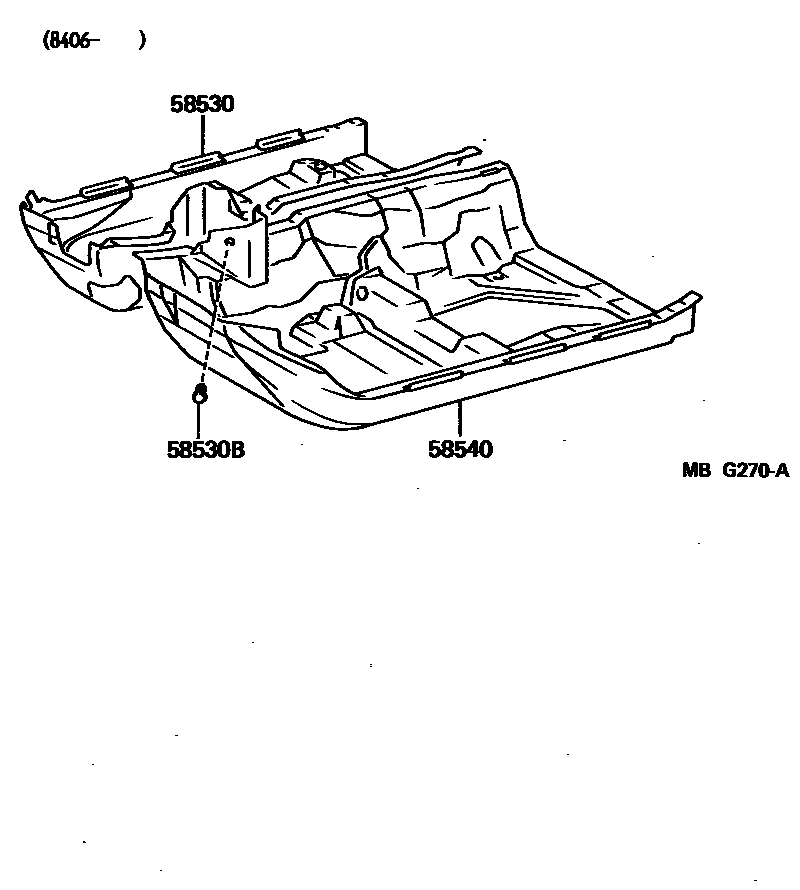

MAT & CARPET

58530CARPET ASSY, FLOOR, FRONT RH

main58510-17020-01iAW11..LHD198803-198912

BLACK,TRIM2#

main58510-17020-01iAW11..LHD198608-198803

BLACK,BLACK,TRIM2#

main58510-17020-04iAW11..LHD198608-198803

BLUE,DARK BLUE,TRIM8#

main58510-17020-04iAW11..LHD198803-198912

DARK BLUE,TRIM8#

main58510-17020-05iAW11..LHD198803-198808

DARK BEIGE,TRIM4#

main58510-17020-05iAW11..LHD198608-198803

BEIGE,DARK BEIGE,TRIM4#

main58510-17051-01iAW11..LHD198411-198608

BLACK,BLACK,TRIM2#

main58510-17061-01iAW11..LHD198411-198608

W/CUT PILE,BLACK,BLACK,TRIM2#

main58510-17071-01iAW11..RHD198411-198608

BLACK,BLACK,TRIM2#

main58510-17081-01iAW11..RHD198411-198608

W/CUT PILE,BLACK,BLACK,TRIM2#

main58510-17090-01iAW11..RHD198608-198803

BLACK,BLACK,TRIM2#

main58510-17090-01iAW11..RHD198803-198912

BLACK,TRIM2#

main58510-17090-04iAW11..RHD198803-198912

DARK BLUE,TRIM8#

main58510-17090-04iAW11..RHD198608-198803

BLUE,DARK BLUE,TRIM8#

main58510-17090-05iAW11..RHD..(EUR,GEN)198803-198808

DARK BEIGE,TRIM4#

main58510-17090-05iAW11..RHD..(EUR,GEN)198608-198803

BEIGE,DARK BEIGE,TRIM4#

main58510-17100-01iAW11..LHD..GEN198803-198912

W(SPORTS SEAT) OR W(LEATHER SEAT),BLACK,TRIM2#

main58510-17100-01iAW11..LHD198608-198803

W/CUT PILE,BLACK,BLACK,TRIM2#

main58510-17100-01iAW11..LHD..GEN198803-198912

W(SPORTS SEAT),BLACK,TRIM2#

main58510-17100-04iAW11..LHD198608-198803

W/CUT PILE,BLUE,DARK BLUE,TRIM8#

main58510-17100-04iAW11..LHD..EUR198803-198912

W(SPORTS SEAT) OR W(LEATHER SEAT),DARK BLUE,TRIM8#

main58510-17100-04iAW11..LHD..EUR198803-198912

W(SPORTS SEAT),DARK BLUE,TRIM8#

main58510-17100-05iAW11..LHD..EUR198803-198808

BEIGE,TRIM4#

main58510-17100-05iAW11..LHD198608-198803

W/CUT PILE,BEIGE,BEIGE,TRIM4#

main58510-17110-01iAW11..RHD..EUG198803-198912

W(SPORTS SEAT),BLACK,TRIM2#

main58510-17110-01iAW11..RHD..(ARL,GEN)198803-198912

W(SPORTS SEAT) OR W(LEATHER SEAT),BLACK,TRIM2#

main58510-17110-01iAW11..RHD198608-198803

W/CUT PILE,BLACK,BLACK,TRIM2#

main58510-17110-04iAW11..RHD..(ARL,GEN)198803-198912

W(SPORTS SEAT) OR W(LEATHER SEAT),DARK BLUE,TRIM8#

main58510-17110-04iAW11..RHD..EUG198803-198912

W(SPORTS SEAT),DARK BLUE,TRIM8#

main58510-17110-04iAW11..RHD198608-198803

W/CUT PILE,BLUE,DARK BLUE,TRIM8#

main58510-17110-05iAW11..RHD..EUG198803-198808

W(SPORTS SEAT),DARK BEIGE,TRIM4#

main58510-17110-05iAW11..RHD..(EUR,GEN)198608-198803

W/CUT PILE,BEIGE,DARK BEIGE,TRIM4#

main58510-17110-05iAW11..RHD..EUG198803-198808

W(SPORTS SEAT) OR W(LEATHER SEAT),DARK BEIGE,TRIM4#

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-12129-01iAW11..RHD198411-198803

BLACK,BLACK,TRIM2#

sub90467-12129

main90467-12129-01iAW11..LHD198803-198808

BLACK,TRIM2#

sub90467-12129

main90467-12129-05iAW11..LHD198803-198808

DARK BEIGE,TRIM4#

sub90467-12129

main90467-12129-05iAW11..LHD198608-198803

BEIGE,DARK BEIGE,TRIM4#

sub90467-12129

main90467-12129-14iAW11198803-198912

DARK BLUE,TRIM8#

sub90467-12129

main90467-12129-14iAW11..LHD198608-198803

BLUE,DARK BLUE,TRIM8#

sub90467-12129

main90467-12129-31iAW11..LHD198808-198912

BLACK,TRIM2#

sub90467-12129

58540CARPET ASSY, FLOOR, FRONT LH

main58520-17010-01iAW11..RHD198803-198912

BLACK,TRIM2#

main58520-17010-01iAW11..RHD198608-198803

BLACK,BLACK,TRIM2#

main58520-17010-04iAW11..RHD198803-198912

DARK BLUE,TRIM8#

main58520-17010-04iAW11..RHD198608-198803

BLUE,DARK BLUE,TRIM8#

main58520-17010-05iAW11..RHD..(EUR,GEN)198803-198808

DARK BEIGE,TRIM4#

main58520-17010-05iAW11..RHD..(EUR,GEN)198608-198803

BEIGE,DARK BEIGE,TRIM4#

main58520-17020-01iAW11..LHD198608-198803

BLACK,BLACK,TRIM2#

main58520-17020-01iAW11..LHD198803-198912

BLACK,TRIM2#

main58520-17020-04iAW11..LHD198803-198912

DARK BLUE,TRIM8#

main58520-17020-04iAW11..LHD198608-198803

BLUE,DARK BLUE,TRIM8#

main58520-17020-05iAW11..LHD198803-198808

DARK BEIGE,TRIM4#

main58520-17020-05iAW11..LHD198608-198803

BEIGE,DARK BEIGE,TRIM4#

main58520-17031-01iAW11..RHD198411-198608

BLACK,BLACK,TRIM2#

main58520-17041-01iAW11..RHD198411-198608

W/CUT PILE,BLACK,BLACK,TRIM2#

main58520-17051-01iAW11..LHD198411-198608

BLACK,BLACK,TRIM2#

main58520-17061-01iAW11..LHD198411-198608

W/CUT PILE,BLACK,BLACK,TRIM2#

main58520-17070-01iAW11..LHD..GEN198803-198912

W(LEATHER SEAT) OR W(SPORTS SEAT),BLACK,TRIM2#

main58520-17070-01iAW11..LHD..EUR198808-198912

W(SPORTS SEAT),BLACK,TRIM2#

main58520-17070-01iAW11..LHD198608-198803

W/CUT PILE,BLACK,BLACK,TRIM2#

main58520-17070-04iAW11..LHD..GEN198803-198912

W(SPORTS SEAT) OR W(LEATHER SEAT),DARK BLUE,TRIM8#

main58520-17070-04iAW11..LHD198608-198803

W/CUT PILE,BLUE,DARK BLUE,TRIM8#

main58520-17070-04iAW11..LHD..GEN198803-198912

W(SPORTS SEAT),DARK BLUE,TRIM8#

main58520-17070-05iAW11..LHD..GEN198803-198808

W(SPORTS SEAT),DARK BEIGE,TRIM4#

main58520-17070-05iAW11..LHD198608-198803

W/CUT PILE,BEIGE,DARK BEIGE,TRIM4#

main58520-17070-05iAW11..LHD..GEN198803-198808

W(SPORTS SEAT) OR W(LEATHER SEAT),DARK BEIGE,TRIM4#

main58520-17080-01iAW11..RHD..(ARL,GEN)198803-198912

W(SPORTS SEAT) OR W(LEATHER SEAT),BLACK,TRIM2#

main58520-17080-01iAW11..RHD198608-198803

W/CUT PILE,BLACK,BLACK,TRIM2#

main58520-17080-01iAW11..RHD..(ARL,GEN)198803-198912

W(SPORTS SEAT),BLACK,TRIM2#

main58520-17080-04iAW11..RHD..EUG198803-198912

W(SPORTS SEAT),DARK BLUE,TRIM8#

main58520-17080-04iAW11..RHD198608-198803

W/CUT PILE,BLUE,DARK BLUE,TRIM8#

main58520-17080-04iAW11..RHD..(ARL,GEN)198803-198912

W(SPORTS SEAT) OR W(LEATHER SEAT),DARK BLUE,TRIM8#

main58520-17080-05iAW11..RHD..EUG198803-198808

W(SPORTS SEAT) OR W(LEATHER SEAT),DARK BEIGE,TRIM4#

main58520-17080-05iAW11..RHD..(EUR,GEN)198608-198803

W/CUT PILE,BEIGE,DARK BEIGE,TRIM4#

main58520-17080-05iAW11..RHD..EUG198803-198808

W(SPORTS SEAT),DARK BEIGE,TRIM4#

3 parts on this diagram · 1 diagram in section
