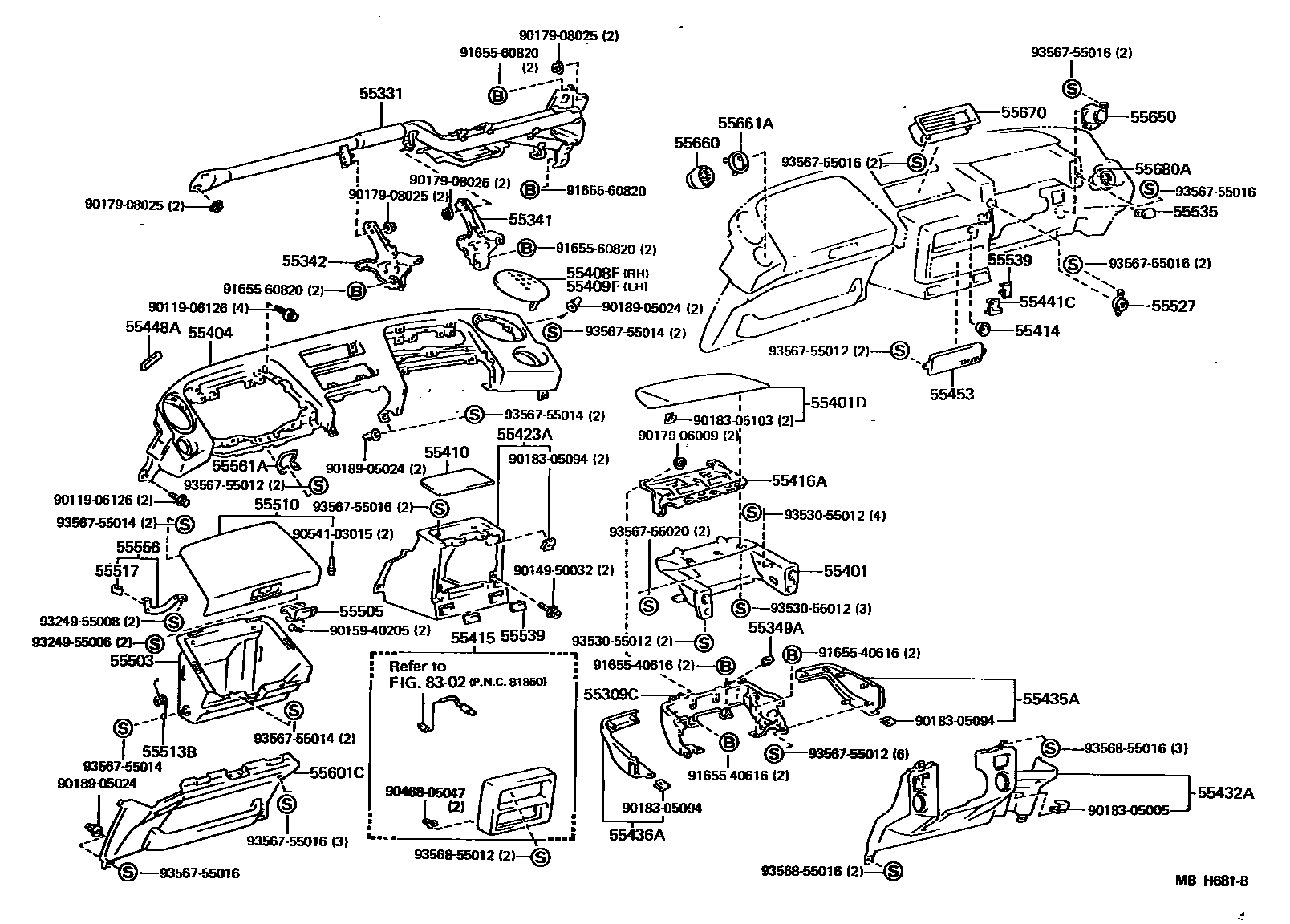

INSTRUMENT PANEL & GLOVE COMPARTMENT
55309CREINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, CENTER
55331REINFORCEMENT, INSTRUMENT PANEL
55341BRACE, INSTRUMENT PANEL, NO.1
55342BRACE, INSTRUMENT PANEL, NO.2
55349ACUSHION, INSTRUMENT PANEL
TYPE A
TYPE B
55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH
55401DPANEL, INSTRUMENT CLUSTER FINISH, UPPER
W(AUTOMATIC AIR CONDITIONER(MOP)),BLACK,TRIM2#
sub55421-17020
W(AUTOMATIC AIR CODITIONER(MOP)),BLACK,TRIM2#
sub55421-17020
W(AUTOMATIC AIR CODITIONER(MOP)),DARK BLUE,TRIM8#
sub55421-17020
W(AUTOMATIC AIR CONDITIONER(MOP)),DARK BLUE,TRIM8#
sub55421-17020
W(AUTOMATIC AIR CODITIONER(MOP)),DARK BEIGE,TRIM4#
sub55421-17020
W(AUTOMATIC AIR CONDITIONER(MOP)),DARK BEIGE,TRIM4#
sub55421-17020
W(AUTOMATIC AIR CONDITIONER(MOP)),BLACK,TRIM2#
sub55421-17020
W(AUTOMATIC AIR CONDITIONER(NOP)),BLACK,TRIM2#
sub55421-17020
55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER
BLACK,TRIM2#
BLACK,BLACK,TRIM2#
DARK BLUE,TRIM8#
BLUE,DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
BEIGE,DARK BEIGE,TRIM4#
BLACK,BLACK,TRIM2#
55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1
55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2
55410PANEL ASSY, INSTRUMENT CLUSTER FINISH, NO.2
55414BEZEL, CIGAR LIGHTER HOLE
55415PANEL, INSTRUMENT CLUSTER FINISH, CENTER
BLACK,BLACK,TRIM2#
55416ARETAINER, METER HOOD, NO.1
55423APANEL, RADIO TUNER FINISH
BLACK,BLACK,TRIM2#
55432APANEL, INSTRUMENT PANEL FINISH, LOWER RH
55435APANEL, INSTRUMENT PANEL FINISH, END RH
55436APANEL, INSTRUMENT PANEL FINISH, END LH
55441CBOX, INSTRUMENT PANEL COIN
55448ACUSHION, INSTRUMENT PANEL FINISH, NO.1
55503COMPARTMENT SUB-ASSY, GLOVE
55505LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR
BLACK,BLACK,TRIM2#
55510DOOR ASSY, GLOVE COMPARTMENT
BLACK,BLACK,TRIM2#
55513BSPRING, TORSION(FOR GLOVE COMPARTMENT DOOR CHECK ARM)
55517STOPPER, GLOVE COMPARTMENT DOOR ARM
55527COVER, TRANSMISSION CONTROL SWITCH HOLE
55535COVER, WARNING LAMP HOLE
55539COVER, SPARE SWITCH HOLE
55556ARM, GLOVE COMPARTMENT DOOR CHECK
55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK
55601CTRAY SUB-ASSY, INSTRUMENT PANEL UNDER
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
55660REGISTER ASSY, INSTRUMENT PANEL, NO.2
55661ABEZEL, INSTRUMENT PANEL REGISTER
55670REGISTER ASSY, INSTRUMENT PANEL, NO.3
55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1
55680AREGISTER ASSY, INSTRUMENT PANEL, NO.4
BLACK,BLACK,TRIM2#
8302
9011906126
main90119-06126
9014950032
main90149-50032
9015940205
main90159-40205
9017906009
main90179-06009
9017908025
main90179-08025
9018305005
main90183-05005
9018305094
main90183-05094
9018305103
main90183-05103
9018905024
main90189-05024
9046805047
main90468-05047
9054103015
main90541-03015
9165540616
main91655-40616
9165560820
main91655-60820
9324955006
main93249-55006
9324955008
main93249-55008
9353055012
main93530-55012
9356755012
main93567-55012
9356755014
main93567-55014
9356755016
main93567-55016
9356755020
main93567-55020
9356855012
main93568-55012
9356855016
main93568-55016
61 parts on this diagram · 4 diagrams in section
