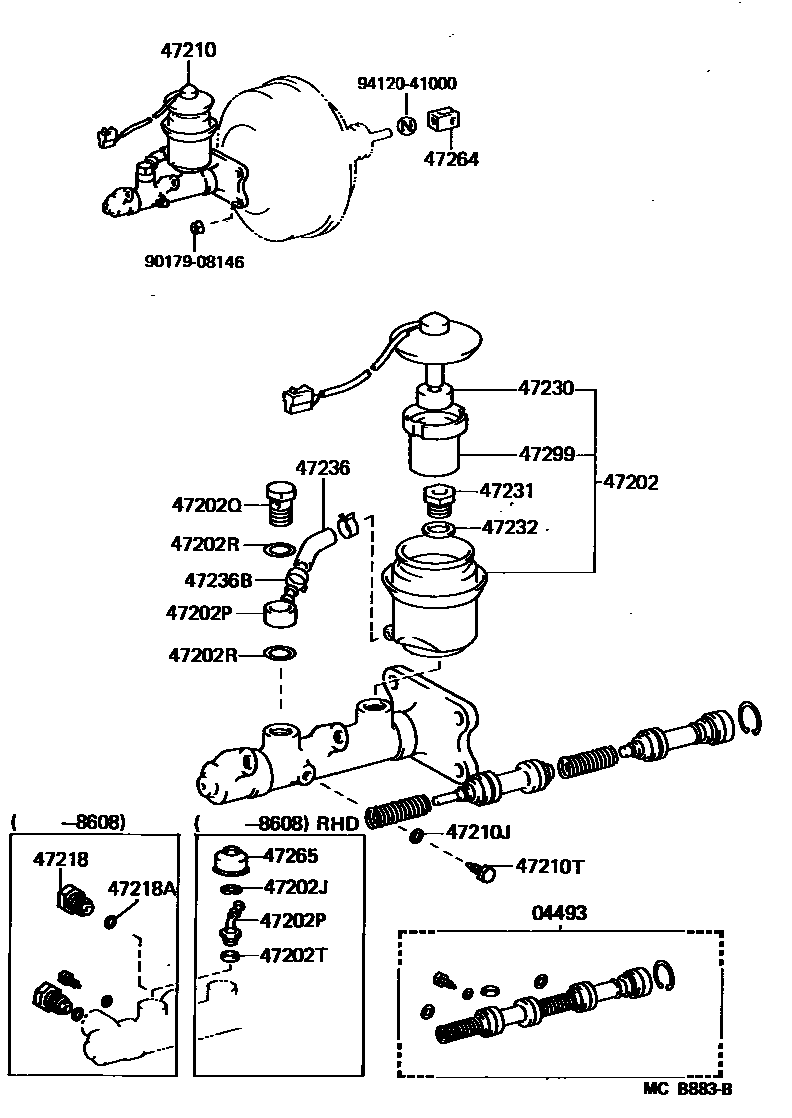

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-17010i198411-198608

main04493-17020i198411-198912

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-17010i198411-198608

main47202-17020i198608-198912

main47202-17030i198608-198912

47202JRING, SNAP(FOR BRAKE MASTER CYLINDER SIDE)

main96151-02000i198411-198608

47202PUNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE)

main90405-10003i198411-198912

main90407-10003i198411-198608

sub90407-10004

47202QBOLT, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE)

main90401-16002i198411-198912

47202RGASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE)

main90430-16242i198411-198912

47202TRING(FOR BRAKE MASTER CYLINDER RESERVOIR, NO.1)

main90301-14001i198411-198608

47210CYLINDER ASSY, MASTER, W/O BOOSTER

main47201-17010i198411-198608

main47201-17020i198411-198608

main47201-17030i198608-198912

main47201-17040i198608-198912

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104i198411-198912

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008i198411-198912

47218PLUG, MASTER CYLINDER FLUID OUTLET

main47218-12040i198411-198608

47218AGASKET(FOR FLUID OUTLET PLUG)

main90430-09253i198411-198608

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main84460-20051i198411-198912

sub84460-12011

47231BOLT, BRAKE MASTER CYLINDER RESERVOIR SET

main47231-30010i198411-198912

47232WASHER, BRAKE RESERVOIR SET BOLT

main47232-30010i198411-198912

47236TUBE, RESERVOIR BRAKE

main47234-14010i198411-198912

47236BCLAMP(FOR RESERVOIR TUBE)

main90467-16001i198411-198912

sub96134-51500

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-10080i198411-198912

47265BOOT, MASTER CYLINDER

main47265-20060i198411-198608

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-14010i198411-198912

9017908146

main90179-08146

9412041000

main94120-41000

22 parts on this diagram · 1 diagram in section
