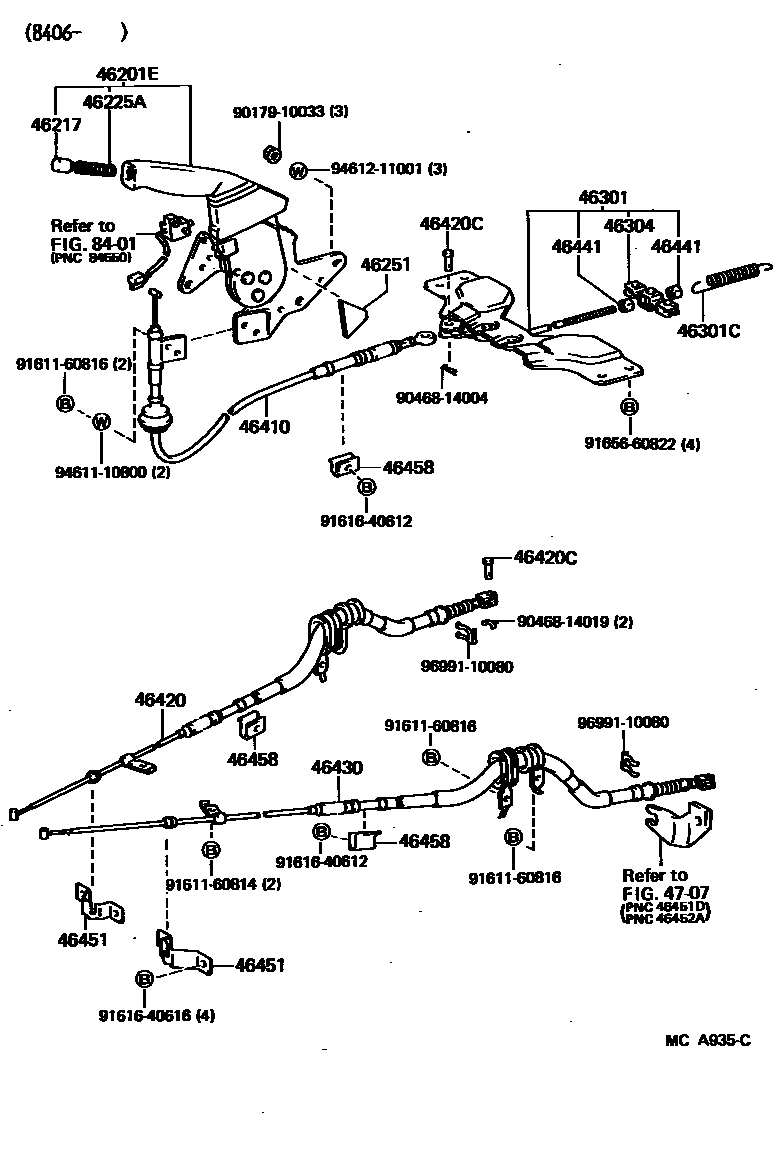

PARKING BRAKE & CABLE
46201ELEVER SUB-ASSY, PARKING BRAKE
BLACK,BLACK,TRIM2#
BLUE,DARK BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
46217KNOB, PARKING BRAKE RELEASE ROD
46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)
46251SPACER, PARKING BRAKE LEVER
46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE
46301CSPRING, TENSION(FOR INTERMEDIATE LEVER)
46304EQUALIZER SUB-ASSY, PARKING BRAKE
46410CABLE ASSY, PARKING BRAKE, NO.1
46420CABLE ASSY, PARKING BRAKE, NO.2
46420CPIN, W/HOLE(FOR PARKING BRAKE CABLE)
46430CABLE ASSY, PARKING BRAKE, NO.3
46441NUT, WIRE ADJUSTING, NO.1
46451BRACKET, CABLE SUPPORT
RH
LH
46458RETAINER, CABLE
4707
8401
9017910033
9046814004
9046814019
9161160814
9161160816
9161640612
9161640616
9165660822
9461110800
9461211001
9699110080
27 parts on this diagram · 1 diagram in section
