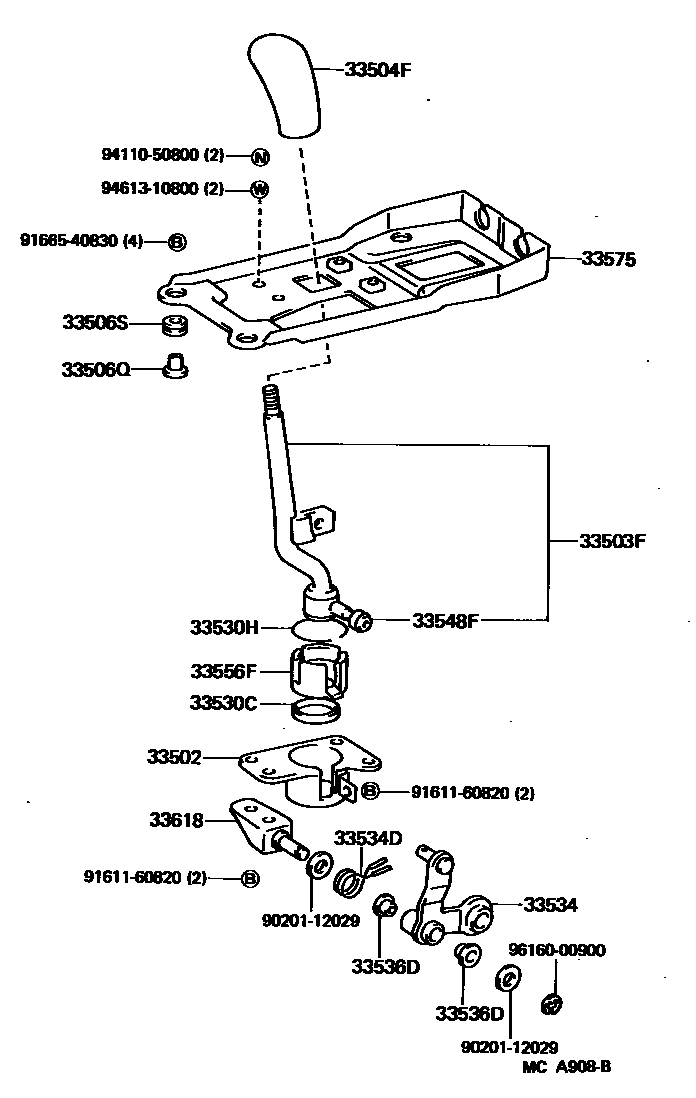

SHIFT LEVER & RETAINER

0001 1 0002 1

33502PLATE SUB-ASSY, SHIFT LEVER

main33502-17010iAW11198411-198804

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33503-17010iAW11..RHD198411-198608

main33503-17020iAW11..LHD198411-198608

main33503-17050iAW11198608-198804

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-17010iAW11..EUR,GEN198803-198804

main33504-17010-01iAW11198608-198803

BLACK,BLACK,TRIM2#

main33504-17010-04iAW11198608-198803

BLUE,DARK BLUE,TRIM8#

main33504-17010-05iAW11198608-198803

BEIGE,DARK BEIGE,TRIM4#

main33504-17020iAW11198411-198601

LEATHER

main33504-17020-01iAW11198601-198608

LEATHER,BLACK,BLACK,TRIM2#

main33504-17020-04iAW11..EUR198804-198912

DARK BLUE,TRIM8#

main33504-17020-05iAW11..EUR198804-198808

DARK BEIGE,TRIM4#

main33504-17020-11iAW11198608-198803

LEATHER,BLACK,BLACK,TRIM2#

main33504-17020-21iAW11..GEN198808-198912

BLACK,TRIM2#

33506QGROMMET, NO.1(FOR CONTROL SHIFT LEVER RETAINER)

main90389-08031×4iAW11198411-198804

33506SCOLLAR, NO.1(FOR CONTROL SHIFT LEVER RETAINER)

main90389-10016×4iAW11198411-198804

33530CBUSH (FOR SHIFT LEVER)

main90385-24001iAW11198411-198804

33530HRING, SNAP (FOR SHIFT LEVER)

main90520-34002iAW11198411-198804

33534BELLCRANK, SELECTING

main33509-17010iAW11198411-198804

33534DSPRING, TORSION (FOR SELECTING BELLCRANK NO.1)

main90508-22001iAW11198411-198804

33536DBUSH, CONTROL SELECT LEVER SHAFT (FOR FLOOR SHIFT)

main90386-12013×2iAW11198411-198804

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-12021iAW11198803-198804

33556FSEAT, TRANSMISSION SHIFT LEVER BALL

main33556-17010iAW11198411-198804

33575RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33575-17010iAW11198411-198608

main33575-17020iAW11198608-198804

33618SUPPORT, SELECTING BELLCRANK, NO.1

main33619-17010iAW11198411-198804

9020112029

main90201-12029

9161160820

main91611-60820

9166540830

main91665-40830

9411050800

main94110-50800

9461310800

main94613-10800

9616000900

main96160-00900

20 parts on this diagram · 2 diagrams in section
