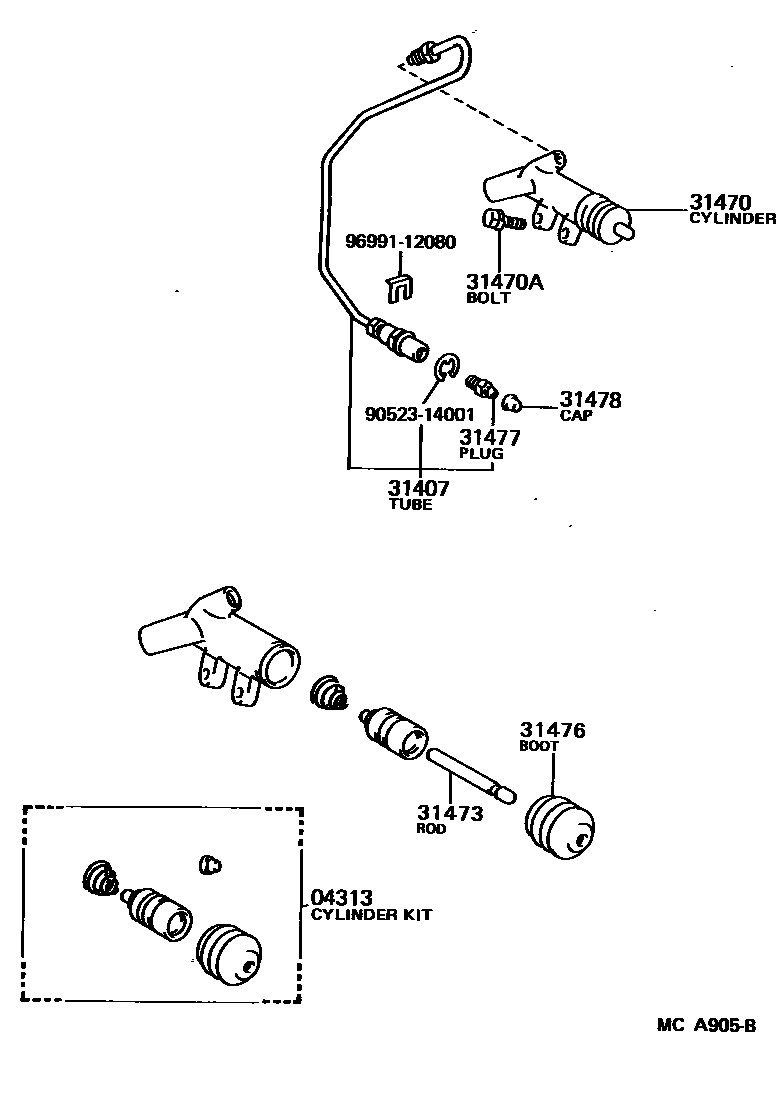

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-12030iAW11198902-198912

main04313-22020iAW11198411-198902

31407TUBE SUB-ASSY, BLEEDER CLUTCH RELEASE

main31407-17010iAW11198411-198510

main31407-17011iAW11198510-198912

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-17010iAW11198411-198902

main31470-17011iAW11198902-198912

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60825×2iAW11198411-198912

*8-1.25PX25-25

sub91611-B0825

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-32010iAW11198411-198912

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iAW11198411-198912

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iAW11198411-198912

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iAW11198411-198912

9052314001

main90523-14001

9699112080

main96991-12080

10 parts on this diagram · 1 diagram in section
