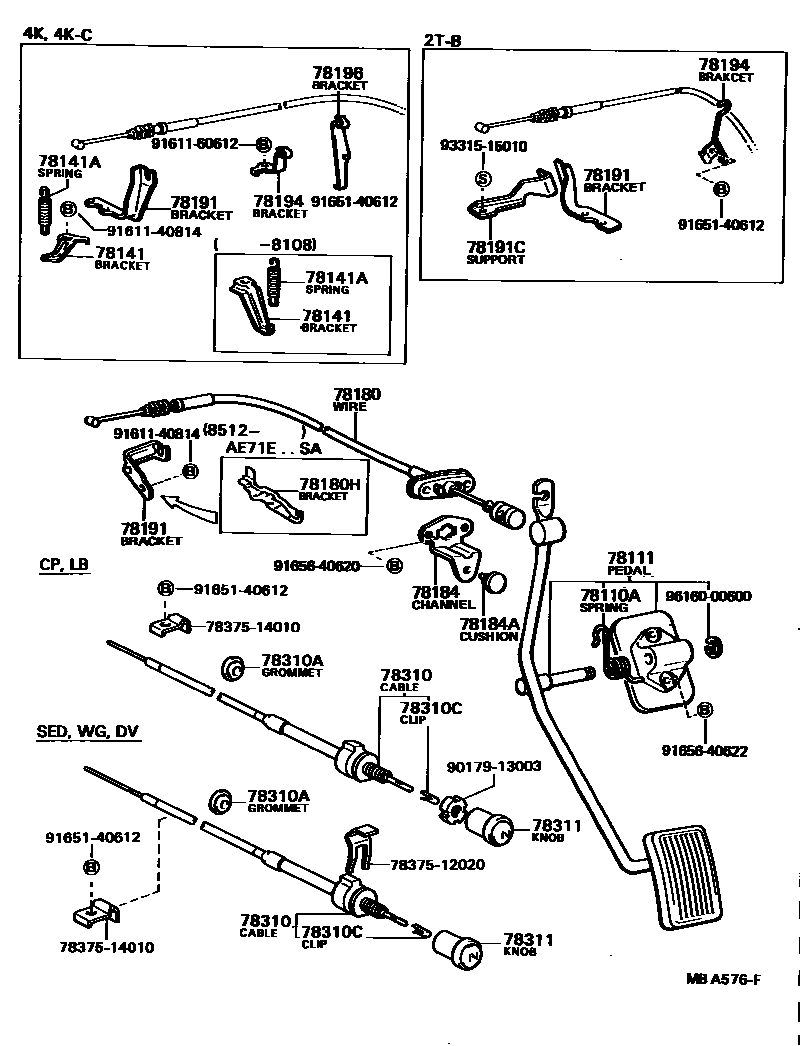

ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18055iKE70..RHD;AE71,CE70,TE7#198312-198707

main90508-18398iKE70..RHD;AE71,CE70,TE7#197908-198312

main90508-20402iKE70..LHD197908-198707

78111PEDAL, ACCELERATOR

main78010-12040iAE71,KE70,TE7#..RHD197908-198707

main78010-12060iKE70..LHD197908-198707

main78010-12070iAE71..GEN198508-198707

main78010-12080iCE70..RHD198210-198707

main78010-12090iCE70..LHD198210-198707

78141BRACKET, ACCELERATOR WIRE RETURN SPRING

main78141-12011iKE70197908-198108

main78187-12050iKE70..3FC..EUG198108-198305

78141ASPRING, TENSION(FOR ACCELERATOR WIRE RETURN SPRING)

main90507-12021iKE70197908-198108

78180WIRE ASSY, ACCELERATOR

main78180-12250iAE71..RHD198305-198707

main78180-12280iKE70..RHD197908-198707

main78180-12290iTE72..GL,SE,XE197908-198404

main78180-12330iKE70..LHD197908-198707

main78180-12340iTE7#..LHD..(DX,STD,XE)197908-198305

main78180-12350iTE71..RHD..(GL,SR)198108-198305

main78180-12360iTE71..LHD..(SE,SR,XE)197908-198108

main78180-12361iTE71..LHD..(SR,XE)198108-198305

main78180-12370iTE71..GT197908-198305

main78180-12390iCE70..RHD198210-198707

main78180-12400iAE71..GEN198508-198707

main78180-12530iCE70..LHD198210-198707

78180HBRACKET, ACCELERATOR CONTROL CABLE

main21524-16110iAE71..SA198512-198707

78184CHANNEL, ACCELERATOR IDLE ADJUSTING STOPPER

main78181-12051iTE7#;KE70..RHD197908-198304

main78181-12080iKE70..RHD;TE71..SAA;TE72..4FC,5F;TE71..LB..(3FC,5F);AE71,CE70,TE71..CP,DV,SED,WG198304-198707

78184ACUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL)

main90541-06008iKE70..RHD;AE71,CE70,TE7#197908-198707

78191BRACKET, ACCELERATOR WIRE SUPPORT

main21524-88220iTE71..GT197908-198305

main78024-12010iTE7#..LHD..(DX,STD,XE)197908-198305

main78184-12040iKE70..GEN,SA,SAA198108-198707

main78184-12050iTE71..RHD..XE..EUG198108-198305

main78184-12070iTE71..RHD..(GL,SR)198108-198305

main78184-12110iTE71..LHD..(SE,SR,XE)197908-198108

main78184-12140iAE71..GEN198508-198707

main78184-14050iTE71..LHD..(SR,XE)198108-198305

main78184-14060iCE70198210-198707

main78189-12010iKE70..MTM..EUR198108-198707

78191CREINFORCEMENT, ACCELERATOR CONTROL CABLE

main78198-12010iTE71..RHD..(GL,SR)198108-198305

78194BRACKET, ACCELERATOR WIRE SUPPORT, NO.2

main78186-12041iKE70..EUR198108-198707

main78186-12100iTE71..RHD..(GL,SE,SR,XE)197908-198108

main78186-12110iKE70197908-198108

main78186-12120iTE7#..LHD..(DX,STD,XE)197908-198305

main78186-12140iAE71..GEN198508-198707

main78186-12150iCE70..LHD198210-198707

78196BRACKET, ACCELERATOR WIRE SUPPORT, NO.3

main78189-12010iCE70,KE70..RHD197908-198707

78310CABLE ASSY, CHOKE

main78310-12370iKE70..(DV,SED,WG)..RHD197908-198104

sub78311-19015

sub78311-19025

main78310-12371iKE70..(DV,SED,WG)..RHD198104-198707

main78310-12380iKE70..(CP,LB)..RHD197908-198104

main78310-12381iKE70..(CP,LB)..RHD198104-198305

main78310-12390iKE70..(DV,SED,WG)..LHD197908-198104

sub78311-19015

sub78311-19025

main78310-12391iKE70..(DV,SED,WG)..LHD198104-198108

main78310-12400iTE71..RHD..(SE,SR,XE)197908-198104

main78310-12401iTE71..RHD..SR198108-198305

main78310-12410iTE71..LHD..(SE,SR)..GEN197908-198104

main78310-12411iTE71..LHD..(SE,SR)..GEN198104-198305

main78310-12420iTE71..GT..GEN197908-198104

main78310-12421iTE71..GT..GEN198104-198305

main78310-12430iKE70..(CP,LB)..LHD..GEN197908-198104

main78310-12431iKE70..(CP,LB)..LHD..GEN198104-198305

main78310-12440iTE71..GL198007-198104

sub78311-19015

main78310-12441iTE71..GL198104-198204

main78310-12450iKE70..(CP,LB)..EUG197908-198104

main78310-12451iKE70..(CP,LB)..EUG198104-198305

main78310-12460iTE71..LHD..(SR,XE)..EUG197908-198104

main78310-12461iTE71..LHD..(SR,XE)..EUG198104-198305

main78310-12470iTE71..GT..EUG197908-198104

main78310-12471iTE71..GT..EUG198104-198305

main84506-12011iKE70..(DV,SED,WG)..LHD..EUR198108-198707

78310AGROMMET, CHOKE CABLE

main90480-13055iTE71..RHD..(SR,XE)..GEN;TE71..RHD..(GL,SE,SR)..(EUR,SA)197908-198305

78310CCLIP (FOR CHOKE CABLE)

main78312-12010iTE71..RHD..SR..EUG;TE71..LHD..(GT,SR,XE)..EUG;TE71..(GL,GT,SE,SR,XE)..(GEN,SA)197908-198305

78311KNOB, CHOKE CONTROL CABLE

main78311-12020iKE70..GEN,SA197908-198104

sub78311-19015

main78311-12021iKE70..ARL,GEN,SA,SAA198104-198707

main78311-12030iKE70..(SED,WG)..EUR197908-198104

sub78311-19025

main78311-12031iKE70..(SED,WG)..EUR198104-198707

main78311-12040iTE71..RHD..SR..EUG197908-198104

main78311-12041iTE71..RHD..SR..EUG198104-198305

main78311-12050iKE70..(CP,LB)..EUG197908-198104

main78311-12051iKE70..(CP,LB)..EUG198104-198305

7837512020CLAMP, CHOKE ROD FLEXIBLE TUBE

main78375-12020

7837514010CLAMP, CHOKE ROD FLEXIBLE TUBE

main78375-14010

9017913003

main90179-13003

9161140814

main91611-40814

9161160612

main91611-60612

9165140612

main91651-40612

9165640620

main91656-40620

9165640622

main91656-40622

9331515010

main93315-15010

9616000600

main96160-00600

26 parts on this diagram · 6 diagrams in section
