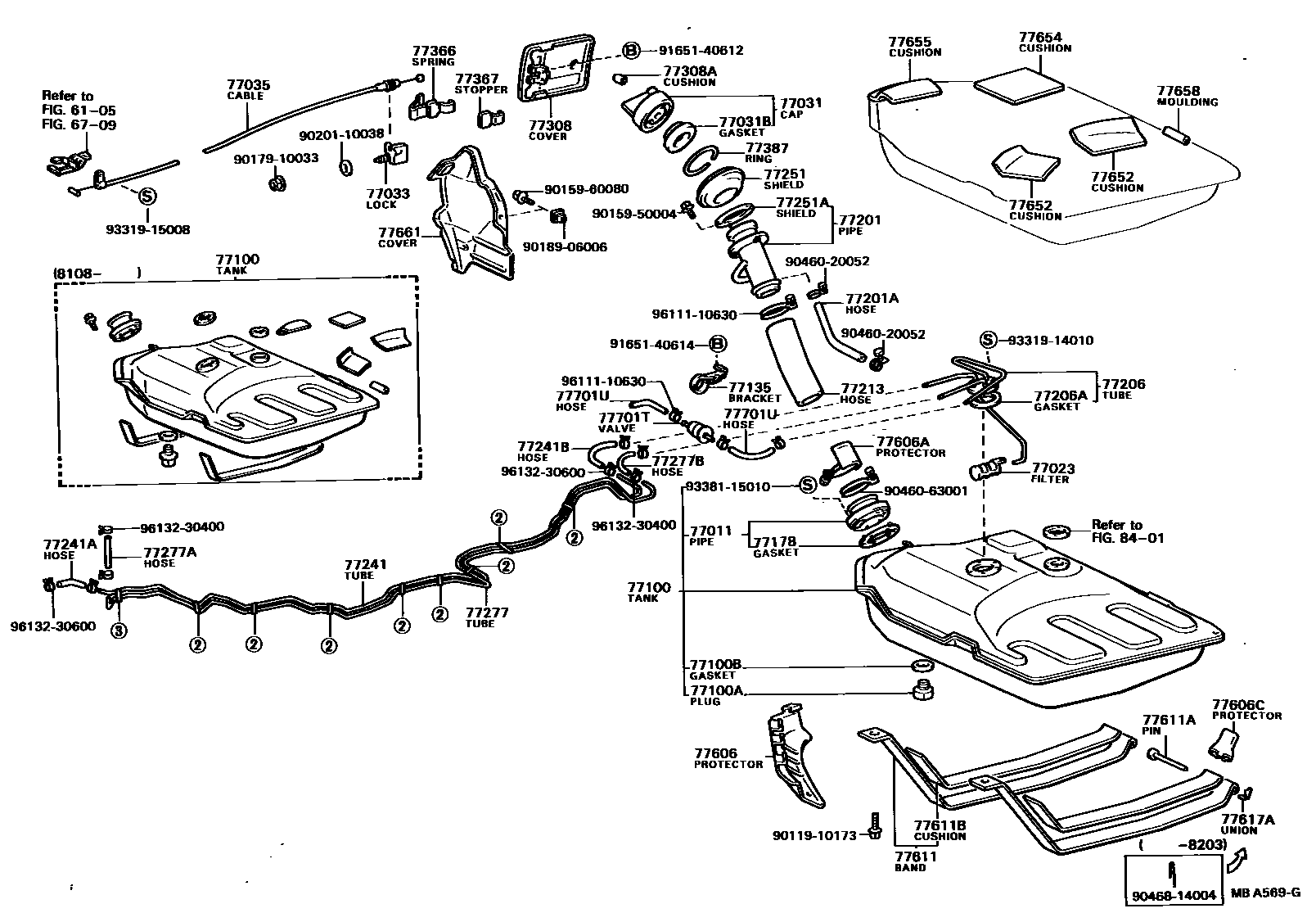

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0008 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1 0017 1 0018 1

6105

6709

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-10020iAE71,KE70,TE7#..LB,SED198308-198502

main77011-12010iAE71,CE70,KE70,TE7#..CP,LB,SED197908-198308

sub77011-10020

main77011-13010iAE71,CE70,KE70,TE71..DV,WG197908-198707

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-12050iAE71,KE70,TE7#197908-198707

main77023-22040iCE70198210-198707

77031CAP ASSY, FUEL TANK

main77310-12090iKE70,TE7#197908-198109

sub77310-12100

main77310-12100iAE71,KE70,TE7#198109-198707

main77310-35061iCE70198210-198707

77031BGASKET (FOR FUEL TANK CAP)

main77316-12050iAE71,CE70,KE70,TE7#197908-198707

77033LOCK SUB-ASSY, FUEL TANK CAP

main77037-12010iTE7#..(GT,SE,SR,XE)..(ARL,GEN)197908-198410

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-12020iKE70,TE71..(CP,LB,SED)..RHD..(DX,GL,SR,XE)..GEN197908-198410

main77035-12030iKE70,TE71..(CP,LB,SED)..LHD..(DX,GL,GT,SR)..(GEN,SAA)197908-198308

77100TANK ASSY, FUEL

main77001-12906iKE70,TE7#..CP,LB,SED197908-198108

sub77001-19065

main77001-19065iKE70,TE7#..CP,LB,SED198108-198301

sub77001-19195

main77001-19075iCE70198210-198301

sub77001-19155

main77001-19155iCE70198301-198305

main77001-19155iCE70..LHD198210-198301

NOTHERN EUROPE SPEC

main77001-19195iTE71..SAA;TE71..CP,SED;TE72..4FC,5F;KE70..(CP,LB)..4F;TE71..LB..(3FC,5F);KE70..SED..4F..2D..EUG;KE70..SED..LHD..4F..4D;AE71,KE70..(CP,LB,SED)..RHD;KE70..(CP,LB,SED)198301-198502

sub77001-19155

sub77017-16021

main77101-13900iKE70,TE71..DV,WG197908-198108

main77101-19025iAE71,KE70..(DV,WG)..(GEN,SAA)198108-198707

main77101-19035iKE70..2D..ARL198108-198305

MIDDLE EAST SPEC

main77101-19055iCE70198305-198707

main77101-19065iAE71,KE70..2D..ARL198305-198406

sub77101-19035

main77101-19075iKE70..EUR198305-198707

77100APLUG(FOR FUEL TANK)

main90341-20004iKE70..RHD;TE71..SAA;TE72..4FC,5F;TE71..LB..(3FC,5F);KE70..SED..LHD..4F..4D;KE70..SED..4F..2D..EUG;KE70..(CP,DV,LB,WG)..LHD;KE70..SED..LHD..(3FC,5F);AE71,CE70,TE71..198212-198707

OD=42

main90341-24036iKE70,TE7#197908-198212

OD=46

77100BGASKET(FOR FUEL TANK)

main90430-20007iKE70..RHD;TE71..SAA;TE72..4FC,5F;TE71..LB..(3FC,5F);KE70..SED..LHD..4F..4D;KE70..SED..4F..2D..EUG;KE70..(CP,DV,LB,WG)..LHD;KE70..SED..LHD..(3FC,5F);AE71,CE70,TE71..198212-198707

OD=35

main90430-24047iKE70,TE7#197908-198212

OD=42

77135BRACKET, CHECK VALVE

main77277-12040iCE70,KE70,TE7#..(CP,LB,SED)..(EUR,GEN,SA,SAA)197908-198502

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-10010iAE71,CE70,KE70,TE7#..CP,LB,SED197908-198502

main77178-13020iAE71,CE70,KE70,TE71..DV,WG197908-198707

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-12230iKE70,TE71..(LB,SED)..SAA198108-198208

sub77201-12231

sub90445-18021

main77201-12230iTE71..LB..LHD..4F;KE70..SED..LHD..4F..4D..GEN198012-198108

SAUDI ARABIA SPEC

sub77201-12231

sub90445-18021

main77201-12231iKE70,TE71..(LB,SED)..SAA198208-198308

main77201-12240iKE70,TE7#..(CP,LB,SED)..(ARL,EUR,GEN,SA)197908-198208

sub77201-12241

sub90445-18021

main77201-12241iTE72..4FC,5F;AE71,CE70,KE70,TE71..(CP,LB,SED)..(ARL,EUR,GEN,SA)198208-198502

main77201-13070iKE70,TE71..DV,WG197908-198207

sub77201-13071

main77201-13071iAE71,CE70,KE70,TE71..DV,WG198207-198707

sub77201-13090

main77201-13090iCE70,KE70..EUR198611-198707

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main90445-18002iKE70,TE71..DV,WG197908-198108

main90445-18012iTE72..4FC,5F;AE71,CE70,KE70,TE71..CP,LB,SED198208-198502

main90445-18028iAE71,CE70,KE70,TE71..DV,WG198108-198707

main90445-18046iKE70,TE7#..CP,LB,SED197908-198208

77206TUBE SUB-ASSY, FUEL TANK SUCTION

main77017-12140iTE71..(DX,SR,XE)..(EUR,SAA)198108-198410

main77017-12140iTE71..RHD..2D..GEN198108-198203

HONG KONG SPEC,W/FUEL RETURN

main77017-12140iTE71..(CP,LB,SED)..LHD..(DX,SR)..GEN198108-198305

MIDDLE EAST SPEC,W/FUEL RETURN

main77017-12170iTE71..GT..EUG197908-198502

main77017-12180iCE70198210-198305

main77203-13050iKE70,TE71..DV,WG197908-198707

main77203-13060iTE71..WG..LHD198108-198305

MIDDLE EAST SPEC,W/FUEL RETURN

main77203-13060iAE71,KE70..(DV,WG)..ARL198108-198707

main77203-13071iCE70198305-198707

main77203-13080iKE70,TE71..(DV,WG)..SA198204-198707

main77203-13090iAE71..SA198501-198707

77206AGASKET (FOR FUEL TANK SUCTION TUBE)

main77169-14020iAE71,CE70,KE70,TE7#197908-198707

77213HOSE, FUEL TANK SUB INLET

main77213-12110iAE71,CE70,KE70,TE7#..(CP,LB,SED)..(ARL,EUR,GEN,SA)197908-198502

main77213-12130iKE70,TE71..(LB,SED)..SAA198108-198208

sub77213-12131

main77213-12130iTE71..LB..LHD..4F;KE70..SED..LHD..4F..4D..GEN198012-198108

SAUDI ARABIA SPEC

sub77213-12131

main77213-12131iKE70,TE71..(LB,SED)..SAA198208-198308

L=227

sub77213-27160

main77213-13040iAE71,CE70,KE70,TE71..DV,WG197908-198707

77241TUBE, FUEL MAIN, NO.1

main77205-13070iKE70..EUR198401-198707

main77205-13100iKE70,TE71..(DV,WG)..(GEN,SA)198408-198707

main77205-13110iAE71..GEN198508-198707

main77251-12060iKE70,TE7#..CP,LB197908-198502

main77251-12130iCE70..RHD198210-198305

main77251-12150iCE70..LHD198210-198305

main77251-13040iKE70,TE71..DV,WG197908-198108

main77251-13041iKE70,TE71..(DV,WG)..(EUR,GEN,SA,SAA)198108-198309

sub77251-13042

main77251-13042iKE70,TE71..(DV,WG)..(EUR,GEN,SA)198305-198408

main77251-13081iCE70..LHD198305-198707

main77251-13100iAE71..(DV,WG)..MTM198402-198707

main77251-13110iCE70..RHD198501-198707

77241AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

main77259-13020iAE71..GEN198508-198707

main95332-06020iKE70197908-198707

L=200(*H,L=150)

sub95333-06020

main95332-08020iCE70..RHD198210-198707

L=200(*H,L=160)

sub95333-08020

main95332-08040iCE70..LHD198210-198707

L=400(*H,L=340)

sub95333-08040

77241BHOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

main90445-12085iKE70,TE71..DV,WG197908-198108

L=220

main90445-12105iKE70..2D..ARL198108-198707

L=300(*H,L=240)

sub95332-06030

main90445-14087iCE70198305-198707

main95332-06020iAE71,KE70,TE7#..CP,LB,SED197908-198502

L=200

sub95333-06020

main95332-06030iKE70..WG..ARL198108-198309

L=300(*H,L=220)

sub95333-06030

main95332-08020iCE70198210-198305

L=200

sub95333-08020

77251SHIELD, FUEL TANK, INLET, NO.1

main77292-12030iAE71,CE70,KE70,TE7#..CP,LB,SED197908-198502

77251ASHIELD, FUEL TANK, INLET, NO.2

main77291-12020iAE71,CE70,KE70,TE7#..CP,LB,SED197908-198502

main77291-22010iAE71,CE70,KE70,TE71..DV,WG197908-198707

77277TUBE, FUEL RETURN, NO.1

main77255-12050iTE71..(CP,LB,SED)..LHD..(DX,SR)..GEN198108-198305

MIDDLE EAST SPEC

main77255-12050iTE71..RHD..2D..GEN198108-198203

HONG KONG SPEC

main77255-12050iTE71..(DX,SR,XE)..(EUR,SAA)198108-198308

main77255-12120iCE70..RHD198210-198305

main77255-12140iCE70..LHD198210-198305

main77255-13070iTE71..WG..LHD198108-198305

MIDDLE EAST SPEC

sub77255-13071

main77255-13070iKE70..2D..ARL198108-198309

sub77255-13071

main77255-13090iCE70..LHD198305-198707

main77255-13100iAE71..(DV,WG)..MTM198305-198707

main77255-13110iCE70..RHD198501-198707

main77255-13120iAE71..GEN198508-198707

77277AHOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)

main90447-12040iCE70..RHD198508-198707

main95332-04030iAE71198305-198606

L=300(*H,L=240)

sub95333-04030

main95332-04030iTE71..RHD..2D..GEN198108-198203

L=300(*H,L=280),HONG KONG SPEC

sub95333-04030

main95332-04030iTE71..LHD..(DX,SR)..GEN198108-198305

L=300(*H,L=280),MIDDLE EAST SEPC

sub95333-04030

main95332-04030iTE71..(DX,SR,XE)..(EUR,SAA)198108-198308

L=300(*H,L=280)

sub95333-04030

main95332-04040iKE70..4D..ARL198108-198410

L=400(*H,L=380)

sub95333-04040

main95332-04040iKE70..2D..ARL198108-198309

L=400(*H,L=320)

sub95333-04040

main95332-06030iCE70198210-198707

L=300(*H,L=260)

sub95333-06030

main95333-04024iAE71198606-198707

L=300(*H,L=240)

sub95333-04030

77277BHOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)

main95332-04020iTE71..(LB,SED)..LHD..GEN198108-198305

L=200(*H,L=180),MIDDLE EAST SEPC

sub95333-04020

main95332-04020iTE71..RHD..2D..GEN198108-198203

L=200(*H,L=180),HONG KONG SPEC

sub95333-04020

main95332-04020iTE71..(DX,SR,XE)..(EUR,SAA)198108-198410

L=200(*H,L=180)

sub95333-04020

main95332-04030iAE71198108-198707

L=300(*H,L=260)

sub95333-04030

main95332-06020iCE70198210-198305

L=200(*H,L=180)

sub95333-06020

main95332-06030iCE70198305-198707

L=300(*H,L=260)

sub95333-06030

77308COVER SUB-ASSY, FUEL INLET BOX

main77350-12010iKE70,TE71..SED197908-197910

sub77350-12030

main77350-12020iKE70,TE7#..CP,LB197908-197911

sub77350-12040

main77350-12030iKE70,TE71..SED197910-197911

sub77350-12031

sub77358-12021

sub77366-12011

main77350-12031iAE71,CE70,KE70,TE7#..SED197911-198502

main77350-12040iKE70,TE7#..CP,LB197911-197911

sub77350-12041

sub77358-12021

sub77366-12011

main77350-12041iKE70,TE7#..CP,LB197911-198406

main77350-13020iKE70,TE71..DV,WG197908-198108

main77350-13021iAE71,CE70,KE70,TE71..DV,WG198108-198707

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-06001iAE71,CE70,KE70,TE71..DV,WG197908-198707

main90541-08003iAE71,CE70,KE70,TE7#..SED197908-198502

main90541-10006iKE70,TE7#..CP,LB197908-198406

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-12010iTE7#..(GT,SE,SR,XE)..(ARL,GEN)197908-197911

main77366-12011iAE71,KE70,TE72..(GL,SE)..(ARL,SA)197911-198410

77367STOPPER, FUEL FILLER OPENING LID

main77358-12020iTE71..5F..EUG;KE70,TE7#..(CP,LB)..DX197908-197911

main77358-12021iKE70,TE7#..SED197908-198502

main77358-13010iKE70,TE71..DV,WG197908-198305

main77358-13011iAE71,CE70,KE70,TE71..DV,WG198305-198707

77387RING, FUEL INLET BOX

main77391-16010iAE71,CE70,KE70,TE7#..CP,LB,SED197908-198502

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77641-12110iTE71..LB..LHD..4F;KE70..SED..LHD..4F..4D..GEN198012-198108

SAUDI ARABIA SPEC

sub77641-12111

main77641-12111iKE70,TE71..(LB,SED)..SAA198108-198308

77606APROTECTOR, FUEL TANK FILLER PIPE

main77606-12100iTE71..LB..LHD..4F;KE70..SED..LHD..4F..4D..GEN198012-198108

SAUDI ARABIA SPEC

main77606-12100iKE70,TE71..(LB,SED)..SAA198108-198308

77606CPROTECTOR, FUEL TANK, NO.2

main77642-12010iTE71..LB..LHD..4F;KE70..SED..LHD..4F..4D..GEN198012-198108

SAUDI ARABIA SPEC

main77642-12010iKE70,TE71..(LB,SED)..SAA198108-198308

77611BAND, FUEL TANK

main77601-12030iTE72..(DX,SE)..(ARL,EUR);AE71,CE70,KE70,TE71..(CP,LB,SED)..(ARL,EUR,GEN)197908-198410

RH

sub77601-16040

main77601-12040iTE71..LB..LHD..4F;KE70..SED..LHD..4F..4D..GEN198012-198108

RH,SAUDI ARABIA SPEC

sub77601-12050

main77601-12040iKE70,TE71..(LB,SED)..SAA198108-198207

RH

sub77601-12050

main77601-12050iKE70,TE71..(LB,SED)..SAA198207-198308

RH

main77602-12030iKE70,TE7#..CP,LB,SED197908-198502

LH

sub77602-16040

main77602-12040iKE70,TE71..(LB,SED)..SAA198207-198308

LH

sub77602-16040

77611APIN (FOR FUEL TANK BAND)

main90240-08020iAE71,CE70,KE70,TE7#..CP,LB,SED197908-198502

77611BCUSHION, FUEL TANK, NO.4

main77654-12020iKE70,TE7#..CP,LB,SED197908-198102

sub77654-12021

main77654-12021iAE71,CE70,KE70,TE7#..CP,LB,SED198102-198502

77617AUNION, AUXILIARY FUEL BAND

main77617-12010iAE71,CE70,KE70,TE7#..CP,LB,SED198203-198502

77652CUSHION, FUEL TANK, NO.1

main77651-12040iKE70,TE7#..CP,LB,SED197908-198104

sub77651-12041

main77651-12040iKE70,TE7#..CP,LB,SED198104-198107

FR

sub77651-12041

main77651-12041iAE71,CE70,KE70,TE7#..CP,LB,SED198107-198502

FR

main77651-13020iAE71,CE70,KE70,TE71..DV,WG197908-198707

main77655-12021iAE71,CE70,KE70,TE7#..CP,LB,SED198104-198502

RR

77654CUSHION, FUEL TANK, NO.2

main77652-12040iKE70,TE7#..CP,LB,SED197908-198207

sub77652-12041

main77652-12041iTE72..4FC,5F;AE71,CE70,KE70,TE71..CP,LB,SED198207-198502

77655CUSHION, FUEL TANK, NO.3

main77653-12030iKE70,TE7#..CP,LB,SED197908-198107

sub77653-12031

main77653-12031iAE71,CE70,KE70,TE7#..CP,LB,SED198107-198502

77658MOULDING, FUEL TANK EDGE

main77658-12010iAE71,CE70,KE70,TE7#197908-198707

77661COVER, FUEL INLET PIPE

main77661-12010iAE71,CE70,KE70,TE7#..SED197908-198502

main77661-12020iKE70,TE7#..CP,LB197908-198406

77701TVALVE, CHECK (FOR MAIN FUEL TANK)

main90917-10020iAE71,CE70,KE70,TE7#..EUR,GEN,SA,SAA197908-198707

77701UHOSE, FUEL (FOR CHECK VALVE)

main95332-06020iCE70,KE70,TE7#..(CP,LB,SED)..(EUR,GEN,SA,SAA)197908-198502

L=200

sub95333-06020

8401

9011910173

main90119-10173

9015950004

main90159-50004

9015960080

main90159-60080

9017910033

main90179-10033

9018906006

main90189-06006

9020110038

main90201-10038

9046020052

main90460-20052

9046063001

main90460-63001

9046814004

main90468-14004

9165140612

main91651-40612

9165140614

main91651-40614

9331914010

main93319-14010

9331915008

main93319-15008

9338115010

main93381-15010

9611110630

main96111-10630

9613230400

main96132-30400

9613230600

main96132-30600

63 parts on this diagram · 16 diagrams in section
