BACK DOOR PANEL & GLASS

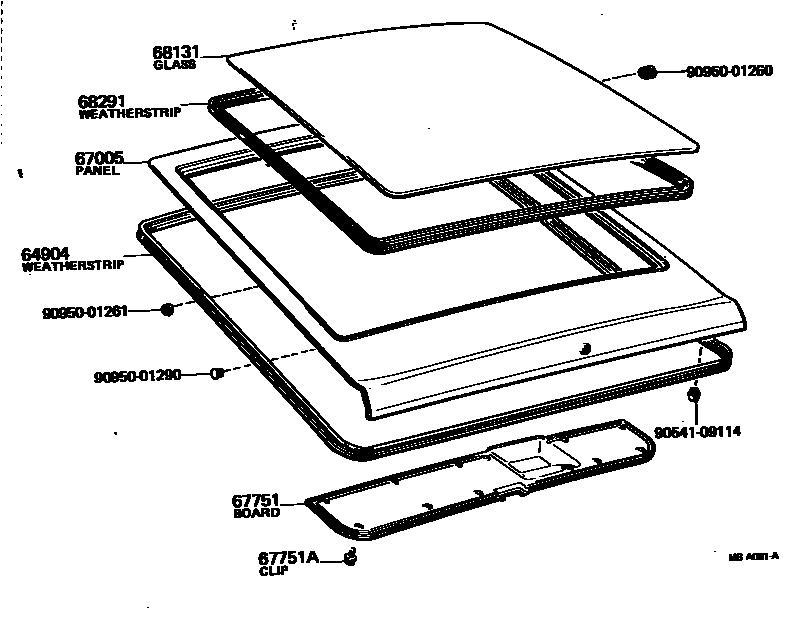

Parts diagram
64904WEATHERSTRIP SUB-ASSY, BACK DOOR
main67881-12030i197908-198305
main67881-12050i197908-198406
main67881-13050i197908-198506
main67881-13090i198506-198707
67005PANEL SUB-ASSY, BACK DOOR
main67005-12100i197908-198305
W/*RW
sub67005-12241
main67005-12110i197908-198406
sub67005-12291
main67005-12120i197908-198406
W/*RW
sub67005-12301
main67005-12270i197908-198305
sub67005-12261
main67005-13300i197908-198108
W/*DEF
main67005-13301i198108-198305
W/*DEF
main67005-13302i198305-198409
W/O *RW,W/*DEF
main67005-13310i197908-198108
W/*RW,*DEF
main67005-13311i198108-198305
W/*RW,*DEF
main67005-13312i198305-198409
W/*RW,*DEF
main67005-13420i197908-198108
W/O *RW,*DEF
main67005-13421i198108-198305
W/O *RW,*DEF
main67005-13422i198305-198412
W/O *RW,*DEF
main67005-13450i197908-198108
W/*RW,W/O *DEF
main67005-13451i198305-198308
W/*RW,W/O *DEF
main67005-13452i198305-198707
W/*RW,W/O *DEF
main67005-13501i198108-198305
main67005-13502i198305-198410
main67005-13510i198108-198309
W/O *DEF
main67005-13511i198309-198406
W/O *DEF
main67005-13520i198108-198309
W/*DEF
main67005-13521i198309-198406
W/*DEF
main67005-13620i198501-198707
W/*RW,W/O *DEF
main67005-13630i198409-198707
W/O *RW,*DEF
main67005-13640i198409-198707
W/*RW,*DEF
main67005-13650i198409-198707
W/O *RW,W/*DEF
main67005-13680i198601-198707
LICENCE PLATE(UPR),W/O*RW,*DEF
main67005-13690i198601-198707
LICENCEPLATE(UPR)W/O*PW,W/*DEF
main67005-13700i198601-198707
LICENCEPLATE(UPR)W/*PW,W/O*DEF
main67005-13710i198601-198707
LICENCE PLATE(UPR),W/*RW,*DEF
67751BOARD, BACK DOOR TRIM
main64780-12010-01i197908-198305
W/O RR WINDOW WIPER,BLACK,BLACK,TRIM0#,2#
main64780-12010-04i197908-198305
W/O RR WINDOW WIPER,BLUE,BLUE,TRIM8#
main64780-12010-06i197908-198305
W/O RR WINDOW WIPER,DARK BROWN,BROWN,TRIM4#
main64780-12020-01i198204-198406
W/O RR WINDOW WIPER,BLACK,BLACK,TRIM0#,2#
main64780-12020-04i197908-198305
W/O RR WINDOW WIPER,BLUE,BLUE,TRIM8#
main64780-12020-06i197908-198406
W/O RR WINDOW WIPER,DARK BROWN,BROWN,TRIM4#
main64781-12010-01i197908-198305
W/RR WINDOW WIPER,BLACK,BLACK,TRIM0#,2#
main64781-12010-04i197908-198305
W/RR WINDOW WIPER,BLUE,BLUE,TRIM8#
main64781-12010-06i197908-198305
W/RR WINDOW WIPER,DARK BROWN,BROWN,TRIM4#
main64781-12030-01i197908-198204
W/RR WINDOW WIPER,BLACK,BLACK,TRIM0#,2#
main64781-12030-04i197908-198305
W/RR WINDOW WIPER,BLUE,BLUE,TRIM8#
main64781-12030-06i197908-198406
W/RR WINDOW WIPER,DARK BROWN,BROWN,TRIM4#
main67751-13060-01i198108-198305
BLACK,BLACK,TRIM2#
main67751-13060-03i198305-198508
GRAY,GRAY,TRIM1#
main67751-13060-04i198305-198308
BLUE,BLUE,TRIM8#
main67751-13060-05i198305-198508
BEIGE,BEIGE,TRIM4#
main67751-13060-06i197908-198008
LIGHT BROWN,BROWN,TRIM4#
main67751-13060-13i198305-198508
GRAY,GRAY,TRIM1#
main67751-13060-16i198108-198305
LIGHT BROWN,BROWN,TRIM4#
main67751-13060-26i198508-198707
BROWN,LIGHT BROWN,TRIM4#
main67751-13070-01i198305-198308
W/RR WINDOW WIPER,BLACK,BLACK,TRIM2#
main67751-13070-04i198305-198308
W/RR WINDOW WIPER,BLUE,BLUE,TRIM8#
main67751-13070-06i197908-198008
W/RR WINDOW WIPER,LIGHT BROWN,BROWN,TRIM4#
main67751-13070-16i198305-198308
W/RR WINDOW WIPER,LIGHT BROWN,BROWN,TRIM4#
main67751-13080-01i198501-198508
BLACK,BLACK,TRIM0#,2#
main67751-13080-03i198508-198707
GRAY,GRAY,TRIM1#
main67751-13080-16i198501-198508
LIGHT BROWN,BROWN,TRIM4#
main67751-13080-26i198508-198707
BROWN,LIGHT BROWN,TRIM4#
67751ACLIP(FOR BACK DOOR TRIM BOARD)
main90467-06017-01i198204-198406
BLACK,BLACK,TRIM0#,2#
main90467-06017-04×10i198305-198309
BLUE,BLUE,TRIM8#
main90467-06017-06×10i198104-198305
LIGHT BROWN,BROWN,TRIM4#
main90467-06017-13×10i198305-198503
GRAY,GRAY,TRIM1#
main90467-06017-16×13i198108-198406
DARK BROWN,BROWN,TRIM4#
main90467-06017-25×10i198309-198406
BEIGE,BEIGE,TRIM4#
main90467-07041-33×10i198503-198508
GRAY,GRAY,TRIM1#
main90467-07041-35×10i198503-198508
BEIGE,BROWN,TRIM4#
main90467-07041-46×10i198508-198707
BROWN,BROWN,TRIM4#
main90467-07041-53×10i198508-198707
GRAY,GRAY,TRIM1#
main90467-08015-01×10i197908-198104
BLACK,BLACK,TRIM2#
main90467-08015-04×10i197908-198104
BLUE,BLUE,TRIM8#
main90467-08015-06×10i197908-198008
LIGHT BROWN,BROWN,TRIM4#
main90467-08015-16×10i198008-198104
LIGHT BROWN,BROWN,TRIM4#
main90467-08114-11×13i197908-198108
BLACK,BLACK,TRIM0#,2#
main90467-08114-24×13i197908-198108
BLUE,BLUE,TRIM8#
main90467-08114-36×13i197908-198108
DARK BROWN,BROWN,TRIM4#
68131GLASS, BACK DOOR
main68105-12040i197908-198305
*TT,T=4.0,W/DEFOGGER
main68105-12050i197908-198406
*TT,T=4.0,W/DEFOGGER
main68105-12060i197908-198305
*TT,T=4.0,W/HEAVY DEFOGGER
main68105-12070i197908-198305
*TT,T=4.0,W/HEAVY DEFOGGER
main68105-13020i198108-198308
*TEM,T=4.0,W/DEFOGGER
main68105-13050i197908-198308
*TEM,T=4.0,W/HEAVY DEFOGGER
main68105-13051i198308-198707
*TEM,T=4.0,W/HEAVY DEFOGGER
main68105-13070i198403-198707
*TEM,T=4.0,W/DEFOGGER
main68131-12020i197908-198305
*TT,T=4.0
main68131-12070i197908-198406
*TT,T=4.0
main68131-13080i198403-198707
*TEM,T=4.0
68291WEATHERSTRIP, BACK DOOR GLASS
main68291-12030i197908-198305
main68291-12040i197908-198305
main68291-12050i198108-198204
main68291-12060i198204-198401
main68291-13070i198108-198305
main68291-13090i198305-198308
W/MOULDING
9054109114
main90541-09114
9095001260
main90950-01260
9095001261
main90950-01261
9095001290
main90950-01290

10 parts on this diagram · 3 diagrams in section
