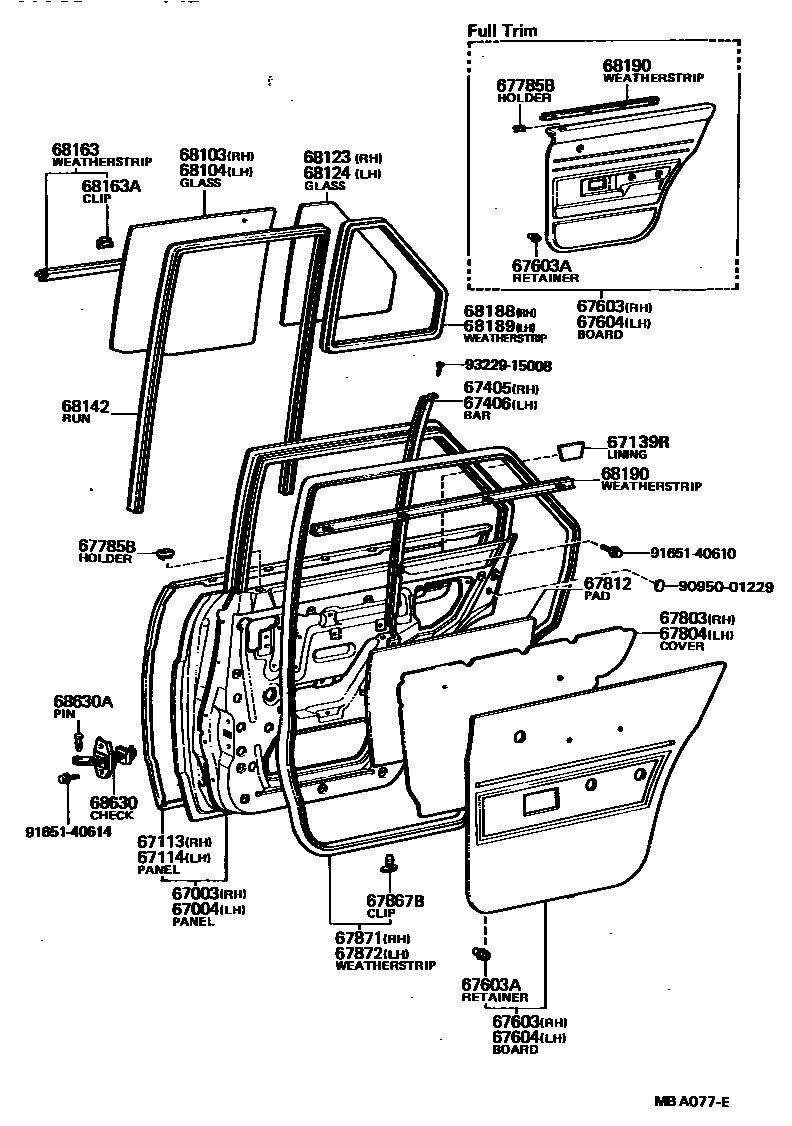

REAR DOOR PANEL & GLASS

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-12180iTE71..SED..DX..GEN197908-198305

sub67003-12250

main67003-12200iKE70..SED..LHD..4F..4D..GEN198012-198108

SAUDI ARABIA SPEC

main67003-12200iKE70..SED..SAA198108-198410

main67003-12250iKE70,TE71..SED..4D..(EUR,GEN)198108-198502

*GIS

main67003-13120iKE70,TE71..WG..4D197908-198405

sub67003-13190

main67003-13130iKE70..WG..SAA198108-198308

sub67003-13170

main67003-13190iAE71,CE70,KE70,TE71..WG..4D..(EUR,GEN,SA)198108-198707

*GIS

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-12180iKE70,TE7#..SED..4D197908-198305

sub67004-12250

main67004-12200iAE71,KE70..SED..(ARL,SAA)198108-198410

main67004-12200iKE70..SED..LHD..4F..4D..GEN198012-198108

SAUDI ARABIA SPEC

main67004-12250iCE70,KE70,TE7#..SED..4D..(EUR,GEN,SA)198108-198502

*GIS

main67004-13120iKE70,TE71..WG..4D197908-198405

sub67004-13190

main67004-13130iKE70..WG..SAA198108-198308

sub67004-13170

main67004-13190iAE71,CE70,KE70,TE71..WG..4D..(EUR,GEN,SA)198108-198707

*GIS

67113PANEL, REAR DOOR, OUTER RH

main67113-12080iKE70..4D..GEN197908-198506

sub67113-12090

main67113-12090iAE71,CE70,KE70,TE7#..4D198108-198506

*GIS

main67113-12090iKE70..SED..LHD..4F..4D..GEN198012-198108

SAUDI ARABIA SPEC

main67113-12090iAE71,CE70,KE70..4D198506-198707

67114PANEL, REAR DOOR, OUTER LH

main67114-12080iKE70..4D..GEN197908-198506

sub67114-12090

main67114-12090iAE71,CE70,KE70,TE7#..4D198108-198506

*GIS

main67114-12090iKE70..SED..LHD..4F..4D..GEN198012-198108

SAUDI ARABIA SPEC

main67114-12090iAE71,CE70,KE70..4D198506-198707

67139RLINING, DOOR OUTSIDE PANEL REINFORCEMENT

main67139-12010iKE70,TE71..4D197908-198007

main67139-12020iAE71,CE70,KE70,TE7#..4D198007-198410

67405BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-12080iAE71,CE70,KE70,TE7#..4D197908-198707

67406BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-12080iAE71,CE70,KE70,TE7#..4D197908-198707

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-12200-01iKE70,TE71..SED..4D..DX..(EUR,GEN)197908-198204

SEMI TRIM,W/MOULDING,BLACK,BLACK,TRIM2#

sub67630-12200

main67630-12200-04iKE70,TE71..SED..4D..DX..(EUR,GEN)197908-198108

SEMI TRIM,W/MOULDING,BLUE,BLUE,TRIM8#

sub67630-12200

main67630-12200-06iKE70,TE71..SED..4D..STD..GEN197908-198008

SEMI TRIM,W/MOULDING,L-BROWN,BROWN,TRIM4#

sub67630-12200

main67630-12200-08iKE70,TE71..SED..4D..STD..GEN197908-198108

SEMI TRIM,W/MOULDING,IVORY,IVORY,TRIM0#

sub67630-12200

main67630-12200-16iKE70,TE71..SED..4D..STD..GEN198008-198204

SEMI TRIM,W/MOULDING,L-BROWN,BROWN,TRIM4#

sub67630-12200

main67630-12201-01iKE70..4D..STD..SA198108-198502

W/ARMREST,BLACK,BLACK,TRIM2#

main67630-12201-04iKE70..SED..4D..STD..GEN198108-198305

W/ARMREST,BLUE,BLUE,TRIM8#

main67630-12201-06iKE70..SED..4D..STD..GEN198108-198502

W/ARMREST,L-BROWN,BROWN,TRIM4#

main67630-12201-08iKE70..SED..4D..STD..GEN198108-198305

W/ARMREST,IVORY,IVORY,TRIM0#

main67630-12210-01iKE70..SED..STD..ARL198108-198305

BLACK,BLACK,TRIM2#

sub67630-12230

sub67630-12210

main67630-12210-01iKE70,TE71..SED..4D..DX..(EUR,GEN)197908-198108

HIGH GRADE PACKAGE,BLACK,BLACK,TRIM2#

sub67630-12230

sub67630-12210

main67630-12210-04iKE70..SED..STD..ARL198108-198305

BLUE,BLUE,TRIM8#

sub67630-12230

sub67630-12210

main67630-12210-04iKE70,TE71..SED..4D..DX..(EUR,GEN)197908-198108

HIGH GRADE PACKAGE,BLUE,BLUE,TRIM8#

sub67630-12230

sub67630-12210

main67630-12210-06iKE70,TE71..SED..4D..DX..(EUR,GEN)197908-198008

HIGH GRADE PACKAGE,L-BROWN,BROWN,TRIM4#

sub67630-12230

sub67630-12210

main67630-12210-06iTE7#..GL198007-198008

L-BROWN,BROWN,TRIM4#

sub67630-12230

sub67630-12210

main67630-12210-08iKE70,TE71..SED..4D..DX..(EUR,GEN)197908-198108

HIGH GRADE PACKAGE,IVORY,IVORY,TRIM0#

sub67630-12230

sub67630-12210

main67630-12210-16iTE7#..GL;KE70..DX..SA198008-198305

L-BROWN,BROWN,TRIM4#

sub67630-12230

sub67630-12210

main67630-12210-16iKE70,TE71..SED..4D..DX..(EUR,GEN)198008-198108

HIGH GRADE PACKAGE,L-BROWN,BROWN,TRIM4#

sub67630-12230

sub67630-12210

main67630-12211-01iKE70..SED..DX..SAA198108-198502

BLACK,BLACK,TRIM2#

sub67630-12231

main67630-12211-04iCE70,KE70,TE71..SED..4D..DX..(EUR,GEN,SAA)198108-198308

BLUE,BLUE,TRIM8#

sub67630-12231

main67630-12211-06iKE70..SED..DX..SAA198108-198502

L-BROWN,BROWN,TRIM4#

sub67630-12231

main67630-12211-08iKE70,TE71..SED..4D..DX..(GEN,SAA)198108-198308

IVORY,IVORY,TRIM0#

sub67630-12231

main67630-12230-01iKE70..GL..ARL198108-198305

BLACK,BLACK,TRIM2#

sub67630-12230

main67630-12230-04iKE70..GL..ARL198108-198305

BLUE,BLUE,TRIM8#

sub67630-12230

main67630-12230-16iKE70..GL..ARL198108-198305

L-BROWN,BROWN,TRIM4#

sub67630-12230

main67630-12240-01iKE70,TE71..4D..STD..(EUR,GEN)197908-198108

SEMI TRIM,BLACK,BLACK,TRIM2#

sub67630-12240

main67630-12240-04iKE70,TE71..4D..STD..(EUR,GEN)197908-198108

SEMI TRIM,BLUE,BLUE,TRIM8#

sub67630-12240

main67630-12240-06iKE70,TE71..4D..STD..(EUR,GEN)197908-198008

SEMI TRIM,L-BROWN,BROWN,TRIM4#

sub67630-12240

main67630-12240-08iKE70,TE71..SED..4D..STD..(EUR,GEN)197908-198108

SEMI TRIM,IVORY,IVORY,TRIM0#

sub67630-12240

main67630-12240-16iKE70,TE71..4D..STD..(EUR,GEN)198008-198108

SEMI TRIM,L-BROWN,BROWN,TRIM4#

sub67630-12240

main67630-12241-01iKE70,TE71..4D..STD..(EUR,GEN,SAA)198108-198308

W/PULL HANDLE,BLACK,BLACK,TRIM2#

main67630-12241-04iKE70..STD..SAA198108-198308

W/PULL HANDLE,BLUE,BLUE,TRIM8#

main67630-12241-06iKE70..STD..SAA198108-198308

W/PULL HANDLE,L-BROWN,BROWN,TRIM4#

main67630-12241-08iKE70..SED..4D..STD..(GEN,SAA)198108-198308

W/PULL HANDLE,IVORY,IVORY,TRIM0#

main67630-12281-01iKE70..4D..GL..(EUR,GEN)198108-198207

BLACK,BLACK,TRIM2#

sub67630-12231

main67630-12281-04iKE70..SED..SDZ198211-198302

CAMPAIGN,SWEDEN SPEC,BLUE,BLUE,TRIM8#

sub67630-12231

main67630-12281-04iKE70,TE71..4D..GL..(EUR,GEN)198108-198305

BLUE,BLUE,TRIM8#

sub67630-12231

main67630-12281-04iKE70..SED..4D..SDN198201-198206

CAMPAIGN,BLUE,BLUE,TRIM8#

sub67630-12231

main67630-12281-06iKE70,TE71..4D..GL..(EUR,GEN)198108-198410

L-BROWN,BROWN,TRIM4#

sub67630-12231

main67630-12281-11iKE70,TE71..4D..GL..(EUR,GEN)198207-198410

BLACK,BLACK,TRIM2#

sub67630-12231

main67630-12290-01iKE70..SED..DX..ARL198108-198305

BLACK,BLACK,TRIM2#

sub67630-12290

main67630-12290-04iKE70..SED..DX..ARL198108-198305

BLUE,BLUE,TRIM8#

sub67630-12290

main67630-12290-16iKE70..SED..DX..ARL198108-198305

L-BROWN,BROWN,TRIM4#

sub67630-12290

main67630-13030-01iKE70,TE71..WG..4D..(DX,XL)197908-198108

SEMI TRIM,BLACK,BLACK,TRIM2#

sub67630-13030

main67630-13030-04iKE70,TE71..WG..4D..(DX,XL)197908-198108

SEMI TRIM,BLUE,BLUE,TRIM8#

sub67630-13030

main67630-13030-06iKE70,TE71..WG..4D..(DX,XL)197908-198008

SEMI TRIM,L-BROWN,BROWN,TRIM4#

sub67630-13030

main67630-13030-16iKE70,TE71..WG..4D..(DX,XL)198008-198108

SEMI TRIM,L-BROWN,BROWN,TRIM4#

sub67630-13030

main67630-13040-01iKE70,TE71..WG..4D..(DX,XL)197908-198108

HIGH GRADE PACKAGE,BLACK,BLACK,TRIM2#

sub67630-13040

main67630-13040-04iKE70,TE71..WG..4D..(DX,XL)197908-198108

HIGH GRADE PACKAGE,BLUE,BLUE,TRIM8#

sub67630-13040

main67630-13040-06iKE70,TE71..WG..4D..(DX,XL)197908-198008

HIGH GRADE PACKAGE,L-BROWN,BROWN,TRIM4#

sub67630-13040

main67630-13040-16iKE70,TE71..WG..4D..(DX,XL)198008-198108

HIGH GRADE PACKAGE,L-BROWN,BROWN,TRIM4#

sub67630-13040

main67630-13041-01iAE71,TE71..WG..SA198108-198508

BLACK,BLACK,TRIM2#

main67630-13041-04iKE70,TE71..WG..4D..(DX,XL)..(EUR,GEN,SAA)198108-198308

BLUE,BLUE,TRIM8#

main67630-13041-06iAE71,TE71..WG..SA198108-198508

L-BROWN,BROWN,TRIM4#

main67630-13050-13iKE70..4D..STD198508-198707

GRAY,GRAY,TRIM1#

sub67630-13050

main67630-13050-16iKE70..4D..STD198508-198707

BROWN,LIGHT BROWN,TRIM4#

sub67630-13050

main67630-13060-03iCE70,KE70..WG..4D..(EUR,GEN)198305-198508

GRAY,GRAY,TRIM1#

sub67630-13060

main67630-13060-05iCE70,KE70..WG..4D..(EUR,GEN)198305-198409

BEIGE,BEIGE,TRIM4#

sub67630-13060

main67630-13060-13iAE71,CE70,KE70..(DX,XL)..(EUR,GEN)198508-198707

GRAY,LIGHT GRAY,TRIM1#

sub67630-13060

main67630-13060-15iCE70,KE70..4D..(EUR,GEN)198409-198508

BEIGE,BEIGE,TRIM4#

sub67630-13060

main67630-13060-16iAE71,CE70,KE70..(DX,XL)..(EUR,GEN)198508-198707

BROWN,LIGHT BROWN,TRIM4#

sub67630-13060

67603ARETAINER(FOR REAR DOOR TRIM BOARD)

main67771-12010iAE71,CE70,KE70,TE7#..4D197908-198707

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-12200-01iKE70,TE71..SED..4D..DX..(EUR,GEN)197908-198204

SEMI TRIM,W/MOULDING,BLACK,BLACK,TRIM2#

sub67640-12200

main67640-12200-04iKE70,TE71..SED..4D..DX..(EUR,GEN)197908-198108

SEMI TRIM,W/MOULDING,BLUE,BLUE,TRIM8#

sub67640-12200

main67640-12200-06iKE70,TE71..SED..4D..DX..(EUR,GEN)197908-198008

SEMI TRIM,W/MOULDING,L-BROWN,BROWN,TRIM4#

sub67640-12200

main67640-12200-08iKE70,TE71..SED..4D..DX..(EUR,GEN)197908-198108

SEMI TRIM,W/MOULDING,IVORY,IVORY,TRIM0#

sub67640-12200

main67640-12200-16iKE70,TE71..SED..4D..DX..(EUR,GEN)198008-198204

SEMI TRIM,W/MOULDING,L-BROWN,BROWN,TRIM4#

sub67640-12200

main67640-12201-01iKE70..SED..4D..STD..(GEN,SA)198108-198502

W/ARMREST,BLACK,BLACK,TRIM2#

main67640-12201-04iKE70..SED..4D..STD..GEN198108-198305

W/ARMREST,BLUE,BLUE,TRIM8#

main67640-12201-06iKE70..SED..4D..STD..GEN198108-198502

W/ARMREST,L-BROWN,BROWN,TRIM4#

main67640-12201-08iKE70..SED..4D..STD..GEN198108-198305

W/ARMREST,IVORY,IVORY,TRIM0#

main67640-12210-01iKE70..SED..STD..ARL198108-198305

BLACK,BLACK,TRIM2#

sub67640-12230

sub67640-12210

main67640-12210-01iKE70,TE71..SED..4D..DX..(EUR,GEN)197908-198108

HIGH GRADE PACKAGE,BLACK,BLACK,TRIM2#

sub67640-12230

sub67640-12210

main67640-12210-04iKE70,TE71..SED..4D..DX..(EUR,GEN)197908-198108

HIGH GRADE PACKAGE,BLUE,BLUE,TRIM8#

sub67640-12230

sub67640-12210

main67640-12210-04iKE70..SED..STD..ARL198108-198305

BLUE,BLUE,TRIM8#

sub67640-12230

sub67640-12210

main67640-12210-06iKE70,TE71..SED..4D..DX..(EUR,GEN)197908-198008

HIGH GRADE PACKAGE,L-BROWN,BROWN,TRIM4#

sub67640-12230

sub67640-12210

main67640-12210-06iTE7#..GL198007-198008

L-BROWN,BROWN,TRIM4#

sub67640-12230

sub67640-12210

main67640-12210-08iKE70,TE71..SED..4D..DX..(EUR,GEN)197908-198108

HIGH GRADE PACKAGE,IVORY,IVORY,TRIM0#

sub67640-12230

sub67640-12210

main67640-12210-16iTE7#..GL;KE70..DX..SA198008-198305

L-BROWN,BROWN,TRIM4#

sub67640-12230

sub67640-12210

main67640-12210-16iKE70,TE71..SED..4D..DX..(EUR,GEN)198008-198108

HIGH GRADE PACKAGE,L-BROWN,BROWN,TRIM4#

sub67640-12230

sub67640-12210

main67640-12211-01iAE71,KE70..SED..(DX,STD)..(ARL,GEN)198108-198502

BLACK,BLACK,TRIM2#

sub67640-12231

main67640-12211-04iCE70,KE70,TE71..SED..4D..DX..(EUR,GEN,SAA)198108-198308

BLUE,BLUE,TRIM8#

sub67640-12231

main67640-12211-06iAE71,KE70..SED..(DX,STD)..(ARL,GEN)198108-198502

L-BROWN,BROWN,TRIM4#

sub67640-12231

main67640-12211-08iKE70,TE71..SED..4D..DX..(GEN,SAA)198108-198308

IVORY,IVORY,TRIM0#

sub67640-12231

main67640-12230-01iKE70..GL..ARL198108-198305

BLACK,BLACK,TRIM2#

sub67640-12230

main67640-12230-04iKE70..GL..ARL198108-198305

BLUE,BLUE,TRIM8#

sub67640-12230

main67640-12230-16iKE70..GL..ARL198108-198305

L-BROWN,BROWN,TRIM4#

sub67640-12230

main67640-12240-01iKE70,TE71..4D..STD..(EUR,GEN)197908-198108

SEMI TRIM,BLACK,BLACK,TRIM2#

sub67640-12240

main67640-12240-04iKE70,TE71..4D..STD..(EUR,GEN)197908-198108

SEMI TRIM,BLUE,BLUE,TRIM8#

sub67640-12240

main67640-12240-06iKE70,TE71..4D..STD..(EUR,GEN)197908-198008

SEMI TRIM,L-BROWN,BROWN,TRIM4#

sub67640-12240

main67640-12240-08iKE70,TE71..SED..4D..STD..(EUR,GEN)197908-198108

SEMI TRIM,IVORY,IVORY,TRIM0#

sub67640-12240

main67640-12240-16iKE70,TE71..4D..STD..(EUR,GEN)198008-198108

SEMI TRIM,L-BROWN,BROWN,TRIM4#

sub67640-12240

main67640-12241-01iKE70..STD..SAA198108-198308

W/PULL HANDLE,BLACK,BLACK,TRIM2#

main67640-12241-04iKE70..STD..SAA198108-198308

W/PULL HANDLE,BLUE,BLUE,TRIM8#

main67640-12241-06iKE70,TE71..4D..STD..(EUR,GEN,SAA)198108-198308

W/PULL HANDLE,L-BROWN,BROWN,TRIM4#

main67640-12241-08iKE70..SED..4D..STD..(GEN,SAA)198108-198308

W/PULL HANDLE,IVORY,IVORY,TRIM0#

main67640-12281-01iKE70..4D..GL..(EUR,GEN)198108-198207

BLACK,BLACK,TRIM2#

sub67640-12231

main67640-12281-04iKE70..SED..4D..SDN198201-198206

CAMPAIGN,BLUE,BLUE,TRIM8#

sub67640-12231

main67640-12281-04iKE70..SED..SDZ198211-198302

CAMPAIGN,SWEDEN SPEC,BLUE,BLUE,TRIM8#

sub67640-12231

main67640-12281-04iKE70,TE71..4D..GL..(EUR,GEN)198108-198305

BLUE,BLUE,TRIM8#

sub67640-12231

main67640-12281-06iAE71,KE70..GL198108-198410

L-BROWN,BROWN,TRIM4#

sub67640-12231

main67640-12281-11iAE71,KE70..GL198207-198410

BLACK,BLACK,TRIM2#

sub67640-12231

main67640-12290-01iKE70..SED..DX..ARL198108-198305

BLACK,BLACK,TRIM2#

sub67640-12290

main67640-12290-04iKE70..SED..DX..ARL198108-198305

BLUE,BLUE,TRIM8#

sub67640-12290

main67640-12290-16iKE70..SED..DX..ARL198108-198305

L-BROWN,BROWN,TRIM4#

sub67640-12290

main67640-13030-01iKE70,TE71..WG..4D..(DX,XL)197908-198108

SEMI TRIM,BLACK,BLACK,TRIM2#

sub67640-13030

main67640-13030-04iKE70,TE71..WG..4D..(DX,XL)197908-198108

SEMI TRIM,BLUE,BLUE,TRIM8#

sub67640-13030

main67640-13030-06iKE70,TE71..WG..4D..(DX,XL)197908-198008

SEMI TRIM,L-BROWN,BROWN,TRIM4#

sub67640-13030

main67640-13030-16iKE70,TE71..WG..4D..(DX,XL)198008-198108

SEMI TRIM,L-BROWN,BROWN,TRIM4#

sub67640-13030

main67640-13040-01iKE70,TE71..WG..4D..(DX,XL)197908-198108

HIGH GRADE PACKAGE,BLACK,BLACK,TRIM2#

sub67640-13040

main67640-13040-04iKE70,TE71..WG..4D..(DX,XL)197908-198108

HIGH GRADE PACKAGE,BLUE,BLUE,TRIM8#

sub67640-13040

main67640-13040-06iKE70,TE71..WG..4D..(DX,XL)197908-198008

HIGH GRADE PACKAGE,L-BROWN,BROWN,TRIM4#

sub67640-13040

main67640-13040-16iKE70,TE71..WG..4D..(DX,XL)198008-198108

HIGH GRADE PACKAGE,L-BROWN,BROWN,TRIM4#

sub67640-13040

main67640-13041-01iKE70..WG..SAA198108-198508

BLACK,BLACK,TRIM2#

main67640-13041-04iKE70..WG..SAA198108-198308

BLUE,BLUE,TRIM8#

main67640-13041-06iKE70,TE71..WG..4D..(DX,XL)..(EUR,GEN,SA,SAA)198108-198508

L-BROWN,BROWN,TRIM4#

main67640-13050-13iKE70..4D..STD198508-198707

GRAY,GRAY,TRIM1#

sub67640-13050

main67640-13050-16iKE70..4D..STD198508-198707

BROWN,LIGHT BROWN,TRIM4#

sub67640-13050

main67640-13060-03iCE70,KE70..WG..4D..(EUR,GEN)198305-198508

GRAY,GRAY,TRIM1#

sub67640-13060

main67640-13060-05iCE70,KE70..WG..4D..(EUR,GEN)198305-198409

BEIGE,BEIGE,TRIM4#

sub67640-13060

main67640-13060-13iAE71,CE70,KE70..(DX,XL)..(EUR,GEN)198508-198707

GRAY,LIGHT GRAY,TRIM1#

sub67640-13060

main67640-13060-15iCE70,KE70..4D..(EUR,GEN)198409-198508

BEIGE,BEIGE,TRIM4#

sub67640-13060

main67640-13060-16iAE71,CE70,KE70..(DX,XL)..(EUR,GEN)198508-198707

BROWN,LIGHT BROWN,TRIM4#

sub67640-13060

67785BHOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)

main69751-20030-01iKE70,TE71..4D..(EUR,GEN)197908-198101

BLACK

sub69751-20030

sub69751-20031

main69751-20031-01iKE70..4D..STD198101-198707

BLACK

sub69751-20031

main69751-20040iCE70,KE70,TE7#..4D..(DX,GL,XL)..(EUR,GEN,SA,SAA)197908-198308

W/FULL TRIM

main69751-20040iTE7#..GL;KE70..DX..SA198007-198707

67803COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH

main67841-12080iAE71,CE70,KE70,TE7#..4D197908-198707

sub67841-12120

main67841-12120iKE70..4D..ARL198108-198305

main67841-12120iKE70..SED..LHD..4F..4D..GEN198012-198108

SAUDI ARABIA SPEC

67804COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH

main67841-12080iCE70,KE70,TE7#..4D..(EUR,GEN,SA,SAA)197908-198707

sub67841-12120

main67841-12120iKE70..SED..LHD..4F..4D..GEN198012-198108

SAUDI ARABIA SPEC

main67841-12120iKE70..4D..ARL198108-198305

67812PAD, REAR DOOR SILENCER

main67812-20050iKE70,TE7#..4D197908-198410

sub67812-12010

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main67868-30040iAE71,CE70,KE70,TE7#..4D197908-198707

67871WEATHERSTRIP, REAR DOOR, RH

main67871-12110iAE71,CE70,KE70,TE7#..SED..4D197908-198502

main67871-13080iAE71,CE70,KE70,TE71..WG..4D197908-198707

67872WEATHERSTRIP, REAR DOOR, LH

main67872-12110iAE71,CE70,KE70,TE7#..SED..4D197908-198502

main67872-13070iAE71,CE70,KE70,TE71..WG..4D197908-198707

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-12080iAE71,KE70,TE71..SED..4D..(DX,GL)..(ARL,GEN)197908-198410

*TT,T=4.0

sub68113-12100

main68113-12090iKE70,TE7#..SED..SA197908-198502

*TEM,T=4.0

sub68113-12110

main68113-12100iKE70,TE71..SED..4D..(DX,GL)..(EUR,GEN,SAA)198108-198406

*TT,T=3.5

main68113-12110iKE70..SED..4D..STD..(EUR,GEN,SA)198108-198502

*TEM,T=3.5

sub68113-12100

main68113-13030iKE70..4D..GEN197908-198707

*TEM,T=4.0

sub68113-13070

main68113-13060iAE71,KE70..WG..DX..ARL197908-198707

*TT,T=4.0

sub68113-13080

main68113-13070iCE70,KE70..DX..EUG198108-198707

*TEM,T=3.5

sub68113-13080

main68113-13080iCE70,KE70..WG..4D..DX..(EUR,SAA)198108-198707

*TT,T=3.5

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-12080iKE70,TE71..SED..4D..DX..(EUR,GEN)197908-198410

*TT,T=4.0

sub68114-12100

main68114-12090iTE71..SED..DX..GEN197908-198502

*TEM,T=4.0

sub68114-12110

main68114-12100iKE70,TE71..SED..4D..(DX,GL)..(EUR,GEN,SAA)198108-198406

*TT,T=3.5

main68114-12110iKE70..SED..4D..STD..(EUR,GEN,SA)198108-198502

*TEM,T=3.5

sub68114-12100

main68114-13030iKE70,TE71..WG..4D..STD197908-198707

*TEM,T=4.0

sub68114-13070

main68114-13060iKE70..WG..4F..GEN197908-198707

*TT,T=4.0

sub68114-13080

main68114-13070iCE70,KE70..DX..EUG198108-198707

*TEM,T=3.5

main68114-13080iAE71,KE70..WG..(3FC,4F)..GEN198108-198707

*TT,T=3.5

68123GLASS, REAR DOOR WINDOW, RH

main68123-12100iAE71,KE70,TE71..SED..4D..(DX,GL)..(ARL,GEN)197908-198410

*TT,T=4.0

sub68123-12140

main68123-12110iKE70..SED..STD..ARL197908-198502

*TEM,T=4.0

sub68123-12150

main68123-12140iCE70,KE70,TE71..SED..4D..(DX,GL)..(EUR,SAA)198108-198406

*TT,T=3.5

main68123-12150iKE70..SED..4D..STD..(EUR,GEN,SA)198108-198502

*TEM,T=3.5

sub68123-12140

main68123-13060iKE70..WG..4F..GEN197908-198707

*TT,T=4.0

sub68123-13090

main68123-13070iKE70,TE71..WG..4D..(DX,XL)..GEN197908-198707

*TEM,T=4.0

sub68123-13080

main68123-13080iCE70,KE70..DX..EUG198108-198707

*TEM,T=3.5

sub68123-13090

main68123-13090iCE70,KE70..WG..4D..DX..(EUR,SAA)198108-198707

*TT,T=3.5

68124GLASS, REAR DOOR WINDOW, LH

main68124-12100iAE71,KE70,TE71..SED..4D..(DX,GL)..(ARL,GEN)197908-198410

*TT,T=4.0

sub68124-12140

main68124-12110iTE71..SED..5F..DX;TE71..5F..GL..GEN;TE71..SED..(3FC,4F)197908-198502

*TEM,T=4.0

sub68124-12150

main68124-12140iCE70,KE70,TE71..SED..4D..(DX,GL)..(EUR,SAA)198108-198406

*TT,T=3.5

main68124-12150iKE70..SED..4D..STD..(EUR,GEN,SA)198108-198502

*TEM,T=3.5

sub68124-12140

main68124-13030iKE70,TE71..WG..4D..(DX,XL)..GEN197908-198707

*TEM,T=4.0

sub68124-13070

main68124-13060iAE71,KE70,TE71..WG..(DX,XL)..(ARL,GEN)197908-198707

*TT,T=4.0

sub68124-13080

main68124-13070iCE70,KE70..DX..EUG198108-198707

*TEM,T=3.5

sub68124-13080

main68124-13080iKE70,TE71..WG..4D..GEN198108-198707

*TT,T=3.5

68142RUN, REAR DOOR GLASS

main68142-12040iKE70,TE7#..SED..(GEN,SA)197908-198502

main68142-13040iAE71,KE70..SED..ARL198305-198707

68163WEATHERSTRIP, REAR DOOR GLASS, OUTER

main68180-12040iCE70,KE70,TE71..4D..(DX,STD,XL)..(EUR,GEN,SAA)197908-198305

main68180-12060iCE70,KE70,TE71..4D..(DX,STD,XL)..(EUR,GEN,SAA)198301-198707

68163ACLIP(FOR REAR DOOR GLASS OUTER WEATHERSTRIP)

main68211-10030iKE70..4D..STD..SA;KE70,TE71..4D..(EUR,GEN)197908-198305

main68211-12080iKE70..STD..SA198301-198707

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-12070iAE71,CE70,KE70,TE7#..SED..4D197908-198502

main68188-13020iAE71,CE70,KE70,TE71..WG..4D197908-198707

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-12070iAE71,CE70,KE70,TE7#..SED..4D197908-198502

main68189-13020iAE71,CE70,KE70,TE71..WG..4D197908-198707

68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER

main68190-12060iTE7#..GL;KE70..DX..SA198007-198707

main68190-12060iKE70..WG..4D..DX;KE70,TE71..4D..(DX,XL)..GEN;KE70..SED..LHD..4D..DX..EUG197908-198108

HIGH GRADE PACKGE

main68190-12060iKE70,TE71..SED..4D..GEN198108-198305

W/FULL TRIM

main68190-12070iKE70,TE71..(3FC,4F)..4D..SA197908-198204

main68190-12070iKE70,TE71..4D..STD..(EUR,GEN,SA,SAA)198108-198707

W/SEMI TRIM

68630CHECK ASSY, REAR DOOR

main68630-12010iKE70,TE7#..4D197908-198101

sub68630-12011

main68630-12011iAE71,CE70,KE70,TE7#..4D198101-198707

68630APIN(FOR REAR DOOR CHECK)

main68617-12010iAE71,CE70,KE70,TE71..4D198407-198507

sub68617-90A00

main68617-22010iAE71,CE70,KE70,TE7#..4D197908-198407

sub68617-12010

main68617-90A00iAE71,CE70,KE70..4D198507-198707

sub68617-90A01

9095001229

main90950-01229

9165140610

main91651-40610

9165140614

main91651-40614

9322915008

main93229-15008

33 parts on this diagram · 1 diagram in section
