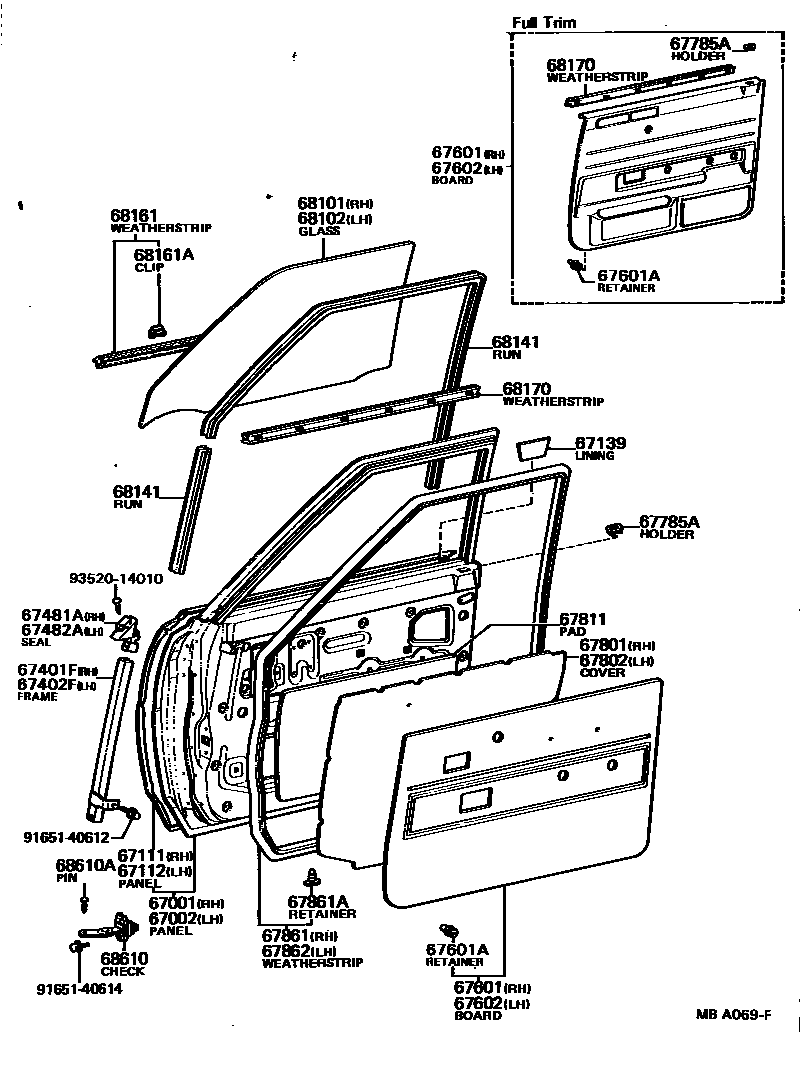

FRONT DOOR PANEL & GLASS

0001 1 0004 1 0008 1 0009 1 0011 1 0013 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-12400iKE70..(DV,SED,WG)..LHD..2D..EUG¥66,800197908-198108

W/O MIRROR

sub67001-12650¥66,800

main67001-12400iKE70..(DV,SED,WG)..2D..GEN¥66,800198108-198506

sub67001-12650¥66,800

main67001-12410iKE70..4D..GEN¥55,300198108-198506

main67001-12410iKE70,TE71..4D..GEN¥55,300197908-198108

W/O MIRROR

main67001-12420iKE70,TE71..(CP,LB)..LHD..EUG¥63,500197908-198108

W/O MIRROR

main67001-12450iKE70..SED..LHD..2D..EUR¥66,700197908-198108

W/MIRROR

sub67001-12680

main67001-12470iKE70..SAA¥55,200198108-198308

main67001-12470iKE70..SED..LHD..4F..4D..GEN¥55,200198012-198108

SAUDI ARABIA SPEC

main67001-12480iKE70..LHD..4D..EUR¥55,300197908-198108

W/MIRROR

sub67001-12460

main67001-12491iKE70,TE7#..(CP,LB)..(EUG,SDN)198108-198305

main67001-12491iKE70,TE71..LB..GEN198108-198406

*GIS

main67001-12500iTE72..ARL¥63,500197908-198108

sub67001-12510

main67001-12502iTE7#..ARL,SAA198108-198308

main67001-12510iTE71..LB..LHD..4F198012-198108

SAUDI ARABIA SPEC

main67001-12530iKE70,TE7#..(CP,LB)..(EUR,GEN)¥63,500197908-198108

W/MIRROR

sub67001-12510

main67001-12531iKE70,TE71..(CP,LB)..GEN¥63,500198108-198305

sub67001-12491

main67001-12630iKE70,TE71..4D..(EUR,GEN)¥55,300198108-198506

*GIS

main67001-12630iAE71,CE70,KE70..4D¥55,300198506-198707

main67001-12650iCE70,KE70..2D¥66,800198506-198707

main67001-12650iKE70..2D..STD;KE70..(SED,WG)..2D..DX..EUG;AE71,CE70,TE71..(DV,SED)..2D¥66,800198108-198506

*GIS

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-12430iKE70..(DV,SED,WG)..2D..GEN¥66,800197908-198506

sub67002-12630¥66,800

main67002-12430iKE70..RHD..2D..EUG¥66,800197908-198108

W/O MIRROR

sub67002-12630¥66,800

main67002-12440iKE70..RHD..4D..EUG¥55,300197908-198108

W/O MIRROR

main67002-12440iKE70..4D..GEN¥55,300198108-198506

main67002-12450iTE71..RHD..EUG¥63,500197908-198108

W/O MIRROR

main67002-12470iKE70..SED..LHD..2D197908-198108

W/MIRROR

main67002-12480iKE70..SED..LHD..4F..4D..GEN198012-198108

SAUDI ARABIA SPEC

main67002-12481iKE70..SAA¥48,000198108-198308

main67002-12490iKE70,TE71..WG..4D197908-198108

W/MIRROR

main67002-12501iKE70,TE7#..(CP,LB)..(EUG,SDN)198108-198305

main67002-12501iKE70,TE71..LB..GEN;TE72..(SE,XE)..(EUR,SA)198108-198406

*GIS

main67002-12510iTE71..LB..LHD..4F198012-198108

SAUDI ARABIA SPEC

main67002-12520iTE72..ARL197908-198108

main67002-12522iTE7#..ARL,SAA¥63,500198108-198308

sub67002-12511¥63,500

main67002-12530iKE70,TE7#..(CP,LB)..(EUR,GEN)197908-198108

W/MIRROR

main67002-12531iKE70,TE71..(CP,LB)..GEN¥56,100198108-198305

sub67002-12501

main67002-12600iAE71,CE70,KE70¥55,300198506-198707

main67002-12600iKE70,TE71..4D..(EUR,GEN)¥55,300198108-198506

*GIS

main67002-12630iCE70,KE70,TE71..(DV,SED,WG)..2D..(ARL,EUR,GEN)¥66,800198108-198506

*GIS

main67002-12630iCE70,KE70..2D¥66,800198506-198707

67111PANEL, FRONT DOOR, OUTER RH

main67111-12240iKE70..4F..2D..GEN¥27,100197908-198506

sub67111-12280¥27,300

main67111-12250iKE70,TE7#..4D..(GEN,SA)¥22,300197908-198506

sub67111-12310¥22,600

main67111-12260iKE70,TE7#..(CP,LB)..(ARL,EUR,GEN)¥26,100197908-198305

sub67111-12340¥26,100

main67111-12280iKE70..2D..STD;KE70..(SED,WG)..2D..DX..EUG;AE71,CE70,TE71..(DV,SED)..2D¥27,300198108-198506

*GIS

main67111-12280iCE70,KE70..2D¥27,300198506-198707

main67111-12310iKE70..SED..LHD..4F..4D..GEN¥22,600198012-198108

SAUDI ARABIA SPEC

main67111-12310iAE71,CE70,KE70..4D¥22,600198506-198707

main67111-12310iAE71,CE70,KE70,TE7#..4D¥22,600198108-198506

*GIS

main67111-12330iTE71..SE..SA;TE72..(SE,XE)..(EUR,SA)198007-198305

sub67111-12340¥26,100

main67111-12340iTE72..(DX,SE)..(ARL,EUR);KE70,TE71..(CP,LB)..(EUR,SAA)¥26,100198108-198308

main67111-12340iTE7#..LB..RHD¥26,100198108-198406

*GIS

main67111-12340iTE71..LB..LHD..4F¥26,100198012-198108

SAUDI ARABIA SPEC

67112PANEL, FRONT DOOR, OUTER LH

main67112-12230iKE70..(DV,SED,WG)..2D¥27,100197908-198506

sub67112-12261¥27,300

main67112-12240iKE70,TE7#..4D..(GEN,SA)¥22,300197908-198506

sub67112-12281¥22,600

main67112-12250iKE70,TE7#..(CP,LB)..(ARL,EUR,GEN)¥26,100197908-198305

sub67112-12301¥26,100

main67112-12261iKE70..2D..STD;KE70..(SED,WG)..2D..DX..EUG;AE71,CE70,TE71..(DV,SED)..2D¥27,300198108-198506

*GIS

main67112-12261iCE70,KE70..2D¥27,300198506-198707

main67112-12281iKE70,TE71..4D..(ARL,EUR,GEN,SAA)¥22,600198108-198508

*GIS

main67112-12281iAE71,CE70,KE70..4D¥22,600198506-198707

main67112-12301iKE70,TE71..LB..GEN¥26,100198108-198406

*GIS

main67112-12301iTE72..(DX,SE)..(ARL,EUR);KE70,TE71..(CP,LB)..(EUR,SAA)¥26,100198108-198308

main67112-12902iKE70..SED..LHD..4F..4D..GEN¥22,500198012-198108

SAUDI ARABIA SPEC

sub67112-12281¥22,600

main67112-12903iTE71..LB..LHD..4F¥26,100198012-198108

SAUDI ARABIA SPEC

sub67112-12301¥26,100

67139LINING, DOOR OUTSIDE PANEL REINFORCEMENT

main67139-12010iKE70,TE71..DV,SED,WG197908-198007

main67139-12020iAE71,CE70,KE70,TE7#..DV,SED,WG¥950198007-198707

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-12110iKE70..4D..ARL¥1,820197908-198305

main67401-12140iKE70..2D..STD;KE70..(SED,WG)..2D..DX..EUG;AE71,CE70,TE71..(DV,SED)..2D¥1,810198108-198707

main67401-12150iKE70,TE71..4D..(EUR,GEN,SAA)¥1,810198108-198707

main67401-12160iKE70,TE7#..(CP,LB)..(ARL,EUR,GEN,SAA)198108-198406

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-12110iKE70..4D..ARL¥1,820197908-198305

main67402-12130iAE71,KE70,TE71..2D..STD..(ARL,GEN,SA)¥1,810198108-198707

main67402-12140iTE72..(4FC,5F)..GL;KE70,TE71..4D..(GEN,SA,SAA)¥1,810198108-198707

main67402-12150iKE70,TE7#..CP,LB198108-198406

main67402-12210iCE70,KE70,TE71..4D..EUR¥3,810198209-198707

main67402-12220iCE70,KE70,TE71..(SED,WG)..2D..EUG¥5,100198209-198707

main67402-12230iKE70,TE71..(CP,LB)..EUG¥8,400198209-198305

sub67402-12150

67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH

main67481-12070iKE70..(DV,SED,WG)..2D¥990197908-198108

main67481-12080iKE70,TE7#..4D¥1,290197908-198305

67482ASEAL, FRONT DOOR FRONT LOWER FRAME, LH

main67482-12070iKE70..(DV,SED,WG)..2D¥990197908-198108

main67482-12080iKE70,TE7#..4D¥1,290197908-198305

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-12690-01iKE70..2D..SA197908-198204

SEMI TRIM,BLACK,BLACK,TRIM2#

sub67610-12690¥16,200

main67610-12690-04iKE70..2D..STD..GEN197908-198108

SEMI TRIM,BLUE,BLUE,TRIM8#

sub67610-12690¥16,200

main67610-12690-06iKE70..2D..STD..GEN197908-198008

SEMI TRIM,L-BROWN,BROWN,TRIM4#

sub67610-12690¥16,200

main67610-12690-08iKE70..2D..STD..GEN197908-198108

SEMI TRIM,IVORY,IVORY,TRIM0#

sub67610-12690¥16,200

main67610-12690-16iKE70..2D..STD..GEN198008-198108

SEMI TRIM,L-BROWN,BROWN,TRIM4#

sub67610-12690¥16,200

main67610-12691-01iKE70..2D..ARL198108-198309

W/PULL HANDLE,BLACK,BLACK,TRIM2#

main67610-12691-04iKE70..2D..ARL198108-198309

W/PULL HANDLE,BLUE,BLUE,TRIM8#

main67610-12691-06iKE70..2D..STD198108-198309

W/PULL HANDLE,L-BROWN,BROWN,TRIM4#

main67610-12691-08iKE70..SED..2D..STD..GEN198108-198305

W/PULL HANDLE,IVORY,IVORY,TRIM0#

main67610-12700-01iKE70..(SED,WG)..2D..DX197908-198204

SEMI TRIM,W/MOULDING,BLACK,BLACK,TRIM2#

sub67610-12700¥16,900

main67610-12700-04iKE70..2D..STD..GEN197908-198108

SEMI TRIM,W/MOULDING,BLUE,BLUE,TRIM8#

sub67610-12700¥16,900

main67610-12700-06iKE70..(SED,WG)..2D..DX197908-198008

SEMI TRIM,W/MOULDING,L-BROWN,BROWN,TRIM4#

sub67610-12700¥16,900

main67610-12700-08iKE70..2D..STD..GEN197908-198108

SEMI TRIM,W/MOULDING,IVORY,IVORY,TRIM0#

sub67610-12700¥16,900

main67610-12700-16iKE70..2D..STD..GEN198008-198108

SEMI TRIM,W/MOULDING,L-BROWN,BROWN,TRIM4#

sub67610-12700¥16,900

main67610-12701-01iKE70..SED..2D..GEN198108-198305

BLACK,BLACK,TRIM2#

main67610-12701-01iKE70..WG..2D..DX198108-198305

W/ARMREST,BLACK,BLACK,TRIM2#

main67610-12701-04iKE70..SED..2D..GEN198108-198305

W/ARMREST,BLUE,BLUE,TRIM8#

main67610-12701-04iKE70..WG..2D..DX198108-198305

BLUE,BLUE,TRIM8#

main67610-12701-06iKE70..WG..2D..DX198108-198305

L-BROWN,BROWN,TRIM4#

main67610-12701-06iKE70,TE71..DV..RHD..(GEN,SA)198108-198305

W/ARMREST,L-BROWN,BROWN,TRIM4#

main67610-12701-08iKE70..SED..2D..GEN198108-198305

W/ARMREST,IVORY,IVORY,TRIM0#

main67610-12730-01iKE70..4D..STD..SA197908-198204

SEMI TRIM,W/MOULDING,BLACK,BLACK,TRIM2#

sub67610-12730¥16,200

main67610-12730-04iKE70,TE71..SED..4D..STD..GEN197908-198108

SEMI TRIM,W/MOULDING,BLUE,BLUE,TRIM8#

sub67610-12730¥16,200

main67610-12730-06iKE70,TE71..4D..(DX,XL)..(EUR,GEN)197908-198008

SEMI TRIM,W/MOULDING,L-BROWN,BROWN,TRIM4#

sub67610-12730¥16,200

main67610-12730-08iKE70,TE71..SED..4D..STD..GEN197908-198108

SEMI TRIM,W/MOULDING,IVORY,IVORY,TRIM0#

sub67610-12730¥16,200

main67610-12730-16iKE70,TE71..SED..4D..STD..GEN198008-198204

SEMI TRIM,W/MOULDING,L-BROWN,BROWN,TRIM4#

sub67610-12730¥16,200

main67610-12731-01iKE70..4D..STD..SA198108-198502

W/ARMREST,BLACK,BLACK,TRIM2#

main67610-12731-04iKE70..SED..4D..STD..GEN198108-198305

W/ARMREST,BLUE,BLUE,TRIM8#

main67610-12731-06iKE70..SED..4D..STD..GEN198108-198502

W/ARMREST,L-BROWN,BROWN,TRIM4#

main67610-12731-08iKE70..SED..4D..STD..GEN198108-198305

W/ARMREST,IVORY,IVORY,TRIM0#

main67610-12750-01iKE70..GL..ARL198108-198305

BLACK,BLACK,TRIM2#

sub67610-12750¥26,100

main67610-12750-04iKE70..GL..ARL198108-198305

BLUE,BLUE,TRIM8#

sub67610-12750¥26,100

main67610-12750-16iKE70..GL..ARL198108-198305

L-BROWN,BROWN,TRIM4#

sub67610-12750¥26,100

main67610-12760-01iKE70,TE71..4D..STD..(EUR,GEN)197908-198108

SEMI TRIM,BLACK,BLACK,TRIM2#

sub67610-12760¥15,400

main67610-12760-04iKE70,TE71..4D..STD..(EUR,GEN)197908-198108

SEMI TRIM,BLUE,BLUE,TRIM8#

sub67610-12760¥15,400

main67610-12760-06iKE70,TE71..4D..STD..(EUR,GEN)197908-198008

SEMI TRIM,L-BROWN,BROWN,TRIM4#

sub67610-12760¥15,400

main67610-12760-08iKE70,TE71..SED..4D..STD..(EUR,GEN)197908-198108

SEMI TRIM,IVORY,IVORY,TRIM0#

sub67610-12760¥15,400

main67610-12760-16iKE70,TE71..4D..STD..(EUR,GEN)198008-198108

SEMI TRIM,L-BROWN,BROWN,TRIM4#

sub67610-12760¥15,400

main67610-12761-01iKE70,TE71..4D..STD..(EUR,GEN,SAA)198108-198308

W/PULL HANDLE,BLACK,BLACK,TRIM2#

main67610-12761-04iKE70..STD..SAA198108-198308

W/PULL HANDLE,BLUE,BLUE,TRIM8#

main67610-12761-06iKE70,TE71..4D..STD..(EUR,GEN,SAA)198108-198308

W/PULL HANDLE,L-BROWN,BROWN,TRIM4#

main67610-12761-08iKE70..STD..SAA198108-198308

W/PULL HANDLE,IVORY,IVORY,TRIM0#

main67610-12890-01iKE70,TE72..LB..DX;TE71..LB..DX..GEN;TE71..LB..LHD..DX..EUG197908-198108

BLACK,BLACK,TRIM2#

main67610-12890-04iKE70,TE71..CP..DX197908-198108

BLUE,BLUE,TRIM8#

main67610-12890-06iKE70,TE72..LB..DX;TE71..LB..DX..GEN;TE71..LB..LHD..DX..EUG197908-198108

D-BROWN,BROWN,TRIM4#

main67610-12890-08iKE70,TE71..CP..DX198008-198108

IVORY,IVORY,TRIM0#

main67610-12891-01iKE70..LB198108-198305

BLACK,BLACK,TRIM2#

main67610-12891-04iKE70..LB198108-198305

BLUE,BLUE,TRIM8#

main67610-12891-06iKE70..LB198108-198305

D-BROWN,BROWN,TRIM4#

main67610-12891-08iKE70..LB..GEN198108-198305

IVORY,IVORY,TRIM0#

main67610-13020-13iKE70..SA198508-198707

GRAY,LIGHT GRAY,TRIM1#

main67610-13020-16iKE70..SA198508-198707

BROWN,LIGHT BROWN,TRIM4#

main67610-13030-03iAE71,CE70,KE70..2D..(ARL,EUR,GEN)198305-198508

GRAY,GRAY,TRIM1#

sub67610-13030¥13,500

main67610-13030-05iCE70,KE70..2D..(EUR,GEN)198305-198508

BEIGE,BEIGE,TRIM4#

sub67610-13030¥13,500

main67610-13030-13iCE70,KE70..2D..(EUR,GEN)198508-198707

GRAY,LIGHT GRAY,TRIM1#

sub67610-13030¥13,500

main67610-13030-16iCE70,KE70..2D..(EUR,GEN)198508-198707

BROWN,LIGHT BROWN,TRIM4#

sub67610-13030¥13,500

main67610-13050-03iCE70,KE70..LHD..4D..(EUR,GEN)198305-198508

GRAY,GRAY,TRIM1#

sub67610-13050¥18,400

main67610-13050-05iCE70,KE70..LHD..4D..(EUR,GEN)198305-198409

BEIGE,BEIGE,TRIM4#

sub67610-13050¥18,400

main67610-13050-13iAE71,CE70,KE70..LHD..(DX,XL)198508-198707

GRAY,LIGHT GRAY,TRIM1#

sub67610-13050¥18,400

main67610-13050-15iCE70,KE70..LHD..4D198409-198508

BEIGE,BEIGE,TRIM4#

sub67610-13050¥18,400

main67610-13050-16iAE71,CE70,KE70..LHD..(DX,XL)198508-198707

BROWN,LIGHT BROWN,TRIM4#

sub67610-13050¥18,400

main67610-13080-03iCE70,KE70..WG..RHD..4D..(EUR,GEN)198305-198508

GRAY,GRAY,TRIM1#

main67610-13080-05iKE70..WG..RHD..4D..(EUR,GEN)198305-198409

BEIGE,BEIGE,TRIM4#

main67610-13080-13iCE70,KE70..RHD..4D198508-198707

GRAY,LIGHT GRAY,TRIM1#

main67610-13080-15iCE70,KE70..RHD..4D..(EUR,GEN)198409-198508

BEIGE,BEIGE,TRIM4#

main67610-13080-16iCE70,KE70..RHD..4D198508-198707

BROWN,LIGHT BROWN,TRIM4#

main67610-13100-03iKE70..4D..STD198508-198707

GRAY,LIGHT GRAY,TRIM1#

main67610-13100-06iKE70..4D..STD198508-198707

BROWN,LIGHT BROWN,TRIM4#

main67610-1A010-01iTE7#..LB..(GT,SE,XE)..(ARL,EUR,GEN)197908-198108

BLACK,BLACK,TRIM2#

main67610-1A010-04iTE71..SR197908-198108

BLUE,BLUE,TRIM8#

main67610-1A010-06iTE7#..LB..(GT,SE,XE)197908-198204

D-BROWN,BROWN,TRIM4#

main67610-1A010-14iTE7#..LB..(GT,SE,XE)..(ARL,EUR,GEN)197908-198108

W/FB SEAT,BLUE,BLUE,TRIM8#

main67610-1A010-14iTE7#..LB..(GT,SE,XE)..(ARL,EUR,GEN)197908-198108

BLUE,BLUE,TRIM8#

main67610-1A011-01iKE70..LB..LHD..5F..GEN198112-198305

PHILIPPINE SPEC,BLACK,BLACK,TRIM2#

main67610-1A011-01iKE70..CP..LHD198108-198308

BLACK,BLACK,TRIM2#

main67610-1A011-04iKE70..CP..LHD198108-198308

BLUE,BLUE,TRIM8#

main67610-1A011-04iKE70..LB..LHD..5F..GEN198112-198305

PHILIPPINE SPEC,BLUE,BLUE,TRIM8#

main67610-1A011-06iKE70..LB..LHD..5F..GEN198112-198305

PHILIPPINE SPEC,D-BROWN,BROWN,TRIM4#

main67610-1A011-06iKE70..CP..LHD198108-198308

D-BROWN,BROWN,TRIM4#

main67610-1A011-08iKE70..LB..LHD..5F..GEN198112-198305

PHILIPPINE SPEC,IVORY,IVORY,TRIM0#

main67610-1A011-08iKE70..CP..LHD..GEN198108-198308

IVORY,IVORY,TRIM0#

main67610-1A020-01iTE71..CP..GT197908-198108

BLACK,BLACK,TRIM2#

main67610-1A020-04iTE71..CP..GT197908-198108

BLUE,BLUE,TRIM8#

main67610-1A020-06iTE71..CP..GT197908-198008

D-BROWN,BROWN,TRIM4#

main67610-1A020-14iTE71..CP..GT197908-198108

W/FB SEAT,BLUE,BLUE,TRIM8#

main67610-1A020-16iTE71..CP..GT198008-198108

D-BROWN,BROWN,TRIM4#

main67610-1A021-01iTE71..CP..5F198108-198207

BLACK & GRAY,BLACK,TRIM2#

main67610-1A021-04iTE71..CP..GEN198108-198305

BLUE & BLUE,BLUE,TRIM8#

main67610-1A021-06iTE71..CP..5F198108-198305

D-BROWN & BEIGE,BROWN,TRIM4#

main67610-1A021-11iTE71..CP..5F198207-198305

BLACK & GRAY,BLACK,TRIM2#

main67610-1A021-14iTE71..CP..5F198108-198305

BLUE & IVORY,BLUE,TRIM0#

main67610-1A030-01iKE70..(SED,WG)..2D..DX..EUR197908-198108

HIGH GRADE PACKAGE,BLACK,BLACK,TRIM2#

sub67610-1A030¥18,900

main67610-1A030-04iKE70..(SED,WG)..2D..DX..EUR197908-198108

HIGH GRADE PACKAGE,BLUE,BLUE,TRIM8#

sub67610-1A030¥18,900

main67610-1A030-06iKE70..(SED,WG)..2D..DX..EUR197908-198008

HIGH GRADE PACKAGE,L-BROWN,BROWN,TRIM4#

sub67610-1A030¥18,900

main67610-1A030-08iKE70..SED..2D..DX..EUR197908-198108

HIGH GRADE PACKAGE,IVORY,IVORY,TRIM0#

sub67610-1A030¥18,900

main67610-1A030-16iKE70..(SED,WG)..2D..DX..EUR198008-198108

HIGH GRADE PACKAGE,L-BROWN,BROWN,TRIM4#

sub67610-1A030¥18,900

main67610-1A031-01iCE70,KE70,TE71..SED..2D..(DX,GL)..EUR198108-198305

BLACK,BLACK,TRIM2#

main67610-1A031-04iCE70,KE70,TE71..SED..2D..(DX,GL)..EUR198108-198305

BLUE,BLUE,TRIM8#

main67610-1A031-06iCE70,KE70,TE71..SED..2D..(DX,GL)..EUR198108-198305

L-BROWN,BROWN,TRIM4#

main67610-1A040-01iKE70,TE71..4D..(DX,XL)..(EUR,GEN)197908-198108

HIGH GRADE PACKAGE,BLACK,BLACK,TRIM2#

sub67610-1A040¥16,200

main67610-1A040-01iKE70..4D..STD..ARL198108-198305

BLACK,BLACK,TRIM2#

sub67610-1A040¥16,200

main67610-1A040-04iKE70..4D..STD..ARL198108-198305

BLUE,BLUE,TRIM8#

sub67610-1A040¥16,200

main67610-1A040-04iKE70,TE71..4D..(DX,XL)..(EUR,GEN)197908-198108

HIGH GRADE PACKAGE,BLUE,BLUE,TRIM8#

sub67610-1A040¥16,200

main67610-1A040-06iKE70,TE71..4D..(DX,XL)..(EUR,GEN)197908-198008

HIGH GRADE PACKAGE,L-BROWN,BROWN,TRIM4#

sub67610-1A040¥16,200

main67610-1A040-06iTE7#..GL198007-198008

L-BROWN,BROWN,TRIM4#

sub67610-1A040¥16,200

main67610-1A040-08iKE70,TE71..SED..4D..DX..(EUR,GEN)197908-198108

HIGH GRADE PACKAGE,IVORY,IVORY,TRIM0#

sub67610-1A040¥16,200

main67610-1A040-16iKE70,TE71..4D..(DX,XL)..(EUR,GEN)198008-198108

HIGH GRADE PACKAGE,L-BROWN,BROWN,TRIM4#

sub67610-1A040¥16,200

main67610-1A040-16iTE7#..GL;KE70..DX..SA198008-198305

L-BROWN,BROWN,TRIM4#

sub67610-1A040¥16,200

main67610-1A041-01iAE71,KE70..SED..(DX,STD)..(ARL,GEN)198108-198508

BLACK,BLACK,TRIM2#

sub67610-1A160¥27,300

main67610-1A041-04iKE70..DX..SAA198108-198308

BLUE,BLUE,TRIM8#

sub67610-1A160¥27,300

main67610-1A041-06iCE70,KE70,TE71..4D..(DX,XL)..(EUR,GEN,SAA)198108-198508

L-BROWN,BROWN,TRIM4#

sub67610-1A160¥27,300

main67610-1A041-08iKE70,TE71..SED..4D..DX..(GEN,SAA)198108-198308

IVORY,IVORY,TRIM0#

sub67610-1A160¥27,300

main67610-1A070-01iKE70..DX..ARL198108-198305

BLACK,BLACK,TRIM2#

sub67610-1A070¥18,500

main67610-1A070-04iKE70..DX..ARL198108-198305

BLUE,BLUE,TRIM8#

sub67610-1A070¥18,500

main67610-1A070-16iKE70..DX..ARL198108-198305

L-BROWN,BROWN,TRIM4#

sub67610-1A070¥18,500

main67610-1A160-01iKE70..4D..GL..(EUR,GEN)198108-198207

BLACK,BLACK,TRIM2#

main67610-1A160-04iKE70..SED..SDZ198211-198302

CAMPAIGN,SWEDEN SPEC,BLUE,BLUE,TRIM8#

main67610-1A160-04iKE70,TE71..4D..GL..(EUR,GEN)198108-198305

BLUE,BLUE,TRIM8#

main67610-1A160-04iKE70..SED..4D..SDN198201-198206

CAMPAIGN,BLUE,BLUE,TRIM8#

main67610-1A160-06iKE70,TE71..4D..GL..(EUR,GEN)198108-198410

L-BROWN,BROWN,TRIM4#

main67610-1A160-11iKE70,TE71..4D..GL..(EUR,GEN)198207-198410

BLACK,BLACK,TRIM2#

main67610-1A190-01iTE7#..LB..RHD..(ARL,GEN,SA)198108-198406

BLACK,BLACK,TRIM2#

main67610-1A190-04iTE7#..LB..RHD..(ARL,GEN)198108-198305

BLUE,BLUE,TRIM8#

main67610-1A190-06iKE70..CP..RHD198108-198406

D-BROWN,BROWN,TRIM4#

main67610-1A190-08iTE71..RHD..2D..DX198108-198305

IVORY,IVORY,TRIM0#

main67610-1A200-01iTE7#..XE198108-198305

BLACK & GRAY,BLACK,TRIM2#

main67610-1A200-04iTE7#..XE198108-198305

BLUE & IVORY,BLUE,TRIM0#

main67610-1A200-06iTE7#..XE198108-198305

D-BROWN & BEIGE,BROWN,TRIM4#

main67610-1A200-14iTE71..XE..GEN198108-198305

BLUE & BLUE,BLUE,TRIM8#

main67610-1A210-01iTE71..LB..GT198108-198207

BLACK,BLACK,TRIM2#

main67610-1A210-04iTE71..LB..GT198108-198305

BLUE,BLUE,TRIM8#

main67610-1A210-06iTE71..LB..GT198108-198305

D-BROWN,BROWN,TRIM4#

main67610-1A210-11iTE71..LB..GT198207-198305

BLACK,BLACK,TRIM2#

67601ARETAINER(FOR FRONT DOOR TRIM BOARD)

main67771-12010iAE71,CE70,KE70,TE7#¥170197908-198707

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-12480-01iKE70..2D..STD..(GEN,SA)197908-198204

SEMI TRIM,BLACK,BLACK,TRIM2#

sub67620-12480¥16,200

main67620-12480-04iKE70..2D..STD..GEN197908-198108

SEMI TRIM,BLUE,BLUE,TRIM8#

sub67620-12480¥16,200

main67620-12480-06iKE70..2D..STD..GEN197908-198008

SEMI TRIM,L-BROWN,BROWN,TRIM4#

sub67620-12480¥16,200

main67620-12480-08iKE70..2D..STD..GEN197908-198108

SEMI TRIM,IVORY,IVORY,TRIM0#

sub67620-12480¥16,200

main67620-12480-16iKE70..2D..STD..GEN198008-198108

SEMI TRIM,L-BROWN,BROWN,TRIM4#

sub67620-12480¥16,200

main67620-12481-01iKE70..2D..STD198108-198309

W/PULL HANDLE,BLACK,BLACK,TRIM2#

main67620-12481-04iKE70..2D..STD198108-198309

W/PULL HANDLE,BLUE,BLUE,TRIM8#

main67620-12481-06iKE70..2D..ARL198108-198309

W/PULL HANDLE,L-BROWN,BROWN,TRIM4#

main67620-12481-08iKE70..SED..2D..STD..GEN198108-198305

W/PULL HANDLE,IVORY,IVORY,TRIM0#

main67620-12490-01iKE70..(SED,WG)..2D..DX197908-198108

SEMI TRIM,W/MOULDING,BLACK,BLACK,TRIM0#,2#

sub67620-12490¥16,900

main67620-12490-01iKE70..2D..SA198108-198204

SEMI TRIM,W/MOULDING,BLACK,BLACK,TRIM2#

sub67620-12490¥16,900

main67620-12490-04iKE70..2D..STD..GEN197908-198108

SEMI TRIM,W/MOULDING,BLUE,BLUE,TRIM8#

sub67620-12490¥16,900

main67620-12490-06iKE70..2D..STD..GEN197908-198008

SEMI TRIM,W/MOULDING,L-BROWN,BROWN,TRIM4#

sub67620-12490¥16,900

main67620-12490-08iKE70..2D..STD..GEN197908-198108

SEMI TRIM,W/MOULDING,IVORY,IVORY,TRIM0#

sub67620-12490¥16,900

main67620-12490-16iKE70..(SED,WG)..2D..DX198008-198108

SEMI TRIM,W/MOULDING,L-BROWN,BROWN,TRIM4#

sub67620-12490¥16,900

main67620-12491-01iKE70..SED..2D..GEN198108-198305

W/ARMREST,BLACK,BLACK,TRIM2#

main67620-12491-01iKE70,TE71..DV..RHD..(GEN,SA)198108-198305

BLACK,BLACK,TRIM2#

main67620-12491-04iKE70..SED..2D..GEN198108-198305

BLUE,BLUE,TRIM8#

main67620-12491-04iKE70..SED..2D..GEN198108-198305

W/ARMREST,BLUE,BLUE,TRIM8#

main67620-12491-06iKE70,TE71..DV..RHD..(GEN,SA)198108-198305

W/ARMREST,L-BROWN,BROWN,TRIM4#

main67620-12491-06iKE70,TE71..DV..RHD..(GEN,SA)198108-198305

L-BROWN,BROWN,TRIM4#

main67620-12491-08iKE70..SED..2D..GEN198108-198305

W/ARMREST,IVORY,IVORY,TRIM0#

main67620-12500-01iKE70..(SED,WG)..2D..DX..EUR197908-198108

HIGH GRADE PACKAGE,BLACK,BLACK,TRIM2#

sub67620-12500¥18,900

main67620-12500-04iKE70..(SED,WG)..2D..DX..EUR197908-198108

HIGH GRADE PACKAGE,BLUE,BLUE,TRIM8#

sub67620-12500¥18,900

main67620-12500-06iKE70..(SED,WG)..2D..DX..EUR197908-198008

HIGH GRADE PACKAGE,L-BROWN,BROWN,TRIM4#

sub67620-12500¥18,900

main67620-12500-08iKE70..SED..2D..DX..EUR197908-198108

HIGH GRADE PACKAGE,IVORY,IVORY,TRIM0#

sub67620-12500¥18,900

main67620-12500-16iKE70..(SED,WG)..2D..DX..EUR198008-198108

HIGH GRADE PACKAGE,L-BROWN,BROWN,TRIM4#

sub67620-12500¥18,900

main67620-12501-01iCE70,KE70,TE71..SED..2D..(DX,GL)..EUR198108-198305

BLACK,BLACK,TRIM2#

main67620-12501-04iCE70,KE70,TE71..SED..2D..(DX,GL)..EUR198108-198305

BLUE,BLUE,TRIM8#

main67620-12501-06iCE70,KE70,TE71..SED..2D..(DX,GL)..EUR198108-198305

L-BROWN,BROWN,TRIM4#

main67620-12520-01iTE71..CP..GT197908-198108

BLACK,BLACK,TRIM2#

sub67620-12520¥29,700

main67620-12520-04iTE71..CP..GT197908-198108

BLUE,BLUE,TRIM8#

sub67620-12520¥29,700

main67620-12520-06iTE71..CP..GT197908-198008

D-BROWN,BROWN,TRIM4#

sub67620-12520¥29,700

main67620-12520-14iTE71..CP..GT197908-198108

W/FB SEAT,BLUE,BLUE,TRIM8#

sub67620-12520¥29,700

main67620-12520-16iTE71..CP..GT198008-198108

D-BROWN,BROWN,TRIM4#

sub67620-12520¥29,700

main67620-12530-01iKE70,TE71..SED..4D..STD..(GEN,SA)197908-198204

SEMI TRIM,W/MOULDING,BLACK,BLACK,TRIM2#

sub67620-12530¥16,200

main67620-12530-04iKE70,TE71..SED..4D..STD..GEN197908-198108

SEMI TRIM,W/MOULDING,BLUE,BLUE,TRIM8#

sub67620-12530¥16,200

main67620-12530-06iTE71..DX..SA197908-198008

SEMI TRIM,W/MOULDING,L-BROWN,BROWN,TRIM4#

sub67620-12530¥16,200

main67620-12530-08iKE70,TE71..SED..4D..STD..GEN197908-198108

IVORY,IVORY,TRIM0#

sub67620-12530¥16,200

main67620-12530-08iKE70,TE71..SED..4D..STD..GEN197908-198108

SEMI TRIM,W/MOULDING,IVORY,IVORY,TRIM0#

sub67620-12530¥16,200

main67620-12530-16iKE70,TE71..4D..(DX,XL)..(EUR,GEN)198008-198204

SEMI TRIM,W/MOULDING,L-BROWN,BROWN,TRIM4#

sub67620-12530¥16,200

main67620-12531-01iKE70..SED..4D..STD..GEN198108-198502

W/ARMREST,BLACK,BLACK,TRIM2#

main67620-12531-04iKE70..SED..4D..STD..GEN198108-198305

W/ARMREST,BLUE,BLUE,TRIM8#

main67620-12531-06iKE70..4D..STD..SA198108-198502

W/ARMREST,L-BROWN,BROWN,TRIM4#

main67620-12531-08iKE70..SED..4D..STD..GEN198108-198305

W/ARMREST,IVORY,IVORY,TRIM0#

main67620-12540-01iKE70..4D..STD..ARL198108-198305

BLACK,BLACK,TRIM2#

sub67620-12560¥26,100

sub67620-12540¥18,700

main67620-12540-01iKE70,TE71..4D..(DX,XL)..(EUR,GEN)197908-198108

HIGH GRADE PACKAGE,BLACK,BLACK,TRIM2#

sub67620-12560¥26,100

sub67620-12540¥18,700

main67620-12540-04iKE70..4D..STD..ARL198108-198305

BLUE,BLUE,TRIM8#

sub67620-12560¥26,100

sub67620-12540¥18,700

main67620-12540-04iKE70,TE71..4D..(DX,XL)..(EUR,GEN)197908-198108

HIGH GRADE PACKAGE,BLUE,BLUE,TRIM8#

sub67620-12560¥26,100

sub67620-12540¥18,700

main67620-12540-06iKE70,TE71..4D..(DX,XL)..(EUR,GEN)197908-198008

HIGH GRADE PACKAGE,L-BROWN,BROWN,TRIM4#

sub67620-12560¥26,100

sub67620-12540¥18,700

main67620-12540-06iTE7#..GL198007-198008

L-BROWN,BROWN,TRIM4#

sub67620-12560¥26,100

sub67620-12540¥18,700

main67620-12540-08iKE70,TE71..SED..4D..DX..(EUR,GEN)197908-198108

HIGH GRADE PACKAGE,IVORY,IVORY,TRIM0#

sub67620-12560¥26,100

sub67620-12540¥18,700

main67620-12540-16iTE7#..GL;KE70..DX..SA198008-198305

L-BROWN,BROWN,TRIM4#

sub67620-12560¥26,100

sub67620-12540¥18,700

main67620-12540-16iKE70,TE71..4D..(DX,XL)..(EUR,GEN)198008-198108

HIGH GRADE PACKAGE,L-BROWN,BROWN,TRIM4#

sub67620-12560¥26,100

sub67620-12540¥18,700

main67620-12560-01iKE70..GL..ARL198108-198305

BLACK,BLACK,TRIM2#

sub67620-12560¥26,100

main67620-12560-04iKE70..GL..ARL198108-198305

BLUE,BLUE,TRIM8#

sub67620-12560¥26,100

main67620-12560-06iKE70..GL..ARL198108-198305

L-BROWN,BROWN,TRIM4#

sub67620-12560¥26,100

main67620-12570-01iKE70,TE71..4D..STD..(EUR,GEN)197908-198108

SEMI TRIM,BLACK,BLACK,TRIM2#

sub67620-12570¥15,400

main67620-12570-04iKE70,TE71..4D..STD..(EUR,GEN)197908-198108

SEMI TRIM,BLUE,BLUE,TRIM8#

sub67620-12570¥15,400

main67620-12570-06iKE70,TE71..4D..STD..(EUR,GEN)197908-198008

SEMI TRIM,L-BROWN,BROWN,TRIM4#

sub67620-12570¥15,400

main67620-12570-08iKE70,TE71..SED..4D..STD..(EUR,GEN)197908-198108

SEMI TRIM,IVORY,IVORY,TRIM0#

sub67620-12570¥15,400

main67620-12570-16iKE70,TE71..4D..STD..(EUR,GEN)198008-198108

SEMI TRIM,L-BROWN,BROWN,TRIM4#

sub67620-12570¥15,400

main67620-12571-01iKE70..STD..SAA198108-198308

W/PULL HANDLE,BLACK,BLACK,TRIM2#

main67620-12571-04iKE70,TE71..4D..STD..(EUR,GEN,SAA)198108-198308

W/PULL HANDLE,BLUE,BLUE,TRIM8#

main67620-12571-06iKE70,TE71..4D..STD..(EUR,GEN,SAA)198108-198308

W/PULL HANDLE,L-BROWN,BROWN,TRIM4#

main67620-12571-08iKE70..SED..4D..STD..(GEN,SAA)198108-198308

W/PULL HANDLE,IVORY,IVORY,TRIM0#

main67620-12620-01iKE70,TE72..LB..DX;TE71..LB..DX..GEN;TE71..LB..LHD..DX..EUG197908-198108

BLACK,BLACK,TRIM2#

main67620-12620-04iKE70,TE72..LB..DX;TE71..LB..DX..GEN;TE71..LB..LHD..DX..EUG197908-198108

BLUE,BLUE,TRIM8#

main67620-12620-06iKE70,TE72..LB..DX;TE71..LB..DX..GEN;TE71..LB..LHD..DX..EUG197908-198108

D-BROWN,BROWN,TRIM4#

main67620-12620-08iKE70,TE71..CP..DX198008-198108

IVORY,IVORY,TRIM0#

main67620-12621-01iKE70..LB..LHD198108-198305

BLACK,BLACK,TRIM2#

main67620-12621-04iKE70..LB..LHD198108-198305

BLUE,BLUE,TRIM8#

main67620-12621-06iKE70..LB..LHD198108-198305

D-BROWN,BROWN,TRIM4#

main67620-12621-08iKE70..LB..LHD..GEN198108-198305

IVORY,IVORY,TRIM0#

main67620-12650-01iTE71..RHD..DX..EUG197908-198108

BLACK,BLACK,TRIM2#

main67620-12650-04iTE71..SR197908-198108

BLUE,BLUE,TRIM8#

main67620-12650-06iTE71..RHD..DX..EUG197908-198204

D-BROWN,BROWN,TRIM4#

main67620-12650-14iTE7#..LB..(GT,SE,XE)..(ARL,EUR,GEN)197908-198108

W/FB SEAT,BLUE,BLUE,TRIM8#

main67620-12650-14iTE7#..LB..(GT,SE,XE)..(ARL,EUR,GEN)197908-198108

BLUE,BLUE,TRIM8#

main67620-12710-01iKE70..DX..ARL198108-198305

BLACK,BLACK,TRIM2#

sub67620-12710¥18,500

main67620-12710-04iKE70..DX..ARL198108-198305

BLUE,BLUE,TRIM8#

sub67620-12710¥18,500

main67620-12710-16iKE70..DX..ARL198108-198305

L-BROWN,BROWN,TRIM4#

sub67620-12710¥18,500

main67620-12740-01iCE70,KE70,TE71..4D..(DX,XL)..(EUR,GEN,SAA)198108-198508

BLACK,BLACK,TRIM2#

main67620-12740-04iCE70,KE70,TE71..4D..(DX,XL)..(EUR,GEN,SAA)198108-198308

BLUE,BLUE,TRIM8#

main67620-12740-06iAE71,KE70..SED..(DX,STD)..(ARL,GEN)198108-198508

L-BROWN,BROWN,TRIM4#

main67620-12740-08iKE70..SED..DX..SAA198108-198308

IVORY,IVORY,TRIM0#

main67620-12800-01iKE70..4D..GL..(EUR,GEN)198108-198207

BLACK,BLACK,TRIM2#

main67620-12800-04iKE70..SED..SDZ198211-198302

CAMPAIGN,SWEDEN SPEC,BLUE,BLUE,TRIM8#

main67620-12800-04iKE70..SED..4D..SDN198201-198206

CANPAIGN,BLUE,BLUE,TRIM8#

main67620-12800-04iKE70,TE71..4D..GL..(EUR,GEN)198108-198305

BLUE,BLUE,TRIM8#

main67620-12800-06iAE71,KE70..GL198108-198410

L-BROWN,BROWN,TRIM4#

main67620-12800-11iAE71,KE70..GL198207-198410

BLACK,BLACK,TRIM2#

main67620-12820-01iKE70..CP..LHD198108-198308

BLACK,BLACK,TRIM2#

main67620-12820-01iKE70..LB..LHD..5F..GEN198112-198305

PHILIPPINE SPEC,BLACK,BLACK,TRIM2#

main67620-12820-04iTE7#..LB..LHD..DX198108-198308

BLUE,BLUE,TRIM8#

main67620-12820-04iKE70..LB..LHD..5F..GEN198112-198305

PHILIPPINE SPEC,BLUE,BLUE,TRIM8#

main67620-12820-06iTE7#..LB..LHD..DX198108-198308

D-BROWN,BROWN,TRIM4#

main67620-12820-06iKE70..LB..LHD..5F..GEN198112-198305

PHILIPPINE SPEC,D-BROWN,BROWN,TRIM4#

main67620-12820-08iKE70..LB..LHD..5F..GEN198112-198305

PHILIPPINE SPEC,IVORY,IVORY,TRIM0#

main67620-12820-08iKE70..CP..LHD..GEN198108-198308

IVORY,IVORY,TRIM0#

main67620-12830-01iTE71..RHD..SR198108-198207

BLACK & GRAY,BLACK,TRIM2#

main67620-12830-04iTE71..RHD..SR..GEN198108-198305

BLUE & BLUE,BLUE,TRIM8#

main67620-12830-06iTE71..RHD..SR198108-198305

D-BROWN & BEIGE,BROWN,TRIM4#

main67620-12830-11iTE71..RHD..SR198207-198305

BLACK & GRAY,BLACK,TRIM2#

main67620-12830-14iTE71..RHD..SR198108-198305

BLUE & IVORY,BLUE,TRIM0#

main67620-12840-01iTE71..CP..LHD..5F198108-198204

BLACK & GRAY,BLACK,TRIM2#

main67620-12840-04iTE71..CP..LHD..GEN198108-198305

BLUE & BLUE,BLUE,TRIM8#

main67620-12840-06iTE71..CP..LHD..5F198108-198305

D-BROWN & BEIGE,BROWN,TRIM4#

main67620-12840-11iTE71..CP..LHD..5F198204-198305

BLACK & GRAY,BLACK,TRIM2#

main67620-12840-14iTE71..CP..LHD..5F198108-198305

BLUE & IVORY,BLUE,TRIM0#

main67620-12850-01iKE70..LB..RHD198108-198305

BLACK,BLACK,TRIM2#

main67620-12850-04iKE70..LB..RHD198108-198305

BLUE,BLUE,TRIM8#

main67620-12850-06iKE70..LB..RHD198108-198305

D-BROWN,BROWN,TRIM4#

main67620-12850-08iKE70..LB..RHD198108-198305

IVORY,IVORY,TRIM0#

main67620-12870-01iTE7#..LB..RHD..(ARL,GEN)198108-198406

BLACK,BLACK,TRIM2#

sub67620-12820

main67620-12870-04iKE70..CP..RHD198108-198305

BLUE,BLUE,TRIM8#

sub67620-12820

main67620-12870-06iKE70..CP..RHD198108-198406

D-BROWN,BROWN,TRIM4#

sub67620-12820

main67620-12870-08iTE71..RHD..2D..DX198108-198305

IVORY,IVORY,TRIM0#

sub67620-12820

main67620-12890-01iTE71..RHD..XE198108-198305

BLACK & GRAY,BLACK,TRIM2#

main67620-12890-04iTE71..RHD..XE198108-198305

BLUE & IVORY,BLUE,TRIM0#

main67620-12890-06iTE71..RHD..XE198108-198305

D-BROWN & BEIGE,BROWN,TRIM4#

main67620-12890-14iTE71..XE..GEN198108-198305

BLUE & BLUE,BLUE,TRIM8#

main67620-13020-13iKE70..SA198508-198707

GRAY,LIGHT GRAY,TRIM1#

main67620-13020-16iKE70..SA198508-198707

BROWN,LIGHT BROWN,TRIM4#

main67620-13030-03iAE71,CE70,KE70..2D..(ARL,EUR,GEN)198305-198508

GRAY,GRAY,TRIM1#

main67620-13030-05iCE70,KE70..2D..(EUR,GEN)198305-198508

BEIGE,BEIGE,TRIM4#

main67620-13030-13iCE70,KE70..2D..(EUR,GEN)198508-198707

GRAY,LIGHT GRAY,TRIM1#

main67620-13030-16iCE70,KE70..2D..(EUR,GEN)198508-198707

BROWN,LIGHT BROWN,TRIM4#

main67620-13070-03iCE70,KE70..LHD..4D..(EUR,GEN)198305-198508

GRAY,GRAY,TRIM1#

main67620-13070-05iCE70,KE70..LHD..4D..(EUR,GEN)198305-198409

BEIGE,BEIGE,TRIM4#

main67620-13070-13iAE71,CE70,KE70..LHD..(DX,XL)198508-198707

GRAY,LIGHT GRAY,TRIM1#

main67620-13070-15iCE70,KE70..LHD..4D198409-198508

BEIGE,BEIGE,TRIM4#

main67620-13070-16iAE71,CE70,KE70..LHD..(DX,XL)198508-198707

BROWN,LIGHT BROWN,TRIM4#

main67620-13080-03iCE70,KE70..WG..RHD..4D..(EUR,GEN)198305-198508

GRAY,GRAY,TRIM1#

sub67620-13080¥18,400

main67620-13080-05iKE70..WG..RHD..4D..(EUR,GEN)198305-198409

BEIGE,BEIGE,TRIM4#

sub67620-13080¥18,400

main67620-13080-13iCE70,KE70..RHD..4D198508-198707

GRAY,LIGHT GRAY,TRIM1#

sub67620-13080¥18,400

main67620-13080-15iCE70,KE70..RHD..4D..(EUR,GEN)198409-198508

BEIGE,BEIGE,TRIM4#

sub67620-13080¥18,400

main67620-13080-16iCE70,KE70..RHD..4D198508-198707

BROWN,LIGHT BROWN,TRIM4#

sub67620-13080¥18,400

main67620-13100-03iKE70..4D..STD198508-198707

GRAY,LIGHT GRAY,TRIM1#

main67620-13100-06iKE70..4D..STD198508-198707

BROWN,LIGHT BROWN,TRIM4#

main67620-1A010-01iTE7#..LHD..XE198108-198305

BLACK & GRAY,BLACK,TRIM2#

main67620-1A010-04iTE7#..LHD..XE198108-198305

BLUE & IVORY,BLUE,TRIM0#

main67620-1A010-06iTE7#..LHD..XE198108-198305

D-BROWN & BEIGE,BROWN,TRIM4#

main67620-1A020-01iTE71..LB..GT198108-198207

BLACK,BLACK,TRIM2#

main67620-1A020-04iTE71..LB..GT198108-198305

BLUE,BLUE,TRIM8#

main67620-1A020-06iTE71..LB..GT198108-198305

D-BROWN,BROWN,TRIM4#

main67620-1A020-11iTE71..LB..GT198207-198305

BLACK,BLACK,TRIM2#

67785AHOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR)

main69751-20030-01iKE70,TE71..4D..(EUR,GEN)197908-198101

BLACK

sub69751-20030¥320

sub69751-20031¥330

main69751-20031-01iKE70..4D..STD198101-198707

BLACK

sub69751-20031¥330

main69751-20040iCE70,KE70,TE7#..4D..(DX,GL,XL)..(EUR,GEN,SA,SAA)¥350197908-198308

W/FULL TRIM

main69751-20040iTE7#..GL;KE70..DX..SA¥350198007-198707

67801COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 RH

main67831-12140iKE70..2D..SA¥620197908-198204

sub67831-12190

main67831-12150iKE70,TE7#..4D..SA¥620197908-198204

sub67831-12200

main67831-12160iKE70,TE7#..(CP,LB)..(EUR,GEN,SA)197908-198204

main67831-12161iKE70,TE7#..(CP,LB)..(EUR,GEN,SAA)¥630198108-198406

sub67831-12171

main67831-12170iTE72..ARL197908-198108

main67831-12171iTE72..ARL198108-198305

main67831-12200iKE70..SED..LHD..4F..4D..GEN198012-198108

SAUDI ARABIA SPEC

main67831-12220iKE70,TE71..4D..(ARL,EUR,GEN,SAA)¥920198108-198502

sub67831-12210¥920

main67831-12230iKE70..(DV,SED,WG)..2D..(ARL,EUR,GEN)¥1,060198108-198406

sub67831-12240¥1,060

main67831-13010iCE70,KE70..2D¥870198406-198707

main67831-13020iAE71,CE70,KE70,TE71..WG..4D¥780198406-198707

67802COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 LH

main67831-12140iKE70..2D..SA¥620197908-198204

sub67831-12190

main67831-12150iKE70,TE7#..4D¥620197908-198204

sub67831-12200

main67831-12160iKE70,TE7#..(CP,LB)..(EUR,GEN,SA)197908-198204

main67831-12170iTE72..ARL197908-198108

main67831-12200iKE70..SED..LHD..4F..4D..GEN198012-198108

SAUDI ARABIA SPEC

main67831-13010iCE70,KE70..2D¥870198406-198707

main67831-13020iAE71,CE70,KE70,TE71..WG..4D¥780198406-198707

main67832-12040iTE71..(CP,LB)..LHD;KE70,TE72..(CP,LB)..LHD..DX¥1,120198108-198308

sub67832-12060

main67832-12050iKE70,TE7#..(CP,LB)..RHD..(EUR,GEN,SA)¥1,120198108-198406

sub67832-12110

main67832-12070iAE71,CE70,KE70,TE7#..4D¥920198108-198502

sub67832-12080¥920

main67832-12090iAE71,CE70,KE70,TE71..(DV,SED,WG)..2D¥1,060198108-198406

sub67832-12100¥1,060

main67832-12110iTE72..ARL198108-198305

67811PAD, FRONT DOOR SILENCER

main67811-12040iCE70,KE70,TE7#..(DV,SED,WG)..(EUR,GEN,SA)¥610197908-198410

sub67812-12010¥640

main67811-12070iKE70,TE7#..(CP,LB)..(EUR,GEN,SA)¥630197908-198406

sub67812-12010¥640

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-12340iCE70,KE70,TE71..(DV,SED,WG)..2D197908-198306

sub67861-12550¥7,600

main67861-12360iAE71,CE70,KE70,TE7#..4D¥6,800197908-198707

main67861-12370iKE70,TE7#..CP,LB¥11,400197908-198406

main67861-12550iAE71,CE70,KE70,TE71..2D..STD¥7,600198306-198707

67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)

main67868-30040iAE71,CE70,KE70,TE7#¥110197908-198707

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-12340iCE70,KE70,TE71..(DV,SED,WG)..2D197908-198306

sub67862-12530¥7,600

main67862-12360iAE71,CE70,KE70,TE7#..4D¥6,800197908-198707

main67862-12370iKE70,TE7#..CP,LB¥11,400197908-198406

main67862-12530iAE71,CE70,KE70,TE71..2D..STD¥7,600198306-198707

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-12280iKE70..(SED,WG)..2D..DX¥13,600197908-198108

*TT,T=4.0

main68111-12290iKE70..2D..SA¥11,900197908-198204

*TEM,T=4.0

sub68111-12280¥13,600

main68111-12300iKE70..(DX,GL)..ARL¥11,600197908-198305

*TT,T=4.0

sub68111-1A160¥11,600

main68111-12310iKE70..4D..STD..EUR;KE70,TE7#..4D..(GEN,SA)¥10,000197908-198305

*TEM,T=4.0

sub68111-1A170¥10,000

main68111-12321iKE70,TE71..LB..GEN¥19,000197908-198101

*TEM,T=5.0

main68111-12331iKE70,TE7#..LB..(ARL,EUR,GEN)¥21,500197908-198101

*TT,T=5.0

main68111-12332iKE70,TE7#..LB..(ARL,EUR,GEN)¥21,000198101-198108

*TT,T=5.0

main68111-12341iKE70,TE71..CP¥21,900197908-198101

*TT,T=5.0

main68111-12342iKE70,TE71..CP¥21,200198101-198108

*TT,T=5.0

main68111-12350iKE70..4F..2D..GEN¥11,800198108-198707

*TT,T=4.0

main68111-12360iKE70..SED..2D..DX..GEN;AE71,CE70,KE70,TE71..2D..STD¥10,100198108-198707

*TEM,T=4.0

sub68111-12350¥11,800

main68111-12370iKE70..WG..4F..GEN¥10,100198108-198707

*TT,T=4.0

main68111-12380iTE71..4D..GEN;KE70..4D..(STD,XL);KE70..4D..(DX,GL)..GEN¥8,700198108-198707

*TEM,T=4.0

sub68111-1A190¥8,900

main68111-12391iTE72..(DX,SE)..(ARL,EUR);KE70,TE71..LB..(EUR,GEN,SAA)¥18,900198108-198406

*TT,T=5.0

main68111-12411iKE70,TE71..CP¥19,400198108-198305

*TT,T=5.0

main68111-1A180iAE71,KE70..WG..(3FC,4F)..GEN¥10,100198305-198707

*TT,T=3.5

main68111-1A190iAE71,KE70..WG..(3FC,4F)..GEN¥8,900198305-198707

*TEM,T=3.5

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-12280iKE70..(SED,WG)..2D..DX¥13,600197908-198108

*TT,T=4.0

main68112-12290iKE70..2D..SA¥11,900197908-198204

*TEM,T=4.0

sub68112-12280¥13,600

main68112-12300iKE70..(DX,GL)..ARL¥11,600197908-198305

*TT,T=4.0

sub68112-1A160¥11,600

main68112-12310iKE70,TE7#..4D..SA¥10,000197908-198305

*TEM,T=4.0

sub68112-1A170¥10,000

main68112-12321iKE70,TE71..LB..GEN¥19,000197908-198101

*TEM,T=5.0

main68112-12331iKE70,TE7#..LB..(ARL,EUR,GEN)¥21,500197908-198101

*TT,T=5.0

main68112-12332iKE70,TE7#..LB..(ARL,EUR,GEN)¥21,000198101-198108

*TT,T=5.0

main68112-12341iKE70,TE71..CP¥21,900197908-198101

*TT,T=5.0

main68112-12342iKE70,TE71..CP¥21,200198101-198108

*TT,T=5.0

main68112-12350iCE70,KE70,TE71..(SED,WG)..2D..DX..EUG¥11,800198108-198707

*TT,T=4.0

main68112-12360iKE70..SED..2D..DX..GEN;AE71,CE70,KE70,TE71..2D..STD¥10,100198108-198707

*TEM,T=4.0

sub68112-12350¥11,800

main68112-12370iKE70,TE71..4D..(DX,GL,XL)..(EUR,GEN,SAA)¥10,100198108-198707

*TT,T=4.0

main68112-12380iTE71..4D..GEN;KE70..4D..(STD,XL);KE70..4D..(DX,GL)..GEN¥8,700198108-198707

*TEM,T=4.0

sub68112-12370¥10,100

main68112-12391iTE72..(DX,SE)..(ARL,EUR);KE70,TE71..LB..(EUR,GEN,SAA)¥18,900198108-198406

*TT,T=5.0

main68112-12411iKE70,TE71..CP¥19,400198108-198305

*TT,T=5.0

main68112-1A180iCE70,KE70..DX..EUR¥10,100198305-198707

*TT,T=3.5

main68112-1A190iAE71,KE70..WG..(3FC,4F)..GEN¥8,900198305-198707

*TEM,T=3.5

68141RUN, FRONT DOOR GLASS

main68141-12100iKE70..SED..2D¥2,610197908-198108

L=1860

sub68141-12150¥2,630

main68141-12110iTE7#..4D;KE70..SED;KE70..WG..4D¥2,130197908-198010

L=1678

main68141-12111iTE7#..4D;KE70..SED;KE70..WG..4D¥2,530198010-198108

L=1748

sub68141-12140¥2,530

main68141-12120iCE70,KE70,TE71..SED..2D..(EUR,GEN)¥3,610198108-198305

L=1779

main68141-12130iKE70,TE7#..SED..(GEN,SA)¥3,420198108-198502

L=1689

main68141-12140iKE70..4D..ARL¥2,530198108-198305

L=1758

main68141-12150iKE70..2D..SA¥2,630198108-198204

L=1848

main68141-13040iKE70..(DV,WG)..2D¥1,470197908-198108

L=1847

main68141-13060iCE70,KE70,TE71..(DV,WG)..2D¥1,900198108-198707

main68141-13100iAE71,CE70,KE70,TE71..WG..4D¥1,510198305-198707

L=1714

main68143-12010iAE71,KE70,TE7#..SED¥660198305-198502

L=444

sub68143-14020¥670

main68143-12010iCE70,KE70,TE7#..4D¥660197908-198305

L=444,TG

sub68143-14020¥670

main68143-13010iAE71,CE70,KE70,TE71..DV,WG¥660198305-198707

L=444

main68143-13010iCE70,KE70,TE7#¥660197908-198305

L=444,VINYL CHLORIDE

68161WEATHERSTRIP, FRONT DOOR GLASS, OUTER

main68160-12090iKE70..2D..SA¥2,940197908-198204

RH

main68160-12100iKE70..4D..STD..SA;KE70,TE71..4D..(EUR,GEN)¥3,090197908-198305

RH

main68160-12110iKE70..(DV,SED,WG)..2D..(ARL,EUR,GEN)¥2,910198108-198301

RH

sub68160-12111¥2,920

main68160-12111iKE70..2D..STD;KE70..(SED,WG)..2D..DX..EUG;AE71,CE70,TE71..(DV,SED)..2D¥2,920198301-198707

RH

main68160-12120iCE70,KE70,TE71..4D..(DX,STD,XL)..(EUR,GEN,SAA)¥2,300198108-198301

RH

sub68160-12121¥2,350

main68160-12121iCE70,KE70,TE71..4D..(DX,STD,XL)..(EUR,GEN,SAA)¥2,350198301-198707

RH

main68210-12050iKE70..2D..SA¥3,090197908-198204

LH

main68210-12060iKE70..4D..STD..ARL¥3,090197908-198305

LH

main68210-12070iKE70..(DV,SED,WG)..2D..(ARL,EUR,GEN)¥3,060198108-198301

LH

sub68210-12071¥3,090

main68210-12071iKE70..2D..STD;KE70..(SED,WG)..2D..DX..EUG;AE71,CE70,TE71..(DV,SED)..2D¥3,090198301-198707

LH

main68210-12080iKE70..STD..SA¥2,300198108-198301

LH

sub68210-12081¥2,350

main68210-12081iKE70..RHD..4D..STD¥2,350198301-198707

LH

68161ACLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)

main68211-10030iKE70..4D..STD..(ARL,SA)¥240197908-198305

main68211-12080iCE70,KE70,TE71..4D..(DX,STD,XL)..(EUR,GEN,SAA)¥130198301-198707

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68170-12120iKE70..(DV,SED,WG)..2D¥2,690197908-198204

RH

main68170-12130iKE70,TE71..4D..(DX,STD)..SA¥2,150197908-198204

RH

main68170-12140iKE70..(SED,WG)..LHD..2D..DX..EUG197908-198108

HIGH GRADE PACKAGE

main68170-12150iTE7#..GL;KE70..DX..SA¥3,030198007-198305

main68170-12150iKE70..WG..4D..DX;KE70,TE71..4D..(DX,XL)..GEN;KE70..SED..LHD..4D..DX..EUR¥3,030197908-198108

HIGH GRADE PACKAGE

main68170-12160iKE70,TE7#..CP,LB¥3,480197908-198204

RH

main68170-12170iKE70..SED..2D..STD..EUG¥2,370198108-198707

RH,W/SEMI TRIM

main68170-12180iCE70,KE70,TE71..SED..2D..(DX,GL)..EUR¥3,520198108-198305

RH

main68170-12190iKE70,TE71..4D..STD..(EUR,GEN,SAA)¥1,800198108-198707

RH,W/SEMI TRIM

main68170-12200iKE70,TE71..WG..4D..(DX,XL)..(EUR,GEN,SAA)¥2,690198108-198707

RH

main68170-12200iKE70,TE71..SED..4D..GEN¥2,690198108-198305

RH,W/FULL TRIM

main68170-12210iKE70,TE7#..(CP,LB)..(ARL,EUR,GEN,SAA)198108-198406

RH

main68220-12080iKE70..2D..SA¥2,690197908-198204

LH

main68220-12090iKE70,TE71..4D..(DX,STD,XL)¥2,150197908-198204

LH

main68220-12100iKE70,TE7#..CP,LB¥3,480197908-198204

LH

main68220-12110iKE70..SED..2D..STD..EUG¥2,360198108-198707

LH,W/SEMI TRIM

main68220-12120iCE70,KE70,TE71..SED..2D..(DX,GL)..EUR198108-198305

LH

main68220-12130iKE70,TE71..4D..STD..(EUR,GEN,SAA)¥1,800198108-198707

LH,W/SEMI TRIM

main68220-12140iKE70,TE71..WG..4D..(DX,XL)..(EUR,GEN,SAA)¥2,690198108-198707

LH

main68220-12140iKE70,TE71..SED..4D..GEN¥2,690198108-198305

LH,W/FULL TRIM

main68220-12150iKE70,TE7#..(CP,LB)..(ARL,EUR,GEN,SAA)198108-198406

LH

68610CHECK ASSY, FRONT DOOR

main68610-12010iAE71,CE70,KE70,TE7#..DV,SED,WG¥3,700197908-198707

main68610-12020iKE70,TE7#..CP,LB197908-198406

68610APIN(FOR FRONT DOOR CHECK)

main68617-12010iAE71,CE70,KE70,TE71¥280198407-198507

sub68617-90A00¥280

main68617-22010iAE71,CE70,KE70,TE7#¥300197908-198407

sub68617-12010¥280

main68617-90A00iAE71,CE70,KE70¥280198507-198707

sub68617-90A01¥300

9165140612

main91651-40612¥70

9165140614

main91651-40614¥160

9352014010

main93520-14010¥70

30 parts on this diagram · 6 diagrams in section
