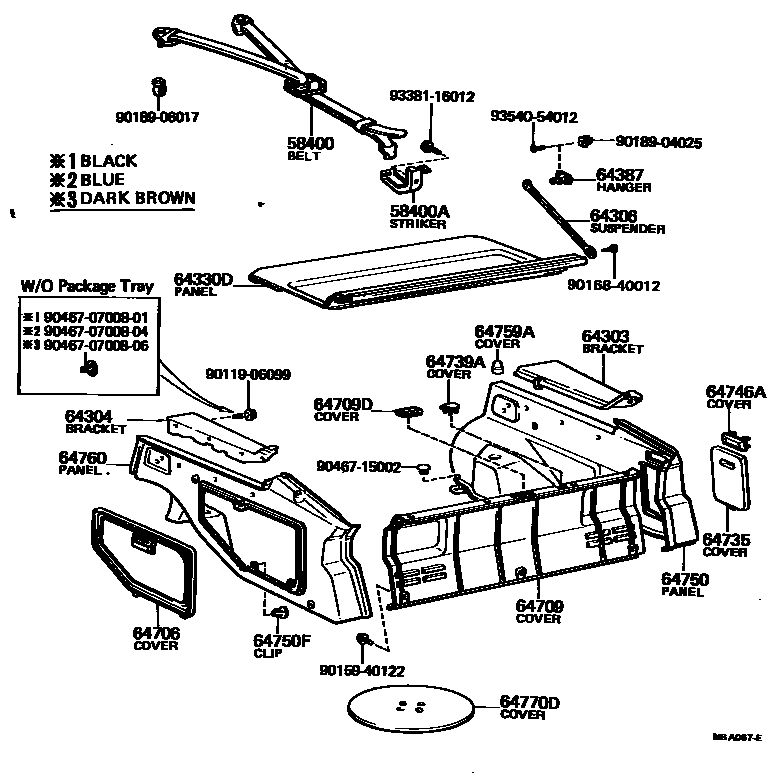

DECK BOARD & DECK TRIM COVER

0001 1 0002 1 0003 1

58400BELT ASSY, LUGGAGE HOLD, NO.1

main58400-12020iKE70,TE7#..LB..(ARL,EUR,GEN)197908-198102

sub58400-12021

main58400-12021iTE71..SAA198102-198308

58400ASTRIKER, LUGGAGE HOLD BELT

main58461-12010iTE71..SAA197908-198308

64303BRACKET SUB-ASSY, PACKAGE TRAY, RH

main64301-12010-01iKE70,TE71..CP197908-198305

BLACK,BLACK,TRIM0#,2#

main64301-12010-04iKE70,TE71..CP197908-198305

BLUE,BLUE,TRIM8#

main64301-12010-06iKE70,TE71..CP197908-198305

DARK BROWN,BROWN,TRIM4#

64304BRACKET SUB-ASSY, PACKAGE TRAY, LH

main64302-12010-01iKE70,TE71..CP197908-198305

BLACK,BLACK,TRIM0#,2#

main64302-12010-04iKE70,TE71..CP197908-198305

BLUE,BLUE,TRIM8#

main64302-12010-06iKE70,TE71..CP197908-198305

DARK BROWN,BROWN,TRIM4#

64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM

main64367-12010iKE70,TE71..CP197908-198305

64330DPANEL ASSY, PACKAGE TRAY TRIM

main64330-12400-01iKE70,TE71..CP197908-198305

BLACK,BLACK,TRIM0#,2#

sub64330-12400

main64330-12400-04iKE70,TE71..CP197908-198305

BLUE,BLUE,TRIM8#

sub64330-12400

main64330-12400-06iKE70,TE71..CP197908-198305

DARK BROWN,BROWN,TRIM4#

sub64330-12400

64387HANGER, PACKAGE TRAY TRIM

main64381-12010iKE70,TE71..CP197908-198305

64706COVER SUB-ASSY, QUARTER TRIM, JACK

main64707-12020-01iKE70,TE7#..CP,LB197908-198406

BLACK,BLACK,TRIM0#,2#

sub64707-12020

main64707-12020-04iTE72..(DX,SE)..(ARL,EUR);KE70,TE71..(CP,LB)..(EUR,GEN,SAA)197908-198308

BLUE,BLUE,TRIM8#

sub64707-12020

main64707-12020-06iKE70,TE7#..CP,LB197908-198406

DARK BROWN,BROWN,TRIM4#

sub64707-12020

64709COVER SUB-ASSY, LOWER BACK PANEL

main64706-12010-01iKE70,TE71..CP197908-198305

BLACK,BLACK,TRIM0#,2#

main64706-12010-04iKE70,TE71..CP197908-198305

BLUE,BLUE,TRIM8#

main64706-12010-06iKE70,TE71..CP197908-198305

DARK BROWN,BROWN,TRIM4#

main64706-12020-01iTE7#..LB197908-198406

BLACK,BLACK,TRIM0#,2#

main64706-12020-04iKE70,TE7#..LB197908-198005

BLUE,BLUE,TRIM8#

main64706-12020-06iTE7#..LB197908-198406

DARK BROWN,DARK BROWN,TRIM4#

main64706-12040-01iKE70..LB..4F..EUG197908-198005

*FRG,BLACK,BLACK,TRIM0#,2#

sub64716-12050

main64706-12040-06iTE71..LB..LHD..EUG197908-198005

*FRG,DARK BROWN,BROWN,TRIM4#

sub64716-12050

main64716-12030-01iKE70,TE7#..LB..(ARL,EUR,GEN,SAA)198005-198312

BLACK,BLACK,TRIM0#,2#

sub64706-12020

main64716-12030-04iKE70,TE71..LB..(EUR,GEN);TE72..(DX,SE)..(ARL,EUR)198005-198308

BLUE,BLUE,TRIM8#

sub64706-12020

main64716-12030-06iKE70,TE7#..LB198005-198312

DARK BROWN,BROWN,TRIM4#

sub64706-12020

main64716-12040-01iKE70..LB..5F..EUG198108-198305

*FRG,BLACK,BLACK,TRIM0#,2#

main64716-12040-04iKE70..LB..5F..EUG198108-198305

*FRG,BLUE,BLUE,TRIM8#

main64716-12040-06iTE71..LB..LHD..EUG198108-198305

*FRG,DARK BROWN,BROWN,TRIM4#

main64716-12050-01iKE70..LB..4F..EUG198005-198108

*FRG,BLACK,BLACK,TRIM0#,2#

sub64716-12040

sub64745-12020

sub64746-12030

main64716-12050-04iTE71..LB..LHD..EUG197908-198108

*FRG,BLUE,BLUE,TRIM8#

sub64716-12040

sub64745-12020

sub64746-12030

main64716-12050-06iKE70..LB..4F..EUG198005-198108

*FRG,DARK BROWN,BROWN,TRIM4#

sub64716-12040

sub64745-12020

sub64746-12030

64709DCOVER, BACK DOOR STRIKER

main64749-12020-01iKE70,TE7#..CP,LB197908-198406

BLACK,BLACK,TRIM0#,2#

main64749-12020-04iTE71..SAA197908-198308

BLUE,BLUE,TRIM8#

main64749-12020-06iKE70,TE7#..CP,LB197908-198406

DARK BROWN,BROWN,TRIM4#

64735COVER, DECK TRIM SIDE SERVICE HOLE

main64735-12010-01iKE70,TE71..CP197908-198305

BLACK,BLACK,TRIM0#,2#

main64735-12010-04iKE70,TE71..CP197908-198305

BLUE,BLUE,TRIM8#

main64735-12010-06iKE70,TE71..CP197908-198305

DARK BROWN,BROWN,TRIM4#

main64735-12020-01iKE70,TE7#..LB..(ARL,EUR,GEN,SAA)197908-198406

BLACK,BLACK,TRIM0#,2#

sub64735-12020

main64735-12020-04iTE71..SAA197908-198308

BLUE,BLUE,TRIM8#

sub64735-12020

main64735-12020-06iKE70,TE7#..LB197908-198406

DARK BROWN,BROWN,TRIM4#

sub64735-12020

64739ACOVER, DECK TRIM REAR WASHER

main64739-12020-01iKE70,TE7#..LB..(EUR,GEN,SA,SAA)197908-198406

BLACK,BLACK,TRIM0#,2#

main64739-12020-04iKE70,TE72..LB..DX;TE71..LB..(EUR,GEN,SAA)197908-198308

BLUE,BLUE,TRIM8#

main64739-12020-06iKE70,TE71..CP197908-198406

DARK BROWN,BROWN,TRIM4#

64746COVER, REAR COMBINATION LAMP SERVICE, LH

main64746-12030-01iTE71..LB..LHD..EUG198108-198305

*FRG,BLACK,BLACK,TRIM0#,2#

main64746-12030-04iTE71..LB..LHD..EUG198108-198305

*FRG,BLUE,BLUE,TRIM8#

main64746-12030-06iKE70..LB..5F..EUG198108-198305

*FRG,DARK BROWN,BROWN,TRIM4#

main64746-12040-01iTE71..LB..LHD..EUG197908-198108

*FRG,BLACK,BLACK,TRIM0#,2#

main64746-12040-04iKE70..LB..5F..EUG197908-198108

*FRG,BLUE,BLUE,TRIM8#

main64746-12040-06iTE71..LB..LHD..EUG197908-198108

*FRG,DARK BROWN,BROWN,TRIM4#

64746ACOVER, DECK TRIM SIDE LAMP HOLE

main64746-12020-01iKE70,TE71..CP..DX197908-198406

BLACK,BLACK,TRIM0#,2#

sub64746-12020

main64746-12020-04iKE70,TE72..LB..DX;TE71..LB..(DX,XE)197908-198308

BLUE,BLUE,TRIM8#

sub64746-12020

main64746-12020-06iKE70,TE7#..LB..(EUR,GEN)197908-198406

DARK BROWN,BROWN,TRIM4#

sub64746-12020

64750PANEL ASSY, DECK SIDE TRIM, RH

main64731-12900-01iKE70,TE71..CP197908-198305

BLACK,BLACK,TRIM0#,2#

main64731-12900-04iKE70,TE71..CP197908-198305

BLUE,BLUE,TRIM8#

main64731-12900-06iKE70,TE71..CP197908-198305

DARK BROWN,BROWN,TRIM4#

main64731-12901-01iTE72..SE,XE;KE70,TE71..LB197908-198406

W/TONNEAU COVER,BLACK,BLACK,TRIM0#,2#

main64731-12901-04iTE71..SAA197908-198308

W/TONNEAU COVER,BLUE,BLUE,TRIM8#

main64731-12901-06iTE72..SE,XE;KE70,TE71..LB197908-198406

W/TONNEAU COVER,DARK BROWN,BROWN,TRIM4#

main64731-12902-01iTE72..SDZ198208-198305

SWEDEN,BLACK,BLACK,TRIM0#,2#

sub64731-12901

main64731-12902-01iTE72..SDN197908-198208

BLACK,BLACK,TRIM0#,2#

sub64731-12901

main64731-12902-04iTE72..SDN197908-198208

BLUE,BLUE,TRIM8#

sub64731-12901

main64731-12902-04iTE72..SDZ198208-198305

SWEDEN,BLUE,BLUE,TRIM8#

sub64731-12901

main64731-12902-06iTE72..SDN197908-198208

DARK BROWN,BROWN,TRIM4#

sub64731-12901

main64731-12902-06iTE72..SDZ198208-198305

SWEDEN,DARK BROWN,BROWN,TRIM4#

sub64731-12901

main64731-12903-01iKE70..LB..5F..EUG197908-198305

*FRG,BLACK,BLACK,TRIM0#,2#

main64731-12903-04iKE70..LB..4F..EUG197908-198305

*FRG,BLUE,BLUE,TRIM8#

main64731-12903-06iTE71..LB..LHD..EUG197908-198305

*FRG,DARK BROWN,BROWN,TRIM4#

64750FCLIP(FOR DECK SIDE TRIM PANEL)

main90467-10005-01iKE70,TE7#..(CP,LB)..(ARL,EUR,GEN,SAA)197908-198406

BLACK,BLACK,TRIM0#,2#

sub90467-10005

sub90467-06017

main90467-10005-04iTE72..(DX,SE)..(ARL,EUR);KE70,TE71..(CP,LB)..(EUR,GEN,SAA)197908-198308

BLUE,BLUE,TRIM8#

sub90467-10005

sub90467-06017

main90467-10005-16iKE70,TE7#..CP,LB197908-198406

DARK BROWN,BROWN,TRIM4#

sub90467-10005

sub90467-06017

64759ACOVER, SHOCK ABSORBER HEAD

main64759-14010-11iKE70,TE7#..CP,LB197908-198406

BLACK,BLACK,TRIM0#,2#

sub64759-14010

main64759-14010-14iTE72..(DX,SE)..(ARL,EUR);KE70,TE71..(CP,LB)..(EUR,GEN,SAA)197908-198308

BLUE,BLUE,TRIM8#

sub64759-14010

main64759-14010-46iKE70,TE7#..CP,LB197908-198406

DARK BROWN,BROWN,TRIM4#

sub64759-14010

64760PANEL ASSY, DECK SIDE TRIM, LH

main64732-12900-01iKE70,TE71..CP197908-198305

BLACK,BLACK,TRIM0#,2#

main64732-12900-04iKE70,TE71..CP197908-198305

BLUE,BLUE,TRIM8#

main64732-12900-06iKE70,TE71..CP197908-198305

DARK BROWN,BROWN,TRIM4#

main64732-12901-01iTE72..ARL;KE70,TE71..LB..(EUR,GEN,SAA)197908-198406

W/TONNEAU COVER,BLACK,BLACK,TRIM0#,2#

main64732-12901-04iTE71..SAA197908-198308

W/TONNEAU COVER,BLUE,BLUE,TRIM8#

main64732-12901-06iTE72..SE,XE;KE70,TE71..LB197908-198406

W/TONNEAU COVER,DARK BROWN,BROWN,TRIM4#

main64732-12902-01iTE72..SDN197908-198208

BLACK,BLACK,TRIM0#,2#

sub64732-12901

main64732-12902-01iTE72..SDZ198208-198305

SWEDEN SPEC,BLACK,BLACK,TRIM0#,2#

sub64732-12901

main64732-12902-04iTE72..SDN197908-198208

BLUE,BLUE,TRIM8#

sub64732-12901

main64732-12902-04iTE72..SDZ198208-198305

SWEDEN SPEC,BLUE,BLUE,TRIM8#

sub64732-12901

main64732-12902-06iTE72..SDN197908-198208

DARK BROWN,BROWN,TRIM4#

sub64732-12901

main64732-12902-06iTE72..SDZ198208-198305

SWEDEN SPEC,DARK BROWN,BROWN,TRIM4#

sub64732-12901

main64732-12903-01iTE71..LB..LHD..EUG197908-198305

*FRG,BLACK,BLACK,TRIM0#,2#

main64732-12903-04iKE70..LB..5F..EUG197908-198305

*FRG,BLUE,BLUE,TRIM8#

main64732-12903-06iKE70..LB..4F..EUG197908-198305

*FRG,DARK BROWN,BROWN,TRIM4#

64770DCOVER ASSY, SPARE WHEEL

main64770-20030iKE70,TE7#..CP,LB197908-198406

9011906099

main90119-06099

9015940122

main90159-40122

9016840012

main90168-40012

9018904025

main90189-04025

9018906017

main90189-06017

904670700801

main90467-0700801

904670700804

main90467-0700804

904670700806

main90467-0700806

9046715002

main90467-15002

9338116012

main93381-16012

9354054012

main93540-54012

30 parts on this diagram · 3 diagrams in section
