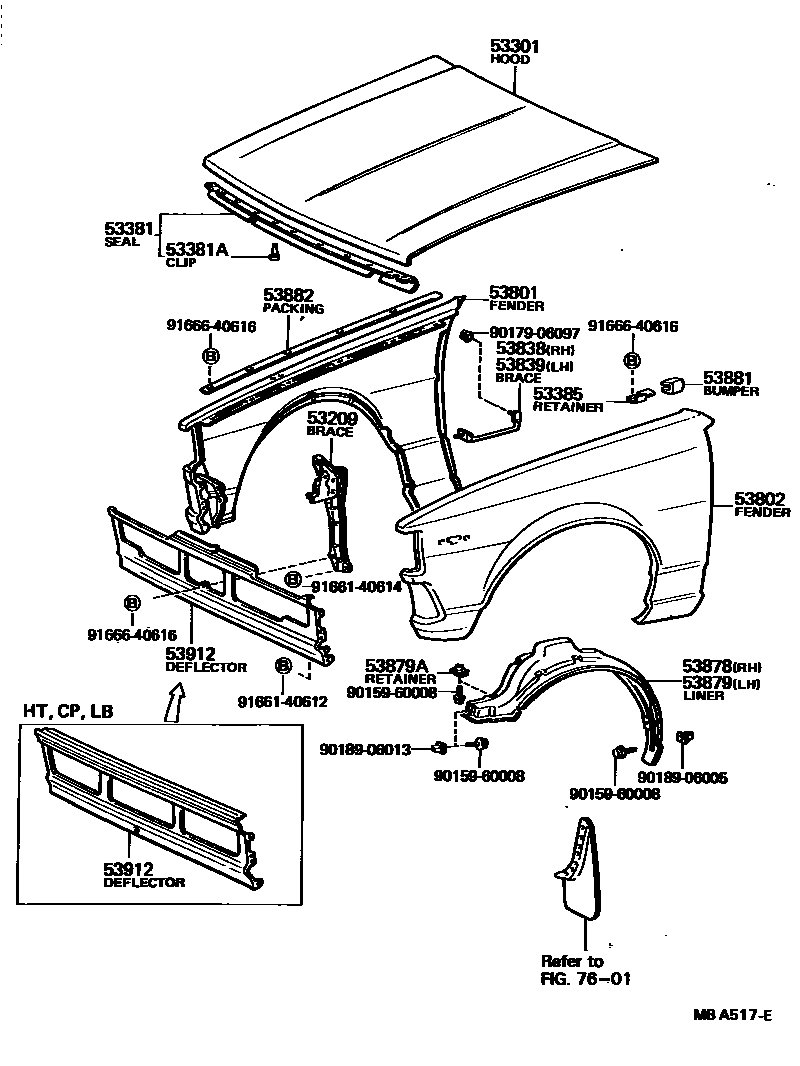

HOOD & FRONT FENDER

0001 1 0004 1

53209BRACE SUB-ASSY, HOOD LOCK

main53208-12040iKE70,TE71..(DV,SED,WG)..GEN197908-197911

main53208-12050iKE70..(DV,SED,WG)..EUR197908-198108

main53208-12060iTE7#..2D197908-197911

main53208-12070iKE70..(CP,LB)..EUG197908-198108

main53208-12120iKE70,TE7#..(DV,SED,WG)..(GEN,SA)197911-198108

main53208-12130iTE7#..2D197911-198108

main53208-12150iKE70..(DV,SED,WG)..EUR198108-198305

main53208-12160iKE70,TE7#..(DV,SED,WG)..(GEN,SA,SAA)198204-198305

main53208-12180iKE70..(CP,LB)..EUG198108-198305

main53208-12190iTE7#..CP,LB198204-198406

main53208-12270iKE70,TE7#..(DV,SED,WG)..(GEN,SA)198305-198309

main53208-12280iKE70..EUR198305-198707

53301HOOD SUB-ASSY

main53301-12200iKE70,TE7#..DV,SED,WG197908-198010

main53301-12210iKE70,TE7#..CP,LB197908-198010

main53301-12240iKE70..(DV,SED,WG)..EUR198010-198108

main53301-12250iKE70,TE7#..(CP,LB)..EUR198010-198108

main53301-12290iKE70..SAA198305-198308

main53301-12300iCE70,KE70,TE71..(DV,SED,WG)..EUR198108-198305

main53301-12310iKE70,TE7#..(CP,LB)..(ARL,GEN)198108-198406

main53301-12320iKE70,TE7#..(CP,LB)..(EUG,SDN)198108-198305

main53301-12330iAE71..STD198309-198406

main53301-12450iAE71,CE70,KE70,TE7#..(DX,GL,STD)..(EUR,SA)198305-198707

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-12110iAE71,KE70,TE7#..ARL,GEN,SAA197908-198707

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08008×9iTE71..LHD;KE70..LHD..GEN;KE70,TE72..EUR;TE71..RHD..EUG197908-197912

main90467-08011×9iTE71..LHD;KE70..LHD..GEN;TE71..RHD..EUG;KE70,TE72..EUR,SAA197912-198707

53385RETAINER, HOOD, BUMPER

main53385-14010×2iAE71,CE70,KE70,TE7#197908-198707

LH

main53386-14010×2iAE71,CE70,KE70,TE7#197908-198707

RH

53801FENDER SUB-ASSY, FRONT RH

main53801-12830iKE70,TE71..(DV,SED,WG)..RHD..GEN197908-198108

W/ANTENNA HOLE,MIRROR HOLE

main53801-12850iKE70,TE71..(DV,SED,WG)..GEN197908-198108

W/O ANTENNA HOLE,W/MIRROR HOLE

main53801-12860iKE70,TE71..(CP,LB)..RHD..GEN197908-198108

W/ANTENNA HOLE,MIRROR HOLE

main53801-1A110iKE70..(DV,SED,WG)..EUR197908-198108

W/O ANTENNA HOLE,MIROR HOLE

main53801-1A130iKE70,TE7#..(DV,SED,WG)..(GEN,SA)197908-198108

W/O ANTENNA HOLE,MIROR HOLE

sub53801-1A520

main53801-1A150iKE70..RHD..EUG197908-198108

W/ANTENNA HOLE,W/O MIROR HOLE

main53801-1A160iKE70,TE7#..SED..SA198108-198204

W/ANTENNA HOLE,W/O MIROR HOLE

main53801-1A180iKE70,TE71..(CP,LB)..GEN197908-198108

W/O ANTENNA HOLE,W/MIRROR HOLE

main53801-1A230iKE70,TE7#..(CP,LB)..EUR197908-198108

W/O ANTENNA HOLE,MIROR HOLE

main53801-1A231iKE70,TE7#..(CP,LB)..(EUG,SDN)198108-198305

W/O ANTENNA HOLE

main53801-1A250iKE70,TE7#..(CP,LB)..(ARL,GEN,SA)197908-198108

W/O ANTENNA HOLE,MIROR HOLE

main53801-1A251iKE70,TE71..(CP,LB)..(GEN,SAA)198108-198305

W/O ANTENNA HOLE

main53801-1A270iKE70,TE7#..(CP,LB)..RHD..(ARL,GEN,SA)197908-198108

W/ANTENNA HOLE,W/O MIROR HOLE

main53801-1A271iKE70,TE7#..(CP,LB)..RHD..(ARL,GEN)198108-198305

W/ANTENNA HOLE

main53801-1A281iTE71..RHD..EUG198108-198305

W/ANTENNA HOLE

main53801-1A320iTE71..RHD..EUG197908-198108

W/ANTENNA HOLE,W/O MIRROR HOLE

main53801-1A350iKE70,TE71..(DV,SED,WG)..(GEN,SAA)198108-198305

W/O ANTENNA HOLE

main53801-1A360iKE70..2D..ARL198108-198309

W/ANTENNA HOLE

main53801-1A390iCE70,KE70,TE71..(DV,SED,WG)..EUR198108-198305

W/O ANTENNA HOLE

main53801-1A400iCE70,KE70..RHD..EUG198108-198305

W/ANTENNA HOLE

main53801-1A440iKE70,TE71..(DV,SED,WG)..GEN198108-198204

*GIS,W/O ANTENNA HOLE

main53801-1A450iKE70,TE71..(DV,SED,WG)..RHD..GEN198108-198204

*GIS,W/ANTENNA HOLE

main53801-1A480iKE70,TE71..(CP,LB)..GEN;TE72..(SE,XE)..(EUR,SA)198204-198406

*GIS,W/O ANTENNA HOLE

main53801-1A490iKE70,TE7#..(CP,LB)..RHD..(GEN,SA)198204-198406

*GIS,W/ANTENNA HOLE

main53801-1A700iCE70,KE70..LHD..EUR198305-198601

main53801-1A701iCE70,KE70..LHD..EUR198601-198707

main53801-1A710iCE70,KE70..RHD..EUG198305-198601

main53801-1A711iCE70,KE70..RHD..EUG198601-198707

main53801-1A720iKE70..LHD..GEN198305-198707

*GIS

main53801-1A730iKE70..RHD..4F..(STD,XL)..GEN198403-198707

*GIS,W/ANTENNA HOLE

main53801-1A820iAE71,KE70..LHD..GEN198305-198707

main53801-1A830iAE71..STD198309-198406

W/ANTENNA HOLE

53802FENDER SUB-ASSY, FRONT LH

main53802-12850iKE70,TE71..(DV,SED,WG)..GEN197908-198108

W/O ANTENNA HOLE,W/MIRROR HOLE

main53802-12870iKE70,TE71..(CP,LB)..GEN197908-198108

W/O ANTENNA HOLE,W/MIRROR HOLE

main53802-1A110iKE70..(DV,SED,WG)..EUR197908-198108

W/O ANTENNA HOLE,MIRROR HOLE

main53802-1A120iKE70..(DV,SED,WG)..LHD..EUR197908-198108

W/ANTENNA HOLE,W/O MIRROR HOLE

main53802-1A140iKE70,TE71..(DV,SED,WG)..LHD..GEN197908-198108

W/ANTENNA HOLE,W/O MIRROR HOLE

main53802-1A160iKE70,TE7#..(DV,SED,WG)..(GEN,SA)197908-198108

W/O ANTENNA HOLE,MIRROR HOLE

sub53802-1A530

main53802-1A170iKE70,TE71..(DV,SED,WG)..LHD..GEN197908-198108

W/ANTENNA HOLE,MIRROR HOLE

main53802-1A210iKE70,TE71..(CP,LB)..LHD..GEN197908-198108

W/ANTENNA HOLE,W/MIRROR HOLE

main53802-1A260iKE70,TE7#..(CP,LB)..LHD..EUR197908-198108

W/ANTENNA HOLE,W/O MIRROR HOLE

main53802-1A261iKE70,TE71..(CP,LB)..LHD..EUG198108-198305

W/ANTENNA HOLE

main53802-1A280iKE70,TE71..(CP,LB)..LHD..GEN197908-198108

W/ANTENNA HOLE,W/O MIRROR HOLE

main53802-1A281iTE71..SAA198305-198308

W/ANTENNA HOLE

main53802-1A300iKE70,TE7#..(CP,LB)..EUR197908-198108

W/O ANTENNA HOLE,MIRROR HOLE

main53802-1A301iKE70,TE7#..(CP,LB)..(EUG,SDN)198108-198305

W/O ANTENNA HOLE

main53802-1A310iTE7#..SE..SA198108-198204

W/O ANTENNA HOLE,MIRROR HOLE

main53802-1A311iTE71..SAA198305-198308

W/O ANTENNA HOLE

main53802-1A370iKE70,TE71..(DV,SED,WG)..(GEN,SAA)198108-198305

W/O ANTENNA HOLE

main53802-1A380iKE70,TE71..(DV,SED,WG)..LHD..(GEN,SAA)198108-198305

W/ANTENNA HOLE

main53802-1A410iCE70,KE70,TE71..(DV,SED,WG)..EUR198108-198305

W/O ANTENNA HOLE

main53802-1A420iCE70,KE70,TE71..(DV,SED,WG)..LHD..(EUG,SDZ)198108-198305

W/ANTENNA HOLE

main53802-1A440iKE70,TE71..(DV,SED,WG)..GEN198108-198204

*GIS,W/O ANTENNA HOLE

main53802-1A470iKE70,TE71..(DV,SED,WG)..LHD..GEN198108-198305

*GIS,W/ANTENNA HOLE

main53802-1A500iKE70,TE71..(CP,LB)..GEN;TE72..(SE,XE)..(EUR,SA)198204-198406

*GIS,W/O ANTENNA HOLE

main53802-1A510iKE70,TE71..(CP,LB)..LHD..GEN198108-198305

*GIS,W/ANTENNA HOLE

main53802-1A670iCE70,KE70..RHD..EUG198305-198601

main53802-1A671iCE70,KE70..RHD..EUG198601-198707

main53802-1A700iCE70,KE70..LHD..EUR198305-198601

main53802-1A701iCE70,KE70..LHD..EUR198601-198707

main53802-1A710iKE70..LHD..GEN198305-198707

*GIS

main53802-1A730iKE70..LHD..GEN198305-198707

*GIS,W/ANTENNA HOLE

main53802-1A830iKE70..RHD..4F..(STD,XL)..GEN198403-198707

main53802-1A840iAE71,KE70..LHD..GEN198305-198707

W/ANTENNA HOLE

53838BRACE, FRONT FENDER, RH

main53851-12010iKE70,TE7#..DV,SED,WG197908-198108

main53851-12020iKE70,TE7#..CP,LB197908-198108

main53851-12040iAE71,CE70,KE70,TE7#198305-198707

53839BRACE, FRONT FENDER, LH

main53852-12010iKE70,TE7#..(SED,WG)..(ARL,SA)198108-198204

main53852-12020iTE7#..SE..SA198108-198204

main53852-12040iCE70,KE70,TE7#..EUR,GEN,SA,SAA198204-198305

53878LINER, FRONT FENDER, RH

main53875-12040iAE71,CE70,KE70,TE7#..DV,SED,WG197908-198707

main53875-12050iKE70,TE7#..CP,LB197908-198406

53879LINER, FRONT FENDER, LH

main53876-12040iAE71,CE70,KE70,TE7#..DV,SED,WG197908-198707

main53876-12050iKE70,TE7#..CP,LB197908-198406

53879ARETAINER, FRONT FENDER LINER

main53879-22010×8iAE71,CE70,KE70,TE7#197908-198707

53881BUMPER, FENDER TO HOOD

main53384-14010×4iKE70,TE7#197908-198104

main53384-16010×4iAE71,CE70,KE70,TE7#198104-198707

53882PACKING, FRONT FENDER MAIN

main53882-12040×2iAE71,CE70,KE70,TE7#197908-198707

53912DEFLECTOR, FRONT BUMPER STONE

main53901-12060iKE70..2D..ARL198108-198309

sub53901-12070

main53901-12080iAE71,KE70,TE7#..(DV,SED,WG)..(GEN,SA)198305-198707

main53901-12090iKE70,TE7#..(DV,SED,WG)..(GEN,SA,SAA)198204-198305

main53901-12100iCE70,KE70,TE71..(DV,SED,WG)..EUR198108-198305

main53901-12110iCE70,KE70..EUR198305-198707

main53911-12100iKE70,TE7#..(DV,SED,WG)..(GEN,SA)197908-198008

main53911-12110iKE70..RHD..5F..4D;KE70..LHD..4F..4D..DX..GEN197908-198008

W/URETHANE BUMPER

sub53911-12190

main53911-12120iTE7#..SE..SA198108-198204

main53911-12130iKE70,TE7#..(CP,LB)..(ARL,GEN,SAA)198108-198204

main53911-12180iKE70..(DV,SED,WG)..EUR197908-198008

main53911-12191iKE70..SED..LHD..4F..4D..GEN198012-198108

W/URETHANE BUMPER,*SAA

main53911-12200iKE70,TE7#..(CP,LB)..(EUG,SDN)198108-198305

main53911-12210iKE70,TE7#..(CP,LB)..EUR197908-198108

7601

9015960008

main90159-60008

9017906097

main90179-06097

9018906005

main90189-06005

9018906013

main90189-06013

9166140612

main91661-40612

9166140614

main91661-40614

9166640616

main91666-40616

23 parts on this diagram · 2 diagrams in section
