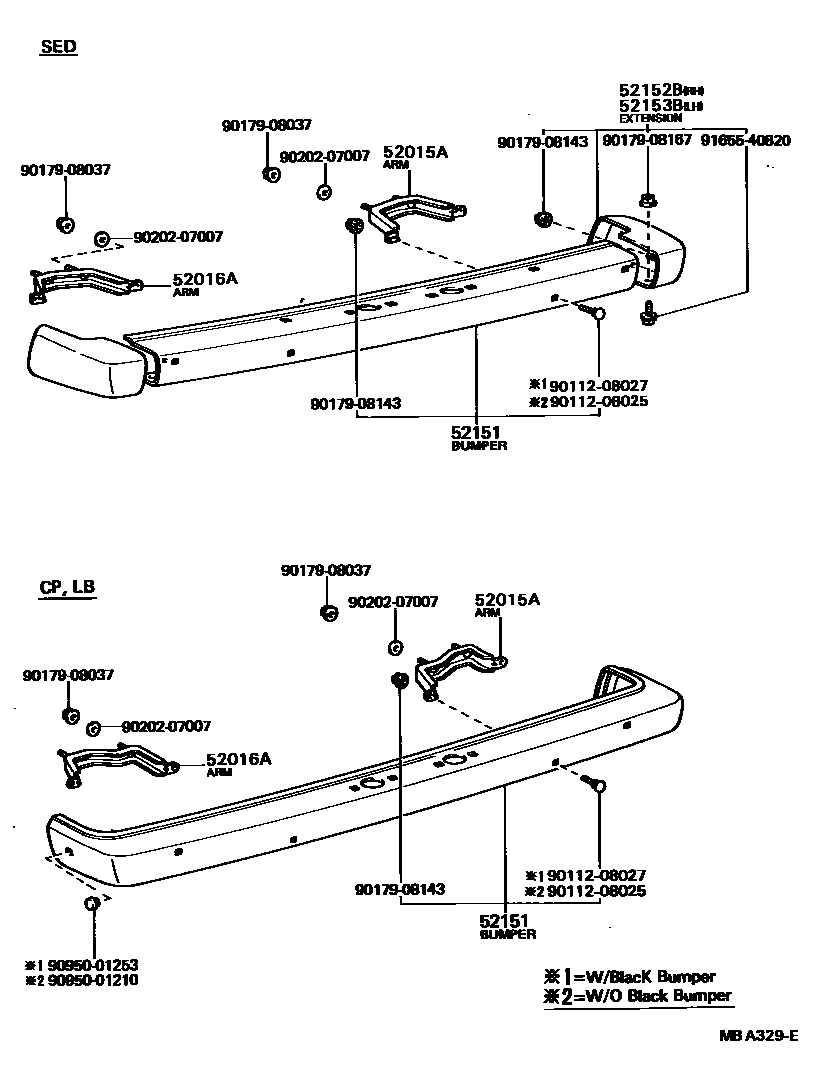

REAR BUMPER & BUMPER STAY

0001 1 0003 1 0004 1 0006 1 0008 1 0012 1

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-12080iCE70,KE70,TE72..SED..(EUR,GEN,SA)¥3,400198108-198502

main52015-12100iKE70,TE7#..(CP,LB)..(EUR,GEN)¥3,420198108-198305

main52015-13040iAE71,KE70..2D..ARL¥2,940197908-198508

main52015-13041iAE71,CE70,KE70¥2,570198508-198707

main52181-12150iKE70,TE7#..SED¥2,650197908-198204

main52181-12170iKE70,TE7#..CP,LB¥2,540197908-198204

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-12080iTE71..SED..DX¥3,400198108-198502

main52016-12100iKE70,TE7#..(CP,LB)..(EUR,GEN,SA)198108-198305

main52016-13040iKE70,TE71..DV,WG¥2,940197908-198508

main52016-13041iAE71,CE70,KE70¥2,570198508-198707

main52182-12150iKE70,TE7#..SED..SA¥2,650197908-198204

main52182-12170iKE70,TE7#..CP,LB¥2,540197908-198204

52151BUMPER ASSY, REAR

main52151-13050iKE70..GEN¥21,700198611-198707

CHROME PLATED

main52151-13060iAE71..SA¥24,200198611-198707

BLACK

main52151-13080iAE71,KE70..(3FC,4F)..GEN¥22,500198611-198707

BLACK

main52151-19565iKE70,TE7#..SED¥23,500197908-198204

sub52151-12200¥23,000

main52151-19575iKE70,TE71..CP,LB¥25,000197908-198108

BLACK

sub52151-12220¥26,000

main52151-19585iTE72..SE..SA¥24,500197908-198204

sub52151-19815¥29,600

main52151-19605iTE71..STD..SA¥23,500198108-198611

CHROME PLATED

sub52151-13050¥21,700

main52151-19605iKE70..2D..ARL¥23,500198108-198209

CHORME PLATED

sub52151-13050¥21,700

main52151-19605iKE70,TE71..DV,WG¥23,500197908-198108

sub52151-13050¥21,700

main52151-19685iKE70..STD..SA¥25,000198108-198305

CHROME PLATED

sub52151-12250¥26,200

main52151-19695iKE70..SED..(DX,GL)..GEN¥25,000198108-198406

CHROME PLATED,W/PROTECTOR

sub52151-12260¥23,800

main52151-19705iKE70..SED..(DX,GL)..GEN¥24,800198204-198502

BLACK,W/PROTECTOR

sub52151-12270¥23,900

main52151-19705iKE70,TE71..SED..(DX,GL)..GEN¥24,800198108-198305

BLACK

sub52151-12270¥23,900

main52151-19715iKE70,TE71..LB..DX..GEN¥25,100198108-198305

CHROME PLATED

sub52151-12290

main52151-19725iKE70,TE71..LB..GEN¥25,000198108-198305

CHROME PLATED,W/PROTECTOR

sub52151-12300

main52151-19735iKE70,TE7#..(CP,LB)..(EUR,GEN,SA)¥25,000198204-198305

BLACK,W/PROTECTOR

sub52151-12310¥26,200

main52151-19735iKE70,TE7#..(CP,LB)..(EUR,GEN)¥25,000198108-198204

BLACK

sub52151-12310¥26,200

main52151-19745iAE71,TE71..WG..SA¥25,200198108-198611

BLACK

sub52151-13060¥24,200

main52151-19745iKE70,TE71..WG..(DX,XL)..GEN¥25,200198108-198305

BLACK,W/PAD

sub52151-13060¥24,200

main52151-19755iTE71..WG..SA¥23,500198204-198305

sub52151-13070

main52151-19765iKE70..4D..STD..SA¥24,800198209-198502

BLACK

sub52151-12280¥27,600

main52151-19775iKE70..2D..ARL¥24,800198209-198611

BLACK

sub52151-13080¥22,500

main52151-19795iKE70..LB..GEN;TE71..(3FC,5F)..2D..DX..GEN198209-198305

BLACK

52152BEXTENSION, REAR BUMPER, RH

main52106-13011iAE71,CE70,KE70¥8,400198512-198707

main52106-19135iKE70,TE7#..SED¥9,300197908-198204

main52106-19155iAE71,KE70..2D..ARL¥9,300197908-198512

sub52106-13010¥8,300

main52106-19225iKE70,TE71..SED..(EUR,GEN)¥9,800198108-198502

main52106-19245iKE70,TE7#..(CP,LB)..(EUR,GEN,SA)¥9,100198108-198305

52153BEXTENSION, REAR BUMPER, LH

main52107-13011iAE71,CE70,KE70¥8,400198512-198707

main52107-19165iKE70,TE7#..SED¥9,300197908-198204

main52107-19185iAE71,KE70..2D..ARL¥9,300197908-198512

sub52107-13010¥9,100

main52107-19255iCE70,KE70,TE72..SED..(EUR,GEN,SA)¥9,800198108-198502

main52107-19275iKE70,TE7#..(CP,LB)..(EUR,GEN)¥9,100198108-198305

9011208025

main90112-08025¥370

9011208027

main90112-08027¥370

9017908037

main90179-08037¥140

9017908143

main90179-08143¥110

9017908167

main90179-08167¥320

9020207007

main90202-07007¥140

9095001210

main90950-01210¥400

9095001253

main90950-01253¥400

9165540820

main91655-40820¥140

14 parts on this diagram · 6 diagrams in section
