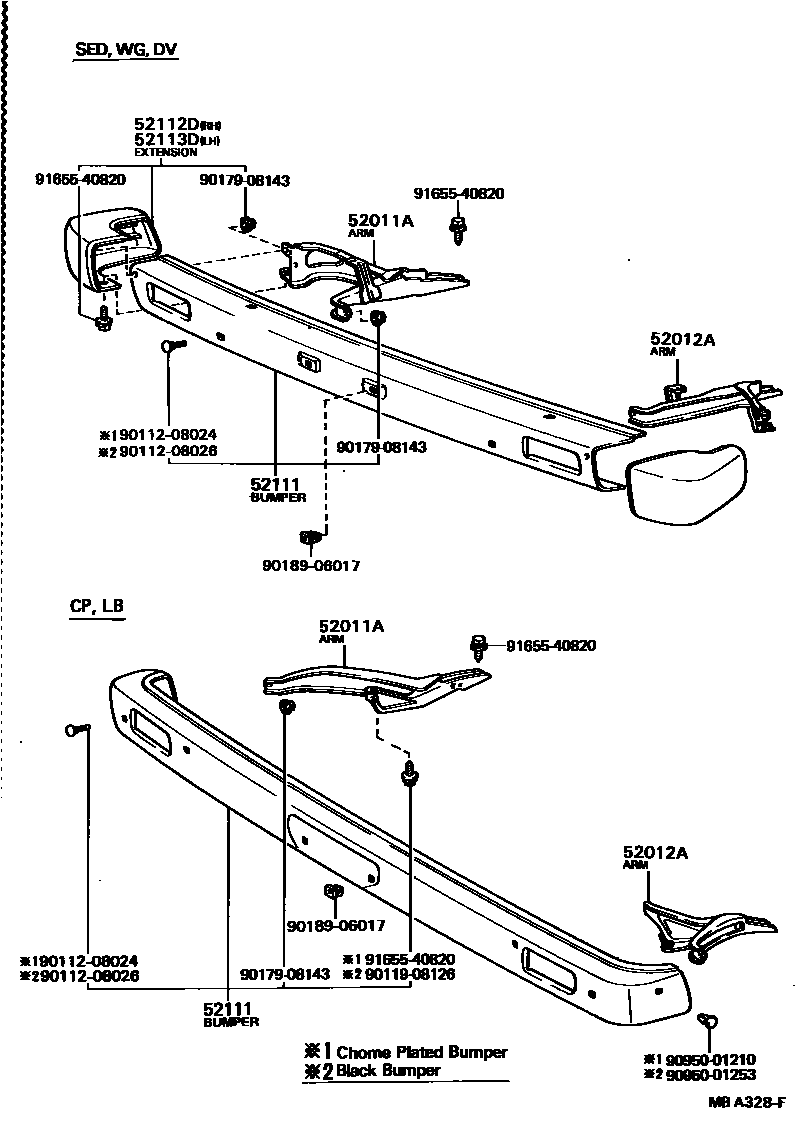

FRONT BUMPER & BUMPER STAY

0001 1 0003 1 0004 1 0008 1 0010 1

52011AARM SUB-ASSY, FRONT BUMPER, RH

main52011-12100iKE70,TE7#..SED..SA197908-198204

main52011-12120iKE70,TE7#..CP,LB197908-198204

main52011-12180iTE71..(SED,WG)..(DX,STD)198108-198309

main52011-12190iKE70,TE7#..(CP,LB)..(EUR,GEN,SA)198108-198305

main52011-12210iAE71..STD198305-198707

52012AARM SUB-ASSY, FRONT BUMPER, LH

main52012-12100iKE70,TE7#..DV,SED,WG197908-198204

main52012-12120iKE70,TE7#..CP,LB197908-198204

main52012-12180iCE70,KE70,TE72..(DV,SED,WG)..(EUR,GEN,SA)198108-198309

main52012-12190iKE70,TE7#..(CP,LB)..(EUR,GEN)198108-198305

main52012-12210iAE71..STD198305-198707

52111BUMPER ASSY, FRONT

main52111-12261iAE71..SA198611-198707

W/O *HC

main52111-12400iKE70..GEN198611-198707

CHROME PLATED

main52111-12410iKE70..SA198611-198707

BLACK

main52111-12420iCE70,KE70..LHD..EUR198611-198707

W/*HC

sub52111-12995

main52111-19475iTE7#..4D;KE70..WG..LHD..EUG;KE70..WG..LHD..GEN;KE70..(DV,SED,WG)..RHD;KE70..(DV,SED)..LHD..STD;KE70..SED..LHD..(2FC,5F);KE70..SED..LHD..4F..DX..GEN;KE70..SED..LHD..197908-198204

sub52111-12220

main52111-19485iKE70,TE7#..LB..(DX,SE,XE)197908-198204

sub52111-19765

main52111-19495iKE70,TE71..(CP,LB)..(EUR,GEN)197908-198108

BLACK

sub52111-12250

main52111-19506iAE71,KE70,TE7#..(DX,GL)..SA198305-198611

W/O *HC

sub52111-12261

main52111-19516iKE70..SED..GEN198305-198406

CHROME PLATED,W/PROTECTOR

sub52111-12271

main52111-19525iKE70..SDN197908-198108

W/*HC

sub52111-19755

main52111-19545iTE72..SDN197908-198005

sub52111-19775

main52111-19546iKE70,TE7#..(CP,LB)..LHD..(DX,SR,XE)..EUR198005-198108

W/*HC

sub52111-12301

main52111-19625iKE70,TE71..(DV,SED,WG)..(DX,STD,XL)..GEN198108-198305

CHROME PLATED

sub52111-12310

main52111-19635iKE70..GL..GEN198108-198305

CHROME PLATED,W/PROTECTOR

sub52111-12320

main52111-19645iCE70,KE70,TE71..(DV,SED,WG)..LHD..EUR198108-198305

BLACK,W/*HC,PROTECTOR

sub52111-12330

main52111-19655iKE70,TE71..LB..GEN198108-198209

CHROME PLATED,W/PROTECTOR

sub52111-12350

main52111-19665iKE70,TE7#..(CP,LB)..LHD..(EUG,SDN)198108-198305

BLACK,W/*HC,PROTECTOR

sub52111-12360

main52111-19675iKE70,TE71..LB..DX..GEN198108-198305

CHROME PLATED

sub52111-12370

main52111-19685iKE70..(STD,XL)..GEN198305-198611

CHROME PLATED

sub52111-12400

main52111-19695iKE70,TE72..(SED,WG)..(DX,GL,XL)..(GEN,SA)198204-198305

BLACK,W/PROTECTOR

sub52111-12340

main52111-19695iKE70..(SED,WG)..(DX,GL,XL)..GEN198108-198204

BLACK

sub52111-12340

main52111-19695iCE70,KE70,TE71..(DV,SED,WG)..(EUG,SDZ)198108-198305

BLACK,W/O *HC,W/PROTECTOR

sub52111-12340

main52111-19705iKE70,TE71..(CP,LB)..(EUR,GEN)198108-198204

BLACK,W/O *HC

sub52111-12380

main52111-19705iTE72..(SE,XE)..(EUR,SA);KE70,TE71..(CP,LB)..(EUR,GEN)198204-198305

BLACK,W/O *HC,W/PROTECTOR

sub52111-12380

main52111-19715iKE70..4D..DX..GEN;KE70..(STD,XL)..GEN;TE71..4D..(DX,STD)..GEN198209-198309

BLACK

sub52111-12390

main52111-19725iAE71,KE70..(DV,WG)..(3FC,4F)..GEN198305-198611

BLACK

sub52111-12410

main52111-19725iKE70,TE71..STD..SA198305-198611

sub52111-12410

main52111-19735iKE70..LB..GEN;TE71..(3FC,5F)..2D..DX..GEN198209-198305

BLACK

main52111-19845iCE70,KE70..LHD..EUR198305-198611

W/*HC

sub52111-12420

52112DEXTENSION, FRONT BUMPER, RH

main52102-19175iKE70,TE7#..SED..SA197908-198204

main52102-19225iCE70,KE70,TE72..(DV,SED,WG)..(EUR,GEN,SA)198108-198309

main52102-19235iKE70,TE7#..(CP,LB)..(EUR,GEN,SA)198108-198305

main52102-19255iAE71,CE70,KE70,TE7#..(DV,SED,WG)..(EUR,GEN,SA)198305-198707

52113DEXTENSION, FRONT BUMPER, LH

main52103-19155iKE70,TE7#..DV,SED,WG197908-198204

main52103-19205iKE70,TE71..(DV,SED,WG)..(EUR,GEN)198108-198309

main52103-19215iKE70,TE7#..(CP,LB)..(EUR,GEN,SA)198108-198305

main52103-19235iAE71..STD198305-198707

9011208024

main90112-08024

9011208026

main90112-08026

9011908126

main90119-08126

9017908143

main90179-08143

9018906017

main90189-06017

9095001210

main90950-01210

9095001253

main90950-01253

9165540820

main91655-40820

13 parts on this diagram · 5 diagrams in section
