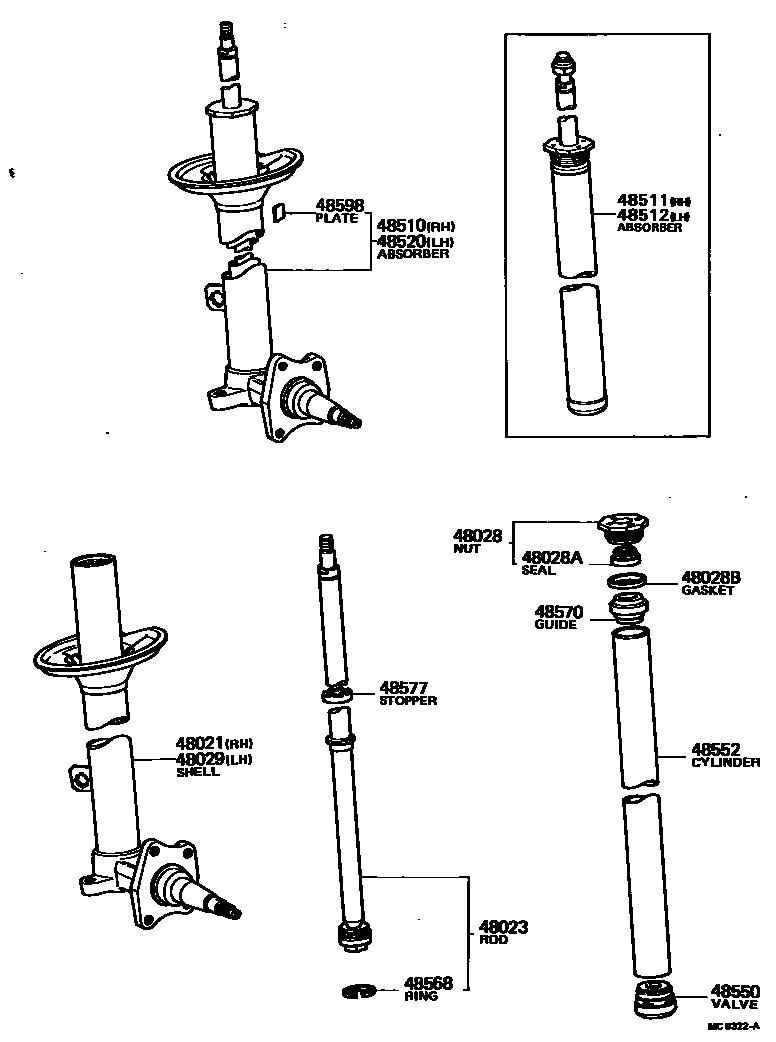

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

48021SHELL SUB-ASSY, W/STEERING KNUCKLE, RH

main48021-12130iKE70..EUR,GEN197908-198108

main48021-12140iKE70,TE7#..SA197908-198204

main48021-12150iAE71,KE70..ARL,SAA198108-198410

main48021-12160iTE71..SAA198108-198707

main48021-12170iCE70,KE70,TE71..EUR,GEN198305-198505

48023ROD SUB-ASSY, SHOCK ABSORBER PISTON (FOR FRONT)

main48023-12140iKE70..EUR,GEN197908-198108

main48023-12151iTE7#..ARL,EUR,GEN197908-198204

main48023-12170iKE70..2D..ARL198108-198309

main48023-12190iKE70..LB..5F..EUG198205-198305

main48023-12200iAE71,KE70,TE71..SA;TE72..(GL,SE,XE)..(EUR,SA)198108-198707

main48023-12210iTE71..GT,SR;CE70,TE72..EUG,SDZ198108-198305

main48023-12230iKE70..(3FC,4F)..GEN;KE70,TE71..5F..(DX,GL)..GEN198305-198505

main48023-12240iCE70,KE70..EUR198305-198505

48028NUT SUB-ASSY, SHOCK ABSORBER RING

main48028-10020iKE70..SAA197908-198309

sub48028-17010

main48028-14011iAE71,KE70..SA197908-198707

sub48028-14012

48028ASEAL, OIL(FOR SHOCK ABSORBER RING NUT)

main90316-20006iKE70..2D..ARL197908-198309

main90316-22001iKE70..SA197908-198707

48028BGASKET(FOR SHOCK ABSORBER RING NUT)

main90430-36002iKE70..EUR,GEN,SAA197908-198410

sub90430-37003

main90430-43206iAE71..STD197908-198707

48029SHELL SUB-ASSY, W/STEERING KNUCKLE, LH

main48029-12010iKE70..EUR,GEN197908-198108

main48029-12020iTE7#..ARL,EUR,GEN197908-198204

main48029-12030iAE71,KE70..ARL,SAA198108-198410

main48029-12040iAE71,KE70,TE71..SA;TE72..(GL,SE,XE)..(EUR,SA)198108-198707

main48029-12050iCE70,KE70,TE71..EUR,GEN198305-198505

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-12161iTE71..GT,SR197908-198108

main48510-12170iKE70..EUR,GEN197908-198108

sub48510-12130

main48510-12181iKE70,TE7#..SA197908-198204

sub48510-12161

main48510-12210iKE70..2D..ARL198108-198309

sub48510-12200

main48510-12220iKE70..LB..5F..EUG198205-198305

sub48510-12200

main48510-12230iAE71,KE70,TE71..SA;TE72..(GL,SE,XE)..(EUR,SA)198108-198707

main48510-12250iTE71..GT,SR;CE70,TE72..EUG,SDZ198108-198305

main48510-12270iAE71..STD198308-198505

sub48510-12280

main48510-12280iKE70..(3FC,4F)..GEN;KE70,TE71..5F..(DX,GL)..GEN198305-198505

sub48510-12281

main48510-12480iKE70..4F..GEN198505-198707

main48510-12490iCE70,KE70..EUR198505-198707

sub48510-12491

48511ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)

main48511-12090iTE71..GT,SR197908-198108

main48511-12100iKE70..EUR,GEN197908-198108

sub48511-12140

main48511-12110iTE7#..(DX,SE,STD,XE)..(ARL,EUR,GEN)197908-198204

main48511-12140iKE70..EUR,GEN,SAA198108-198309

main48511-12150iKE70..LB..5F..EUG198205-198305

sub48511-12140

main48511-12160iAE71,KE70,TE71..SA;TE72..(GL,SE,XE)..(EUR,SA)198108-198707

sub48511-12110

main48511-12180iTE72..SDZ;TE71..GT,SR198108-198305

sub48511-12090

main48511-12190iCE70,KE70..EUR198308-198505

sub48511-19135

main48511-12200iKE70..(3FC,4F)..GEN;KE70,TE71..5F..(DX,GL)..GEN198305-198505

sub48511-19145

main48511-12220iKE70..4F..GEN198505-198707

MARK 48511-12220

main48511-12230iCE70,KE70..EUR198505-198707

MARK 48511-12230

48512ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)

main48511-12090iTE71..GT,SR197908-198108

main48511-12100iKE70..EUR,GEN197908-198108

sub48511-12140

main48511-12110iTE7#..(DX,SE,STD,XE)..(ARL,EUR,GEN)197908-198204

main48511-12140iKE70..LB..GEN;KE70..LB..(3FC,4F)..EUG;KE70..(CP,DV,SED,WG)..(EUR,GEN,SAA)198108-198309

main48511-12150iKE70..LB..5F..EUG198205-198305

sub48511-12140

main48511-12160iTE72..SDN;TE71..(DX,GL,STD,XE)..(EUR,GEN,SAA)198108-198707

sub48511-12110

main48511-12180iTE72..SDZ;TE71..GT,SR198108-198305

sub48511-12090

main48511-12190iAE71..STD198308-198505

sub48511-19135

main48511-12200iKE70..LHD;KE70..RHD..(3FC,4F)..(EUR,GEN);KE70,TE71..RHD..5F..(DX,GL)..(EUR,GEN)198305-198505

sub48511-19145

main48511-12220iKE70..4F..GEN198505-198707

MARK 48511-12220

main48511-12230iCE70,KE70..EUR198505-198707

MARK 48511-12230

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-12041iTE71..GT,SR197908-198108

main48520-12050iKE70..EUR,GEN197908-198108

sub48520-12010

main48520-12061iTE7#..(DX,SE,STD,XE)..(ARL,EUR,GEN)197908-198204

sub48520-12041

main48520-12090iKE70..2D..ARL198108-198309

sub48520-12080

main48520-12100iKE70..LB..5F..EUG198205-198305

sub48520-12080

main48520-12110iTE72..SDN;TE71..(DX,GL,STD,XE)..(EUR,GEN,SAA)198108-198707

sub48520-12130

main48520-12130iTE71..GT,SR;CE70,TE72..EUG,SDZ198108-198305

main48520-12140iAE71..STD198308-198505

sub48520-12150

main48520-12150iKE70..LHD;KE70..RHD..(3FC,4F)..(EUR,GEN);KE70,TE71..RHD..5F..(DX,GL)..(EUR,GEN)198305-198505

sub48520-12151

main48520-12350iKE70..4F..GEN198505-198707

main48520-12360iAE71,KE70..(3FC,5F)..GEN198505-198707

sub48520-12361

48550VALVE ASSY, SHOCK ABSORBER BASE

main48550-12140iKE70..EUR,GEN197908-198108

main48550-12150iTE7#..(DX,SE,STD,XE)..(ARL,EUR,GEN)197908-198204

main48550-12170iTE71..GT,SR;CE70,TE72..EUG,SDZ198108-198305

sub48550-14060

main48550-12180iKE70..LB..5F..EUG198205-198305

main48550-12200iKE70..LB..GEN;KE70..LB..(3FC,4F)..EUG;KE70..(CP,DV,SED,WG)..(EUR,GEN,SAA)198108-198309

main48550-12210iTE71..SAA198108-198308

sub48550-14050

main48550-12230iAE71..STD198305-198505

main48550-12260iKE70..(3FC,4F)..GEN;KE70,TE71..5F..(DX,GL)..GEN198305-198505

main48550-14050iAE71,KE70,TE7#..SA198305-198707

main48550-22050iTE71..GT,SR197908-198108

48552CYLINDER, SHOCK ABSORBER(FOR FRONT)

main48552-12030iKE70..SA197908-198707

main48552-12040iKE70..EUR,GEN,SAA197908-198309

48568RING, SHOCK ABSORBER PISTON

main48568-12010iKE70..EUR,GEN197908-198108

main48568-12020iKE70..EUR,GEN,SAA198108-198309

main48568-22020iCE70,TE7#197908-198305

main48568-22021iAE71,KE70..SA198305-198707

48570GUIDE ASSY, SHOCK ABSORBER ROD

main48022-10020iKE70..SAA197908-198309

main48022-14010iAE71..STD197908-198707

sub48022-22040

sub90430-42001

48577STOPPER, SHOCK ABSORBER REBOUND

main48577-10010iKE70..2D..ARL197908-198309

main48579-14011iKE70..SA197908-198707

48598PLATE, ABSORBER NAME

main48598-12211iTE71..GT,SR197908-198108

RH

main48598-12221iTE71..GT,SR197908-198108

LH

main48598-12230iKE70..EUR,GEN197908-198108

RH

main48598-12240iKE70..EUR,GEN197908-198108

LH

main48598-12251iTE7#..(DX,SE,STD,XE)..(ARL,EUR,GEN)197908-198204

RH

main48598-12261iKE70,TE7#..SA197908-198204

LH

main48598-12310iKE70..SAA198108-198309

RH

main48598-12320iKE70..2D..ARL198108-198309

LH

main48598-12330iKE70..LB..5F..EUG198205-198305

RH

main48598-12340iKE70..LB..5F..EUG198205-198305

LH

main48598-12350iKE70,TE71..SA;TE72..(GL,SE,XE)..(EUR,SA)198108-198409

RH

main48598-12360iTE72..SDN;TE71..(DX,GL,STD,XE)..(EUR,GEN,SAA)198108-198409

LH

main48598-12390iTE71..GT,SR;CE70,TE72..EUG,SDZ198108-198305

RH

main48598-12400iTE71..GT,SR;CE70,TE72..EUG,SDZ198108-198305

LH

16 parts on this diagram · 2 diagrams in section
