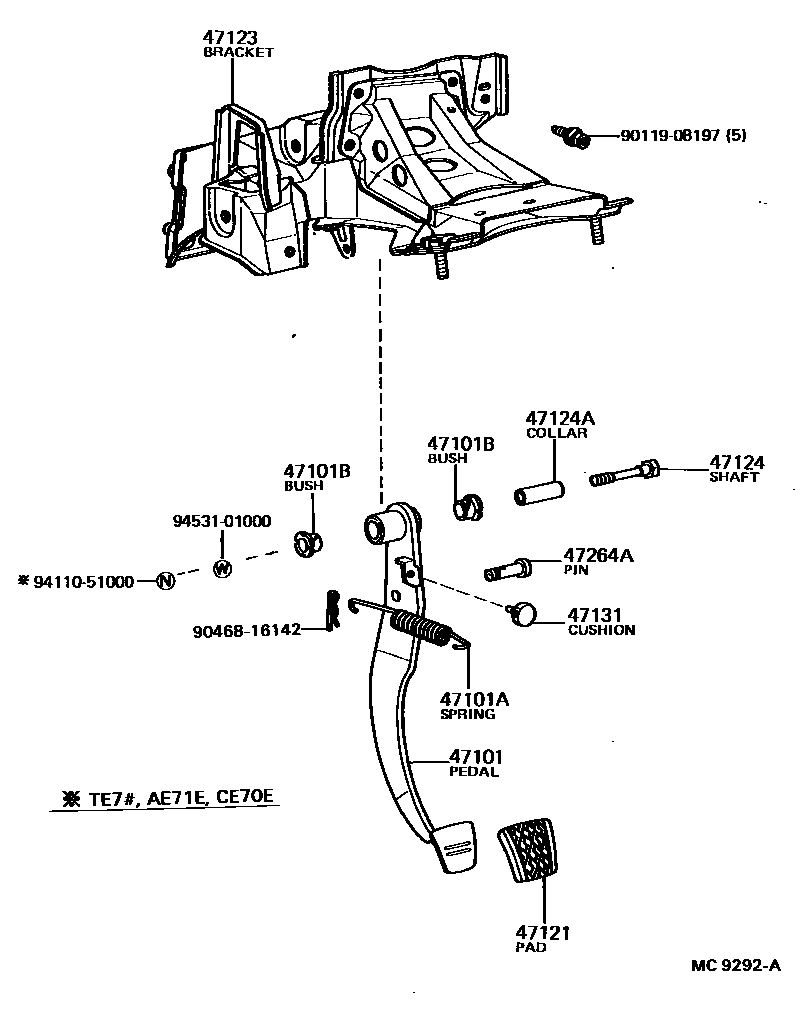

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-12220iAE71,KE70..MTM..4D..ARL197908-198707

main47101-12230iAE71,KE70,TE7#..ATM..(ARL,SA)197908-198410

main47101-12240iKE70..LHD..MTM..EUR;KE70..(CP,LB,SED)..LHD..MTM..(GEN,SAA)197908-198308

sub47101-12241

main47101-12241iKE70..LHD..EUR198305-198707

main47101-12250iKE70..LHD..ATM197908-198305

main47101-12261iKE70..(DV,WG)..LHD..(GEN,SAA)197908-198707

main47101-12280iCE70,TE7#..LHD..MTM197908-198308

sub47101-12281

main47101-12281iCE70..LHD198305-198707

main47101-12290iTE71..LHD..3FC197908-198305

main47101-12300iAE71..GEN198508-198707

main47101-12340iKE70..3FC..GEN198305-198406

main47101-13010iCE70,KE70,TE71..RHD..MTM..(EUR,GEN)198305-198707

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-16021iAE71,CE70,KE70,TE7#197908-198707

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007iAE71,CE70,KE70,TE7#197908-198707

47121PAD, BRAKE PEDAL

main31321-12030iKE70..CP..5F;KE70..CP..LHD..4F;AE71,CE70,TE7#..MTM;KE70..(DV,LB,SED,WG)..MTM197908-198707

main47121-12020iAE71,KE70,TE7#..ATM197908-198707

47123BRACKET, BRAKE PEDAL

main55106-12270iKE70..(DV,WG)..RHD..4F..(GEN,SA)197908-198707

main55106-12280iCE70..RHD197908-198707

main55106-12290iKE70..SED..RHD..MTM197908-198410

main55106-12300iTE7#..RHD..ATM..4D197908-198404

main55106-12320iTE7#..RHD..MTM..2D197908-198204

main55106-12321iTE7#..RHD..2D..(ARL,EUR,GEN)198108-198406

main55106-12330iKE70..(CP,LB)..RHD197908-198108

main55106-12331iKE70..RHD..2D..DX198108-198305

main55106-12340iTE72..SA197908-198204

main55106-12360iKE70..WG..RHD..5F..EUG198108-198707

main55106-12370iKE70..RHD..3FC..(EUR,GEN)198108-198406

main55106-12380iAE71,KE70..3FC..ARL197908-198707

main55106-12390iTE7#..LHD..2D197908-198108

main55106-12391iTE7#..(CP,LB)..LHD198108-198305

main55106-12400iKE70..(DV,WG)..LHD..(GEN,SAA)197908-198707

main55106-12410iKE70..SED..LHD..MTM197908-198707

main55106-12420iKE70..(CP,LB)..LHD..MTM197908-198108

main55106-12421iKE70..(CP,LB)..LHD..MTM198108-198305

main55106-12430iKE70..LB..2FC197908-198008

main55106-12431iKE70..LB..3FC198108-198305

main55106-12440iTE72..4FC..SE198204-198401

main55106-12450iCE70..LHD197908-198707

main55106-12460iKE70..SED..LHD..ATM197908-198305

47124SHAFT, BRAKE PEDAL

main90101-10015iKE70..RHD;AE71,CE70,TE7#197908-198707

main90101-10043iKE70..(DV,WG)..LHD..(GEN,SAA)197908-198707

main90101-10081iKE70..LHD..EUR;KE70..(CP,LB,SED)..LHD..(GEN,SAA)197908-198707

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10002iKE70..(DV,WG)..LHD..(GEN,SAA)197908-198707

main90387-10003iKE70..RHD;AE71,CE70,TE7#197908-198707

main90387-10027iKE70..LHD..EUR;KE70..(CP,LB,SED)..LHD..(GEN,SAA)197908-198707

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iAE71,CE70,KE70,TE7#197908-198707

47264APIN(FOR PUSH ROD)

main90249-10064iAE71,CE70,KE70,TE7#197908-198707

9011908197

main90119-08197

9046816142

main90468-16142

9411051000

main94110-51000

9453101000

main94531-01000

13 parts on this diagram · 1 diagram in section
