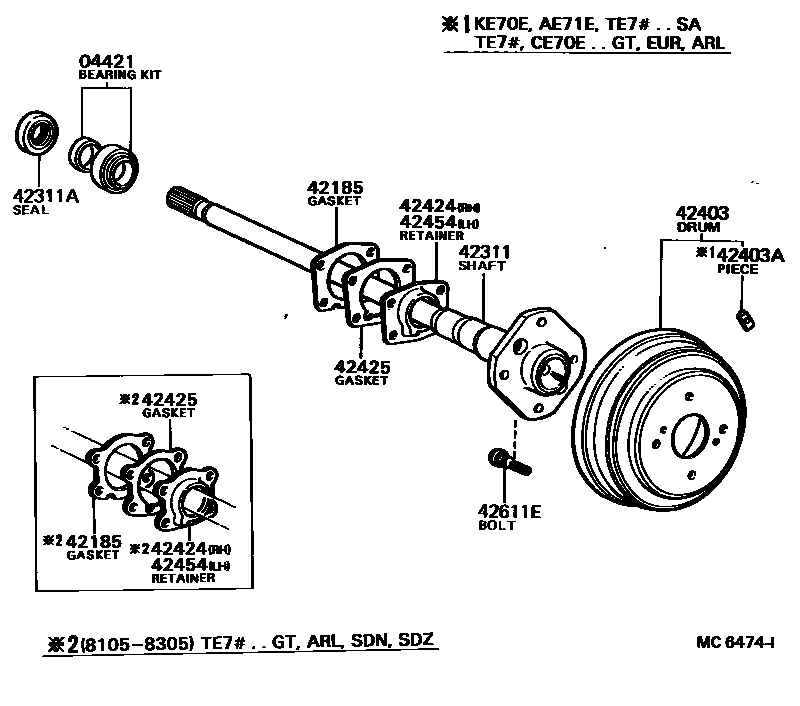

REAR AXLE SHAFT & HUB

04421BEARING KIT, REAR AXLE SHAFT

main04421-12010×2iCE70,TE71..(CP,LB,SED)..(DX,GL,SE,SR,STD,XE)197908-198305

sub04421-12011

main04421-13010×2iAE71,KE70..(DV,WG)..SA198501-198707

main04421-30011×2iTE71..GT;TE72..ARL,EUR197908-198305

sub04421-30012

42185GASKET, REAR AXLE HOUSING END

main42185-12010×2iKE70..DV..(EUR,GEN);KE70..(CP,LB,SED,WG)..(EUR,GEN,SA,SAA)197908-198707

sub42185-52030

main42185-13010×2iAE71,KE70..(DV,WG)..SA198406-198707

main42185-13020×2iAE71,KE70..2D..ARL198108-198406

main42185-14020×2iTE71..GT;TE72..ARL,EUR198105-198305

main42185-22010×2iTE71..SED..GEN197908-198406

main42185-22020×2iTE71..GT;TE72..MTM197908-198105

42311SHAFT, REAR AXLE

main42311-12070×2iKE70..EUR,GEN,SAA197908-198707

main42311-12080×2iCE70,TE71..(DX,GL,SE,SR,STD,XE)..(EUR,GEN,SAA)197908-198508

main42311-14090×2iTE71..GT;TE72..ARL,EUR197908-198305

main42311-15010×2iTE71..GT198108-198305

W/LSD

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-42055×2iAE71,CE70,TE71..DX,GL,SE,SR,STD,XE197908-198707

main90311-52059×2iTE71..GT;TE72..ARL,EUR197908-198305

42403DRUM SUB-ASSY, REAR BRAKE

main42431-12050×2iKE70..ARL,EUR,GEN,SAA197908-198506

main42431-12060×2iTE7#..(GT,SE)..(ARL,EUR,GEN)198108-198305

sub42431-14061

main42431-12081×2iTE71..RHD..EUG198209-198305

main42431-12110×2iAE71,KE70..EUR,GEN198506-198707

main42431-27020×2iTE71..RHD..EUG198108-198209

sub42431-14061

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01020×2iTE71..RHD..EUG198108-198305

20G,20G

main90937-01021×2iKE70..SA;AE71,CE70,TE7#..EUR,SA198305-198707

40G,40G

main90937-01023×2iKE70..SA;AE71,CE70,TE7#..EUR,SA198305-198707

10G,10G

main90937-01032×2iTE71..RHD..EUG198108-198305

30G,30G

main90937-01033×2iTE71..RHD..EUG198108-198305

50G,50G

main90937-01034×2iTE71..RHD..EUG198108-198305

60G,60G

main90937-01117×2iTE7#..(GT,SE)..(ARL,EUR,GEN)198108-198305

10G,10G

main90937-01118×2iTE7#..(GT,SE)..(ARL,EUR,GEN)198108-198305

20G,20G

main90937-01119×2iTE7#..(GT,SE)..(ARL,EUR,GEN)198108-198305

30G,30G

main90937-01195×2iTE7#..(GT,SE)..(ARL,EUR,GEN)198108-198305

40G,40G

main90937-01196×2iTE7#..(GT,SE)..(ARL,EUR,GEN)198108-198305

50G,50G

main90937-01197×2iTE7#..(GT,SE)..(ARL,EUR,GEN)198108-198305

60G,60G

42424RETAINER, REAR AXLE BEARING, OUTER, RH

main42424-14020iTE71..GT;TE72..ARL,EUR198105-198305

main42424-20010iAE71,KE70..2D..ARL198108-198406

main42424-21010iTE71..GT;TE72..MTM197908-198105

42425GASKET, REAR AXLE BEARING RETAINER

main42425-13010×2iTE71..DV,WG197908-198305

main42425-14020×2iTE71..GT;TE72..ARL,EUR198105-198305

main42425-20010×2iCE70,TE71..(CP,LB,SED)..(DX,GL,SE,SR,STD,XE)197908-198305

sub42425-52030

main42425-22020×2iTE71..GT;TE72..MTM197908-198105

42454RETAINER, REAR AXLE BEARING, OUTER, LH

main42454-14010iTE71..GT;TE72..ARL,EUR198105-198305

main42454-20010iAE71,CE70,KE70198508-198707

main42454-21010iTE71..GT;TE72..MTM197908-198105

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02035×8iKE70..2D..ARL198108-198305

main90942-02047×8iAE71..STD198305-198406

10 parts on this diagram · 1 diagram in section
