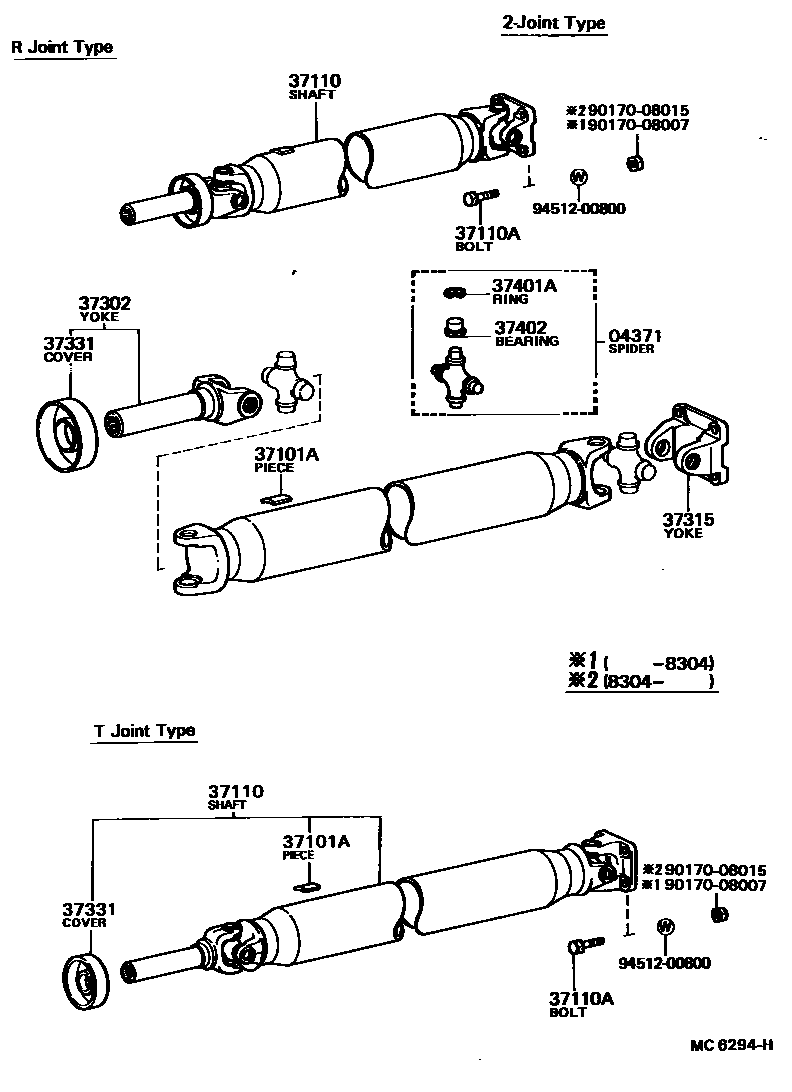

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1 0003 1

04371SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT)

main04371-10011iKE70..MTM..(GEN,SAA)197908-198707

main04371-22010iAE71..SA197908-198707

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90937-01132iAE71,KE70..2D..ARL197908-198707

10G,L=20.7,10G

main90937-01136iTE72;AE71,CE70,KE70,TE71..EUR,GEN,SA,SAA197908-198608

20G,L=41.4,20G

main90937-01140iAE71,KE70..2D..ARL197908-198608

30G,L=62.2,30G

main90937-01147iAE71,KE70..2D..ARL197908-198707

2G,T=2.0,2G

main90937-01148iTE72;AE71,CE70,KE70,TE71..EUR,GEN,SA,SAA197908-198707

4G,T=2.0,4G

main90937-01149iTE72;AE71,CE70,KE70,TE71..EUR,GEN,SA,SAA197908-198707

6G,L=12.4,6G

main90937-01150iTE72;AE71,CE70,KE70,TE71..EUR,GEN,SA,SAA197908-198707

8G,L=16.6,8G

main90937-01151iTE72;AE71,CE70,KE70,TE71..EUR,GEN,SA,SAA197908-198707

12G,L=24.9,12G

main90937-01152iTE72;AE71,CE70,KE70,TE71..EUR,GEN,SA,SAA197908-198707

14G,L=29.0,14G

main90937-01153iAE71,KE70..2D..ARL197908-198608

16G,L=33.2,16G

main90937-01154iTE72;AE71,CE70,KE70,TE71..EUR,GEN,SA,SAA197908-198608

18G,L=37.3,18G

main90937-01155iTE72;AE71,CE70,KE70,TE71..EUR,GEN,SA,SAA197908-198608

22G,L=45.6,22G

main90937-01156iTE72;AE71,CE70,KE70,TE71..EUR,GEN,SA,SAA197908-198608

24G,L=49.7,24G

main90937-01157iAE71,KE70..2D..ARL197908-198608

26G,L=53.9,26G

main90937-01158iTE72;AE71,CE70,KE70,TE71..EUR,GEN,SA,SAA197908-198608

28G,L=58.1,28G

37110SHAFT ASSY, PROPELLER

main37110-12330iKE70..2D..ARL198108-198309

3-JOINT TYPE

main37110-12330iCE70,TE71..SED..EUG198205-198305

3-JOINT

main37110-12340iTE71..GT..GEN197908-198305

3-JOINT TYPE

main37110-12350iKE70..SA198007-198505

R JOINT TYPE

sub37110-12520

main37110-12370iKE70..MTM..(GEN,SAA)198108-198508

2-JOINT TYPE(R JOINT)

sub37110-13060

main37110-12370iKE70..GEN197908-198108

R JOINT TYPE

sub37110-13060

main37110-12380iTE71..MTM..(DX,SE,SR,STD,XE)..GEN197908-198106

R JOINT TYPE

main37110-12390iKE70..SED..EUR197908-198305

3-JOINT TYPE

main37110-12400iKE70..GEN197908-198707

3-JOINT TYPE

main37110-12410iTE71..(CP,LB)..(DX,SR,XE)..(EUR,SAA)197908-198707

3-JOINT TYPE

main37110-12420iTE72..ARL,EUR197908-198305

3-JOINT

main37110-12420iTE72..ARL,EUR197908-198305

3-JOINT TYPE

main37110-12460iKE70..3FC..GEN198108-198406

2-JOINT TYPE(T JOINT)

main37110-12470iTE71..MTM..(DX,GL,SE,SR,STD,XE)..GEN198106-198406

R JOINT TYPE

main37110-12520iKE70..SA198505-198508

R JOINT TYPE

main37110-12520iKE70..SA198508-198707

T JOINT TYPE

main37110-13010iAE71,TE7#..MTM..SA198106-198707

R JOINT TYPE

main37110-13060iKE70..4F..GEN198508-198707

2-JOINT TYPE(T JOINT)

main37110-13070iAE71..GEN198508-198707

main37110-21010iTE7#..3FC..SA198007-198401

R JOINT TYPE

sub37110-21120

main37110-21020iTE71..3FC..GEN197908-198305

R JOINT TYPE

main37110-21030iTE71..MTM..SA198007-198106

R JOINT TYPE

37110ABOLT (FOR PROPELLER SHAFT)

main90101-08018iKE70..GEN197908-198102

*8-1.25PX22-10

main90101-08062iTE71..(DX,GL,SR,XE)..GEN198102-198304

main90101-08062iKE70,TE71..SA;TE72..(GL,SE,XE)..(EUR,SA)198102-198304

13G

main90101-08082iKE70..EUR198304-198707

*8-1.25PX25-12

main90101-08082iAE71,KE70,TE71..SA;TE72..(4FC,5F)..(EUR,SA)198304-198707

*8-1.25PX25-12,13G

main90101-08085iTE72..SDN;KE70,TE71..EUR197908-198305

15G

main90101-08085iCE70,KE70..EUR198305-198306

15G,YELLOW

main90101-08086iTE72..SDN;KE70,TE71..EUR197908-198305

17G

main90101-08086iCE70,KE70..EUR198305-198306

17G,YELLOW

main90101-08087iCE70,KE70..EUR198305-198306

19G,YELLOW

main90101-08087iTE72..SDN;KE70,TE71..EUR197908-198305

19G

main90101-08088iCE70,KE70..EUR198306-198707

15G,BLACK

main90101-08090iCE70,KE70..EUR198306-198707

17G,BLACK

main90101-08091iCE70,KE70..EUR198306-198707

19G,BLACK

main90101-08214iTE71..(DX,SE,SR,STD,XE)..GEN197908-198102

*8-1.25PX25-12

sub90101-08262

main90101-08214iTE71..(DX,SE,SR,STD,XE)..GEN197908-198102

*8-1.25PX25-12,13.5G

sub90101-08262

37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE

main37302-12011iKE70..MTM..(GEN,SA,SAA)197908-198707

main37302-14010iTE71..MTM..(DX,GL,SE,SR,STD,XE)..(GEN,SA)197908-198106

main37302-14030iAE71..SA198106-198707

main37302-20040iTE7#..ATM..(GEN,SA)197908-198401

37315YOKE, UNIVERSAL JOINT FLANGE

main37315-12010iKE70..GEN197908-198707

main37315-12040iKE70..SA198007-198707

main37315-20020iTE72..(GL,SE,XE)..(EUR,SA);AE71,TE71..(DX,GL,SE,SR,STD,XE)..(GEN,SA)197908-198707

37331COVER, SLIDING SHAFT DUST

main37331-12010iAE71,KE70..MTM..(EUR,GEN,SA,SAA)197908-198707

main37331-22010iKE70..3FC..(EUR,GEN)197908-198208

sub37331-30010

main37331-30010iCE70198208-198707

37401ARING, HOLE SNAP (FOR SPIDER BEARING)

main90521-22011iKE70..MTM..(GEN,SA,SAA)197908-198707

T=1.2,T=1.20

main90521-22012iKE70..MTM..(GEN,SA,SAA)197908-198707

T=1.25,T=1.25

main90521-22013iKE70..4F..GEN197908-198707

T=1.30,T=1.30

main90521-29070iTE72..(GL,SE,XE)..(EUR,SA);AE71,TE71..(DX,GL,SE,SR,STD,XE)..(GEN,SA)197908-198707

T=2.375-2.425,T=2.375-2.425

main90521-29071iKE70..SA197908-198707

T=2.425-2.475,T=2.425-2.475

main90521-29072iAE71..SA197908-198707

T=2.475-2.525,T=2.475-2.525

main90521-29073iAE71..SA197908-198707

T=2.525-2.575,T=2.525-2.575

37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER

main37402-10020iKE70..GEN,SA197908-198707

main37402-22020iKE70..SA197908-198707

9017008007

main90170-08007

9017008015

main90170-08015

9451200800

main94512-00800

12 parts on this diagram · 2 diagrams in section
