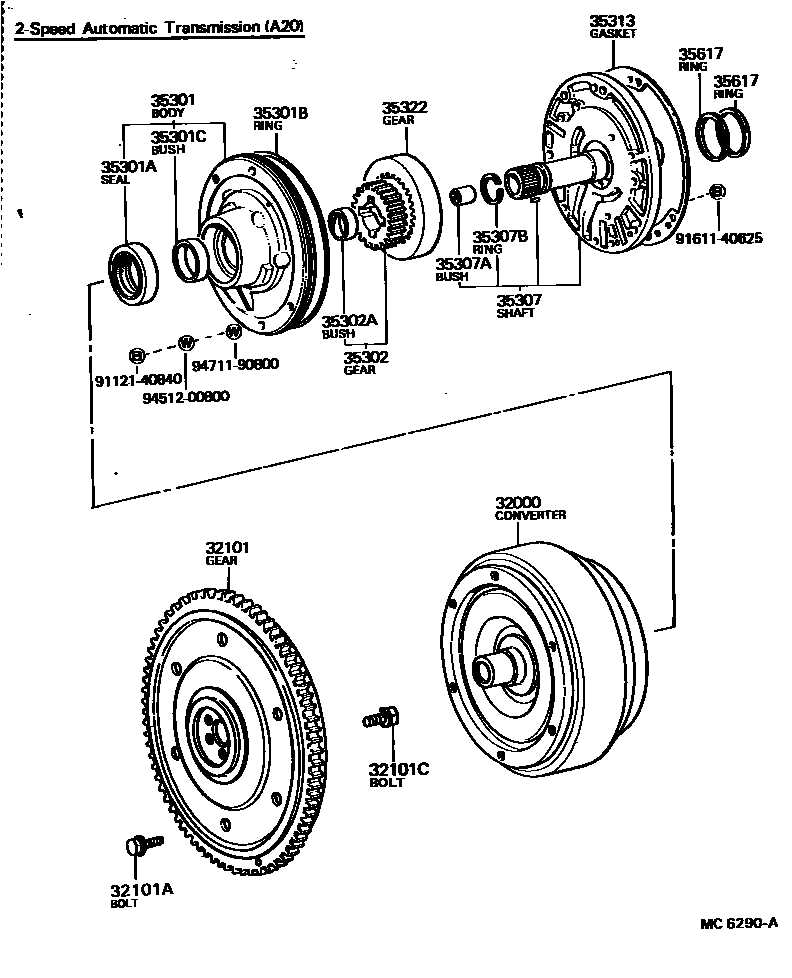

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1 0002 1 0003 1 0004 1

32000CONVERTER ASSY, TORQUE

main32000-12012iKE70..2FC197908-198108

main32000-12030iTE7#..3FC197908-198401

main32000-12050iKE70..3FC..(EUR,GEN)198108-198406

sub32000-12051

main32000-12060iAE71..3FC198305-198407

main32000-12061iAE71..3FC198407-198707

main32000-14080iTE72..4FC198204-198401

sub32000-14081

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-12020iKE70..2FC197908-198108

main32101-12030iAE71..3FC198305-198707

main32101-12040iKE70..3FC..(EUR,GEN)198108-198406

main32101-14030iTE7#..ATM197908-198311

main32101-22030iTE7#..ATM198311-198401

sub32101-22031

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08090iTE72..4FC;KE70,TE71..3FC..(EUR,GEN,SA)198301-198406

WHITE

main90119-08223×5iTE72..4FC;KE70,TE71..3FC..(EUR,GEN,SA)198301-198406

*8-1.25PX10.5-6.5,YELLOW

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10006×6iTE7#..3FC197908-198108

*10-1.25X23-14.5

main90105-10046×6iTE71..3FC..(EUR,GEN)198108-198204

*10-1.25PX23-15.5

main90105-10048×6iKE70..3FC..(EUR,GEN)198108-198406

*10-1.25PX18-13

main90119-10078×6iKE70..2FC197908-198108

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-12010iKE70..2FC197908-198108

main35301-22011iTE71..3FC197908-197909

sub90101-06002

sub90101-08046

main35301-22012iTE7#..3FC197909-198010

sub90101-06002

sub90101-08046

main35301-30030iTE7#..3FC198010-198108

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38020iAE71..3FC198311-198707

main90311-38129iKE70,TE7#..ATM..(EUR,GEN,SA)198108-198311

main90311-42083iKE70..2FC197908-198108

35301BRING, O (FOR FRONT OIL PUMP BODY)

main35147-22010iTE71..3FC197908-197909

main90301-99010iAE71..3FC198305-198707

main90301-99102iKE70..2FC197908-198108

35301CBUSH, BIMETAL FORMED (FOR FRONT OIL PUMP BODY)

main90999-73036iKE70..2FC197908-198108

35302GEAR SUB-ASSY, FRONT OIL PUMP DRIVE

main35302-12010iKE70..2FC197908-198108

main35321-22010iTE7#..3FC197908-198108

sub35321-22090

35302ABUSH, BIMETAL FORMED (FOR FRONT OIL PUMP DRIVE GEAR)

main90999-73037iKE70..2FC197908-198108

35307SHAFT SUB-ASSY, STATOR

main35307-12012iKE70..2FC197908-198108

main35307-22011iTE7#..3FC197908-198108

main35370-12011iKE70..3FC..(EUR,GEN)198108-198406

sub35370-12012

main35370-12020iAE71..3FC198305-198410

main35370-12021iAE71..GEN198508-198707

main35370-22010iTE7#..3FC..SA198108-198204

main35370-22011iTE71..3FC198204-198401

sub35370-22012

main35370-22030iTE72..4FC198204-198401

sub35370-22031

35307ABUSH, BIMETAL FORMED (FOR STATOR SHAFT)

main90999-73047iKE70..2FC197908-198108

35307BRING, SHAFT SNAP (FOR STATOR SHAFT)

main90520-25116iKE70..2FC197908-198108

35313GASKET, FRONT OIL PUMP COVER

main35313-12011iKE70..2FC197908-198108

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-22010iAE71..3FC198305-198707

T=15.286-15.235

sub35322-22090

main35322-31010iKE70..2FC197908-198108

35617RING, CLUTCH DRUM OIL SEAL

main35617-12010×2iKE70..2FC197908-198108

main35617-16010×2iTE72..4FC198204-198401

main35617-22010×2iTE7#..3FC197908-198108

main35617-22011×2iKE70,TE71..3FC..(EUR,GEN,SA)198204-198406

main35617-32010×2iAE71..GEN198509-198707

9112140840

main91121-40840

9161140625

main91611-40625

9451200800

main94512-00800

9471190800

main94711-90800
