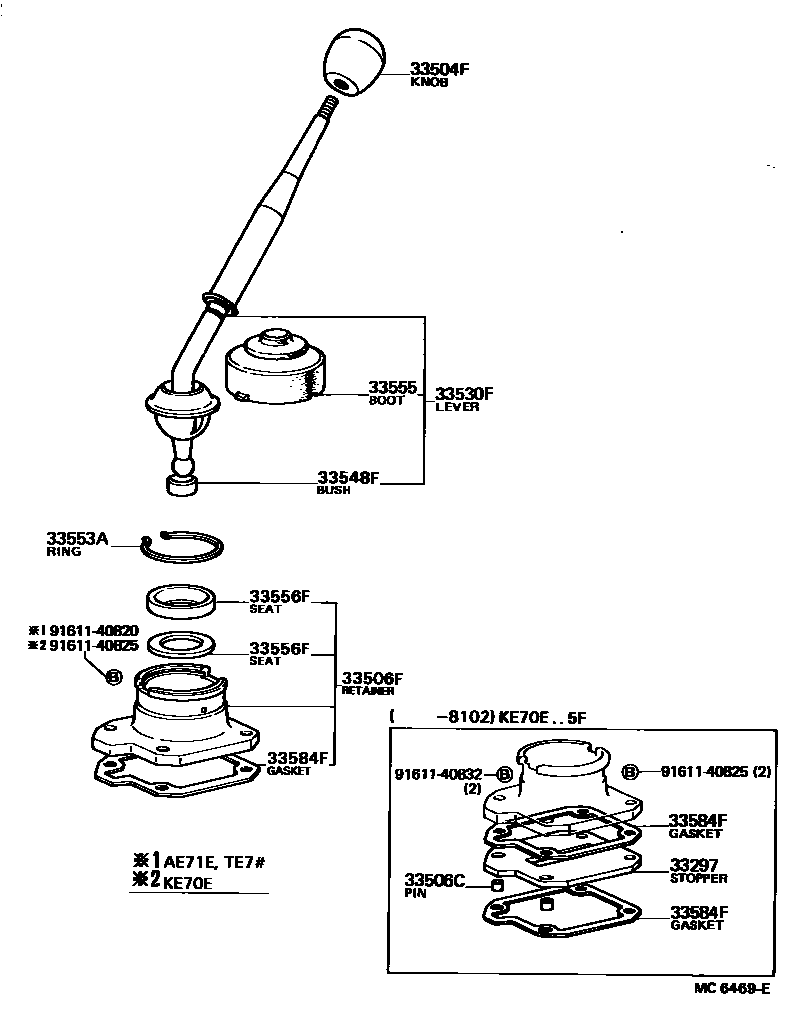

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

33297STOPPER, SHIFT LEVER

main33291-12010iKE70..5F197908-198012

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-10020-01iKE70,TE71..5F..DX..(GEN,SA)198108-198204

BLACK,BLACK,TRIM0#,2#

sub33504-14050

sub33504-22111

main33504-10020-04iKE70,TE7#..5F..DX197908-198108

BLUE,BLUE,TRIM8#

sub33504-14050

sub33504-22111

main33504-10020-05iKE70..SED..5F197908-198204

BEIGE,BEIGE,TRIM4#

sub33504-14050

sub33504-22111

main33504-10020-06iTE71..5F198305-198502

DARK BROWN,BROWN,TRIM4#

sub33504-14050

sub33504-22111

main33504-10020-12iCE70..STD198305-198408

MAROON,RED/MAROON,TRIM3#

sub33504-14050

sub33504-22111

main33504-10020-13iKE70..WG..5F..GEN198403-198707

GRAY,GRAY,TRIM1#

sub33504-14050

sub33504-22111

main33504-10020-14iTE71..(LB,SED)..5F198305-198408

BLUE,BLUE,TRIM8#

sub33504-14050

sub33504-22111

main33504-10020-16iCE70..STD198408-198707

BROWN,BROWN,TRIM4#

sub33504-14050

sub33504-22111

main33504-10040-01iKE70..5F..ARL198108-198305

BLACK,BLACK,TRIM0#,2#

main33504-10040-04iTE7#..5F..(GL,GT,SE,SR,XE)197908-198108

URETHANE,BLUE,BLUE,TRIM8#

main33504-10040-06iTE7#..5F..(GT,SE,SR,XE)197908-198108

URETHANE,DARK BROWN,BROWN,TRIM4#

main33504-10040-16iTE71..5F..GL198007-198305

URETHANE,LIGHT BROWN,BROWN,TRIM4#

main33504-12061-01iTE71..4F..4D..DX197908-198108

URETHANE,BLACK,BLACK,TRIM0#,2#

main33504-12061-04iTE71..4F..4D..DX197908-198108

URETHANE,BLUE,BLUE,TRIM8#

main33504-12061-05iTE71..4F..4D..DX197908-198108

URETHANE,BEIGE,BEIGE,TRIM4#

main33504-12080-01iKE70,TE71..4F..(GEN,SA,SAA)198108-198305

BLACK,BLACK,TRIM0#,2#,4#,8#

sub33504-14040

main33504-12080-04iKE70..2D..ARL198108-198112

BLUE,BLUE,TRIM8#

sub33504-14040

main33504-12080-05iKE70,TE71..(SED,WG)..4F..(DX,XL)197908-198108

BEIGE,BEIGE,TRIM4#

sub33504-14040

main33504-12080-06iKE70..SED..4F..(GEN,SA,SAA);KE70,TE71..(DV,LB,WG)..4F..(SA,SAA)198305-198707

DARK BROWN,BROWN,TRIM4#

sub33504-14040

main33504-12080-12iKE70..4F..(STD,XL)..(EUR,GEN)198305-198408

MAROON,RED/MAROON,TRIM3#

sub33504-14040

main33504-12080-13iAE71..STD198309-198406

GRAY,GRAY,TRIM1#

sub33504-14040

main33504-12080-14iKE70,TE71..4F..(DX,XL)..(GEN,SA,SAA)198112-198204

BLUE,BLUE,TRIM8#

sub33504-14040

main33504-12080-16iKE70..4F..(EUR,GEN)198408-198707

BROWN,BROWN,TRIM4#

sub33504-14040

main33504-14060-01iKE70..RHD..4F..4D..(DX,STD)..(ARL,GEN)198305-198410

STRG WHEEL=URETHANE,BLACK,BLACK,TRIM0#,2#

sub33504-14040

main33504-14060-04iKE70,TE71..(CP,LB)..4F..EUG198108-198112

STRG WHEEL=URETHANE,BLUE,BLUE,TRIM8#

sub33504-14040

main33504-14060-06iKE70,TE71..(CP,LB)..4F..EUG198108-198305

STRG WHEEL=URETHANE,DARK BROWN,BROWN,TRIM4#

sub33504-14040

main33504-14060-12iKE70..WG..4F..GEN198305-198408

STRG WHEEL=URETHANE,MAROON,RED/MAROON,TRIM3#

sub33504-14040

main33504-14060-13iKE70..WG..4F..GEN198305-198707

STRG WHEEL=URETHANE,GRAY,GRAY,TRIM1#

sub33504-14040

main33504-14060-14iKE70,TE71..(CP,LB)..4F..EUG198112-198305

STRG WHEEL=URETHANE,BLUE,BLUE,TRIM8#

sub33504-14040

main33504-14060-26iKE70..4F..4D..GEN198408-198707

STRG WHEEL=URETHANE,BROWN,BROWN,TRIM4#

sub33504-14040

main33504-24010-01iAE71,KE70..5F..ARL198305-198410

BLACK,BLACK,TRIM0#,2#

main33504-24010-04iKE70,TE71..5F..(DX,GL)..GEN198305-198406

STRG WHEEL=URETHANE,BLUE,BLUE,TRIM8#

main33504-24010-06iAE71,KE70..5F..ARL198305-198410

DARK BROWN,BROWN,TRIM4#

main33504-24010-14iKE70,TE7#..5F..(EUR,GEN)198108-198112

BLUE,BLUE,TRIM8#

main33504-24010-22iCE70,KE70..DX..EUR198305-198408

STRG WHEEL=URETHANE,MAROON,RED/MAROON,TRIM3#

main33504-24010-23iCE70,KE70..DX..EUR198305-198707

STRG WHEEL=URETHANE,GRAY,GRAY,TRIM1#

main33504-24010-36iCE70,KE70..DX..EUR198408-198707

STRG WHEEL=URETHANE,BROWN,BROWN,TRIM4#

main33542-12090-01iKE70,TE7#..ATM197908-198108

BLACK,BLACK,TRIM0#,2#,4#,8#

main33542-12110-06iAE71..GEN198508-198707

BROWN,BROWN,TRIM4#

main33542-12110-13iAE71..GEN198508-198707

GRAY,GRAY,TRIM1#

main33542-24030-01iAE71,TE7#..ATM198305-198410

BLACK,BLACK,TRIM0#,2#

33506CPIN, SHIFT LEVER RETAINER RING

main90253-11001×2iKE70..5F197908-198102

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33570-12020iCE70198210-198508

main33570-12030iCE70198508-198707

main33570-14021iKE70..CP..5F;AE71,TE7#..MTM;KE70..CP..LHD..4F;KE70..(DV,LB,SED,WG)..MTM197908-198707

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33503-12120iTE7#..RHD..3FC197908-198108

main33503-12121iKE70,TE71..RHD..3FC..(EUR,GEN)198108-198204

main33503-12130iKE70..RHD..2FC197908-198108

main33503-12140iTE71..LHD..3FC197908-198108

main33503-12141iKE70,TE71..LHD..3FC198108-198305

main33503-12150iKE70..LHD..2FC197908-198108

main33503-12160iAE71,TE7#..ATM198305-198410

main33503-12180iAE71..GEN198508-198707

main33503-12220iKE70..3FC..GEN198305-198406

main33530-12231iTE71..RHD..MTM;KE70..CP..RHD..5F;AE71,KE70,TE72..(DV,LB,SED,WG)..RHD..MTM197908-198707

main33530-12241iKE70,TE7#..LHD..MTM197908-198707

main33530-12270iCE70..RHD198210-198305

main33530-12280iCE70..LHD198210-198508

main33530-12290iCE70..RHD198508-198707

main33530-12300iCE70..LHD198508-198707

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-14010iKE70..CP..5F;AE71,TE7#..MTM;KE70..CP..LHD..4F;KE70..(DV,LB,SED,WG)..MTM197908-198707

main33548-31010iCE70198210-198707

33553ARING, SNAP (FOR SHIFT LEVER SPRING SHEET)

main90521-49003iKE70..CP..5F;AE71,TE7#..MTM;KE70..CP..LHD..4F;KE70..(DV,LB,SED,WG)..MTM197908-198707

33555BOOT, SHIFT LEVER

main33555-12080iAE71,KE70,TE7#..ATM197908-198410

main33555-12090iKE70..CP..5F;AE71,TE7#..MTM;KE70..CP..LHD..4F;KE70..(DV,LB,SED,WG)..MTM197908-198707

main33555-22050iCE70198508-198707

main33555-31011iCE70198210-198508

33556FSEAT, TRANSMISSION SHIFT LEVER BALL

main33556-14010iKE70..CP..5F;AE71,TE7#..MTM;KE70..CP..LHD..4F;KE70..(DV,LB,SED,WG)..MTM197908-198707

T=13.5

main33556-14020iKE70..CP..5F;AE71,TE7#..MTM;KE70..CP..LHD..4F;KE70..(DV,LB,SED,WG)..MTM197908-198707

T=3.0

33584FGASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)

main33584-12040iKE70..5F197908-198102

T=0.5,LWR

main33584-20010iKE70..CP..5F;AE71,TE7#..MTM;KE70..CP..LHD..4F;KE70..(DV,LB,SED,WG)..MTM197908-198707

T=0.3

9161140820

main91611-40820

9161140825

main91611-40825

9161140832

main91611-40832

13 parts on this diagram · 8 diagrams in section
