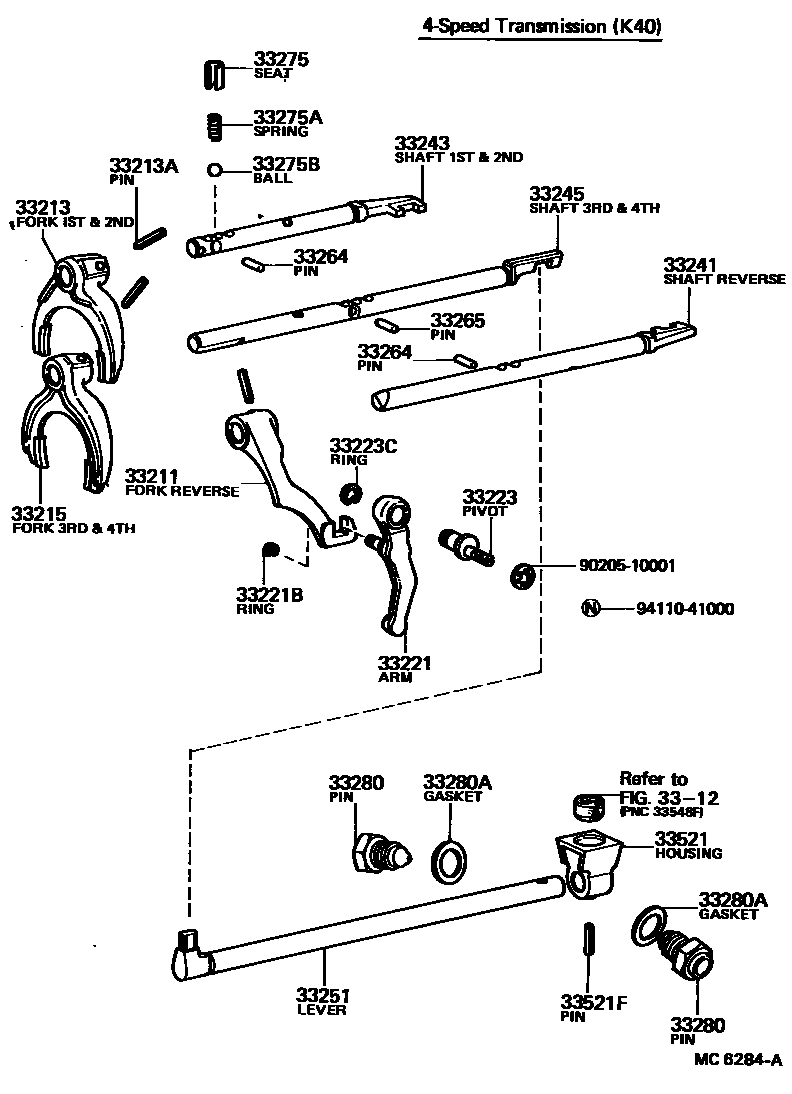

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1 0002 1 0003 1 0004 1 0005 1

3312

33211FORK, REVERSE SHIFT

main33211-10020iKE70..5F197908-198707

main33211-12010iKE70..4F197908-198707

main33214-14010iAE71,TE7#..MTM197908-198707

33213FORK, 1ST & 2ND SHIFT

main33212-14010iAE71,TE7#..MTM197908-198707

main33212-20050iCE70198210-198508

main33212-22020iCE70198508-198707

sub33212-30050

main33213-12010iKE70..CP..5F;KE70..CP..LHD..4F;KE70..(DV,LB,SED,WG)..MTM197908-198707

33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)

main90254-05001iKE70..CP..5F;KE70..CP..LHD..4F;AE71,CE70,TE7#..MTM;KE70..(DV,LB,SED,WG)..MTM197908-198707

main90254-05016iCE70198508-198707

33215FORK, 3RD & 4TH SHIFT

main33213-14010iAE71,TE7#..MTM197908-198707

main33213-22030iCE70198508-198707

sub33213-22040

main33213-31010iCE70198210-198508

main33215-12011iKE70..CP..5F;KE70..CP..LHD..4F;KE70..(DV,LB,SED,WG)..MTM197908-198707

33221ARM, REVERSE SHIFT

main33221-12010iKE70..CP..5F;KE70..CP..LHD..4F;KE70..(DV,LB,SED,WG)..MTM197908-198707

main33221-22010iCE70198508-198512

main33221-22011iCE70198512-198707

33221BRING, E(FOR REVERSE SHIFT ARM)

main96160-00800iKE70..4F197908-198707

main96160-01000iCE70198508-198707

33223PIVOT, SHIFT ARM

main33223-12010iKE70..CP..5F;KE70..CP..LHD..4F;KE70..(DV,LB,SED,WG)..MTM197908-198410

main33223-12060iKE70..2D..ARL;KE70..5F..ARL198211-198707

33223CRING, SHAFT SNAP(FOR SHIFT ARM PIVOT)

main96150-01300iKE70..CP..5F;KE70..CP..LHD..4F;KE70..(DV,LB,SED,WG)..MTM197908-198707

33241SHAFT, REVERSE SHIFT FORK

main33241-10020iKE70..5F197908-198707

main33244-12010iKE70..4F197908-198707

main33244-14050iAE71,TE7#..5F197908-198707

main33244-14060iAE71,TE71..4F198106-198406

main33244-20902iCE70198210-198508

main33244-22020iCE70198508-198707

33243SHAFT, 1ST & 2ND SHIFT FORK

main33242-12010iKE70..4F197908-198007

sub33242-12011

sub90501-16031

main33242-12011iKE70..4F198007-198707

main33242-12020iKE70..5F197908-198007

sub33242-12021

sub90501-16031

main33242-12021iKE70..5F198007-198707

main33242-14030iAE71,TE7#..MTM197908-198707

main33242-20060iCE70198210-198508

main33242-22020iCE70198508-198707

33245SHAFT, 3RD & 4TH SHIFT FORK

main33240-22020iCE70198508-198707

sub33240-22021

main33243-12040iKE70..4F..4D..DX..GEN;KE70..(CP,LB)..4F..GEN;KE70..4F..DX..(EUR,SAA);KE70..4F..(STD,XL)..(EUR,GEN,SA,SAA)197908-198707

main33243-12050iKE70..LHD..5F..EUG;KE70..LHD..5F..GEN;KE70..RHD..5F..(EUR,GEN,SA)197908-198707

sub33243-12070

main33243-12060iKE70..4F..4D..ARL197908-198410

main33243-12070iKE70..SDZ198208-198707

main33243-14030iAE71,TE7#..MTM197908-198403

main33243-14040iAE71,TE7#..MTM198403-198707

main33243-20031iCE70198210-198508

33251LEVER, SHIFT & SELECT

main33251-12040iKE70..4F197908-198707

main33251-12050iKE70..5F197908-198707

main33251-14010iAE71,TE7#..MTM197908-198707

main33251-20040iCE70198210-198508

main33251-22050iCE70198508-198707

sub33251-22051

33264PIN, OR BALL, SHIFT INTERLOCK, NO.1

main33264-22010iCE70198508-198707

main33264-31010iCE70198210-198508

main90250-05197iKE70..CP..5F;KE70..CP..LHD..4F;KE70..(DV,LB,SED,WG)..MTM197908-198707

L=9.9,OD=5

main90250-06188iAE71,TE7#..MTM197908-198707

L=10.8,OD=6

33265PIN, SHIFT INTERLOCK, NO.2

main33265-22010iCE70198508-198707

L=11.2,OD=4,L=11.2

main33266-22010iCE70198508-198707

L=13.6,OD=6,L=13.6

main90250-05197iKE70..CP..5F;KE70..CP..LHD..4F;KE70..(DV,LB,SED,WG)..MTM197908-198707

L=9.9,OD=5

main90250-06007iCE70198508-198707

L=8.6,OD=6,L=8.6

33275SEAT, SHIFT DETENT BALL SPRING, NO.1

main33275-12010iKE70..CP..5F;AE71,TE7#..MTM;KE70..CP..LHD..4F;KE70..(DV,LB,SED,WG)..MTM197908-198707

main90341-10004iCE70198210-198508

main90341-12004iCE70198508-198707

OD=18

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main90501-13001iCE70198210-198508

L=16.5

main90501-13004iCE70198508-198707

L=20.65

sub90501-14123

main90501-14237iTE7#..MTM197908-198707

L=16.1

main90501-16031iKE70..CP..5F;KE70..CP..LHD..4F;KE70..(DV,LB,SED,WG)..MTM197908-198007

sub90501-14237

33275BBALL, SHAFT DETENT

main90360-08009iCE70198210-198508

main90360-10003iCE70197908-198707

33280PIN ASSY, REVERSE RESTRICT

main33280-12020iKE70..CP..5F;KE70..CP..LHD..4F;KE70..(DV,LB,SED,WG)..MTM198006-198009

RH

sub33280-12040

main33280-12030iKE70..CP..5F;KE70..CP..LHD..4F;KE70..(DV,LB,SED,WG)..MTM198006-198009

LH

sub33280-12050

main33280-12040iKE70..5F;KE70..CP..LHD..4F;KE70..(DV,LB,SED,WG)..4F198009-198707

RH

main33280-12050iKE70..5F;KE70..CP..LHD..4F;KE70..(DV,LB,SED,WG)..4F198009-198707

LH

main33280-20010iTE7#..MTM;KE70..CP..5F;KE70..CP..LHD..4F;KE70..(DV,LB,SED,WG)..MTM197908-198106

RH

main33280-20020iTE7#..MTM197908-198106

LH

sub33280-12050

main33280-22020iCE70198508-198707

RH

main33280-22030iCE70198508-198707

LH

33280AGASKET, REVERSE RESTRICT PIN

main90430-18008iCE70198508-198707

main90430-22002iKE70..CP..5F;AE71,TE7#..MTM;KE70..CP..LHD..4F;KE70..(DV,LB,SED,WG)..MTM197908-198707

33521HOUSING, SHIFT LEVER

main33502-12250iCE70198508-198707

sub33502-22310

main33521-12100iKE70..5F;KE70..CP..LHD..4F;KE70..(DV,LB,SED,WG)..4F198009-198707

main33521-12110iCE70198210-198301

sub33521-12111

main33521-12111iCE70198301-198508

main33521-14060iTE7#..MTM;KE70..CP..5F;KE70..CP..LHD..4F;KE70..(DV,LB,SED,WG)..MTM197908-198707

33521FPIN OR BOLT (FOR SHIFT LEVER HOUSING)

main90105-08079iCE70198508-198707

main90254-05001iKE70..CP..5F;AE71,TE7#..MTM;KE70..CP..LHD..4F;KE70..(DV,LB,SED,WG)..MTM197908-198707

main90254-05016iCE70198210-198508

9020510001

main90205-10001

9411041000

main94110-41000

24 parts on this diagram · 5 diagrams in section
