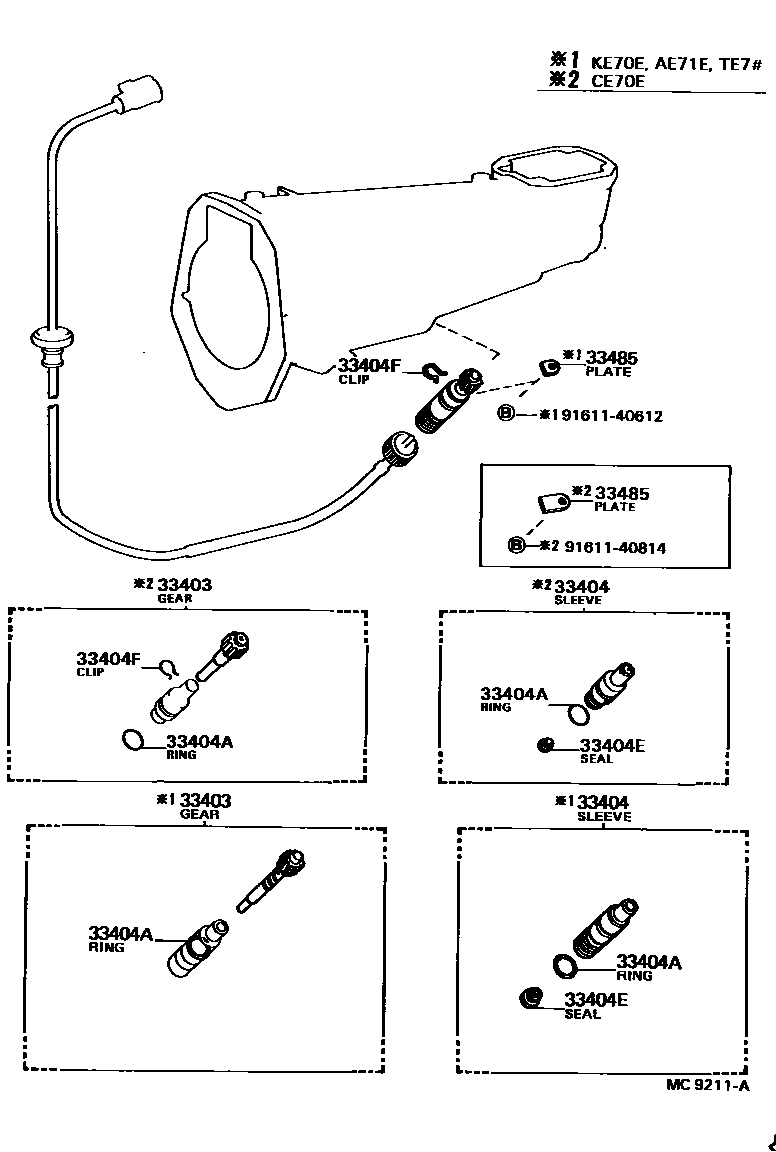

SPEEDOMETER DRIVEN GEAR (MTM)

0001 1 0003 1

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-19155iTE71..4F..2D..GEN;TE71..4F..(EUR,SA)197908-198707

N=20,MARK 20:6,N=20

main33403-19155iTE71..4F..2D..GEN;TE71..4F..(EUR,SA)197908-198108

N=20,MARK 20:6,N=20,165SR13 TIRE

main33403-19165iTE71..SR..EUG;TE71..5F..(GEN,SA);TE71..LHD..(GT,XE)..EUG197908-198707

N=21

main33403-19175iKE70..SA198103-198707

N=22,MARK 22:6,N=22

main33403-19175iTE71..GL198007-198108

N=22,MARK 22:6,N=22,175/70HR13 TIRE

main33403-19185iTE72..MTM197908-198305

N=19,MARK 19:6,N=19

main33403-29125iCE70198508-198707

N=32,MARK 32:10,N=32

main33482-39025iCE70198210-198305

N=19,MARK 19:6,N=19

main33482-39045iCE70198305-198508

N=20,MARK 20:6,N=20

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-16010iKE70..CP..5F;AE71,TE7#..MTM;KE70..CP..LHD..4F;KE70..(DV,LB,SED,WG)..MTM197908-198707

main33404-22010iCE70198508-198707

main33404-35010iCE70198210-198508

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iCE70198210-198508

main96710-02018iTE7#..MTM;KE70..CP..5F;KE70..CP..LHD..4F;KE70..(DV,LB,SED,WG)..MTM197908-198208

sub96711-19018

main96711-24018iAE71,KE70,TE7#..MTM198208-198707

main96711-24030iCE70198508-198707

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iKE70..CP..5F;KE70..CP..LHD..4F;AE71,CE70,TE7#..MTM;KE70..(DV,LB,SED,WG)..MTM197908-198707

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iKE70..CP..5F;KE70..CP..LHD..4F;AE71,CE70,TE7#..MTM;KE70..(DV,LB,SED,WG)..MTM197908-198707

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-14010iKE70..5F;AE71,TE7#..MTM;KE70..CP..LHD..4F;KE70..(DV,LB,SED,WG)..4F198008-198707

main33485-16010iTE7#..MTM;KE70..CP..5F;KE70..CP..LHD..4F;KE70..(DV,LB,SED,WG)..MTM197908-198008

sub33485-14010

main33485-30020iCE70198210-198707

9161140612

main91611-40612

9161140814

main91611-40814

8 parts on this diagram · 2 diagrams in section
