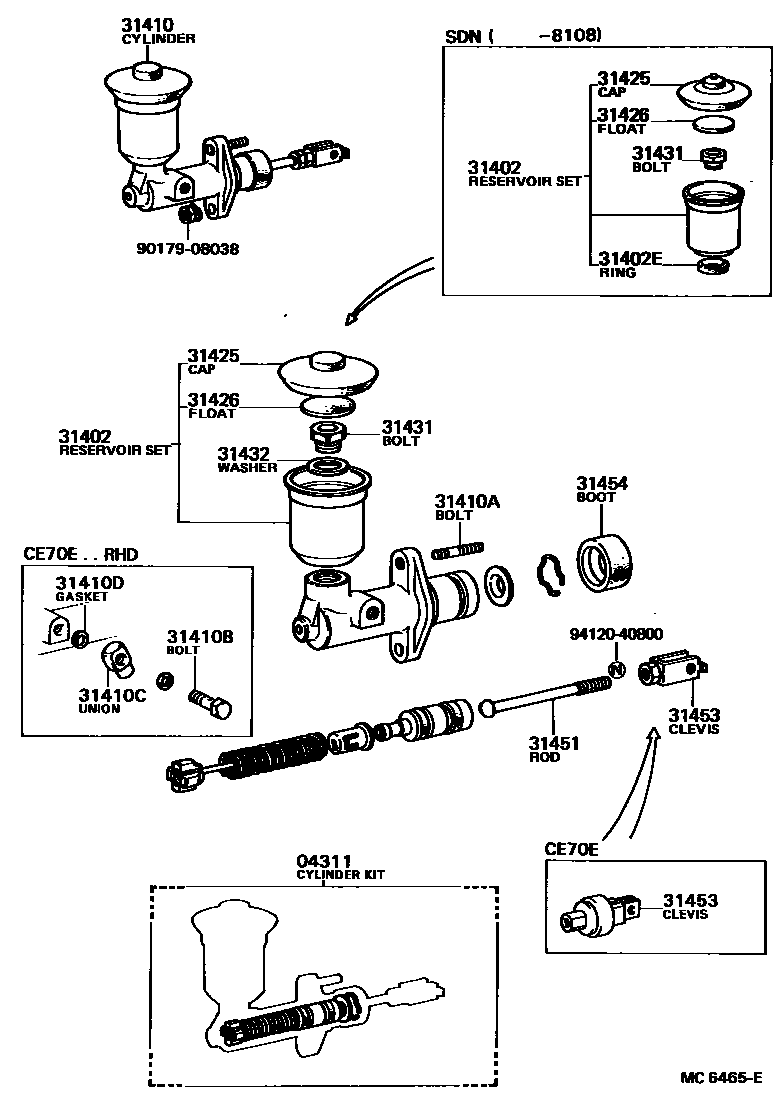

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-12020iAE71,TE7#..MTM197908-198609

sub04311-12021

main04311-12040iAE71..SA198609-198707

sub04311-12041

main04311-14011iCE70..LHD198210-198609

sub04311-14012

main04311-14030iCE70198609-198704

sub04311-14031

main04311-30080iCE70..RHD198210-198609

sub04311-14020

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-20010iTE72..SDN197908-198108

main47202-12010iTE71..MTM;TE72..ARL197908-198707

sub47202-12050

main47202-12050iCE70198704-198707

31402ERING(FOR CLUTCH MASTER CYLINDER RESERVOIR)

main90562-18151iTE72..SDN197908-198108

31410CYLINDER ASSY, CLUTCH MASTER

main31410-12060iTE71..MTM;TE72..ARL197908-198707

sub31410-12061

main31410-12070iTE72..SDN197908-198108

sub31410-12071

main31410-12081iCE70..RHD198210-198704

sub31410-12082

main31410-12083iCE70..RHD198704-198707

main31410-12100iCE70..LHD198210-198704

sub31410-12101

main31410-12102iCE70..LHD198704-198707

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08079iAE71,TE7#..MTM197908-198707

31410BBOLT, UNION(FOR CLUTCH MAS CYLINDER TO FLEXIBLE HOSE TUBE)

main90401-10012iCE70..RHD198210-198707

31410CUNION(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE)

main90405-10165iCE70..RHD198210-198707

31410DGASKET(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE)

main90430-10074iCE70..RHD198210-198707

31425CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main31440-35010iAE71,CE70,TE7#..MTM197908-198707

sub47230-20040

main47230-20040iTE72..SDN197908-198707

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iAE71,CE70,TE7#..MTM197908-198707

31431BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-20010iTE72..SDN197908-198108

main47231-30010iTE71..MTM;TE72..ARL197908-198707

31432WASHER, CLUTCH RESERVOIR SET BOLT

main47232-30010iTE71..MTM;TE72..ARL197908-198707

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-12040iCE70198210-198609

main31451-12060iCE70198609-198707

main31451-20050iAE71,TE7#..MTM197908-198609

main31451-22060iAE71..SA198609-198707

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-28011iCE70198505-198707

sub31404-28012

main31404-30041iCE70198210-198505

main31453-22010iAE71,TE7#..MTM197908-198610

sub31453-35010

main31453-35010iAE71..SA198610-198707

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iAE71,TE7#..MTM197908-198707

main47265-10021iCE70198210-198707

9017908038

main90179-08038

9412040800

main94120-40800

17 parts on this diagram · 1 diagram in section
