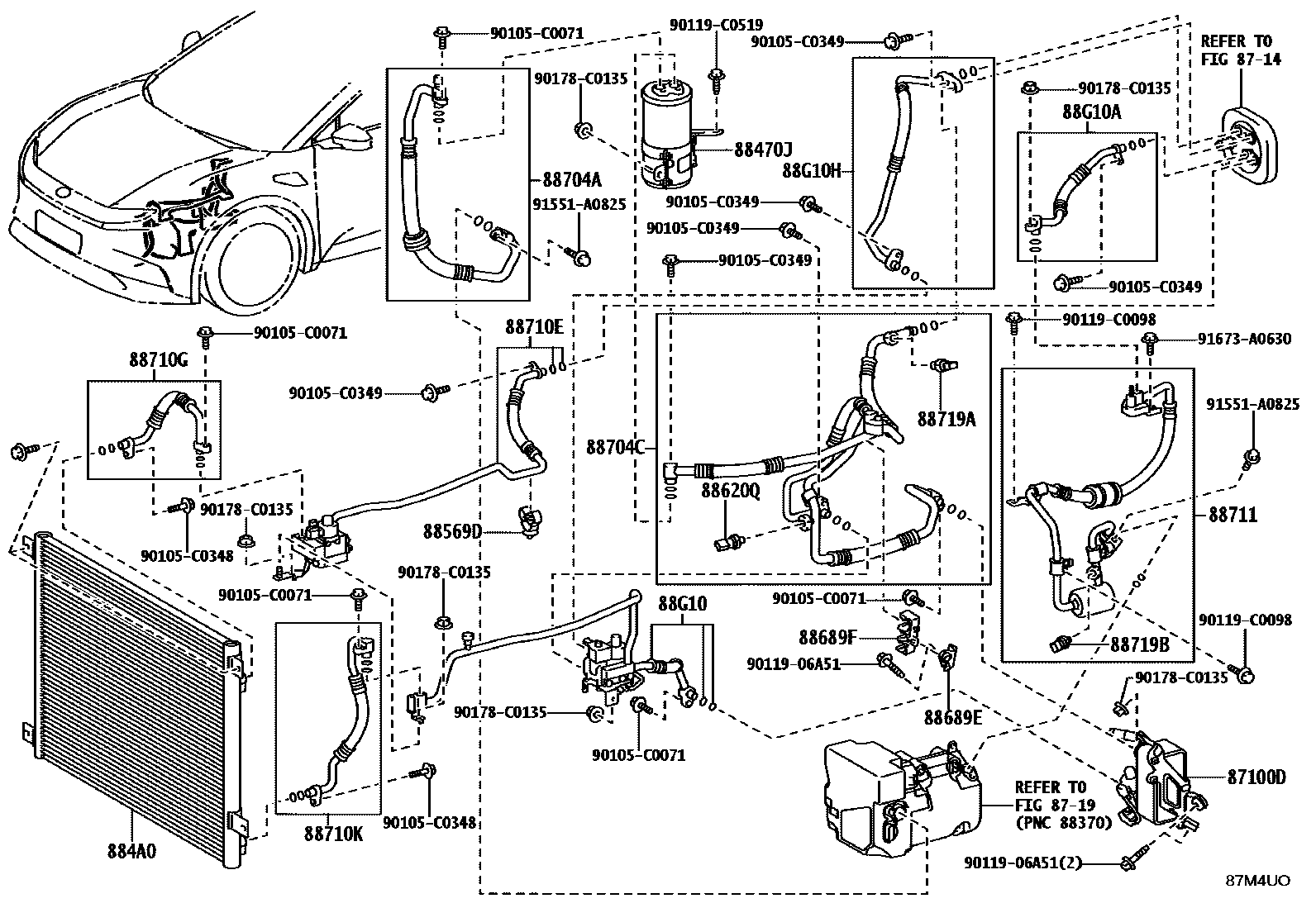

HEATING & AIR CONDITIONING - COOLER PIPING

87100DHEATER & ACCESSORY ASSY

main87100-03010iBEAG11202412

8714

8719

88470JRECEIVER ASSY

main88470-03020iBEAG11202412

884A0CONDENSER ASSY, COOLER

main884A0-03010iBEAG11202412

88569DCLAMP, COOLER, NO.1

main88899-03130iBEAG11202412

88620QTHERMISTOR ASSY, AIR CONDITIONER NO.1

main88620-03030iBEAG11202412

88689EBRACKET, COOLER, NO.1

main88688-03040iBEAG11202412

88689FBRACKET, COOLER, NO.2

main88688-03050iBEAG11202412

88704AHOSE SUB-ASSY, SUCTION, A

main88704-03060iBEAG11202412

88704CHOSE SUB-ASSY, SUCTION, B

main88704-03030iBEAG11202412

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-03020iBEAG11202412

88710GTUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2

main88710-03030iBEAG11202412

88710KTUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.3

main88710-03040iBEAG11202412

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-03040iBEAG11202412

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-03020iBEAG11202412

88719BSENSOR, AIR CONDITIONER PRESSURE, NO.2

main88719-03010iBEAG11202412

88G10TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.4

main88710-03050iBEAG11202412

88G10ATUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.5

main88710-03120iBEAG11202412

88G10HTUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.6

main88710-03130iBEAG11202412

90105C0071

main90105-C0071

90105C0348

main90105-C0348

90105C0349

main90105-C0349

9011906A51

main90119-06A51

90119C0098

main90119-C0098

90119C0519

main90119-C0519

90178C0135

main90178-C0135

91551A0825

main91551-A0825

91673A0630

main91673-A0630

29 parts on this diagram · 1 diagram in section
