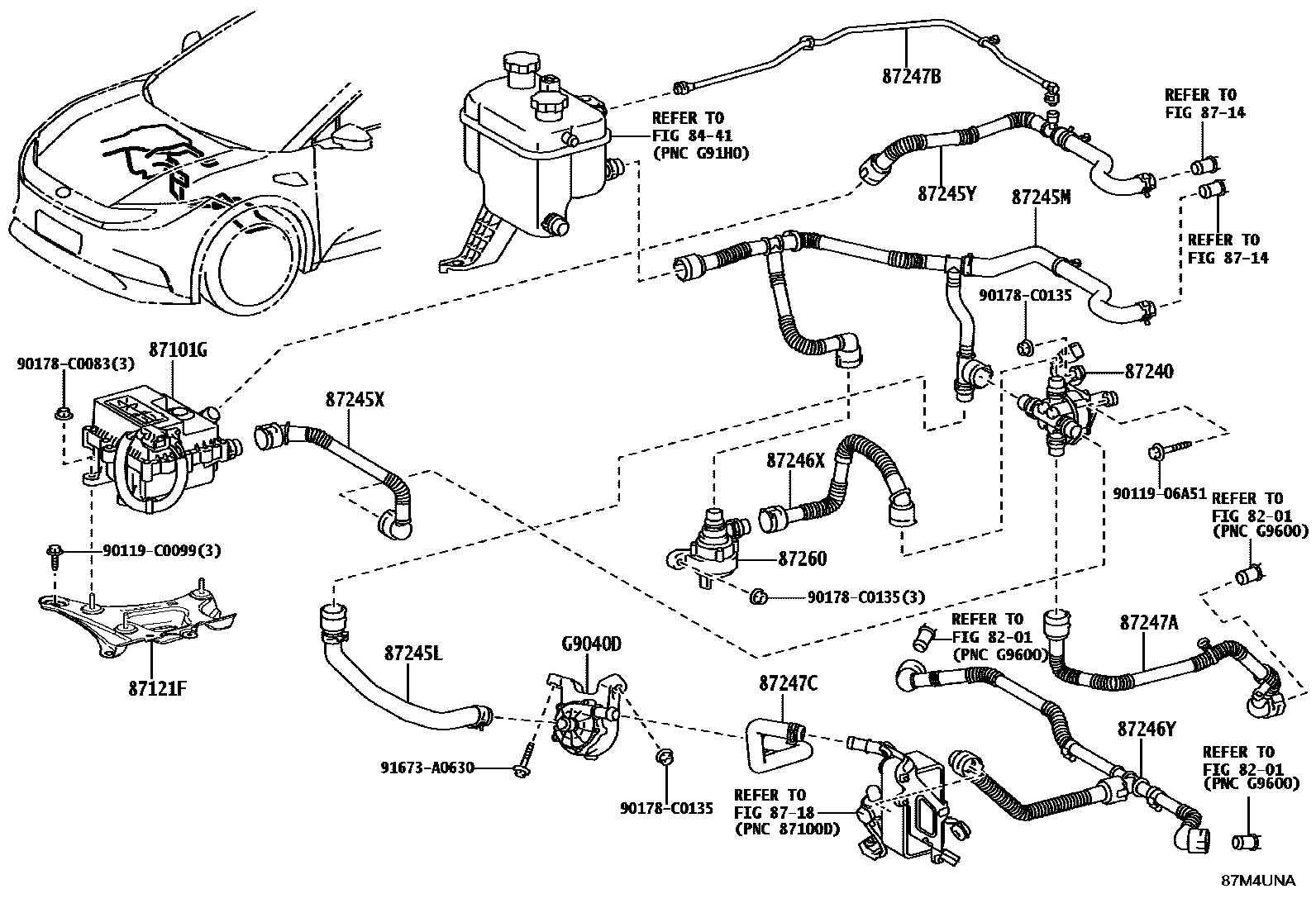

HEATING & AIR CONDITIONING - WATER PIPING
8201
8441
87101GHEATER SUB-ASSY, ELECTRIC
87121FBRACKET, HEATER
8714
8718
87240VALVE ASSY, HEATER WATER
87245LHOSE, HEATER WATER, L
87245MHOSE, HEATER WATER, M
87245XHOSE, HEATER WATER
87245YHOSE, HEATER WATER
87246XHOSE, HEATER WATER
87246YHOSE, HEATER WATER
87247AHOSE, HEATER WATER, A
87247BHOSE, HEATER WATER, B
87247CHOSE, HEATER WATER, C
87260PUMP ASSY, HEATER
G9040DPUMP ASSY, WATER W/MOTOR
9011906A51
main90119-06A51
90119C0099
main90119-C0099
90178C0083
main90178-C0083
90178C0135
main90178-C0135
91673A0630
main91673-A0630
23 parts on this diagram · 1 diagram in section
