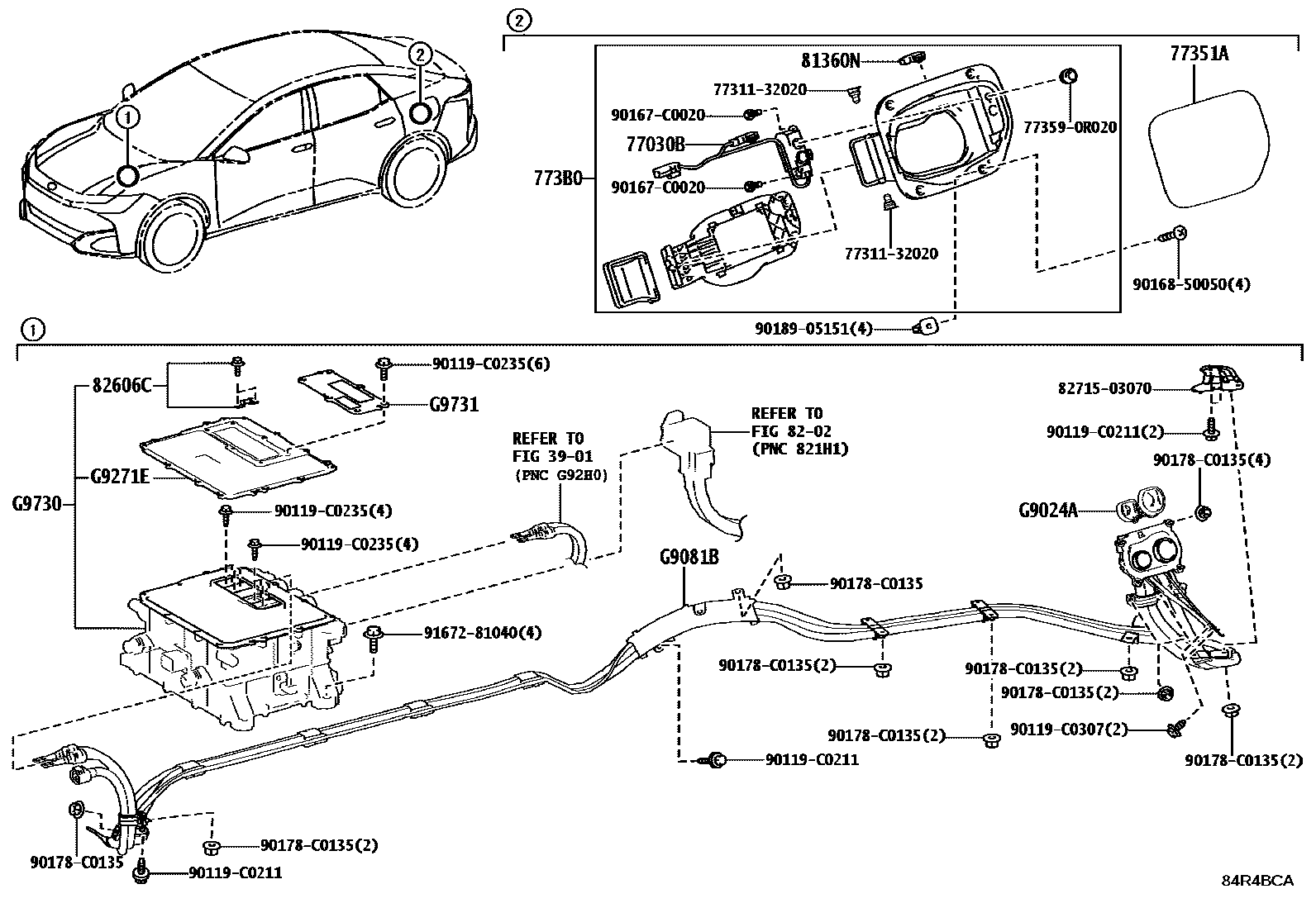

DC/DC CONVERTER & CHARGER(BEV OR FCEV)

0001 1 0002 1CHARGE CABLE

3901

77030BLOCK ASSY, CHARGE LID W/MOTOR

main77030-03040iBEAG11202412

77351ALID, FUEL FILLER OPENING, OUTER

main77351-03010iBEAG11202412

773B0BOX ASSY, CHARGE INLET, LH

main773B0-03020iBEAG11202412

81360NLAMP ASSY, SPOT

main81360-0R010iBEAG11202412

8202

82606CFUSE SET

main82606-03160iBEAG11202412

G9024ACAP SET, CHARGE INLET

mainG902403010iBEAG11202412

G9081BINLET SUB-ASSY, EV CHARGER W/CABLE

mainG908103020iBEAG11202412

G9271ECOVER, CONVERTER

mainG927103020iBEAG11202412

G9730UNIT ASSY, ELECTRIC CONVERTER

mainG973003011iBEAG11202412

G9731COVER, TERMINAL, NO.1

mainG973103010iBEAG11202412

7731132020CAP, FUEL TANK

main77311-32020

773590R020CUSHION, FUEL INLET BOX COVER

main77359-0R020

8271503070BRACKET,WIRING HARNESS CLAMP

main82715-03070

90119C0211

main90119-C0211

90119C0235

main90119-C0235

90119C0307

main90119-C0307

90167C0020

main90167-C0020

9016850050

main90168-50050

90178C0135

main90178-C0135

9018905151

main90189-05151

9167281040

main91672-81040

23 parts on this diagram · 2 diagrams in section
