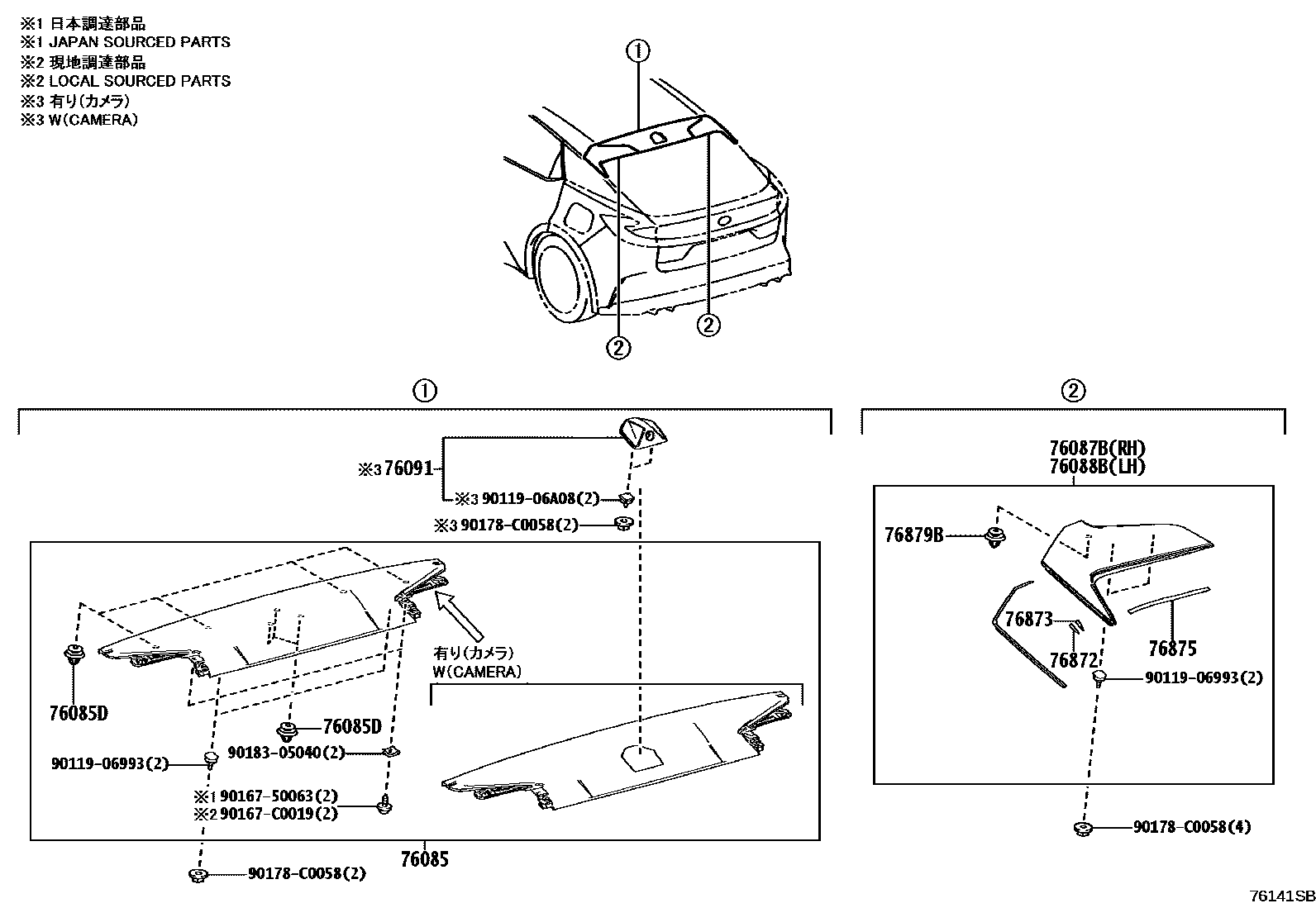

MUDGUARD & SPOILER
76085SPOILER SUB-ASSY, REAR
NO PAINT REQ.
76085DCLIP, REAR SPOILER, NO.1
76087BSPOILER SUB-ASSY, REAR SIDE, RH
PLATINUM WHITE PEARL MC.,089
METAL STREAM ME,1K0
PRECIOUS METAL,1L5
BLACK MC.,209 ,2PU ,2SZ ,2UY ,2YV ,M46
EMOTIONAL RED 2,3U5
SULFUR ME.,5C7
76088BSPOILER SUB-ASSY, REAR SIDE, LH
PLATINUM WHITE PEARL MC.,089
METAL STREAM ME,1K0
PRECIOUS METAL,1L5
BLACK MC.,209 ,2PU ,2SZ ,2UY ,2YV ,M46
EMOTIONAL RED 2,3U5
SULFUR ME.,5C7
76091SPOILER SUB-ASSY, REAR UPPER
main76091-03010
76872PROTECTOR, REAR SPOILER, NO.1
76873PROTECTOR, REAR SPOILER, NO.2
76875PROTECTOR, REAR SPOILER, NO.4
76879BCLIP, REAR SPOILER, NO.2
9011906993
main90119-06993
9011906A08
main90119-06A08
9016750063
main90167-50063
90167C0019
main90167-C0019
90178C0058
main90178-C0058
9018305040
main90183-05040
15 parts on this diagram · 1 diagram in section
