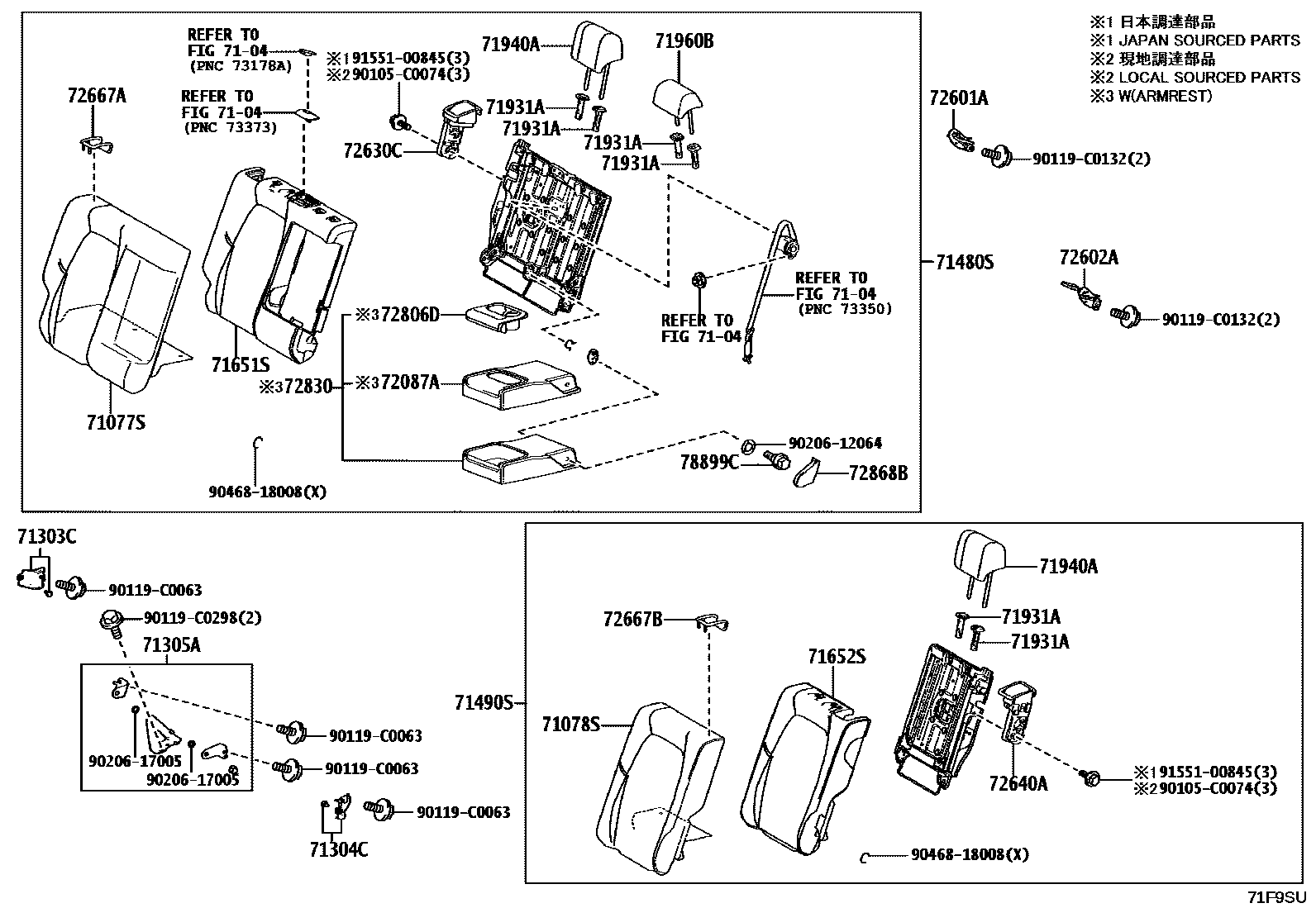

REAR SEAT & SEAT TRACK
7104
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
BLACK,TRIM2#
WHITE,TRIM0#
BLACK,TRIM2#
RED BLUSH,TRIM3#
WHITE,TRIM0#
BLACK,TRIM2#
RED BLUSH,TRIM3#
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
BLACK,TRIM2#
WHITE,TRIM0#
BLACK,TRIM2#
RED BLUSH,TRIM3#
WHITE,TRIM0#
BLACK,TRIM2#
RED BLUSH,TRIM3#
71303CHINGE SUB-ASSY, REAR SEATBACK, RH
71304CHINGE SUB-ASSY, REAR SEATBACK, LH
71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER
71480SBACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)
BLACK,TRIM2#
WHITE,TRIM0#
BLACK,TRIM2#
RED BLUSH,TRIM3#
WHITE,TRIM0#
BLACK,TRIM2#
RED BLUSH,TRIM3#
71490SBACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)
BLACK,TRIM2#
WHITE,TRIM0#
BLACK,TRIM2#
RED BLUSH,TRIM3#
WHITE,TRIM0#
BLACK,TRIM2#
RED BLUSH,TRIM3#
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
71931ASUPPORT, REAR SEAT HEADREST
W(LOCK),BLACK,TRIM0#,2#,3#
W(LOCK),BLACK,TRIM2#
W/O(LOCK),BLACK,TRIM0#,2#,3#
W/O(LOCK),BLACK,TRIM2#
71940AHEADREST ASSY, REAR SEAT
WHITE,TRIM0#
BLACK,TRIM2#
RED BLUSH,TRIM3#
71960BHEADREST ASSY, REAR SEAT, CENTER
WHITE,TRIM0#
BLACK,TRIM2#
RED BLUSH,TRIM3#
72087ACOVER SUB-ASSY, REAR SEAT CENTER ARMREST
WHITE,TRIM0#
BLACK,TRIM2#
RED BLUSH,TRIM3#
72601ASTRIKER SUB-ASSY, REAR SEATBACK LOOK, RH
72602ASTRIKER SUB-ASSY, REAR SEATBACK LOCK, LH
72630CLOCK ASSY, REAR SEATBACK, RH
72640ALOCK ASSY, REAR SEATBACK, LH
72667ABEZEL, REAR SEATBACK LOCK, UPPER RH
BLACK,TRIM0#,2#,3#
BLACK,TRIM2#
72667BBEZEL, REAR SEATBACK LOCK, UPPER LH
BLACK,TRIM0#,2#,3#
BLACK,TRIM2#
72806DHOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP
BLACK,TRIM0#,2#,3#
72830ARMREST ASSY, REAR SEAT, CENTER
WHITE,TRIM0#
BLACK,TRIM2#
RED BLUSH,TRIM3#
72868BCOVER, CENTER ARMREST HINGE
BLACK,TRIM0#,2#,3#
78899CBOLT, REAR SUB SEAT
90105C0074
main90105-C0074
90119C0063
main90119-C0063
90119C0132
main90119-C0132
90119C0298
main90119-C0298
9020612064
main90206-12064
9020617005
main90206-17005
9046818008
main90468-18008
9155100845
main91551-00845
32 parts on this diagram · 2 diagrams in section
