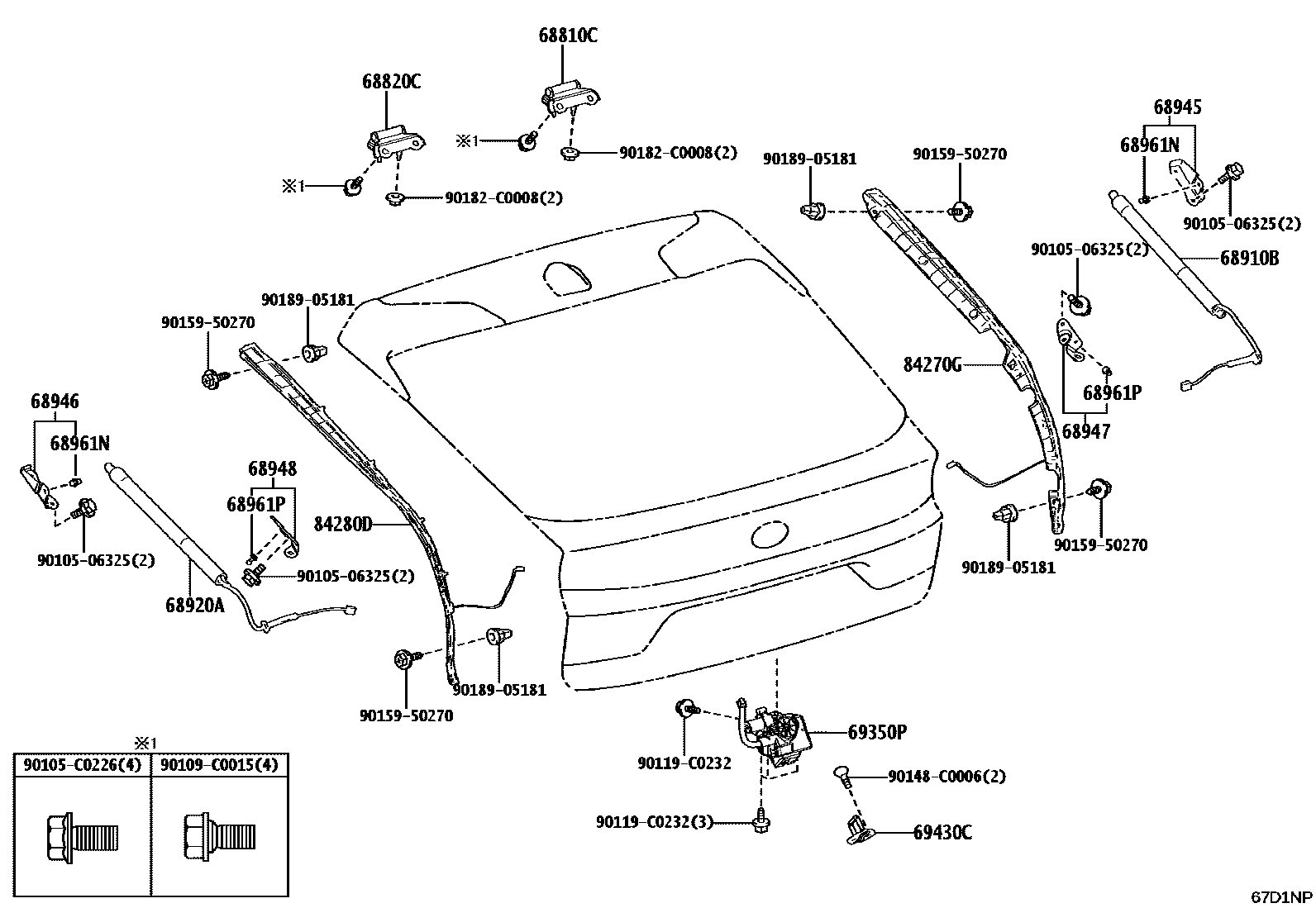

BACK DOOR LOCK & HANDLE

0001 1WITH POWER BACK DOOR 0002 1WITHOUT POWER BACK DOOR

68810CHINGE ASSY, BACK DOOR, RH

main68810-0E370iBEAG11202412

PAD T=1.0

main68810-0E380iBEAG11202412

PAD T=1.5

main68810-0E390iBEAG11202412

PAD T=2.0

68820CHINGE ASSY, BACK DOOR, LH

main68810-0E370iBEAG11202412

PAD T=1.0

main68810-0E380iBEAG11202412

PAD T=1.5

main68810-0E390iBEAG11202412

PAD T=2.0

68910BUNIT ASSY, POWER BACK DOOR, RH

main68910-03010iBEAG11..F,G202412

68920AUNIT ASSY, POWER BACK DOOR, LH

main68920-03010iBEAG11..F,G202412

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-03010iBEAG11..F,G202412

main68945-03020iBEAG11..L,N202412

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-03010iBEAG11..F,G202412

main68946-03020iBEAG11..L,N202412

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-03010iBEAG11..F,G202412

main68947-03020iBEAG11..L,N202412

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-03010iBEAG11..F,G202412

main68948-03020iBEAG11..L,N202412

68961NJOINT, BACK DOOR STAY

main68961-0R090iBEAG11..L,N202412

main68961-0R110iBEAG11..F,G202412

68961PJOINT, BACK DOOR STAY, NO.1

main68961-0R100iBEAG11202412

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-0R060iBEAG11..F,G202412

main69350-0R070iBEAG11..L,N202412

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-0R020iBEAG11202412

84270GSENSOR ASSY, POWER BACK DOOR, RH

main84270-03010iBEAG11..F,G202412

84280DSENSOR ASSY, POWER BACK DOOR, LH

main84280-03010iBEAG11..F,G202412

9010506325

main90105-06325

90105C0226

main90105-C0226

90109C0015

main90109-C0015

90119C0232

main90119-C0232

90148C0006

main90148-C0006

9015950270

main90159-50270

90182C0008

main90182-C0008

9018905181

main90189-05181

22 parts on this diagram · 2 diagrams in section
