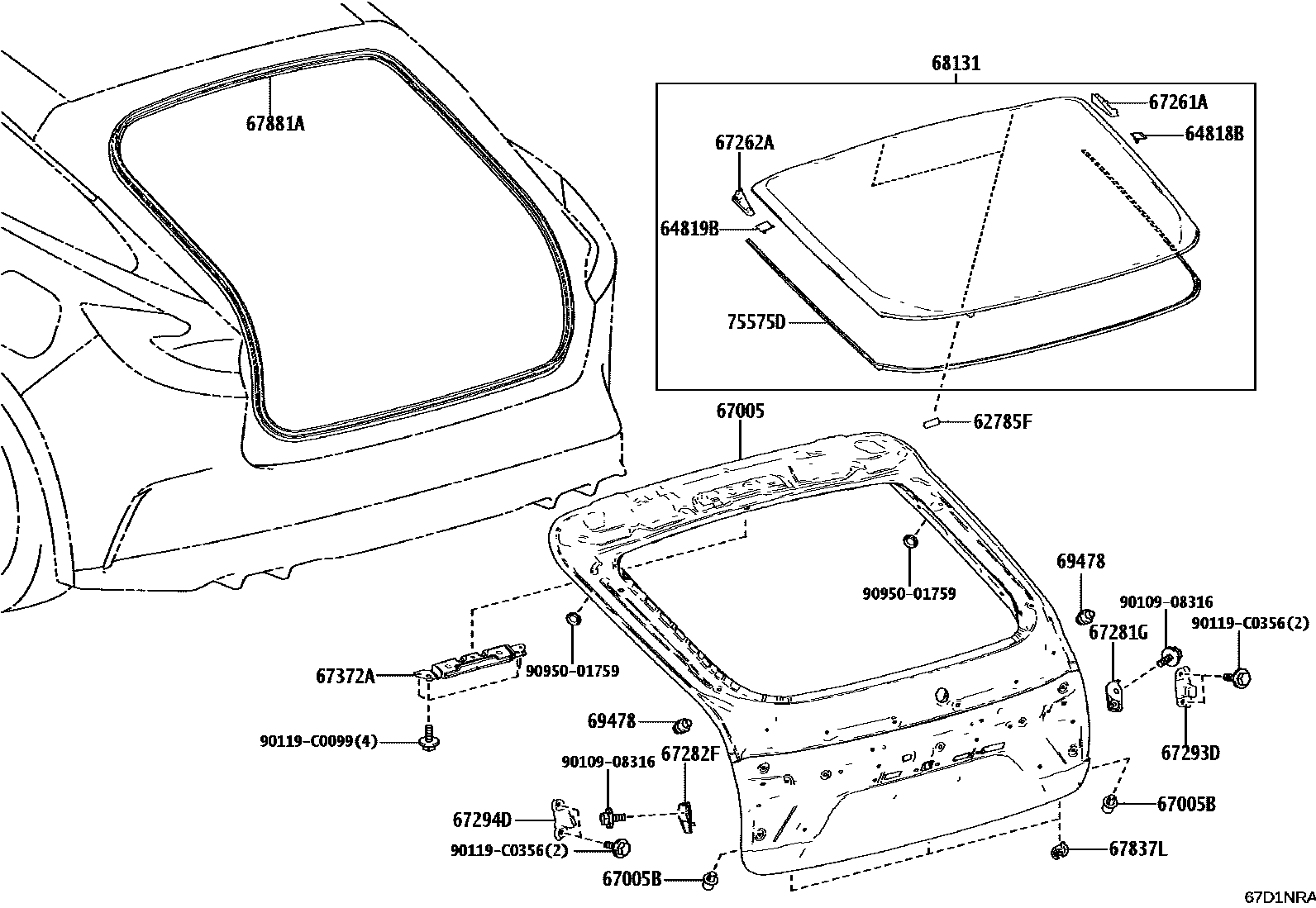

BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

62785FSPACER, BACK DOOR GLASS

main62785-0R020iBEAG11202412

64818BSPACER, BACK DOOR GLASS, NO.1

main64818-47080iBEAG11¥200202412

64819BSPACER, BACK WINDOW GLASS, NO.2

main64819-47080iBEAG11¥200202412

67005PANEL SUB-ASSY, BACK DOOR

main67005-03010iBEAG11..L,N202412

main67005-03020iBEAG11..F,G202412

67005BCUSHION(FOR BACK DOOR PANEL)

main68984-0R091iBEAG11202412

67261APLATE, BACK DOOR REINFORCEMENT, NO.1 RH

main67261-03010iBEAG11202412

67262APLATE, BACK DOOR REINFORCEMENT, NO.1 LH

main67262-03010iBEAG11202412

67281GSTOPPER, BACK DOOR, LOWER RH

main67281-03010iBEAG11202412

67282FSTOPPER, BACK DOOR, LWR LH

main67282-03010iBEAG11202412

67293DCUSHION, BACK DOOR STOPPER, RH

main67293-03010iBEAG11202412

67294DCUSHION, BACK DOOR STOPPER, LH

main67294-03010iBEAG11202412

67372AWEIGHT, BACK DOOR

main67372-03010iBEAG11202412

67837LSEAL, DOOR DUST PROOF

main67837-0G040iBEAG11202412

(L)

main67837-30120iBEAG11¥60202412

(J)

67881AWEATHERSTRIP, BACK DOOR

main67881-03010iBEAG11202412

68131GLASS, BACK DOOR

main68105-03010iBEAG11202412

69478CUSHION, BACK DOOR LOWER STOPPER

main69478-0R020iBEAG11202412

75575DMOULDING, BACK WINDOW, LOWER

main75575-03020iBEAG11202412

9010908316

main90109-08316¥80

90119C0099

main90119-C0099

90119C0356

main90119-C0356

9095001759

main90950-01759¥120

21 parts on this diagram · 2 diagrams in section
