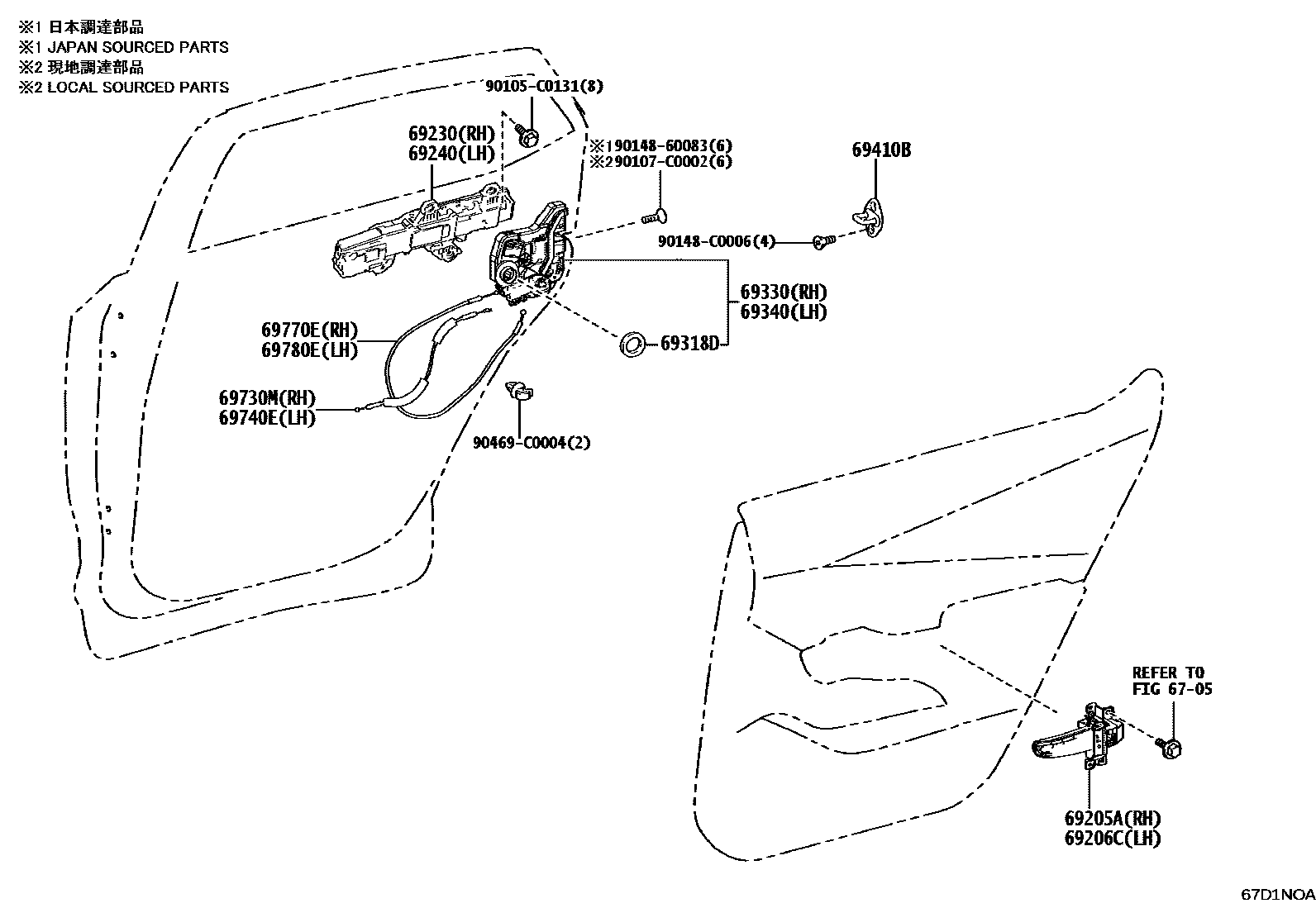

REAR DOOR LOCK & HANDLE

6705

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-03100iBEAG11202412

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-03080iBEAG11202412

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-03040-A0iBEAG11202412

PLATINUM WHITE PEARL MC.,089 ,2PU

main69230-03040-B0iBEAG11202412

METAL STREAM ME,1K0 ,2UY

main69230-03040-B1iBEAG11202412

PRECIOUS METAL,1L5 ,2YV

main69230-03040-C0iBEAG11202412

BLACK MC.,209

main69230-03040-D0iBEAG11202412

EMOTIONAL RED 2,2SZ ,3U5

main69230-03040-F0iBEAG11202412

SULFUR ME.,5C7 ,M46

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-03040-A0iBEAG11202412

PLATINUM WHITE PEARL MC.,089 ,2PU

main69240-03040-B0iBEAG11202412

METAL STREAM ME,1K0 ,2UY

main69240-03040-B1iBEAG11202412

PRECIOUS METAL,1L5 ,2YV

main69240-03040-C0iBEAG11202412

BLACK MC.,209

main69240-03040-D0iBEAG11202412

EMOTIONAL RED 2,2SZ ,3U5

main69240-03040-F0iBEAG11202412

SULFUR ME.,5C7 ,M46

69318DSEAL, DOOR LOCK WIRING HARNESS

main69318-47010iBEAG11202412

69330LOCK ASSY, REAR DOOR, RH

main69050-03030iBEAG11202412

69340LOCK ASSY, REAR DOOR, LH

main69060-03030iBEAG11202412

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-0D020iBEAG11202412

69730MCABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69730-03060iBEAG11202412

69740ECABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69730-03060iBEAG11202412

69770ECABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)

main69770-03080iBEAG11202412

69780ECABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)

main69770-03080iBEAG11202412

90105C0131

main90105-C0131

90107C0002

main90107-C0002

9014860083

main90148-60083

90148C0006

main90148-C0006

90469C0004

main90469-C0004

18 parts on this diagram · 1 diagram in section
