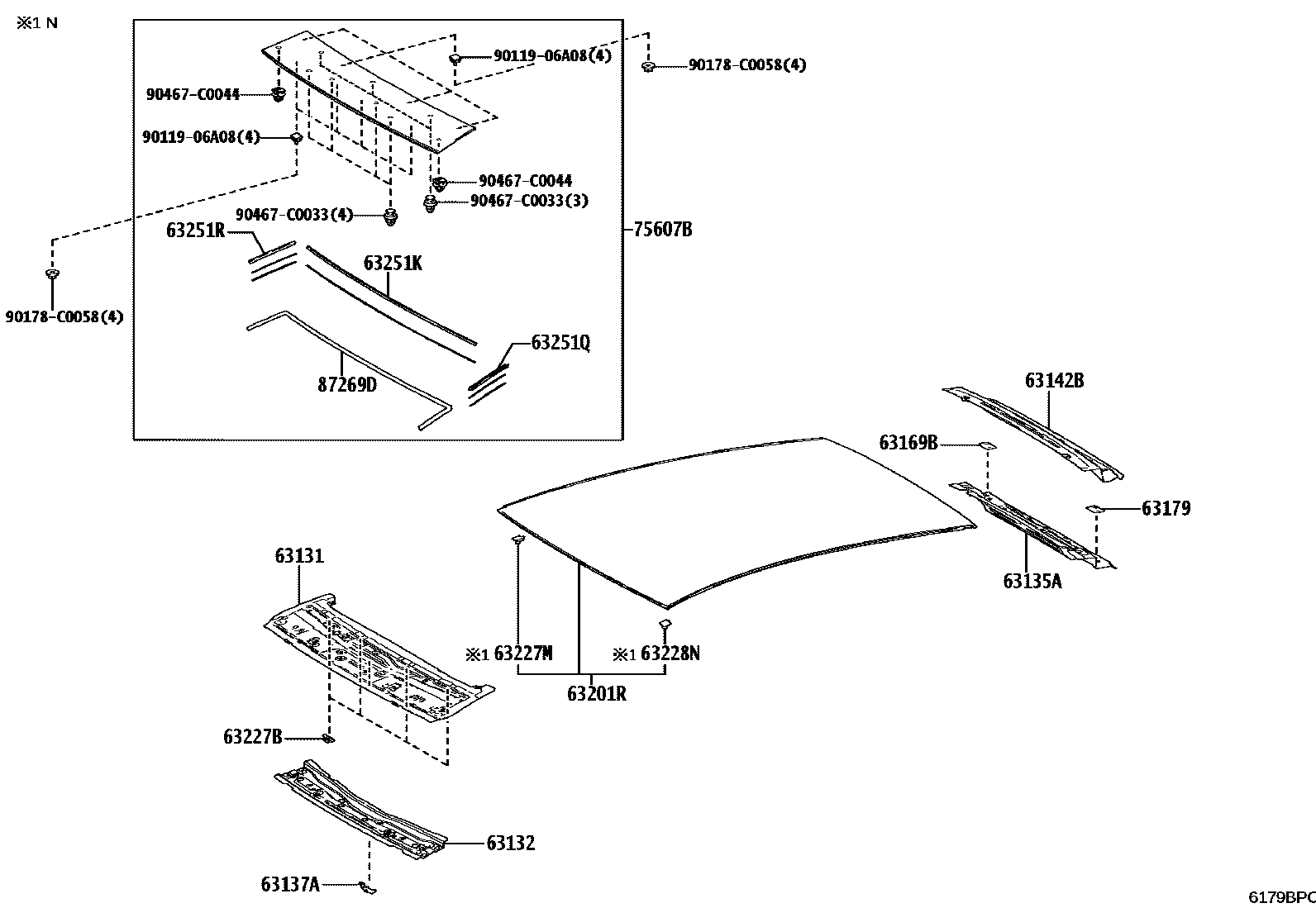

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1ADVANCED PACKAGE

63131PANEL, WINDSHIELD HEADER, OUTER

main63131-03010iBEAG11202412

63132PANEL, WINDSHIELD HEADER, INNER

main63132-03030iBEAG11202412

63135AFRAME, BACK DOOR OPENING, LOWER

main63135-03010iBEAG11202412

63137ABRACKET, DOME LAMP, NO.1

main63137-03020iBEAG11202412

63142BREINFORCEMENT, ROOF PANEL, REAR

main63142-03030iBEAG11202412

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-0E110iBEAG11202412

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-0E070iBEAG11202412

63201RGLASS SUB-ASSY, ROOF WINDOW

main63201-03050iBEAG11..N202412

main63201-03060iBEAG11..F,G,L202412

63227BBRACKET, ROOF HEAD LINING

main63229-03010×4iBEAG11202412

63227MCLIP, ROOF WINDOW, LOWER

main63227-03020iBEAG11..N202412

63228NCLIP, ROOF WINDOW, SIDE

main63228-03020iBEAG11..N202412

63251KWEATHERSTRIP, TILT ROOF

main63251-03020iBEAG11202412

63251QWEATHERSTRIP, TILT ROOF, NO.2

main63251-03040iBEAG11202412

63251RWEATHERSTRIP, TILT ROOF, NO.3

main63251-03050iBEAG11202412

75607BMOULDING SUB-ASSY, ROOF TOP

main75607-03010iBEAG11202412

NO PAINT REQ.

main75607-03020iBEAG11..F,G,L202412

NO PAINT REQ.,ADVANCED PACKAGE

87269DPROTECTOR, NO.1

main87268-03040iBEAG11202412

9011906A08

main90119-06A08

90178C0058

main90178-C0058

90467C0033

main90467-C0033

90467C0044

main90467-C0044

20 parts on this diagram · 2 diagrams in section
