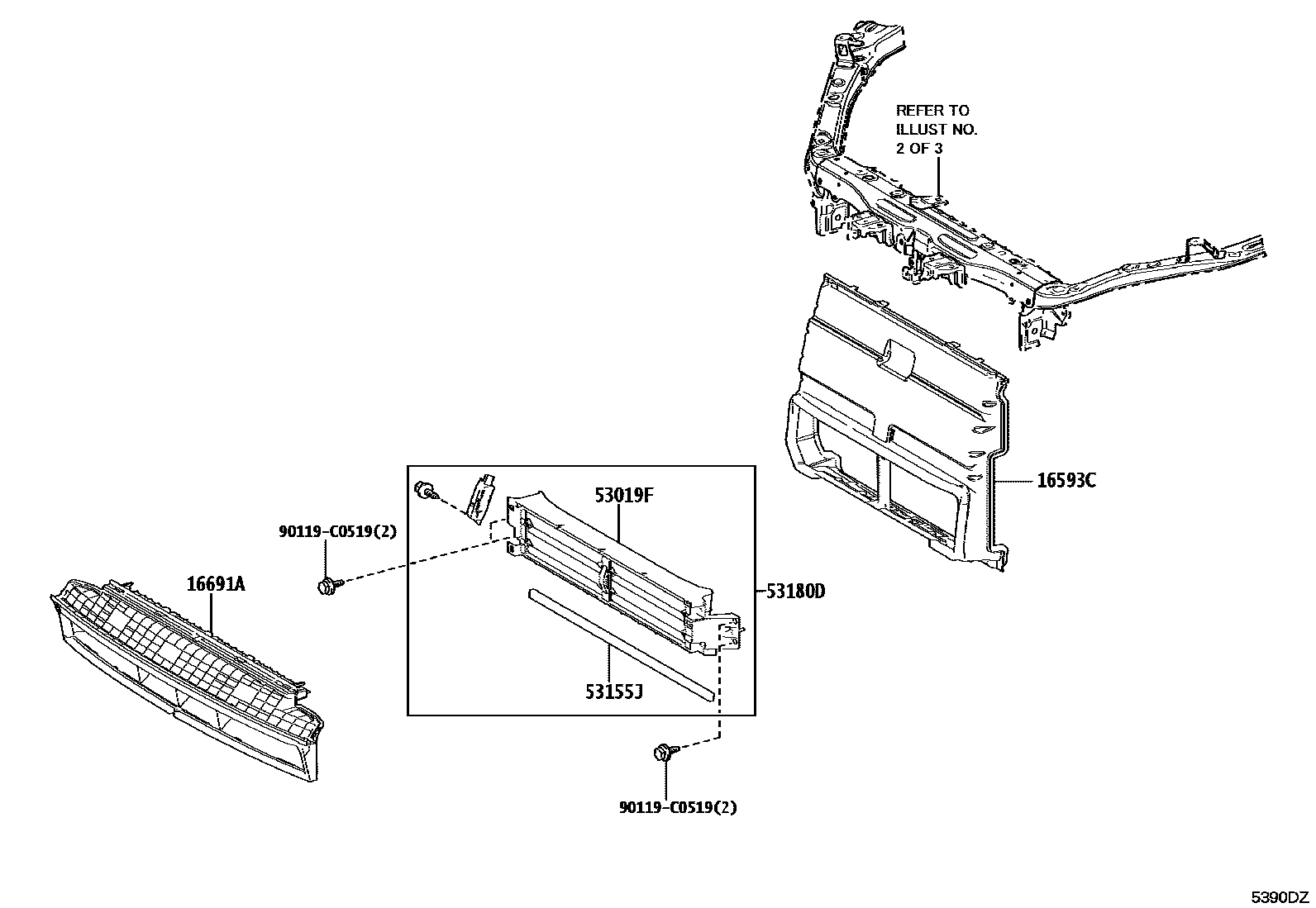

FRONT FENDER APRON & DASH PANEL

0001 1AIR GUIDE 0002 1RADIATOR SUPPORT & FENDER APR0003 1DASH PANEL

16593CGUIDE, RADIATOR AIR, NO.1

main16593-0Z050iEM..BEAG11202412

16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH

main16691-0Z040iEM..BEAG11202412

53019FSHUTTER SUB-ASSY, RADIATOR

main53019-0R100iBEAG11202412

53155JSEAL, RADIATOR GRILLE, NO.1

main53155-0R140iBEAG11202412

53180DSHUTTER ASSY, RADIATOR

main53180-0R121iBEAG11202412

90119C0519

main90119-C0519

6 parts on this diagram · 3 diagrams in section
