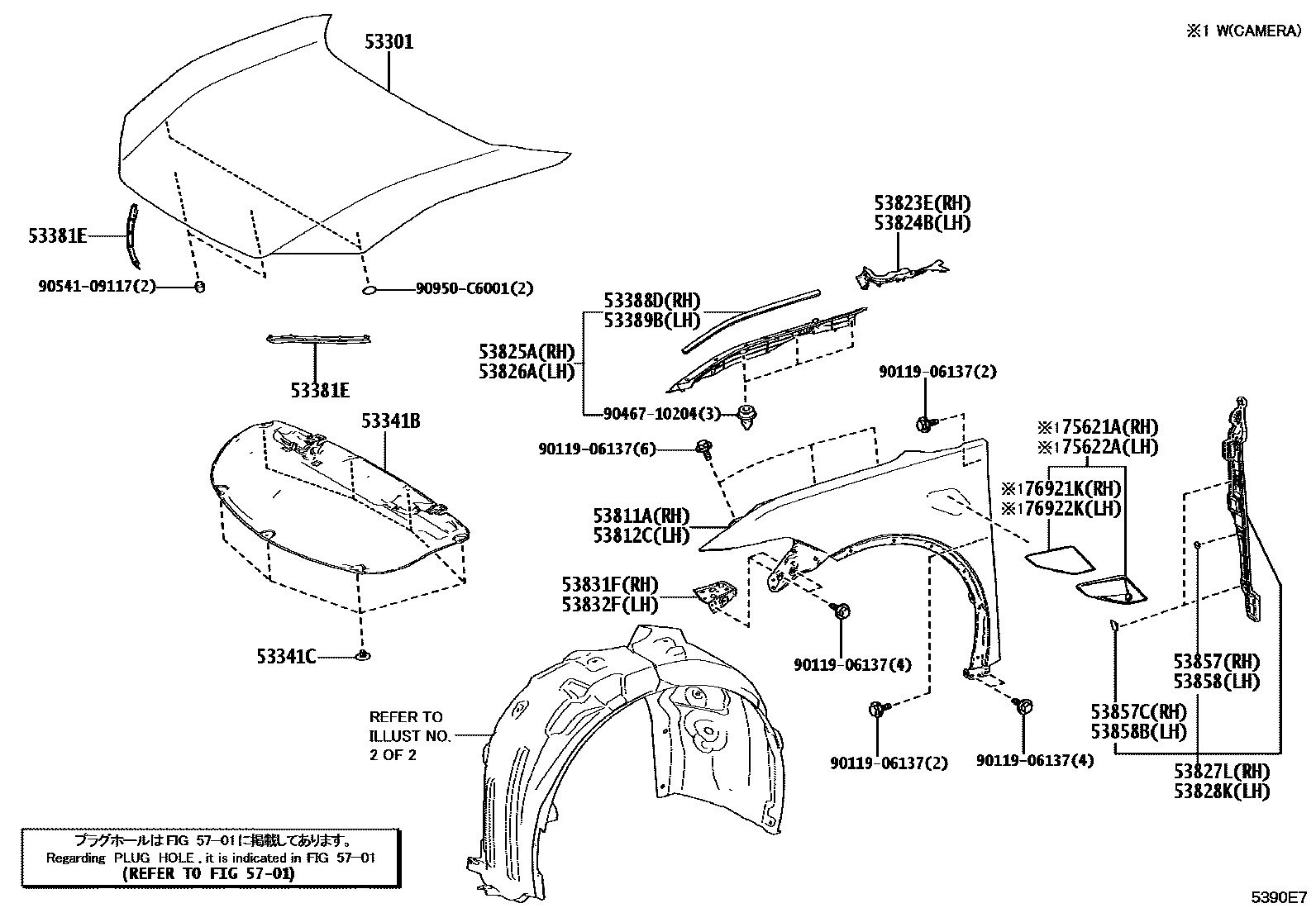

HOOD & FRONT FENDER
53301HOOD SUB-ASSY
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
53381ESEAL, HOOD TO RADIATOR SUPPORT
53388DSEAL, HOOD TO FRONT FENDER, RH
53389BSEAL, HOOD TO FRONT FENDER, LH
53811APANEL, FRONT FENDER, RH
ADVANCED PACKAGE
53812CPANEL, FRONT FENDER, LH
ADVANCED PACKAGE
53823EPROTECTOR, FRONT SIDE PANEL, NO.2 RH
53824BPROTECTOR, FRONT SIDE PANEL, NO.2 LH
53825APROTECTOR, FRONT FENDER, UPPER RH
53826APROTECTOR, FRONT FENDER, UPPER LH
53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH
53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH
53831FPANEL, FRONT FENDER SIDE, RH
53832FPANEL, FRONT FENDER SIDE, LH
53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH
53857CRETAINER, FRONT WHEEL OPENING EXTENSION, RH
53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH
53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH
5701
75621AGARNISH, FRONT FENDER, RH
ADVANCED PACKAGE
75622AGARNISH, FRONT FENDER, LH
ADVANCED PACKAGE
76921KPROTECTOR, SIDE MUDGUARD, NO.1
ADVANCED PACKAGE
76922KPROTECTOR, SIDE MUDGUARD, NO.2
ADVANCED PACKAGE
9011906137
main90119-06137
9046710204
main90467-10204
9054109117
main90541-09117
90950C6001
main90950-C6001
29 parts on this diagram · 2 diagrams in section
