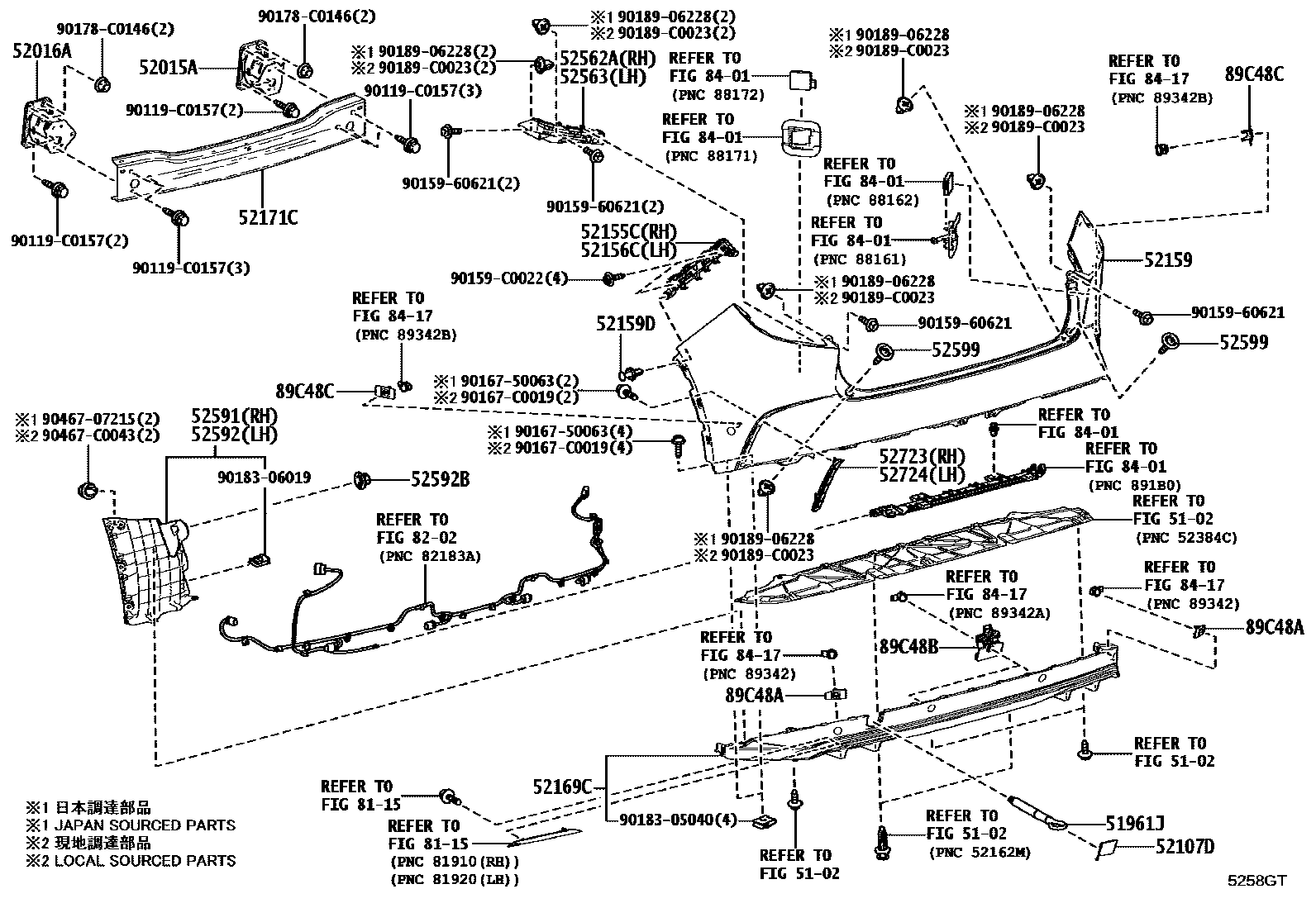

REAR BUMPER & BUMPER STAY

5102

51961JHOOK, REAR

main51961-0R060iBEAG11202412

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-03020iBEAG11202412

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-03010iBEAG11202412

52107DCOVER SET, REAR BUMPER HOLE

main52107-03030iBEAG11202412

52155CSUPPORT, REAR BUMPER SIDE, NO.1 RH

main52155-03020iBEAG11202412

52156CSUPPORT, REAR BUMPER SIDE, NO.1 LH

main52156-03020iBEAG11202412

52159COVER, REAR BUMPER

main52159-03902iBEAG11202412

PAINT REQ.

52159DCLIP, REAR BUMPER COVER

main90467-C0048iBEAG11202412

52169CCOVER, REAR BUMPER, LOWER

main52169-03010iBEAG11202412

NO PAINT REQ.

52171CREINFORCEMENT, REAR BUMPER

main52171-03060iBEAG11202412

52562ARETAINER, REAR BUMPER FILLER, NO.2

main52562-03020iBEAG11202412

52563RETAINER, REAR BUMPER FILLER, NO.3

main52563-03020iBEAG11202412

52591SEAL, REAR BUMPER SIDE, RH

main52591-03020iBEAG11202412

52592SEAL, REAR BUMPER SIDE, LH

main52592-03020iBEAG11202412

52592BCLIP, REAR BUMPER SIDE SEAL

main90467-C0050iBEAG11202412

52599STOPPER, REAR BUMPER, UPPER

main52599-68030iBEAG11¥130202412

52723MOULDING, REAR BUMPER EXTENSION, RH

main52723-03010iBEAG11202412

52724MOULDING, REAR BUMPER EXTENSION, LH

main52724-03010iBEAG11202412

8115

8202

8401

8417

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-03300iBEAG11202412

RH

main89348-03310iBEAG11202412

LH

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-03280iBEAG11202412

RH

main89348-03290iBEAG11202412

LH

89C48CRETAINER, ULTRASONIC SENSOR, REAR SIDE

90119C0157

main90119-C0157

9015960621

main90159-60621¥60

90159C0022

main90159-C0022

9016750063

main90167-50063¥60

90167C0019

main90167-C0019

90178C0146

main90178-C0146

9018305040

main90183-05040¥80

9018306019

main90183-06019¥80

9018906228

main90189-06228¥70

90189C0023

main90189-C0023

9046707215

main90467-07215¥80

90467C0043

main90467-C0043

38 parts on this diagram · 1 diagram in section
