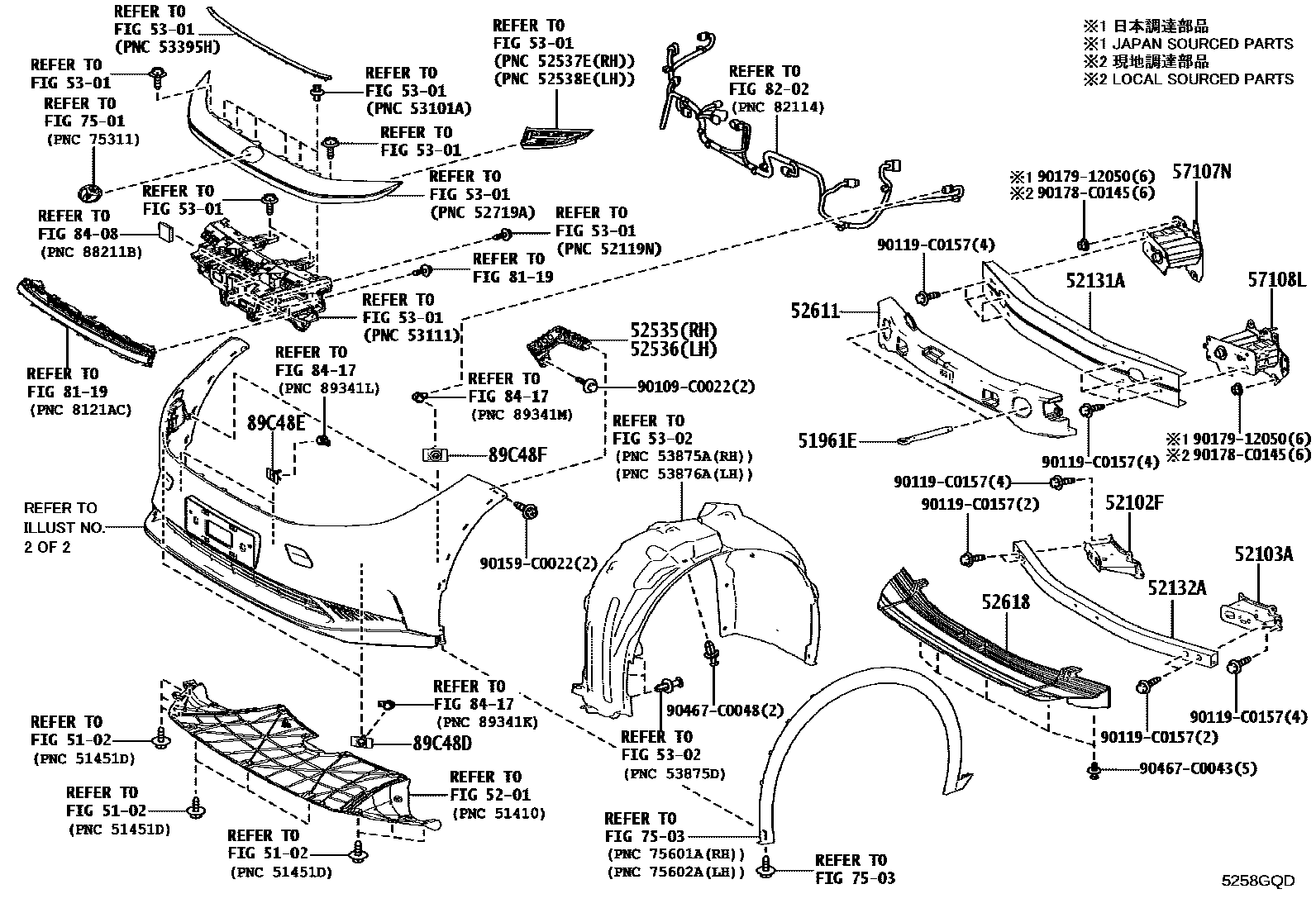

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

5102

51961EHOOK, FRONT

main51961-0R060iBEAG11202412

5201

52102FEXTENSION SUB-ASSY, FRONT BUMPER, RH

main52102-03010iBEAG11202412

52103AEXTENSION SUB-ASSY, FRONT BUMPER, LH

main52103-03010iBEAG11202412

52131AREINFORCEMENT, FRONT BUMPER

main52131-03020iBEAG11202412

52132AREINFORCEMENT, FRONT BUMPER, NO.2

main52132-03020iBEAG11202412

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-03020iBEAG11202412

NO PAINT REQ.

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-03020iBEAG11202412

NO PAINT REQ.

52611ABSORBER, FRONT BUMPER ENERGY

main52611-03030iBEAG11202412

52618ABSORBER, FRONT BUMPER, LOWER

main52618-03020iBEAG11202412

5301

5302

57107NREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH

main57107-03011iBEAG11202412

57108LREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH

main57108-03011iBEAG11202412

7501

7503

8119

8202

8408

8417

89C48DRETAINER, ULTRASONIC SENSOR, FRONT CORNER

main89348-03260iBEAG11202412

RH

main89348-03270iBEAG11202412

LH

89C48ERETAINER, ULTRASONIC SENSOR, FRONT CENTER

89C48FRETAINER, ULTRASONIC SENSOR, FRONT SIDE

90109C0022

main90109-C0022

90119C0157

main90119-C0157

90159C0022

main90159-C0022

90178C0145

main90178-C0145

9017912050

main90179-12050

90467C0043

main90467-C0043

90467C0048

main90467-C0048

31 parts on this diagram · 2 diagrams in section
