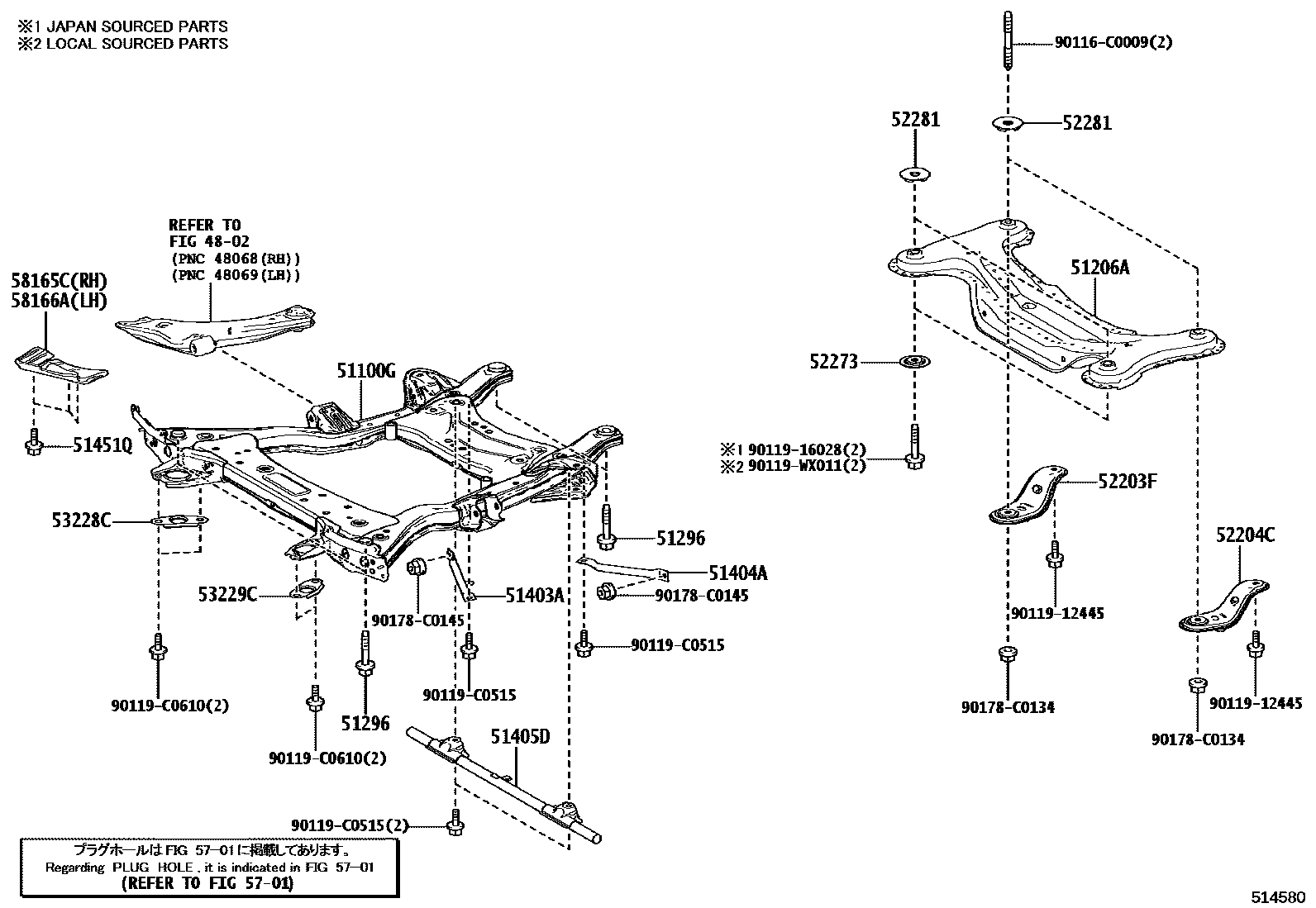

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION MEMBER 0002 1UNDER COVER

4802

51100GFRAME ASSY, FRONT

main51100-03020iBEAG11202412

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-03020iBEAG11202412

51296BOLT, FRONT SUSPENSION MEMBER MOUNTING

main90119-16024iBEAG11202412

(J)

main90119-C0630iBEAG11202412

(L)

51403ABRACE SUB-ASSY, FRONT SUSPENSION MEMBER, RH

main51403-03010iBEAG11202412

51404ABRACE SUB-ASSY, FRONT SUSPENSION MEMBER, LH

main51404-03010iBEAG11202412

51405DBRACE SUB-ASSY, ENGINE UNDER

main51405-03010iBEAG11202412

51451QBOLT, NO.3

main90119-C0520iBEAG11202412

52203FSTOPPER SUB-ASSY, REAR SUSPENSION MEMBER, LOWER RH

main52203-03010iBEAG11202412

52204CSTOPPER SUB-ASSY, REAR SUSPENSION MEMBER, LOWER LH

main52204-03010iBEAG11202412

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-03010iBEAG11202412

52281CUSHION, DIFFERENTIAL SUPPORT MEMBER

main52281-03010iBEAG11202412

53228CBRACKET, RADIATOR MOUNTING, LOWER NO.1

main53228-03010iBEAG11202412

53229CBRACKET, RADIATOR MOUNTING, LOWER NO.2

main53229-03010iBEAG11202412

5701

58165CCOVER, FRONT FLOOR, RH

main58165-03020iBEAG11202412

58166ACOVER, FRONT FLOOR, LH

main58166-03020iBEAG11202412

90116C0009

main90116-C0009

9011912445

main90119-12445

9011916028

main90119-16028

90119C0515

main90119-C0515

90119C0610

main90119-C0610

90119WX011

main90119-WX011

90178C0134

main90178-C0134

90178C0145

main90178-C0145

25 parts on this diagram · 2 diagrams in section
