REAR SPRING & SHOCK ABSORBER
42304CARRIER SUB-ASSY, REAR AXLE, RH
42305CARRIER SUB-ASSY, REAR AXLE, LH
48231ASPRING, COIL, REAR RH
48231BSPRING, COIL, REAR LH
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48341ABUMPER, REAR SPRING, NO.1 RH
48341BBUMPER, REAR SPRING, NO.1 LH
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-03080
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48540-03080
48559CCOVER, REAR SHOCK ABSORBER DUST, RH NO.1
48559DCOVER, REAR SHOCK ABSORBER DUST, LH NO.1
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
48710GBRACKET, TRAILING ARM, RH
48710HBRACKET, TRAILING ARM, LH
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
48730FARM ASSY, REAR SUSPENSION, NO.2 RH
48740FARM ASSY, REAR SUSPENSION, NO.2 LH
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48760BSUPPORT ASSY REAR SUSPENSION, LH
48780AROD ASSY, STRUT, REAR
48812BAR, STABILIZER, REAR
48818BUSH, STABILIZER, REAR
48830DLINK ASSY, REAR STABILIZER, RH
48832ABRACKET, REAR STABILIZER BAR, NO.1
48840ALINK ASSY, REAR STABILIZER, LH
9010517020
main90105-17020
90105C0322
main90105-C0322
9011912444
main90119-12444
90119C0528
main90119-C0528
90119C0660
main90119-C0660
90119C0687
main90119-C0687
90119WX010
main90119-WX010
90177C0028
main90177-C0028
90178C0018
main90178-C0018
90178C0030
main90178-C0030
90178C0151
main90178-C0151
9017910103
main90179-10103
9017914068
main90179-14068
91672P1485
main91672-P1485
9415121241
main94151-21241

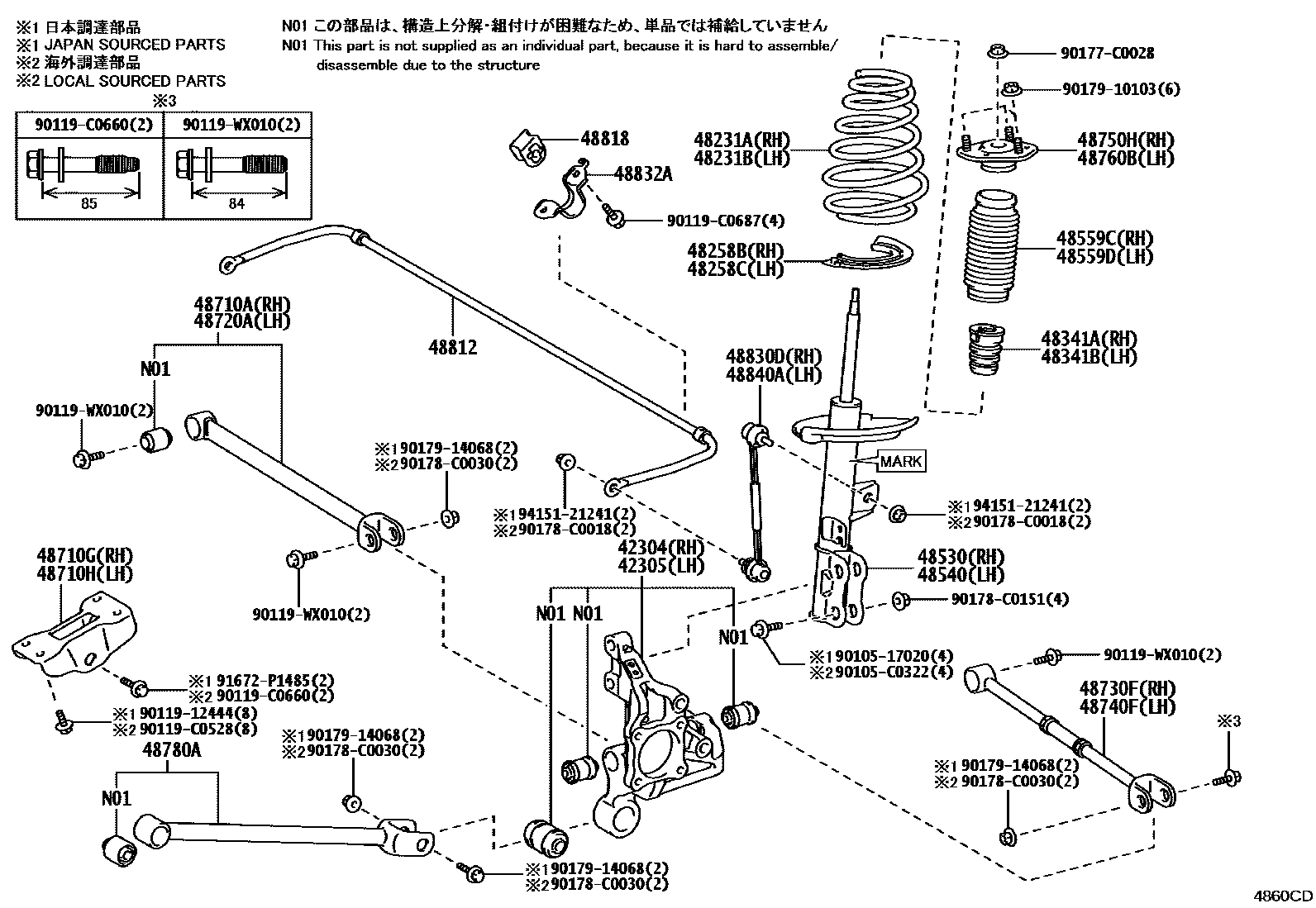

41 parts on this diagram · 1 diagram in section
