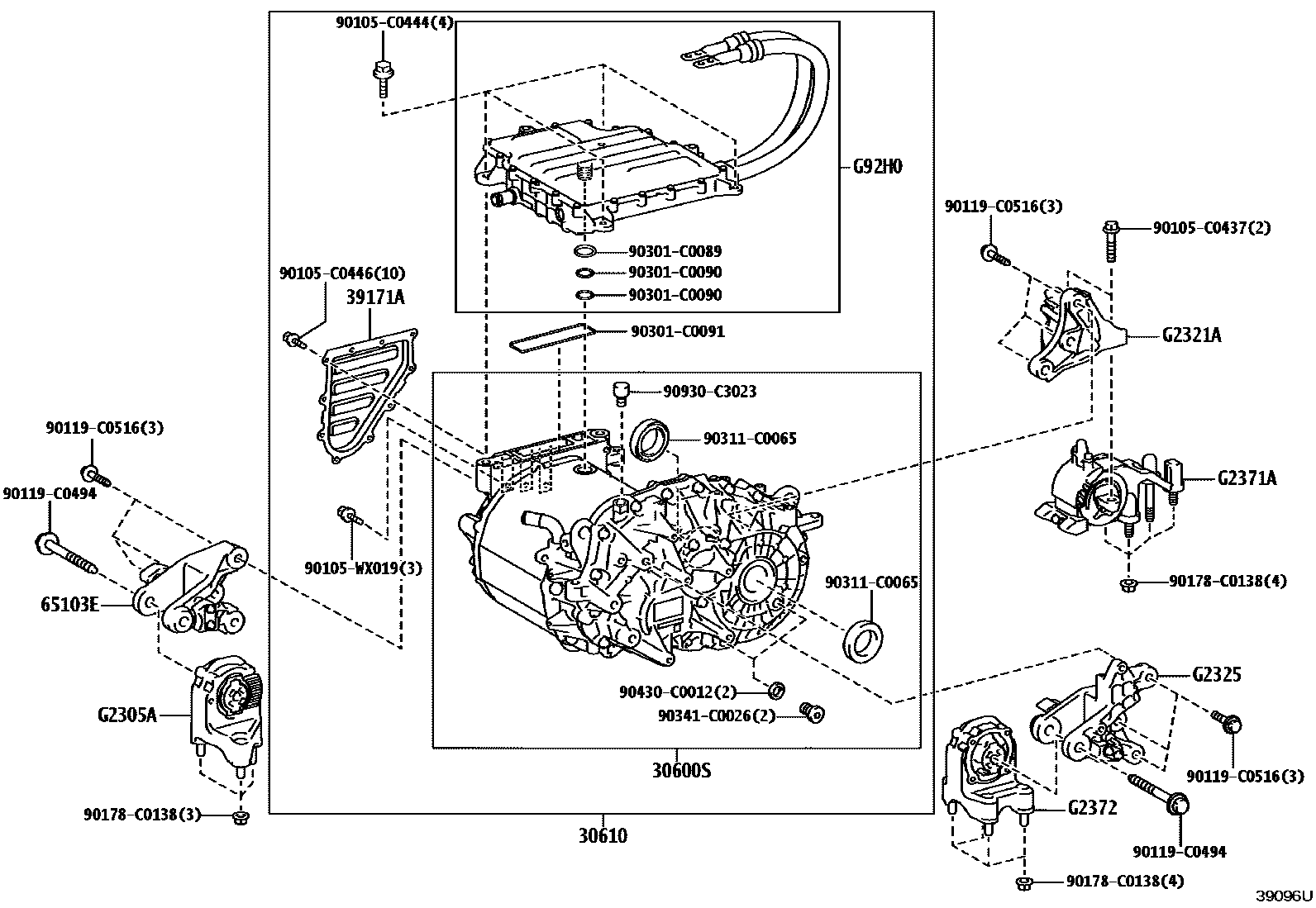

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

30600STRANSAXLE ASSY, EV W/MOTOR

main30600-03020iBEAG11..L,N202412

main30600-03030iBEAG11..F,G202412

30610TRANSAXLE ASSY, W/MOTOR & INVERTER

main30610-03020iBEAG11..L,N202412

main30610-03030iBEAG11..F,G202412

39171ACOVER, TRANSAXLE

main39171-03010iBEAG11202412

65103EBRACKET SUB-ASSY, MOUNTING, NO.1

mainG231503010iBEAG11202412

G2305AINSULATOR SUB-ASSY, MOTOR MOUNTING, RH

mainG230503010iBEAG11202412

G2321ABRACKET, MOTOR MOUNTING, REAR

mainG232103020iBEAG11202412

G2325BRACKET, MOTOR MOUNTING, LH

mainG232503010iBEAG11202412

G2371AINSULATOR, MOTOR MOUNTING, REAR

mainG237103020iBEAG11202412

G2372INSULATOR, MOTOR MOUNTING, LH

mainG237203010iBEAG11202412

G92H0INVERTER ASSY, MOTOR CONTROL

mainG92H003020iBEAG11..L,N202412

mainG92H003030iBEAG11..F,G202412

90105C0437

main90105-C0437

90105C0444

main90105-C0444

90105C0446

main90105-C0446

90105WX019

main90105-WX019

90119C0494

main90119-C0494

90119C0516

main90119-C0516

90178C0138

main90178-C0138

90301C0089

main90301-C0089

90301C0090

main90301-C0090

90301C0091

main90301-C0091

90311C0065

main90311-C0065

90341C0026

main90341-C0026

90430C0012

main90430-C0012

90930C3023

main90930-C3023

24 parts on this diagram · 1 diagram in section
