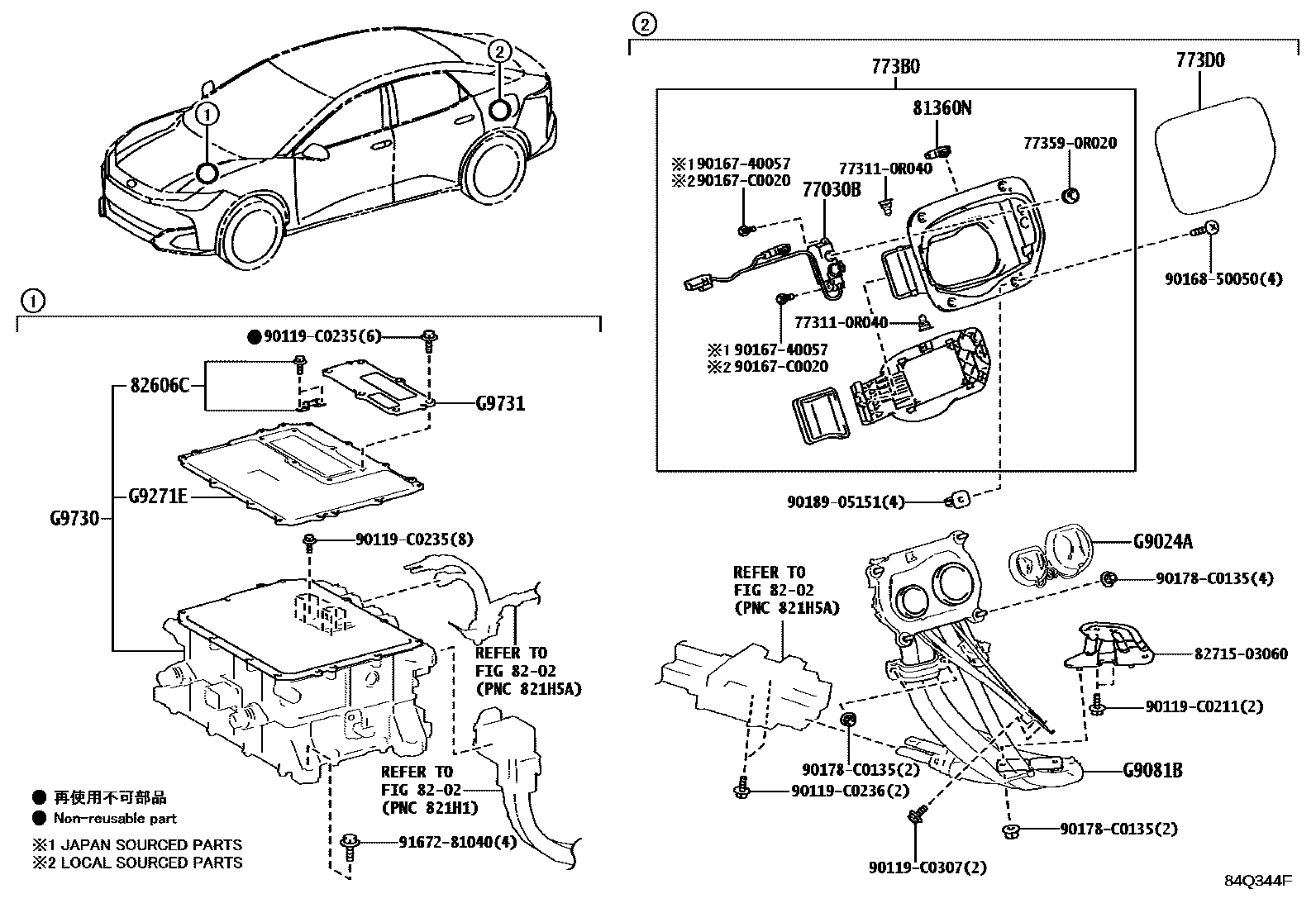

DC/DC CONVERTER & CHARGER(BEV OR FCEV)

0001 1 0002 1

77030BLOCK ASSY, CHARGE LID W/MOTOR

main77030-03010iBEJG10202301

773B0BOX ASSY, CHARGE INLET, LH

main773B0-03010iBEAM10202301-202404

main773B0-03011iBEJG10202404

773D0LID ASSY, CHARGE INLET, LH

main773D0-32010iBEAM10202301

81360NLAMP ASSY, SPOT

main81360-0R010iBEJG10202404

main81360-47010iBEAM10202301-202404

8202WIRING & CLAMP

→ Go to FIG 82-02

82606CFUSE SET

main82606-03160iBEJG10202301

G9024ACAP SET, CHARGE INLET

mainG902403010iBEAM10202301

G9081BINLET SUB-ASSY, EV CHARGER W/CABLE

mainG908103010iBEAM10202301-202407

mainG908103011iBEJG10202407

G9271ECOVER, CONVERTER

mainG927103010iBEAM10202301

mainG927103020iBEJG10202407

G9730UNIT ASSY, ELECTRIC CONVERTER

mainG973003010iBEAM10202301

mainG973003011iBEJG10202407

G9731COVER, TERMINAL, NO.1

mainG973103010iBEJG10202301

773110R040CAP, FUEL TANK

main77311-0R040

773590R020CUSHION, FUEL INLET BOX COVER

main77359-0R020

8271503060BRACKET,WIRING HARNESS CLAMP

main82715-03060

90119C0211

main90119-C0211

90119C0235

main90119-C0235

90119C0236

main90119-C0236

90119C0307

main90119-C0307

9016740057

main90167-40057

90167C0020

main90167-C0020

9016850050

main90168-50050

90178C0135

main90178-C0135

9018905151

main90189-05151

9167281040

main91672-81040

24 parts on this diagram · 2 diagrams in section
