WIRING & CLAMP

0001 1MOTOR ROOM 0002 1INSTRUMENT PANEL 0003 1DOOR 0004 1FLOOR & ROOF 0005 1HIGH TENSION CABLE 0006 1SEAT 0007 1CLAMP & BRACKET

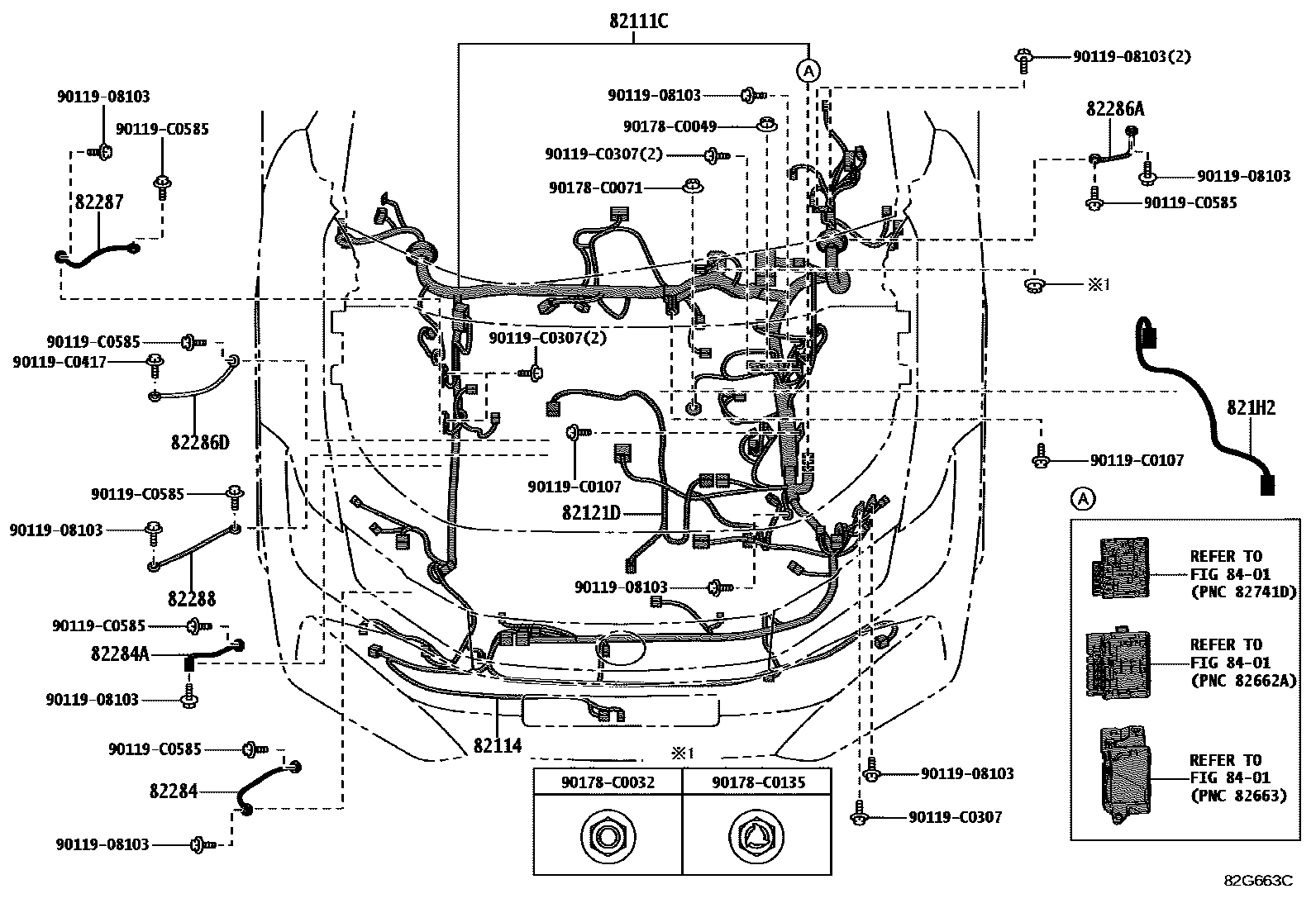

82111CWIRE, FRONT COMPARTMENT, MAIN

main82111-03060supersedes 82111-03040iBEAM10..J202301

SAFETY PACKAGE

main82111-03160supersedes 82111-03140iBEJG10..J202407

SAFETY PACKAGE

main82111-03170iBEJG10..H202407

82114WIRE, ENGINE ROOM, NO.4

main82114-03050iBEAM10..J202301-202306

SAFETY PACKAGE

main82114-03051supersedes 82114-03041iBEAM10..J202307

SAFETY PACKAGE

main82114-03140supersedes 82114-03041iBEJG10..J202407

SAFETY PACKAGE

main82114-03150iBEJG10..H202407

main82114-03180iBEJG10..M202407

TAXI PACKAGE

82121DWIRE, MOTOR

main82121-03040iBEAM10202301-202406

main82121-03041iBEAM10202407

821H2WIRE, HV AIR CONDITIONER

main821H2-03010iBEJG10202407

82284WIRE, EARTH

main82286-03010iBEAM10202301

main82286-03180iBEJG10202407

82284AWIRE, EARTH NO.2

main82286-03020iBEJG10202407

82286AWIRE, EARTH, NO.2

main82286-03030iBEAM10202301

main82286-03170iBEJG10202407

82286DWIRE, EARTH, NO.5

main82286-03060iBEJG10202407

82287WIRE, EARTH, NO.3

main82286-03040iBEJG10202407

82288WIRE, EARTH NO.4

main82286-03050iBEJG10202407

8401

9011908103

main90119-08103

90119C0107

main90119-C0107

90119C0307

main90119-C0307

90119C0417

main90119-C0417

90119C0585

main90119-C0585

90178C0032

main90178-C0032

90178C0049

main90178-C0049

90178C0071

main90178-C0071

90178C0135

main90178-C0135

20 parts on this diagram · 7 diagrams in section
