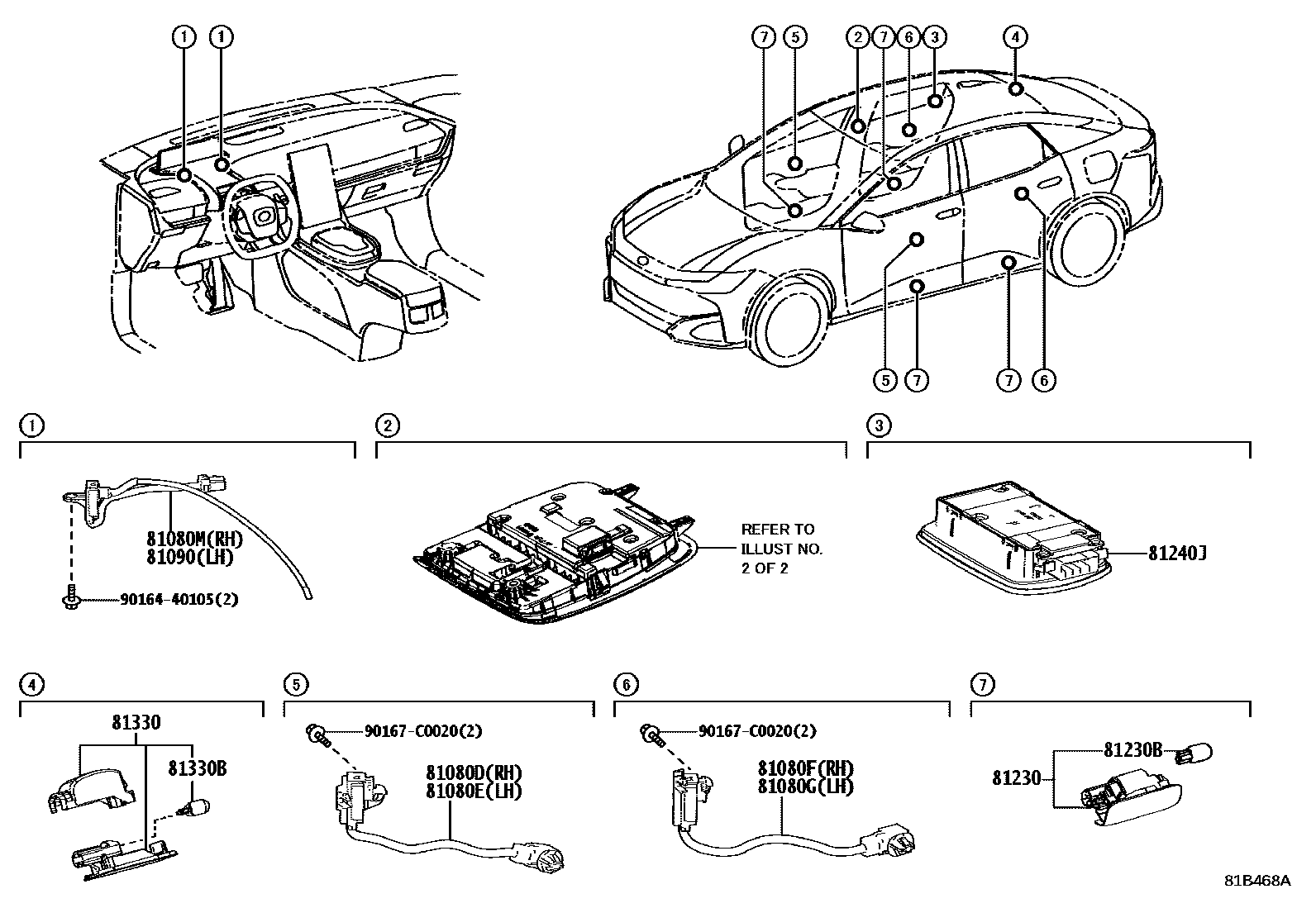

INTERIOR LAMP

0001 1 0002 1 0003 1 0004 1

81080DLAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, RH

main81080-03020iBEJG10..H,J202407

WHITE ADVANCED PACKAGE

81080ELAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, LH

main81080-03040iBEJG10..H,J202407

WHITE ADVANCED PACKAGE

81080FLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, RH

main81080-03050iBEJG10..H,J202407

WHITE ADVANCED PACKAGE

81080GLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, LH

main81080-03060iBEJG10..H,J202407

WHITE ADVANCED PACKAGE

81080MLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-03030iBEAM10..J202301

ADVANCED PACKAGE

81090LAMP ASSY, INTERIOR ILLUMINATION, NO.2

main81090-03010iBEAM10..J202301

ADVANCED PACKAGE

81230LAMP ASSY, COURTESY

main81230-0E040×2iBEJG10202407

main81230-30200×4iBEAM10202301-202404

81230BBULB(FOR COURTESY LAMP)

main90981-12010×4iBEAM10202301-202404

12V 5W

81240JLAMP ASSY, ROOM

main81240-03020-B0iBEJG10202407

LT.GRAY,TRIM0#,2#

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81250-30210iBEAM10202301-202404

main81330-0E020iBEJG10202407

81330BBULB, LUGGAGE COMPARTMENT LAMP

main99132-12050iBEAM10202301-202404

12V 5W

9016440105

main90164-40105

90167C0020

main90167-C0020

13 parts on this diagram · 4 diagrams in section
